Rugged Rustic 3 Bedroom Home Plan
Heated S.F.
2,234
Beds
3
Baths
2.5
Stories
1-2
Cars
2
Plan Details
  • This house plan is equally well suited in the mountains or by the water, and is part of a popular plan family that has been a real pleaser.
  • The rustic exterior of stone and wood has attractive decorative wood trusses and a covered front porch. In back, there are great outdoor spaces including the covered lanai, barbecue porch and uncovered patio.
  • Inside, the family room takes center stage and has access to the the lanai via the angled door in the nook. A fireplace adds a nice touch.
  • The kitchen has views to the back and a large pantry plus counter seating.
  • The master is privately located in the back corner and has direct patio access. Two bedrooms share a bath across the home.
  • The office serves as a flex room and is the quietest place in the home.
  • Expand upstairs if you need more space. Or, save that for the future.
  • Related Plans: Downsize with house plans 16801WG (1,848 sq. ft.), 16800WG (2,091 sq. ft.), 16850WG (2,106 sq. ft.) and 16852WG (1,764 square feet).
  • And get more room and a 3-car garage with house plan 16851WG (2,847 sq. ft.) and 16860WG (2,495 sq. ft.).
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rugged Rustic 3 Bedroom Home Plan

  • 2,234

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

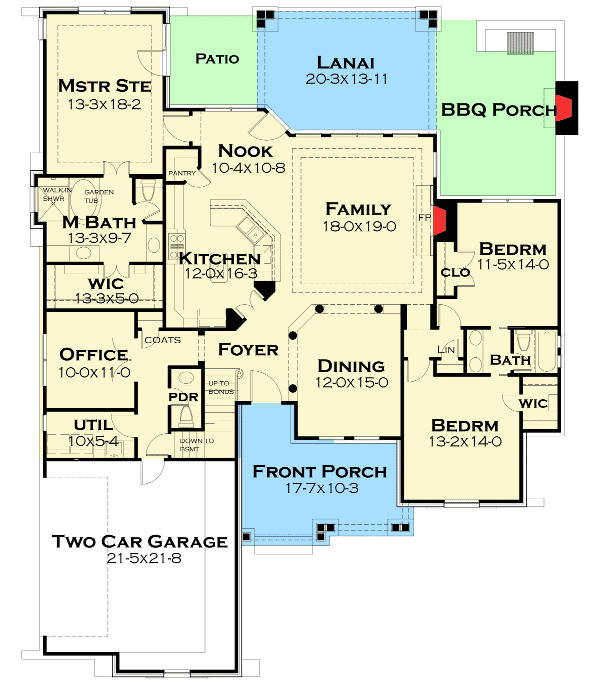

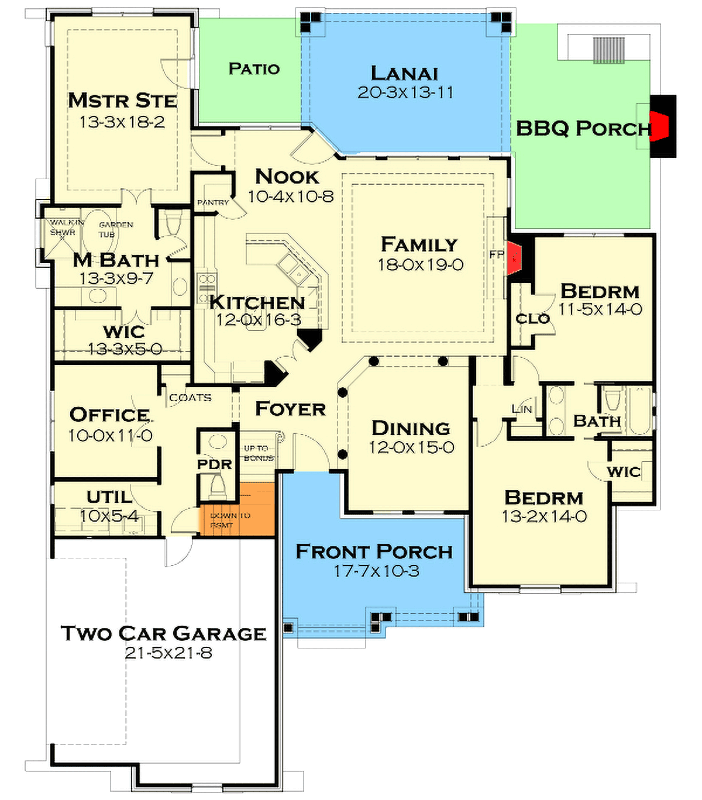

Floor Plan

  • Main Level

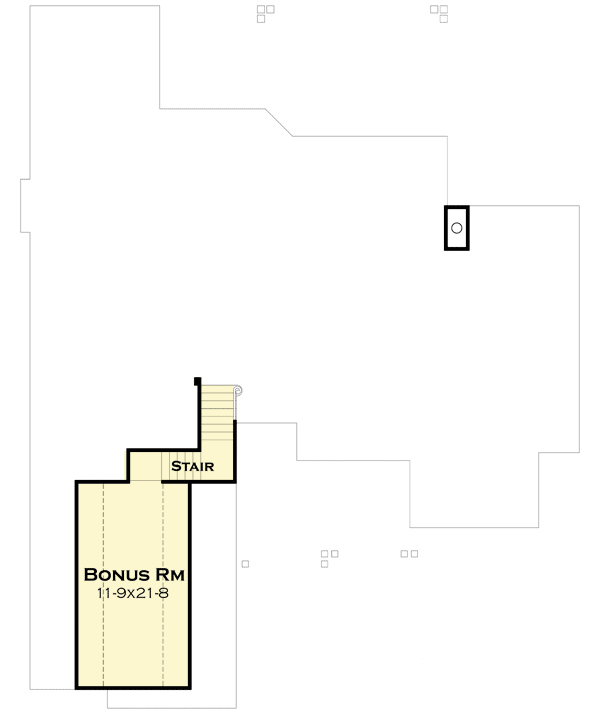

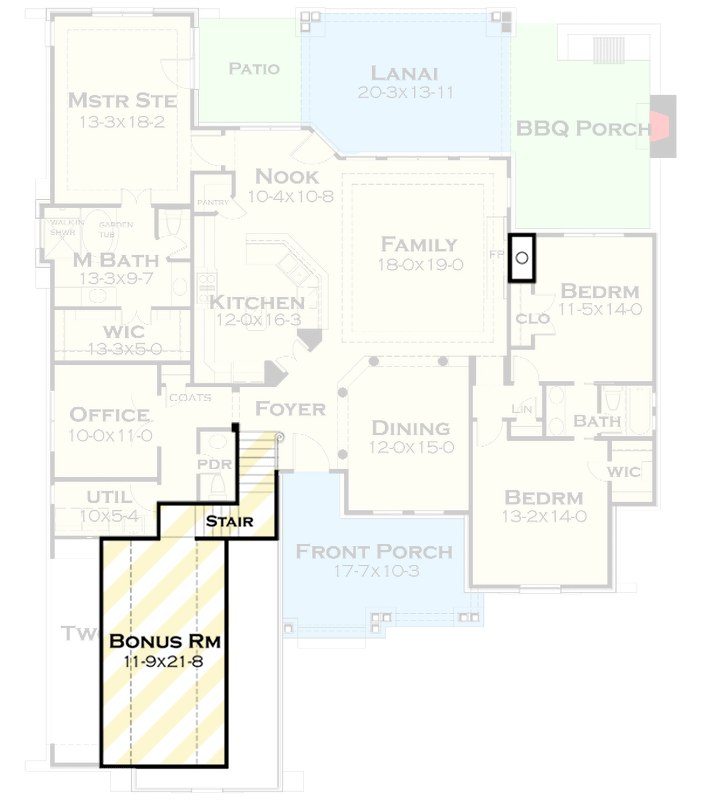

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,234 sq. ft.
  • 1st Floor: 2,234 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 75' 10"
  • Max ridge height: 21' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 512 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
