Plan 9807SW
Rustic Retreat
Heated S.F.
1,550
Beds
3-5
Baths
2.5 - 3.5
Stories
2
What's Included
Plan Details
  • The partially covered rear wrap-around deck encourages expanded family activity in an already open floor plan.

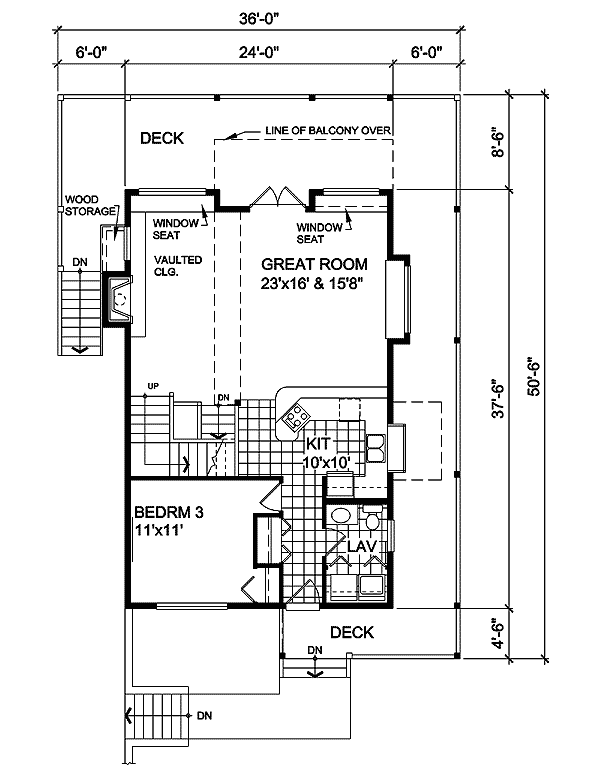

  • On the main level, the large and open u-shaped kitchen has a raised breakfast bar and is open to the great room that has a huge fireplace. There is also a bedroom and combination bathroom/laundry room.

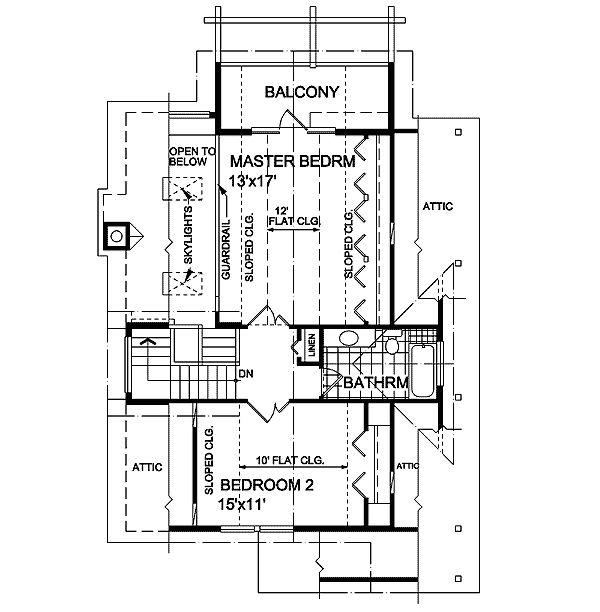

  • The second floor bedrooms share a full bath.

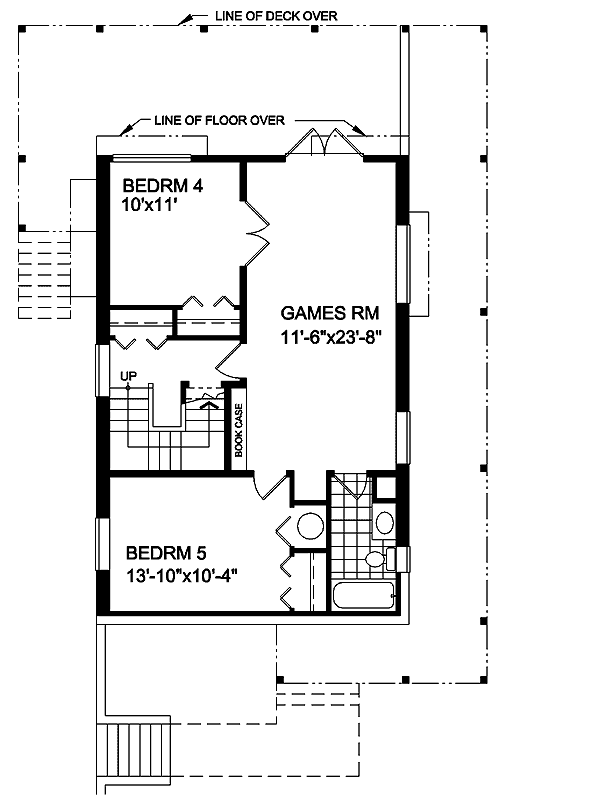

  • This daylight basement design contains optional plans for two additional bedrooms, a shared bathroom and multi-purpose recreation room with patio access. The separate private entrance easily transforms this level into a home office or business space.
  • Ceilings: 8' first floor; 10' and 12' second floor.
  • Related Plans: Get an alternate layout with house plan 9812SW (1,370 sq. ft.) and 9833SW (1,538 sq. ft.). Also see these related house plans: 9801SW, 9805SW, 9808SW and 9810SW.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required

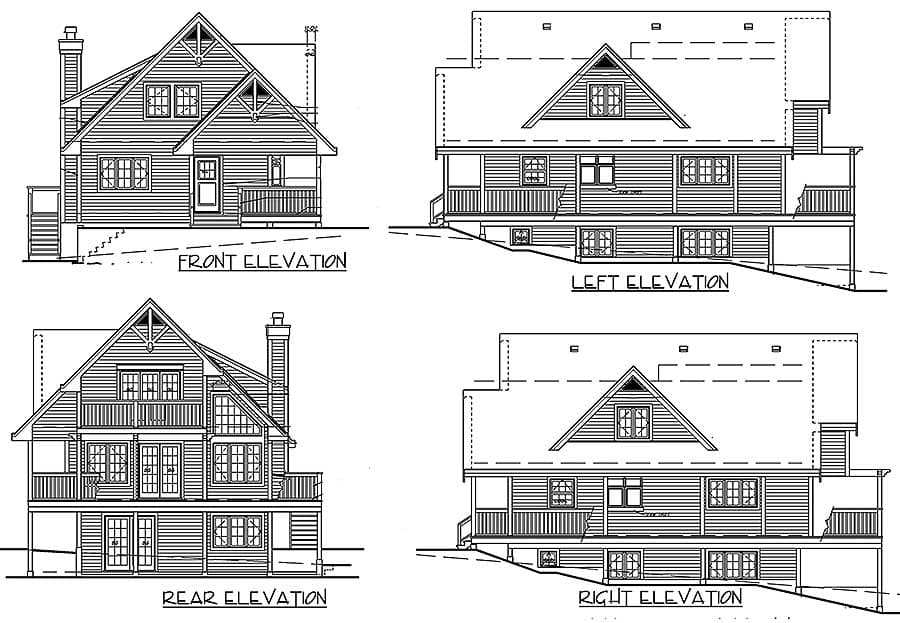

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Rustic Retreat

  • 1,550

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

Floor Plan

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,550 sq. ft.
  • 1st Floor: 864 sq. ft.
  • 2nd Floor: 686 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 50' 6"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
