Plan 9801SW

  • 1,154

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • An economical footprint is further enhanced with an expansive 10' deep partially covered sundeck, promoting a multitude of outdoor activities and capturing the rear view.

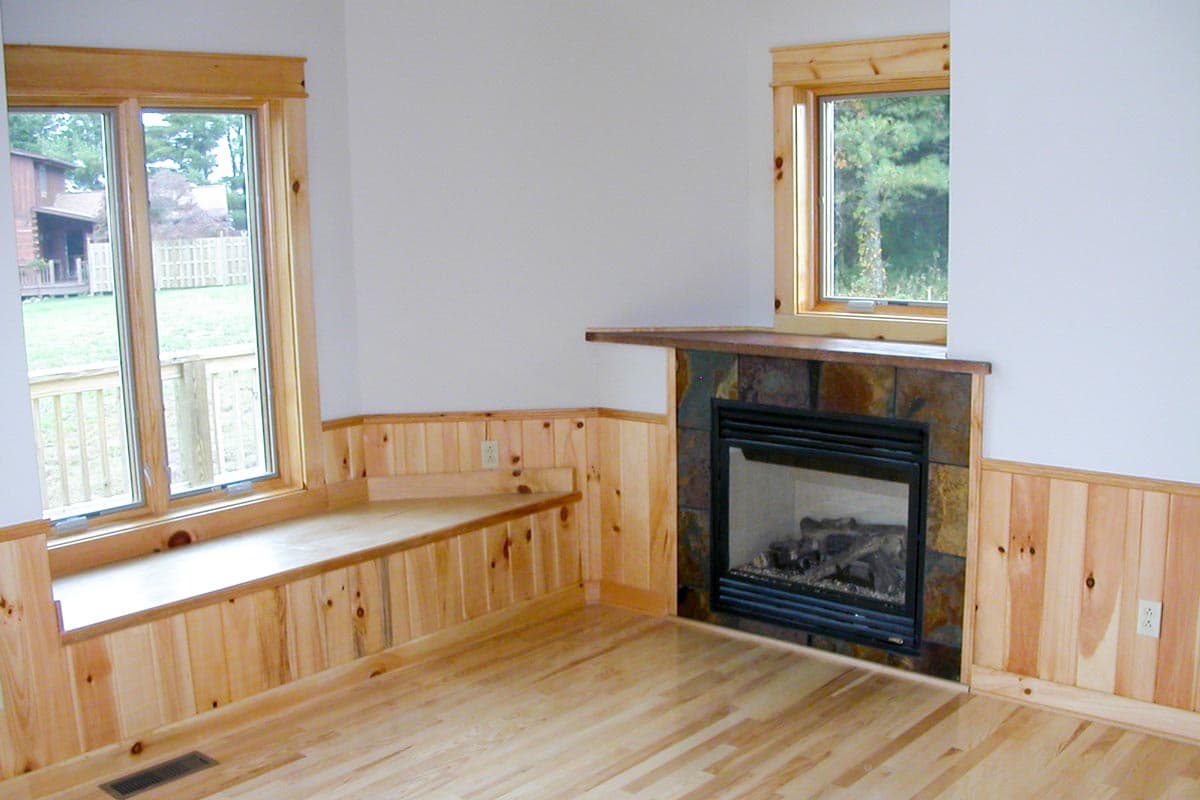

  • Window seats in the sitting / dining areas are warmed by the wood stove and encourages cozy indoor moments.
  • The U-shaped kitchen is brightened with a greenhouse window, perfect for plant enthusiasts.
  • The second story art studio boasts a voluminous 13' high sloped ceiling, open to the sitting room below and the outdoors via a covered balcony.
  • Related Plans: Get more room with house plans 9812SW (1,370 sq. ft.) and 9833SW (1,538 sq. ft.).
  • Also see these related house plans: 9805SW, 9807SW, 9808SW and 9810SW.

Each plan set includes the following:


Cover sheet with rendering
General notes and specifications
Foundation plan
Fully dimensioned floor plan - windows are called out as generic sizes
Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
Electrical
Cross sections
Details as required
All four elevations

Plans do not include interior cabinet elevations or separate window schedules

Floor Plan

Main Level

Pinit white
Reverse Floor Plan

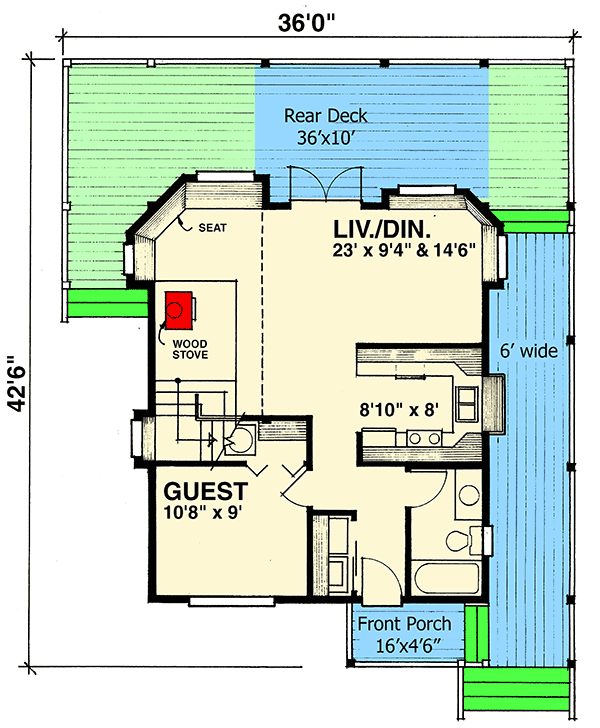

Designed to Capture Views - 9801SW floor plan - Main Level

2nd Floor

Pinit white
Reverse Floor Plan

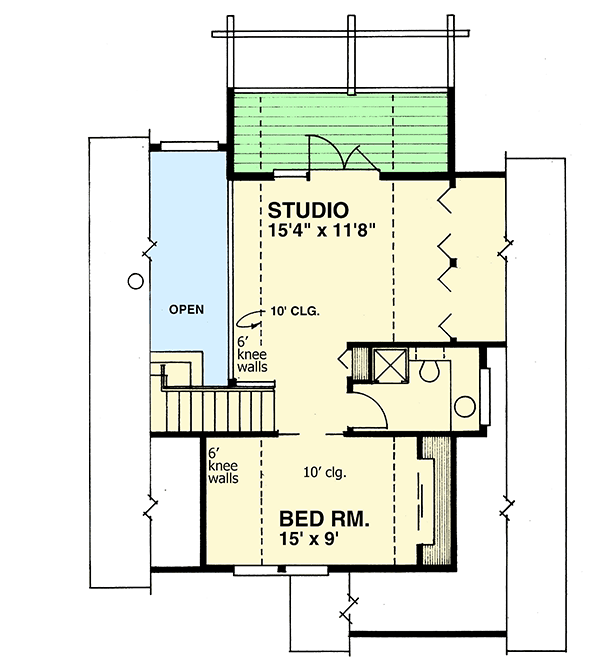

Designed to Capture Views - 9801SW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,154 sq. ft.
  • 1st Floor: 672 sq. ft.
  • 2nd Floor: 482 sq. ft.
  • Porch, Combined: 240 sq. ft.
  • Deck: 96 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 42' 6"
  • Max ridge height: 25' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Designed to Capture Views

  • 1,154

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $525
  • 8 Sets $575
  • Reproducible Set $725
  • PDF - single-use $725
  • View all purchase option online

About This Plan

  • An economical footprint is further enhanced with an expansive 10' deep partially covered sundeck, promoting a multitude of outdoor activities and capturing the rear view.
  • Window seats in the sitting / dining areas are warmed by the wood stove and encourages cozy indoor moments.
  • The U-shaped kitchen is brightened with a greenhouse window, perfect for plant enthusiasts.
  • The second story art studio boasts a voluminous 13' high sloped ceiling, open to the sitting room below and the outdoors via a covered balcony.
  • Related Plans: Get more room with house plans 9812SW (1,370 sq. ft.) and 9833SW (1,538 sq. ft.).
  • Also see these related house plans: 9805SW, 9807SW, 9808SW and 9810SW.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,154 sq. ft.
  • 1st Floor: 672 sq. ft.
  • 2nd Floor: 482 sq. ft.
  • Porch, Combined: 240 sq. ft.
  • Deck: 96 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 42' 6"
  • Max ridge height: 25' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Plan 9801SW
View this and more for this plan by visiting www.architechtecturaldesigns.com/9801SW
|
Need Help? 800-854-7852
|
