Charming Vacation Cottage

Plan 9810SW

1,286
Heated s.f.
2
Beds
2
Baths
2
Stories

With a deck, veranda and balcony adding outdoor living space, this charming vacation home feels larger than its 1,286 square feet.
Enjoy the large great room, kitchen and dining area with a window seat and double doors leading to the deck.
Room for guests on the first floor includes a bath and washer/dryer area.
On the upper level, the homeowners have vaulted ceilings, a private balcony, a walk-in closet (this measures 11'8" by 4'8" with 10" deep shelves by 6' wide) and their own bath with room for a whirlpool tub.
Related Plans: Get more room with house plan 9811SW (1,904 sq. ft.) and 9833SW (1,538 sq. ft.).
For an alternate layout, see house plan 9812SW.
Also see these related house plans: 9801SW, 9805SW, 9807SW and 9808SW.

Each plan set includes the following:

Cover sheet with rendering

General notes and specifications

Foundation plan

Fully dimensioned floor plan - windows are called out as generic sizes

Structural floor/roof information either on the floor plans or separate framing plans for more complex designs

Electrical

Cross sections

Details as required

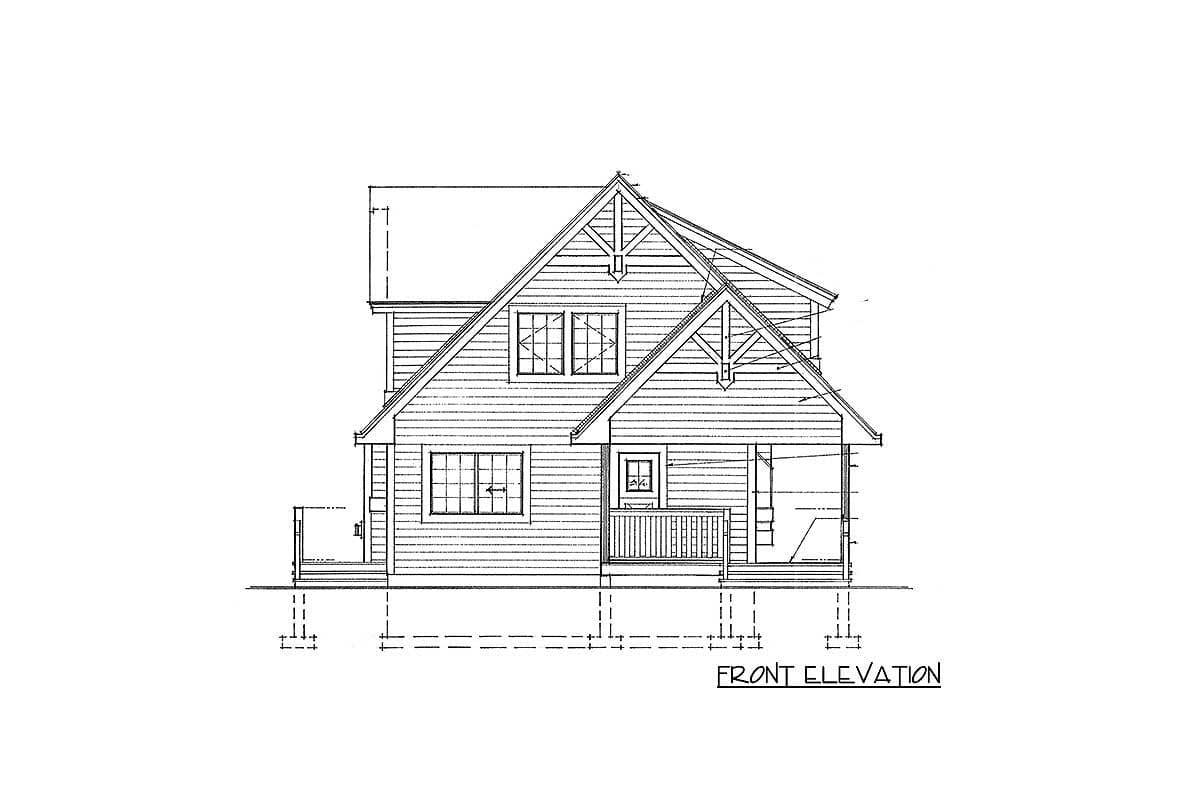

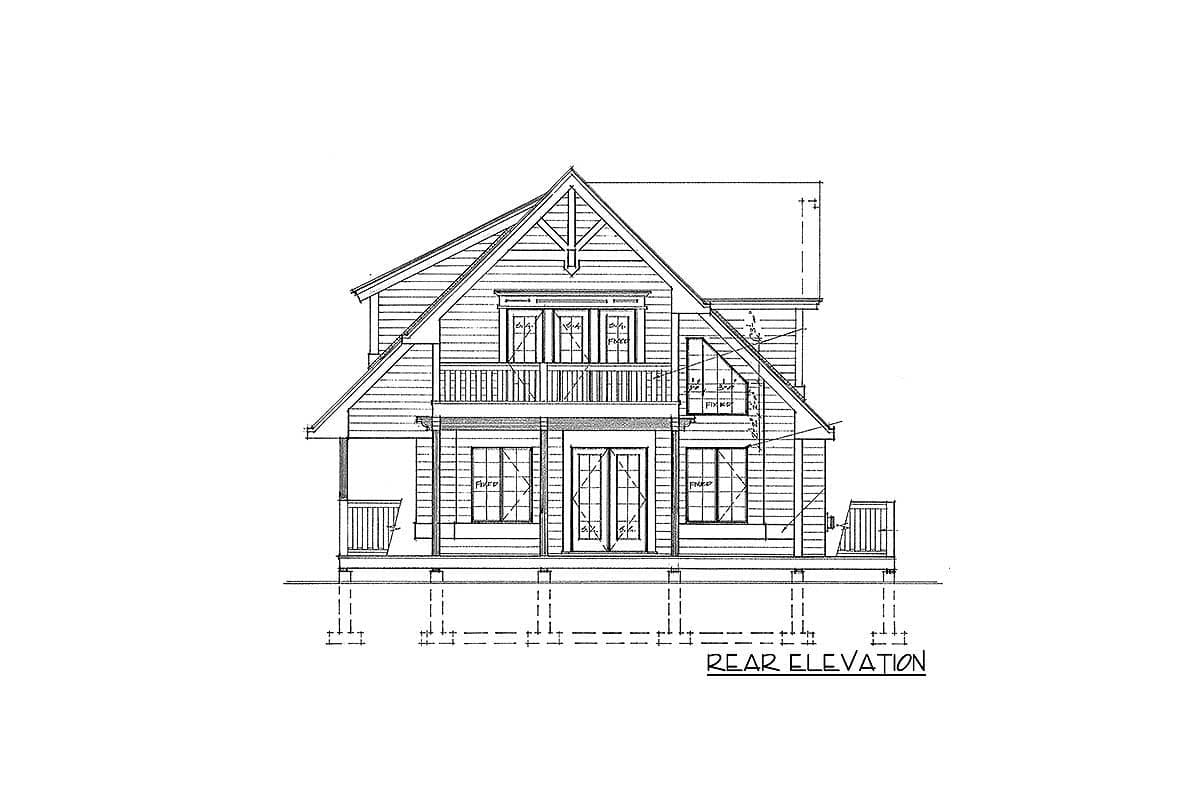

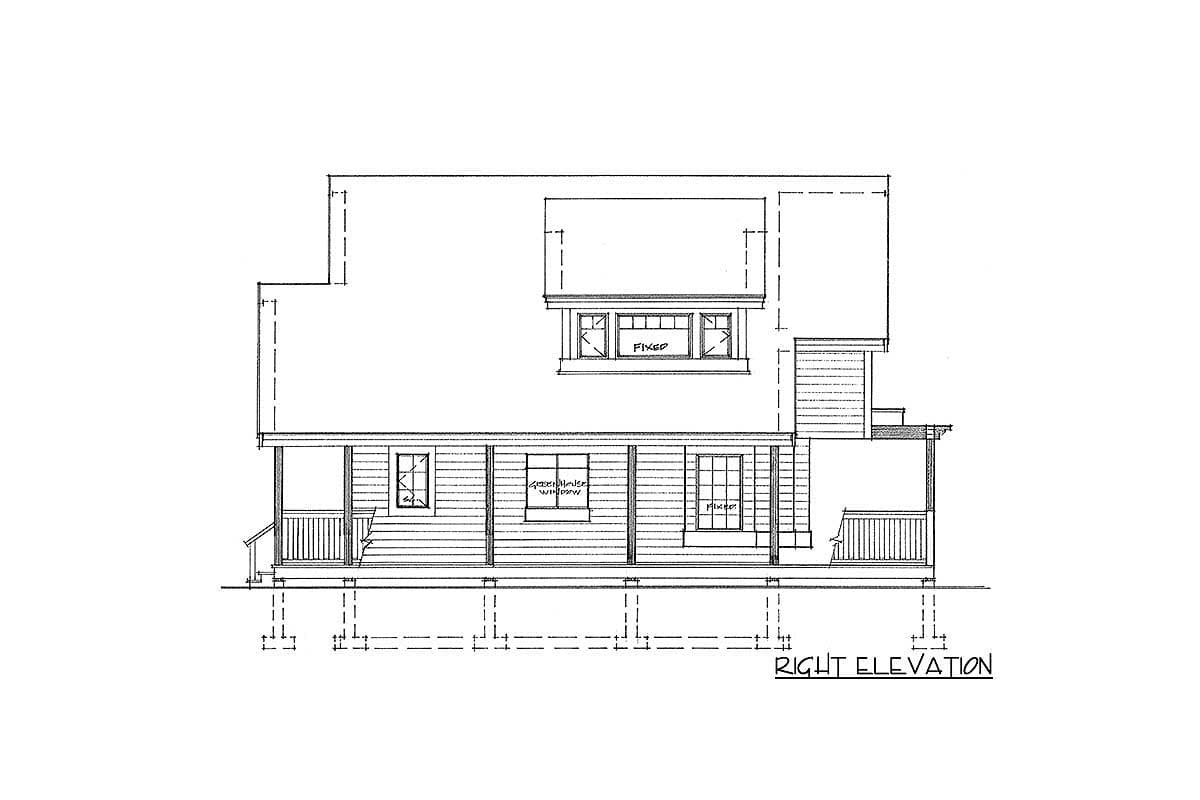

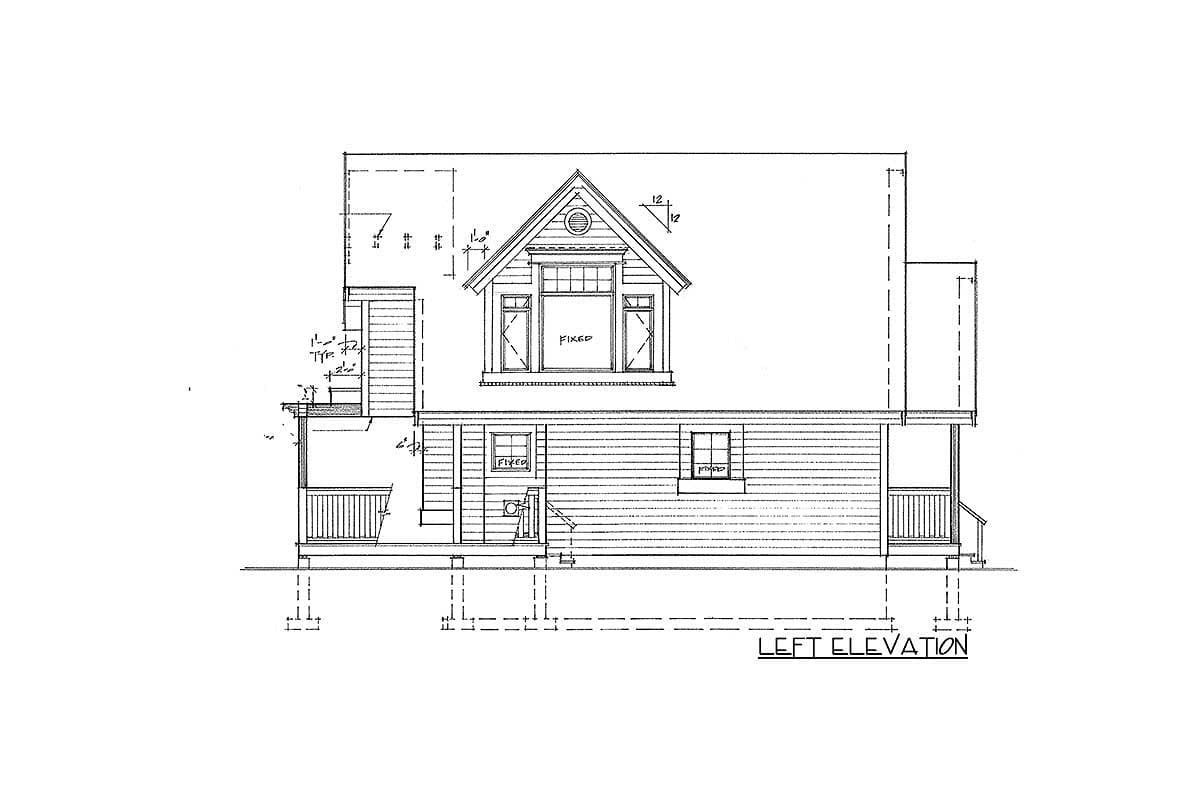

All four elevations

Plans do not include interior cabinet elevations or separate window schedules

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

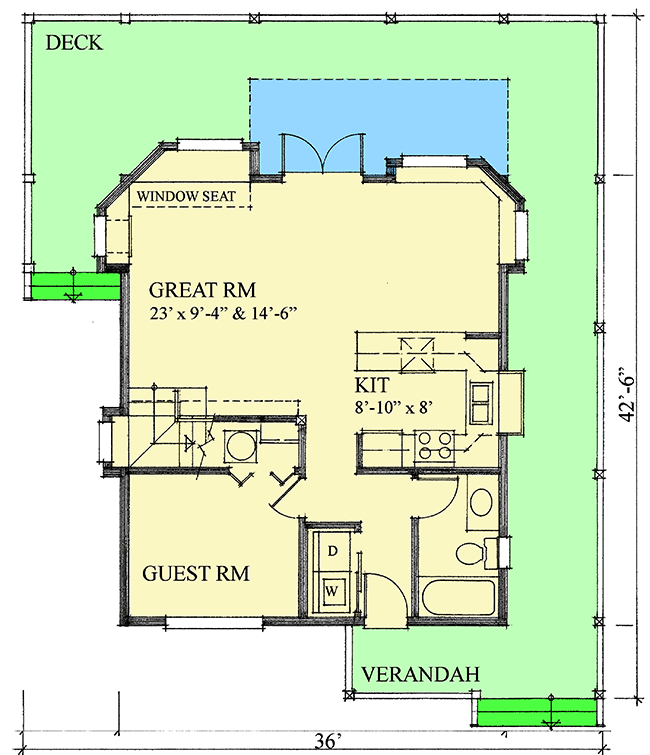

Charming Vacation Cottage - 9810SW floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

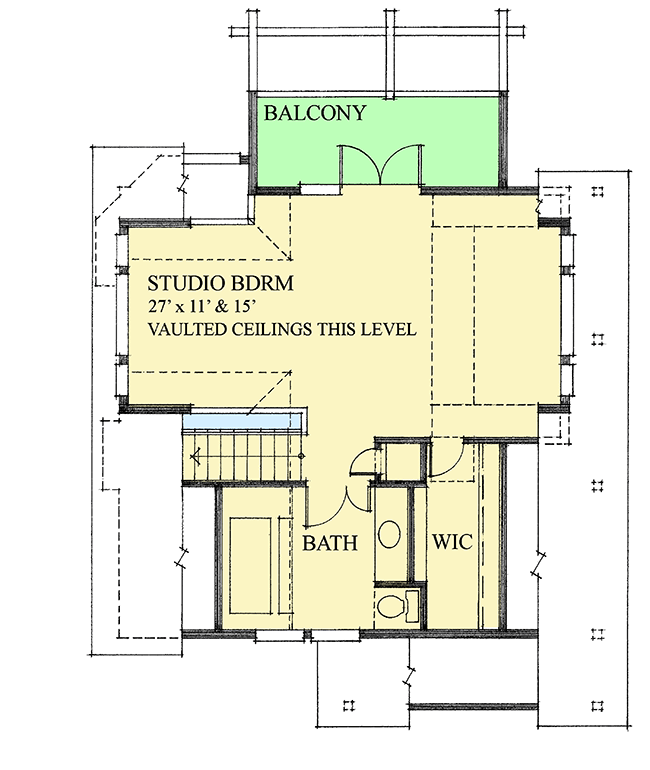

Charming Vacation Cottage - 9810SW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,286 sq. ft.
1st Floor: 672 sq. ft.
2nd Floor: 614 sq. ft.

Porch, Combined: 72 sq. ft.
Balcony / Veranda: 96 sq. ft.
Deck: 564 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 2

Foundation Type

Standard Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 36' 0"
Depth: 42' 6"
Max ridge height: 25' 0"

Ceiling Heights

Floor / Height: First Floor / 8' 0" Second Floor / 10' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 6 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections
