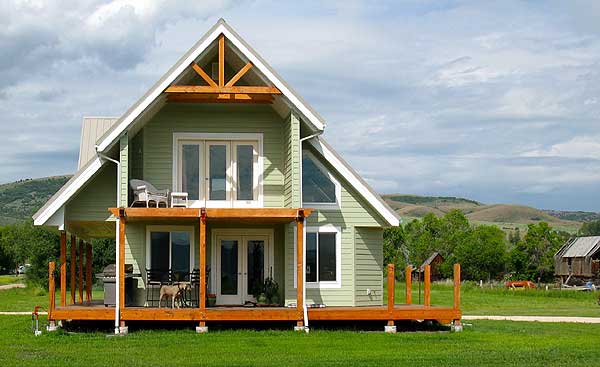

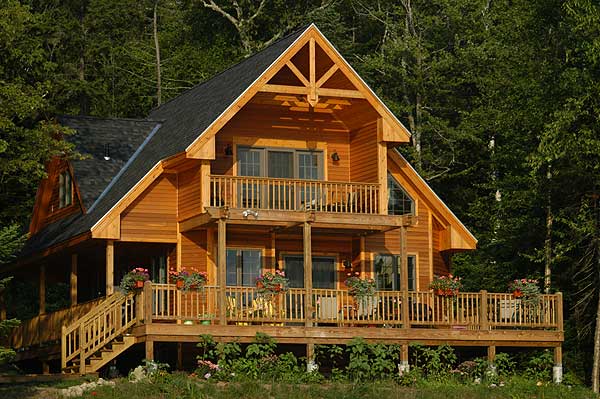

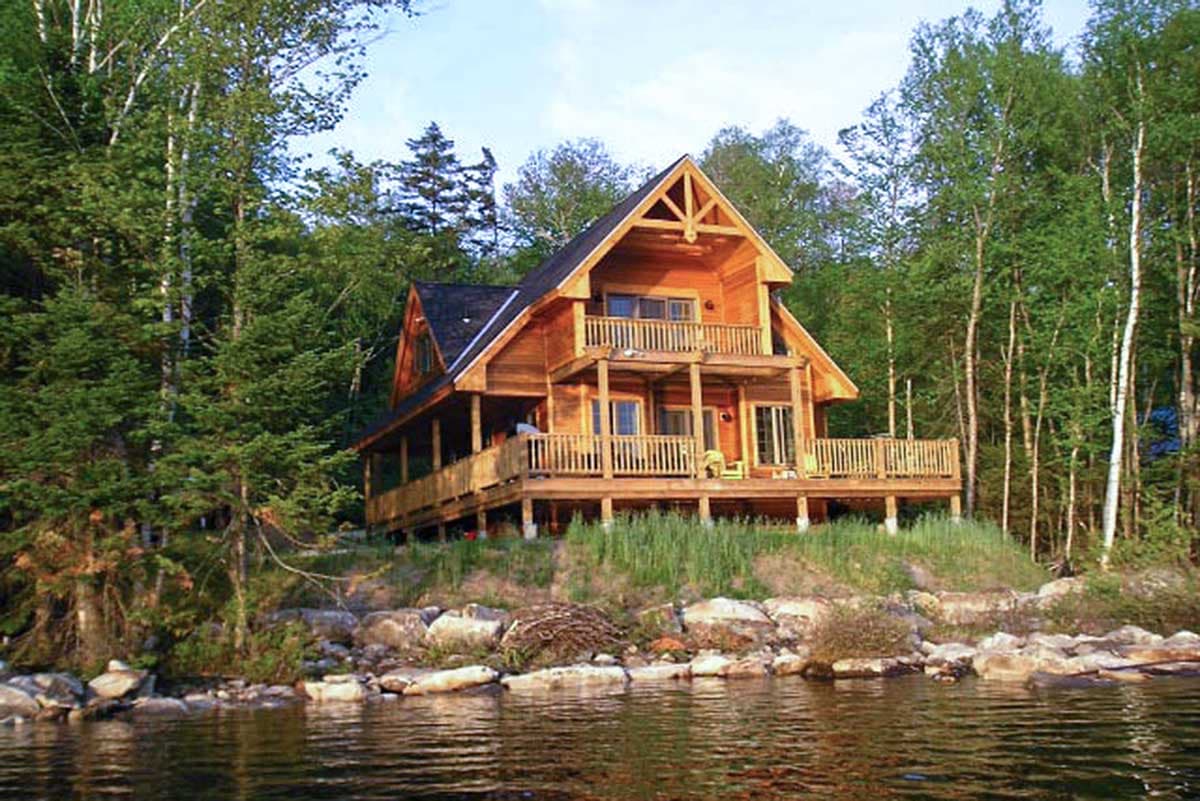

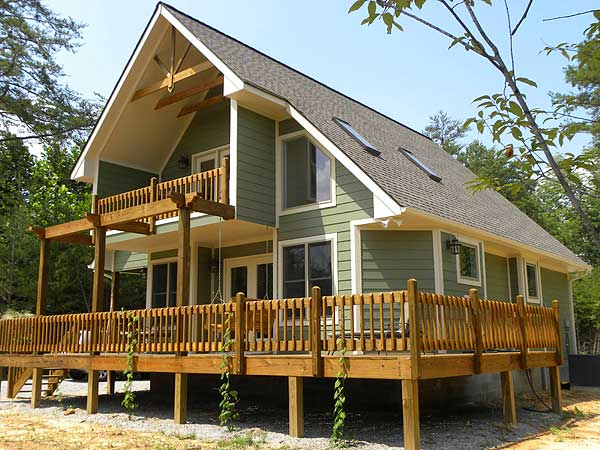

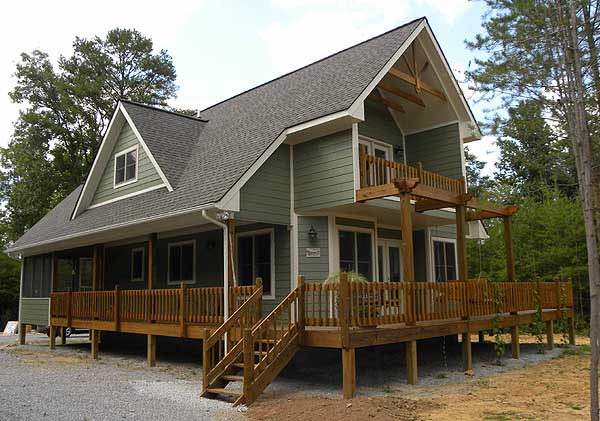

  • This separated three bedroom vacation retreat boasts a warming gas fireplace in the great room that opens up to an inviting wrap around multi purpose deck through double French doors.

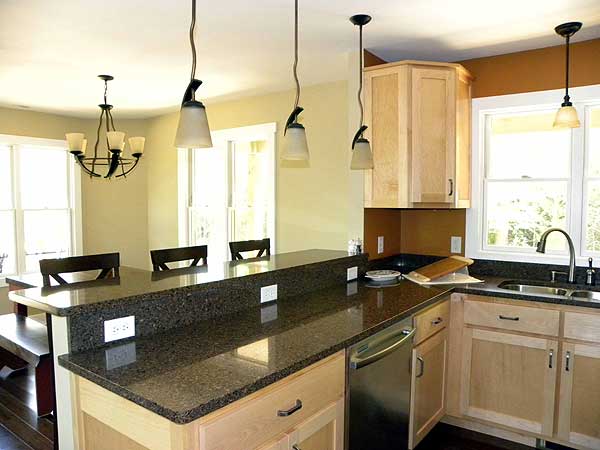

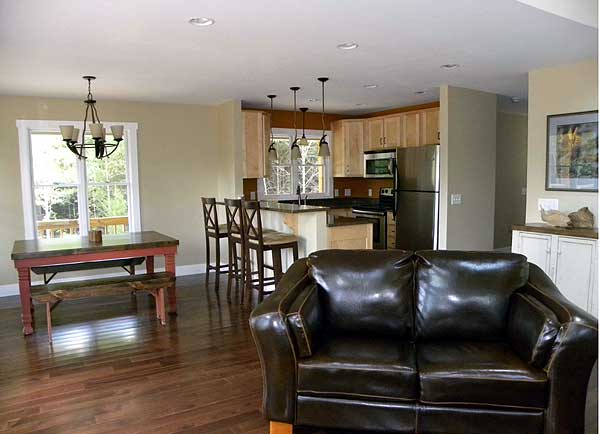

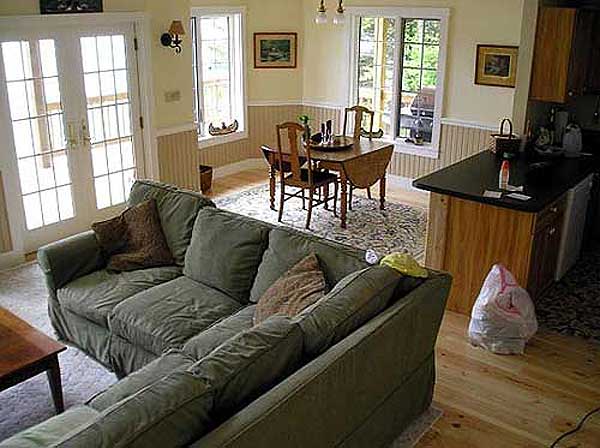

  • With the entire kitchen being open to the great room it makes this a truly open and expansive versatile year round living space.

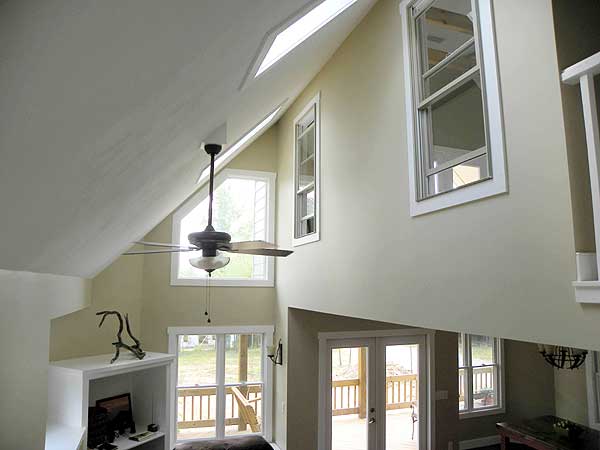

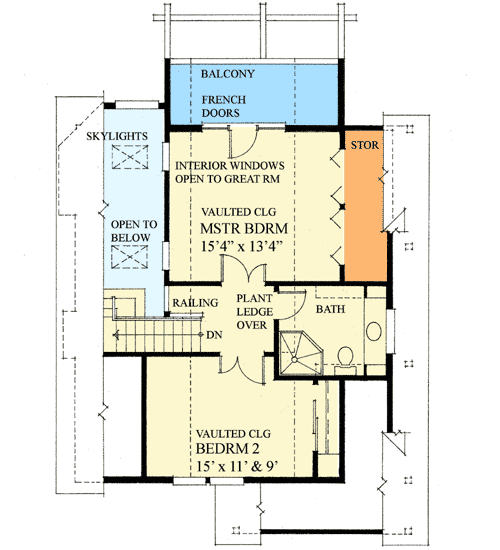

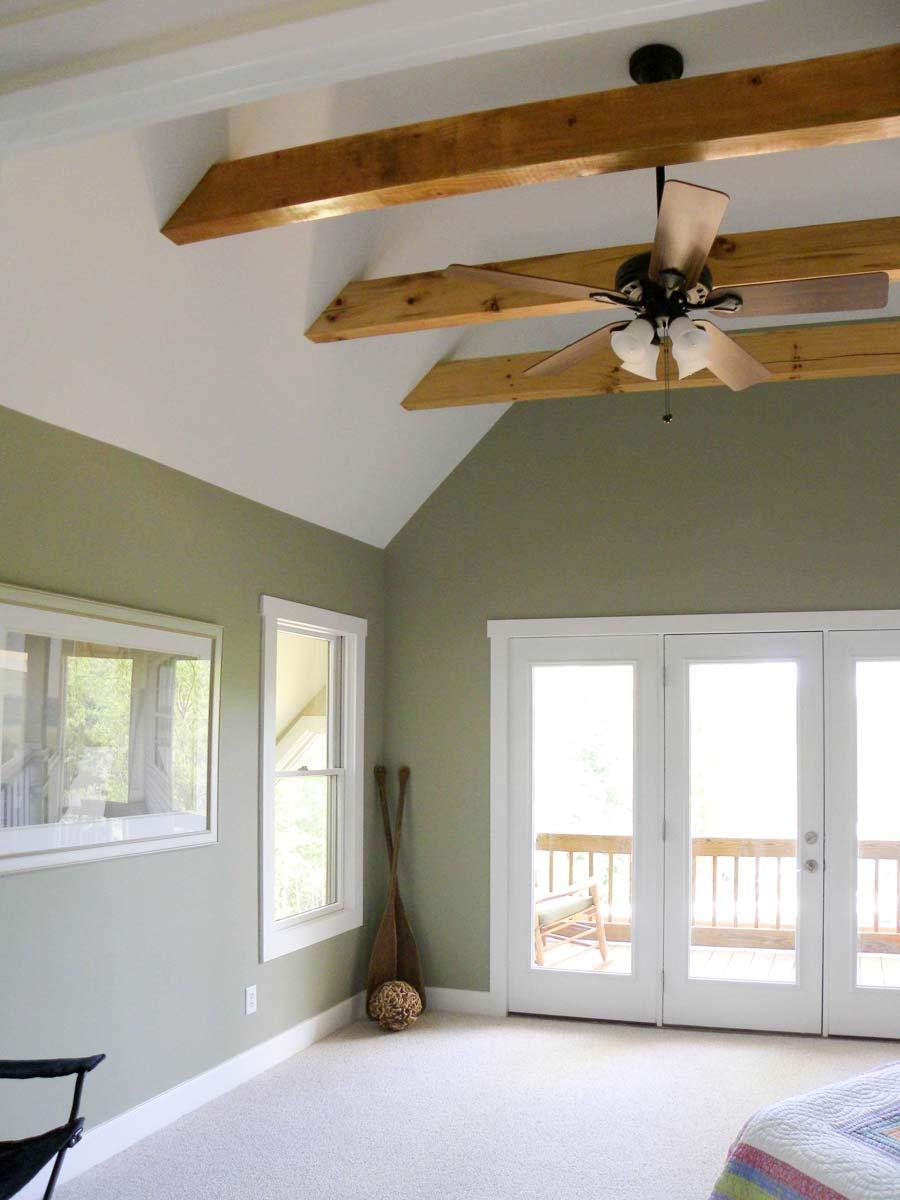

  • The upstairs master bedroom has two interior functionally opening windows that overlook the great room below creating a unique look and feel to this suite. Two skylights aligned with these windows flood this area with natural warming light. A private secluded personal balcony is accessed via triple French doors for those quiet reflective moments or sunset salutes.
  • Related Plans: Get more room with house plan 9833SW (1,538 sq. ft.) and 9808SW (1,644 sq. ft.).
  • Also see these related house plans: 9801SW, 9805SW, 9807SW and 9810SW.

Each plan set includes the following:


Cover sheet with rendering
General notes and specifications
Foundation plan
Fully dimensioned floor plan - windows are called out as generic sizes
Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
Electrical
Cross sections
Details as required

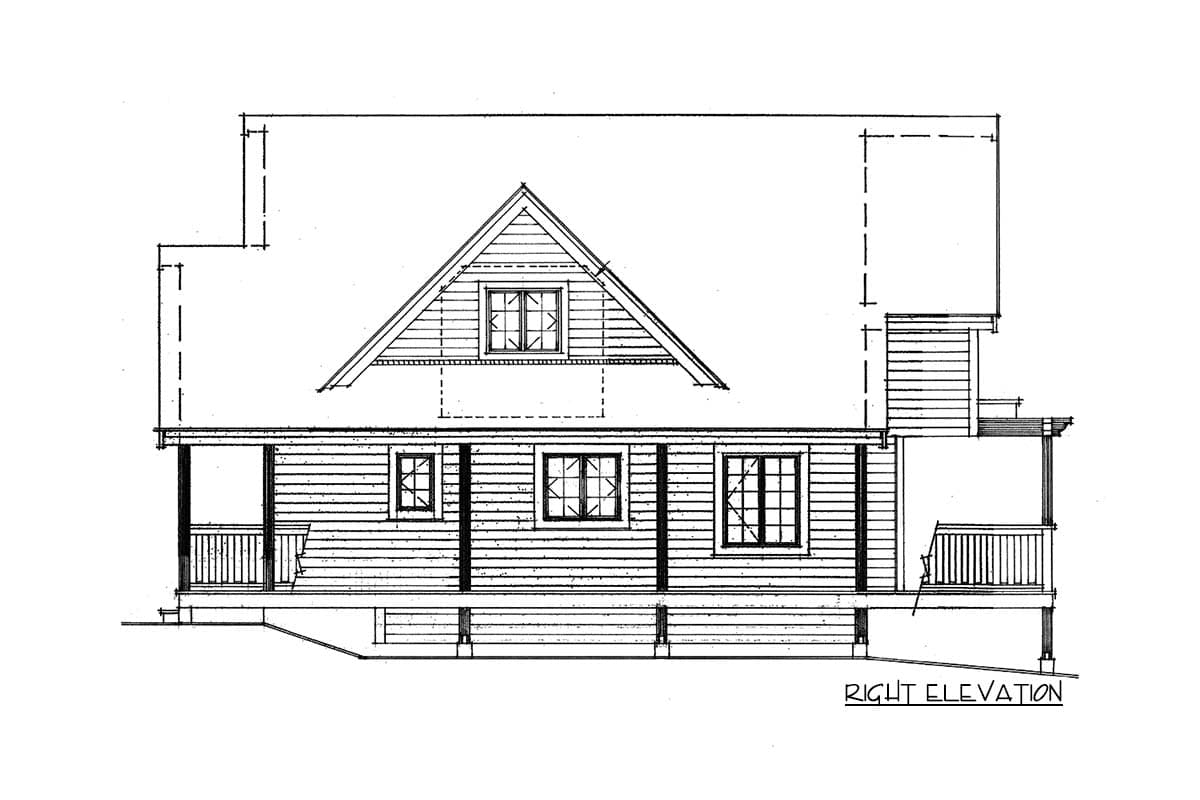

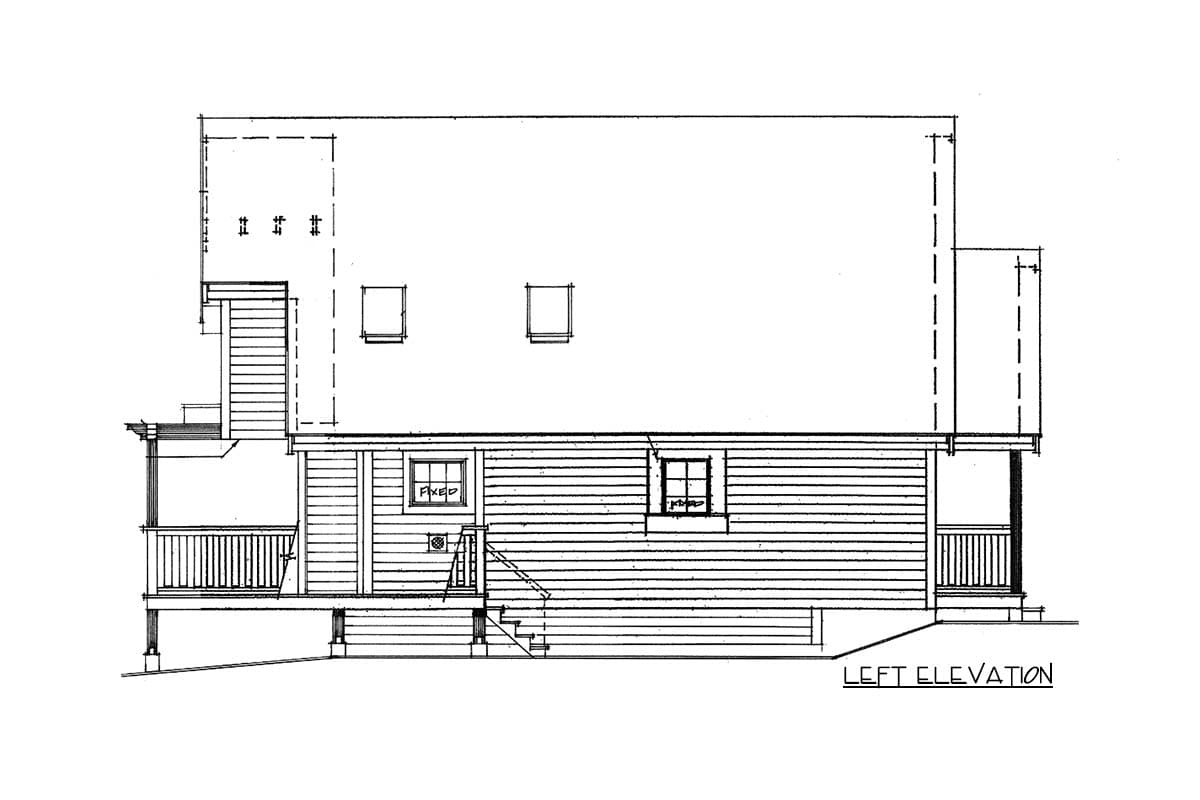

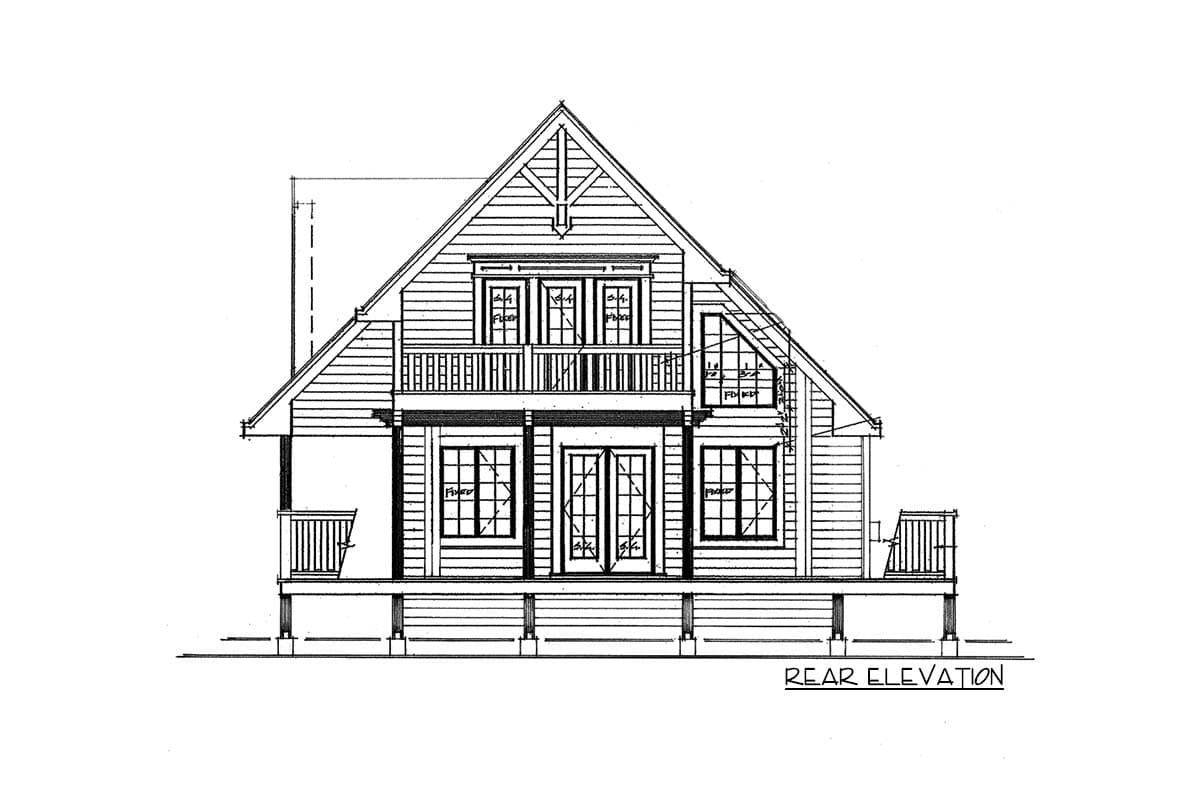

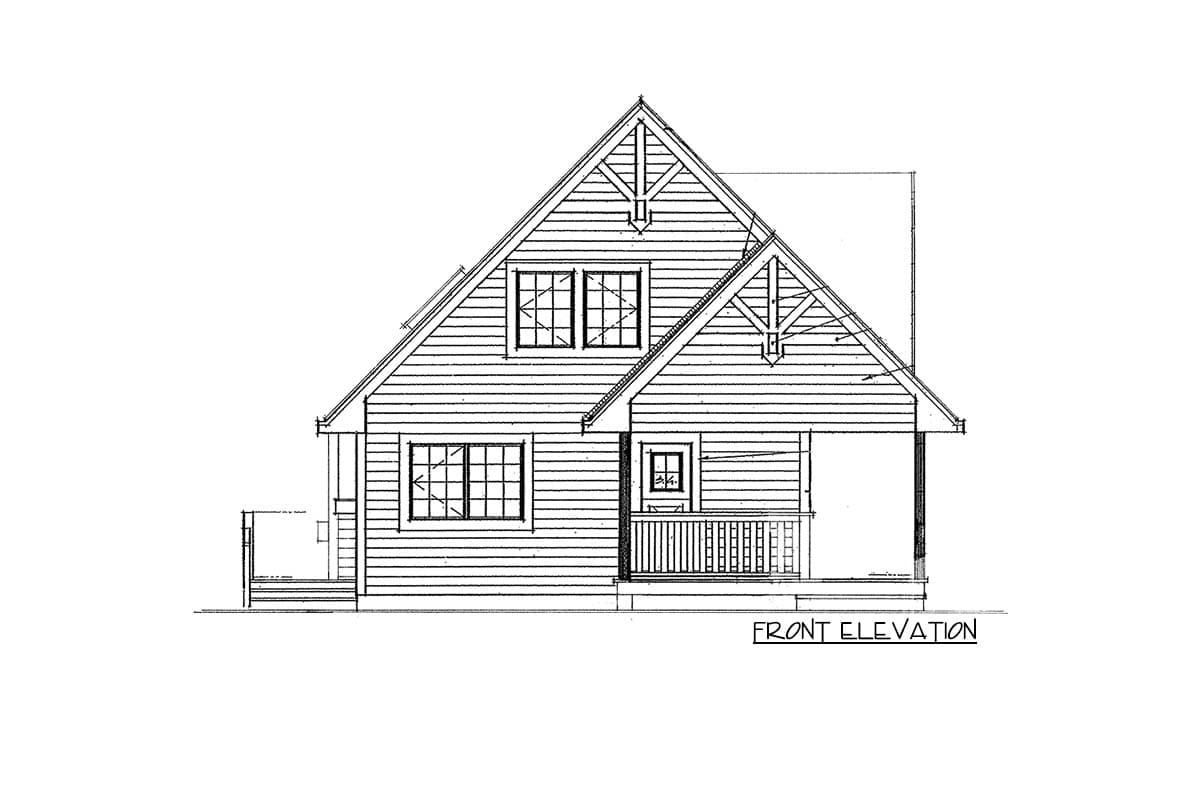

All four elevations

Plans do not include interior cabinet elevations or separate window schedules

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,370 sq. ft.
  • 1st Floor: 795 sq. ft.
  • 2nd Floor: 575 sq. ft.
  • Balcony / Veranda: 96 sq. ft.
  • Deck: 600 sq. ft.
  • Porch, Combined: 72 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 46' 6"
  • Max ridge height: 29' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Ultimate Retreat

  • 1,370

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $525
  • 8 Sets $575
  • Reproducible Set $725
  • PDF - single-use $725
  • View all purchase option online

About This Plan

  • This separated three bedroom vacation retreat boasts a warming gas fireplace in the great room that opens up to an inviting wrap around multi purpose deck through double French doors.
  • With the entire kitchen being open to the great room it makes this a truly open and expansive versatile year round living space.
  • The upstairs master bedroom has two interior functionally opening windows that overlook the great room below creating a unique look and feel to this suite. Two skylights aligned with these windows flood this area with natural warming light. A private secluded personal balcony is accessed via triple French doors for those quiet reflective moments or sunset salutes.
  • Related Plans: Get more room with house plan 9833SW (1,538 sq. ft.) and 9808SW (1,644 sq. ft.).
  • Also see these related house plans: 9801SW, 9805SW, 9807SW and 9810SW.

Floor Plans

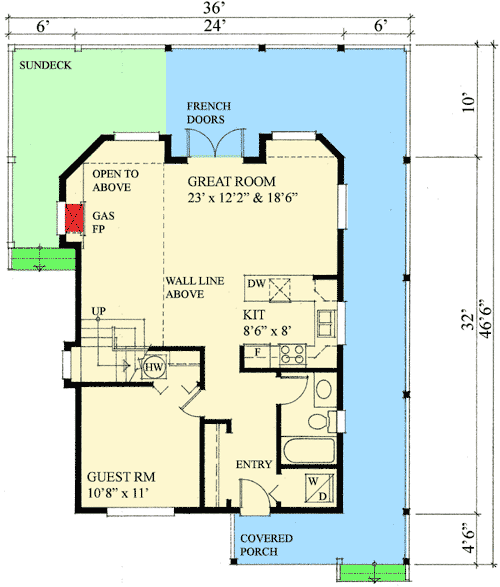

  • Main Level

  • 2nd Floor

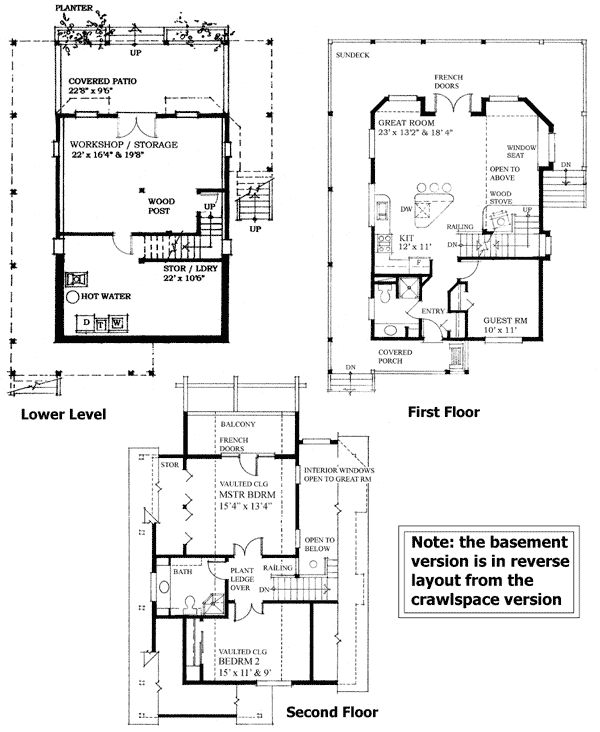

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,370 sq. ft.
  • 1st Floor: 795 sq. ft.
  • 2nd Floor: 575 sq. ft.
  • Balcony / Veranda: 96 sq. ft.
  • Deck: 600 sq. ft.
  • Porch, Combined: 72 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 46' 6"
  • Max ridge height: 29' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick

Plan 9812SW
View this and more for this plan by visiting www.architechtecturaldesigns.com/9812SW
|
