Year-Round Vacation Cottage

Plan 21566DR

  • 1,494

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • A screened gazebo and a large arched window highlight the exterior of this four-season vacation cottage.
  • Entering via the gazebo, a wonderful setting for outdoor meals, one walks into the L-shaped kitchen and dining room. The adjacent living room focuses on its cozy fireplace. The two-story portion of the living room opens up the space, adding light and volume.
  • Rounding out the first floor are a full bath, a laundry room and a bedroom with a walk-in closet. Upstairs, two more bedrooms, both with sloped ceilings, share a two-compartment bath.
  • Standard foundation: daylight basement of 858 sq. ft.
  • Related Plans: Finish the gazebo with house plan 21960DR and get more room with house plans - 21091DR (1,625 sq. ft.)
  • Build in reverse with house plan 2123DR.
  • Get a grand rear deck with house plan 21567DR (1,625 sq. ft.).
  • Get an attached garage with house plans 21941DR (1,816 sq. ft.) and 21866DR.

Each plan includes the following:

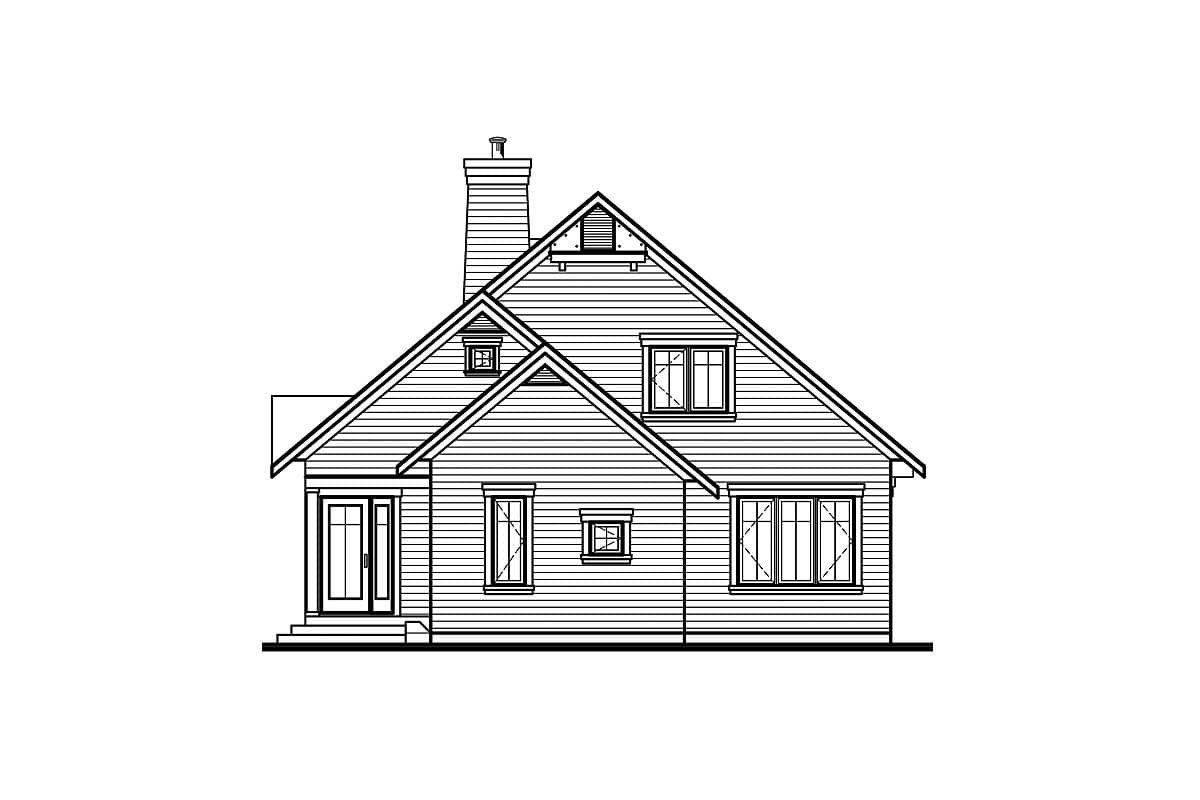

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

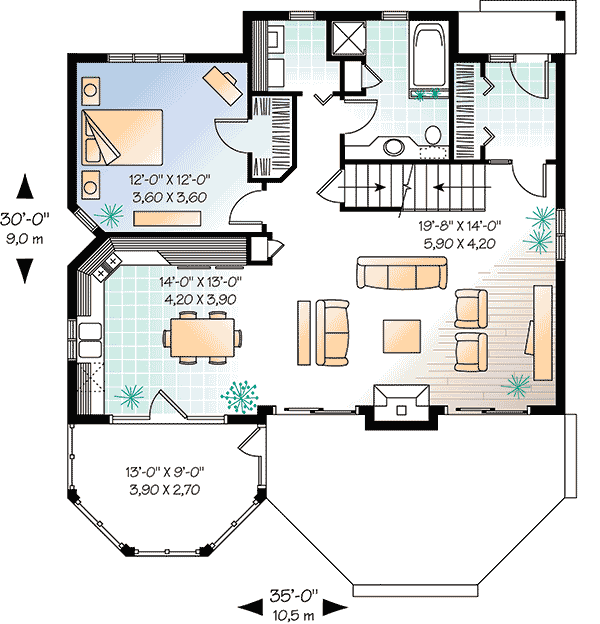

Year-Round Vacation Cottage - 21566DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

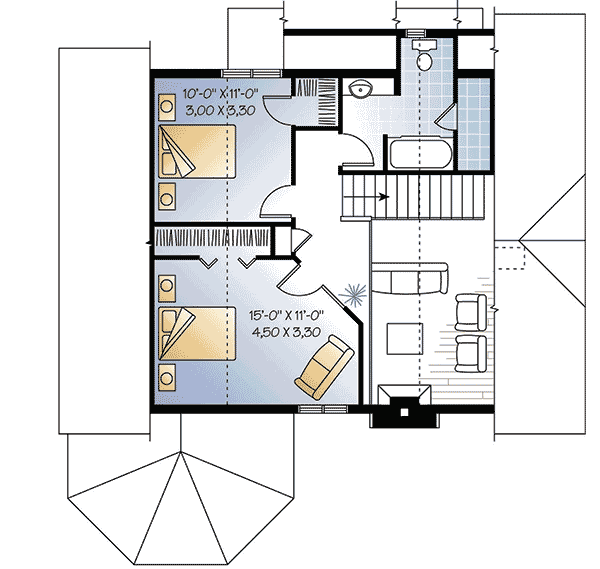

Year-Round Vacation Cottage - 21566DR floor plan - 2nd Floor

Plan details

Architectural Style

Plan Collections

Year-Round Vacation Cottage

  • 1,494

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • Reproducible Set $1,055
  • PDF - Single-Build $1,055
  • 5 Sets + PDF $1,180
  • CAD - Single-Build $1,655
  • View all purchase option online

About This Plan

  • A screened gazebo and a large arched window highlight the exterior of this four-season vacation cottage.
  • Entering via the gazebo, a wonderful setting for outdoor meals, one walks into the L-shaped kitchen and dining room. The adjacent living room focuses on its cozy fireplace. The two-story portion of the living room opens up the space, adding light and volume.
  • Rounding out the first floor are a full bath, a laundry room and a bedroom with a walk-in closet. Upstairs, two more bedrooms, both with sloped ceilings, share a two-compartment bath.
  • Standard foundation: daylight basement of 858 sq. ft.
  • Related Plans: Finish the gazebo with house plan 21960DR and get more room with house plans - 21091DR (1,625 sq. ft.)
  • Build in reverse with house plan 2123DR.
  • Get a grand rear deck with house plan 21567DR (1,625 sq. ft.).
  • Get an attached garage with house plans 21941DR (1,816 sq. ft.) and 21866DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,494 sq. ft.
  • 1st Floor: 960 sq. ft.
  • 2nd Floor: 534 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Truss
