Year-Round Vacation Cottage with Two-Story Living Room

Plan 2123DR

  • 1,494

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • A screened gazebo and a large arched window highlight the exterior of this four-season vacation cottage.
  • Entering via the gazebo, a wonderful setting for outdoor meals, one walks into the L-shaped kitchen and dining room. The adjacent living room focuses on its cozy fireplace. The two-story portion of the living room opens up the space, adding light and volume.
  • Rounding out the first floor are a full bath, a laundry room and a bedroom with a walk-in closet. Upstairs, two more bedrooms, both with sloped ceilings, share a two-compartment bath.
  • Standard foundation: daylight basement of 858 sq. ft.
  • Related Plans: Finish the gazebo with house plan 21960DR. Eliminate the gazebo with house plans 21091DR, 21567DR and 21866DR. Build in reverse with house plan 21566DR. Add a garage with house plan 21941DR (1,816 sq. ft.)

Each plan includes the following:

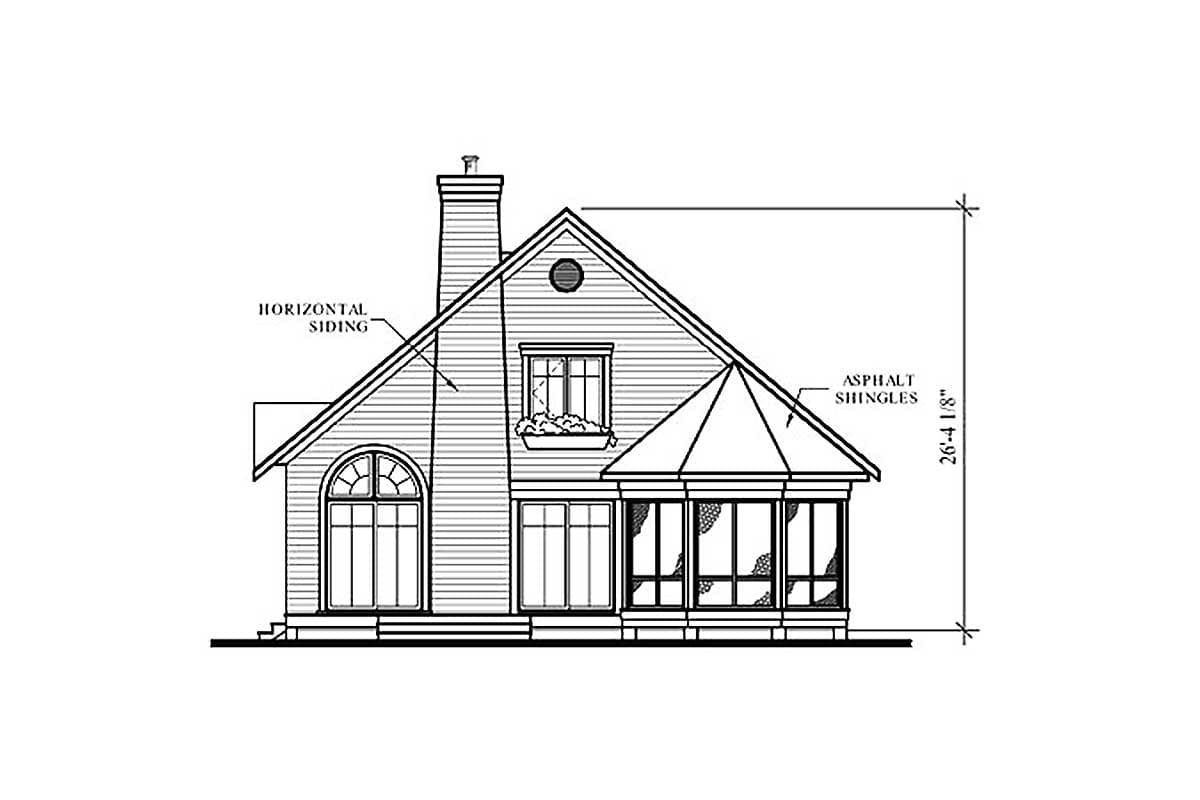

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

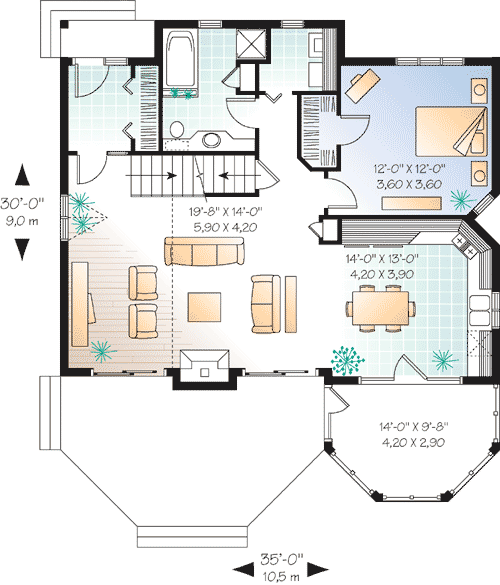

Year-Round Vacation Cottage with Two-Story Living Room - 2123DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

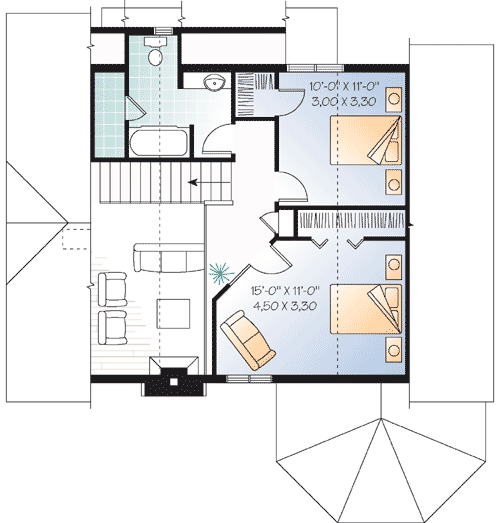

Year-Round Vacation Cottage with Two-Story Living Room - 2123DR floor plan - 2nd Floor

Architectural Style

Plan Collections

Year-Round Vacation Cottage with Two-Story Living Room

  • 1,494

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,494 sq. ft.
  • 1st Floor: 960 sq. ft.
  • 2nd Floor: 534 sq. ft.

Dimensions

  • Width: 35' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
