Plan 51085MM

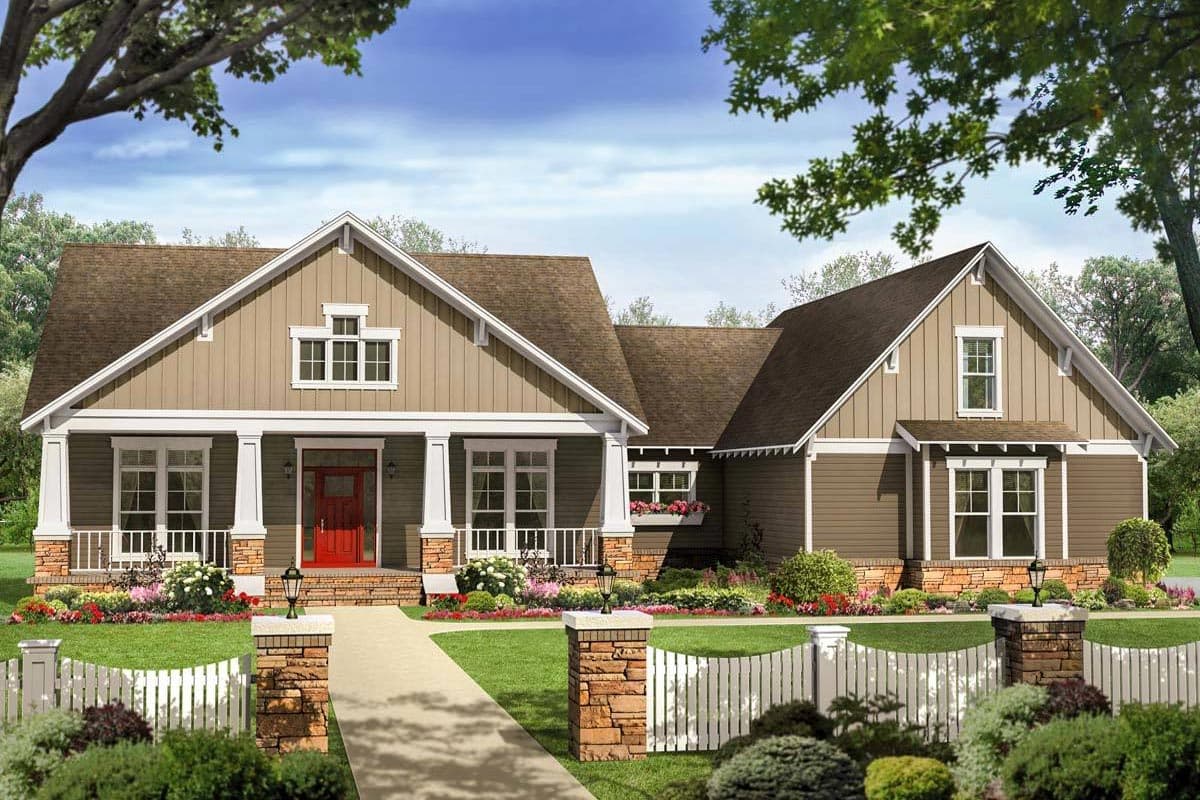

Captivating Craftsman House Planwith Options
Heated S.F.
2,400
Beds
4
Baths
2.5 - 3.5
Stories
1
Cars
2
Plan Details

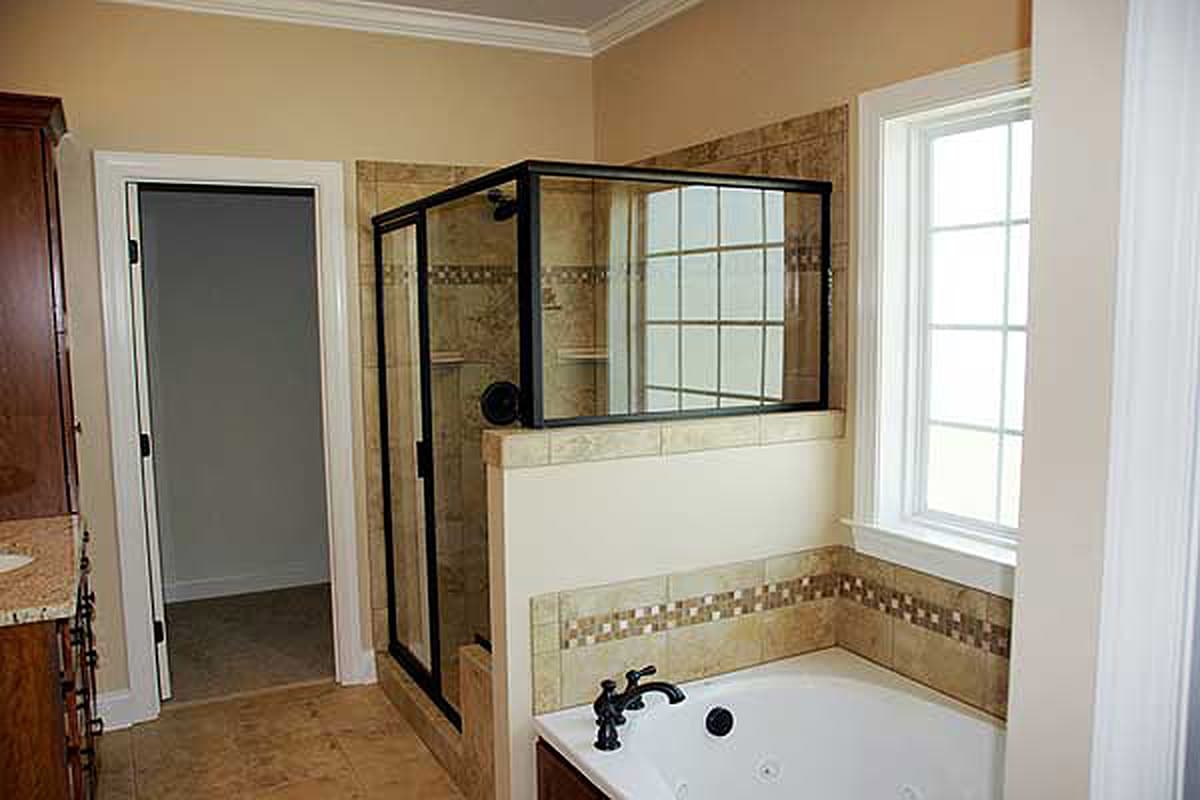

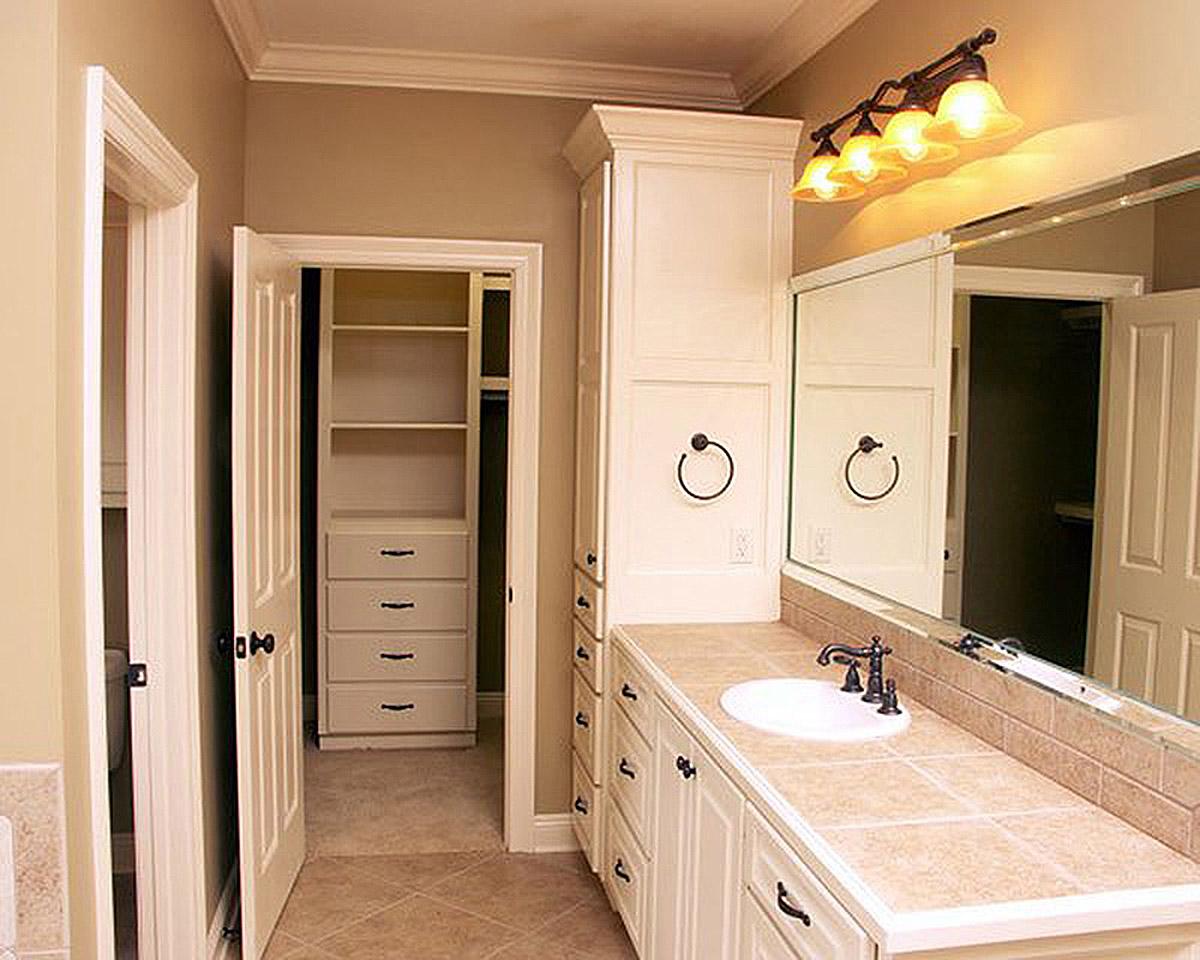

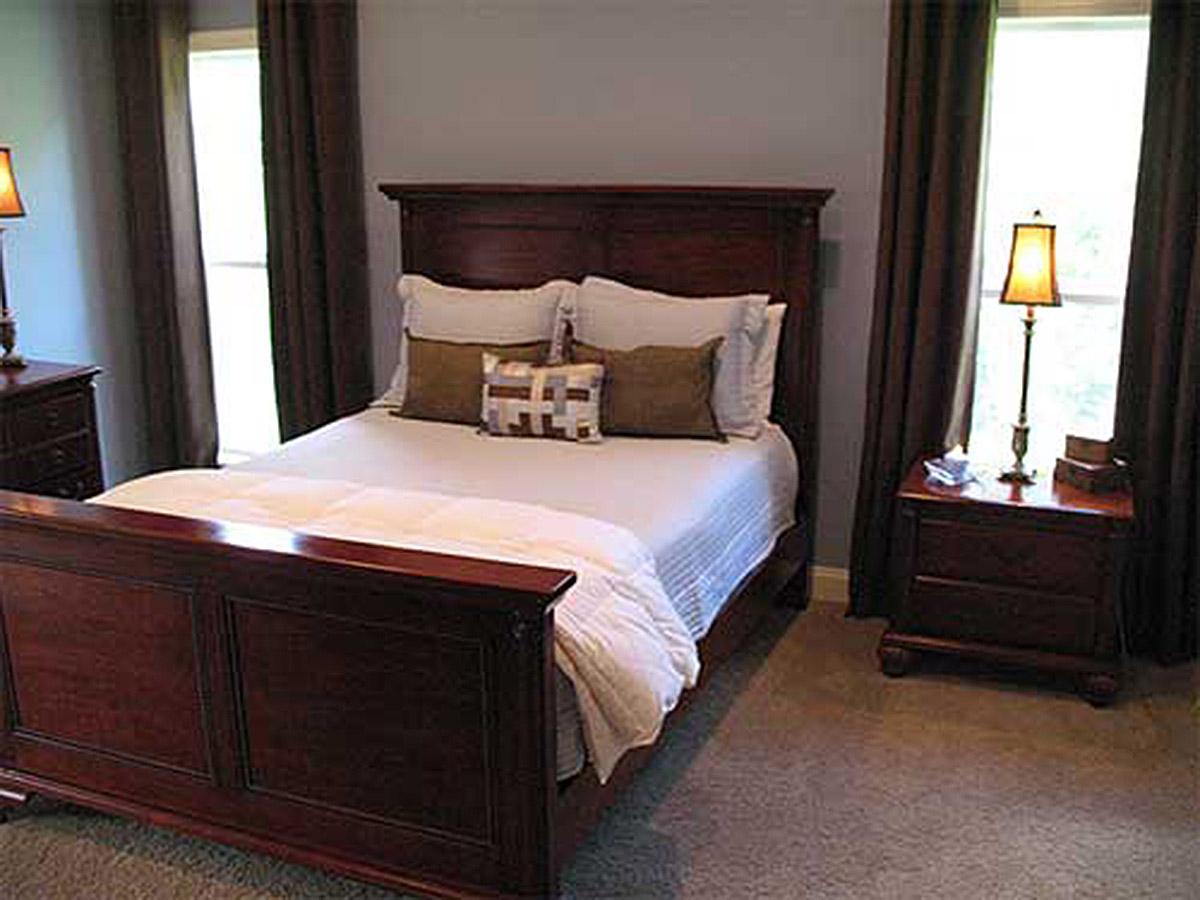

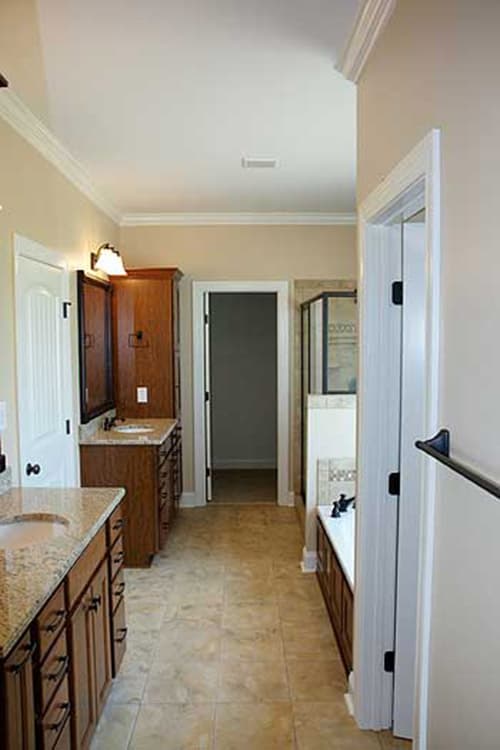

  • This beautiful Craftsman house plan features four over-sized bedrooms all complimented by large walk-in closets. The master bedroom also features trayed ceilings and the master bathroom leaves nothing to be desired.

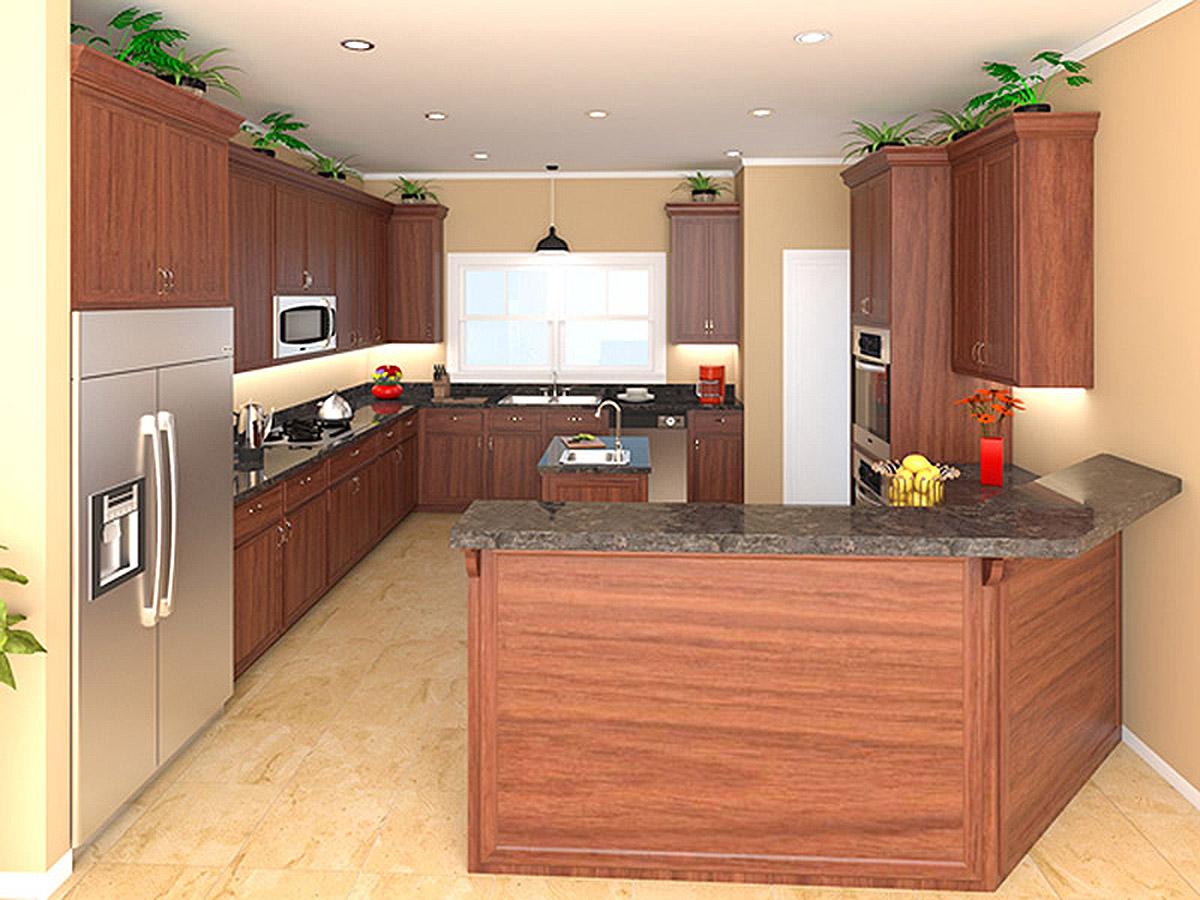

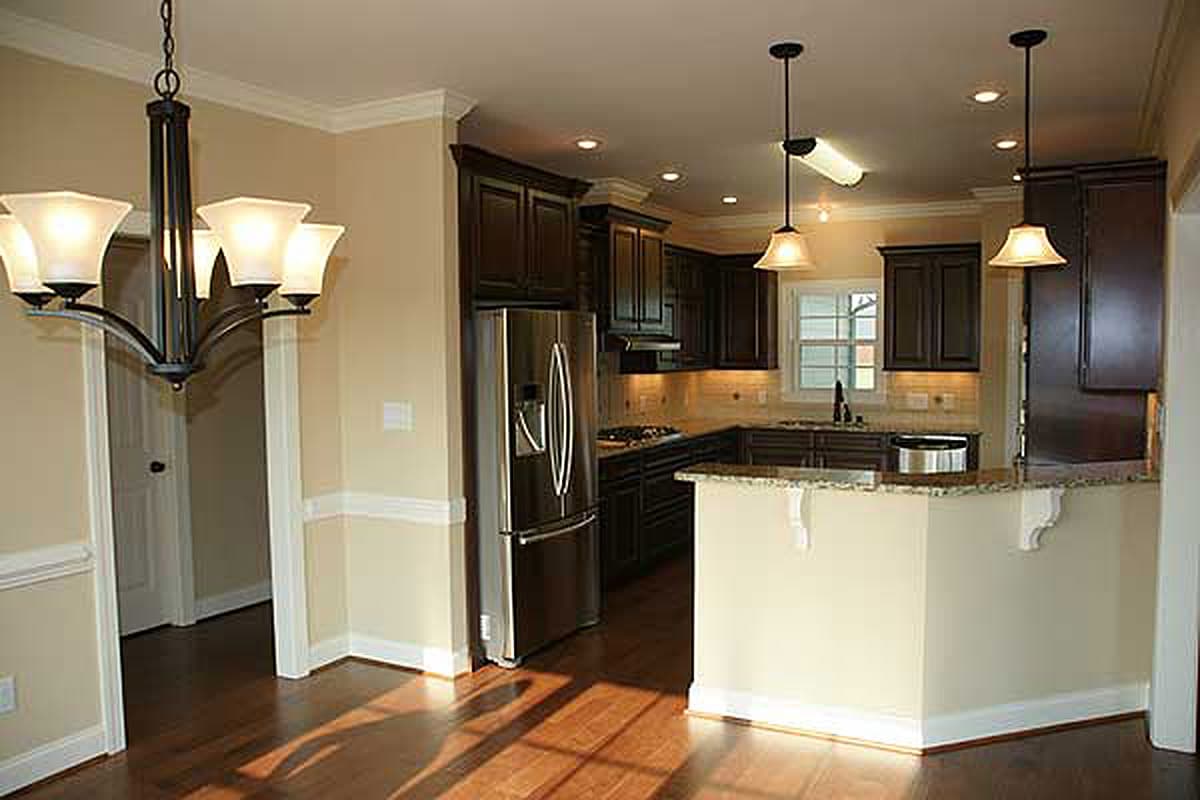

  • A breakfast area, and raised bar all provide spaces for those family meals with close access to the fully equipped kitchen.

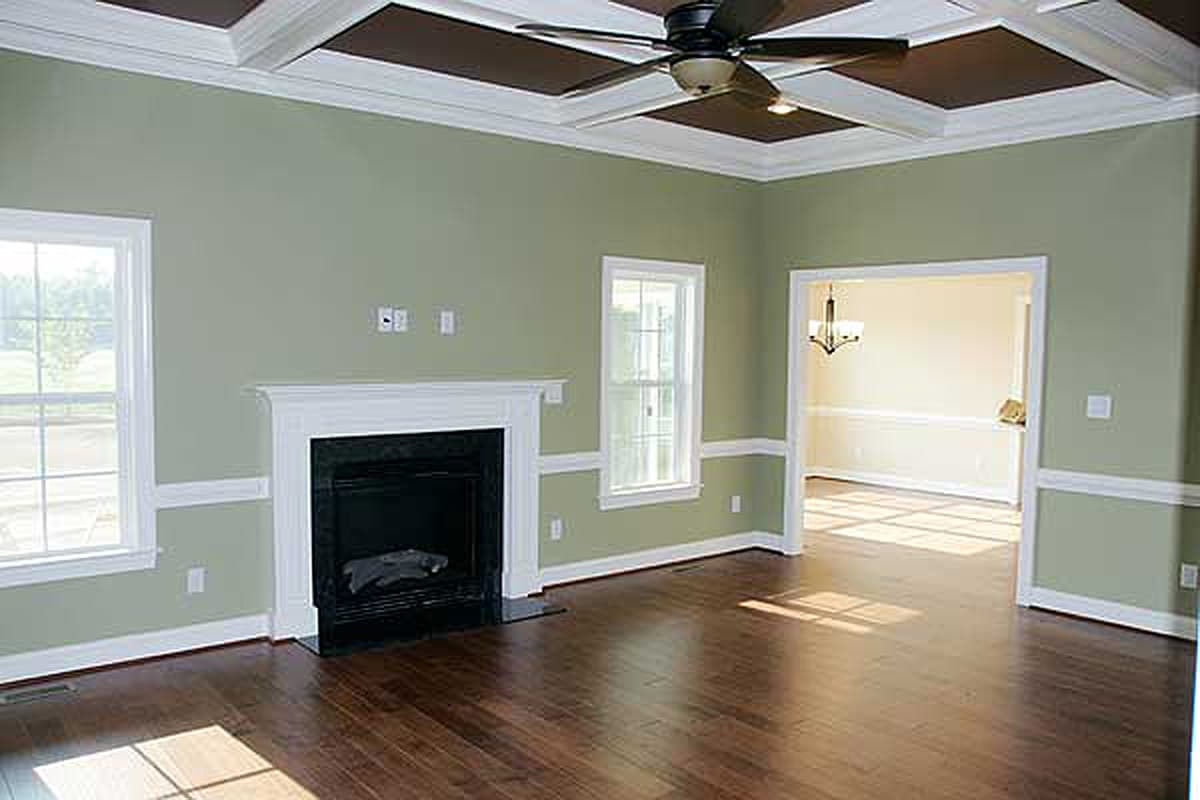

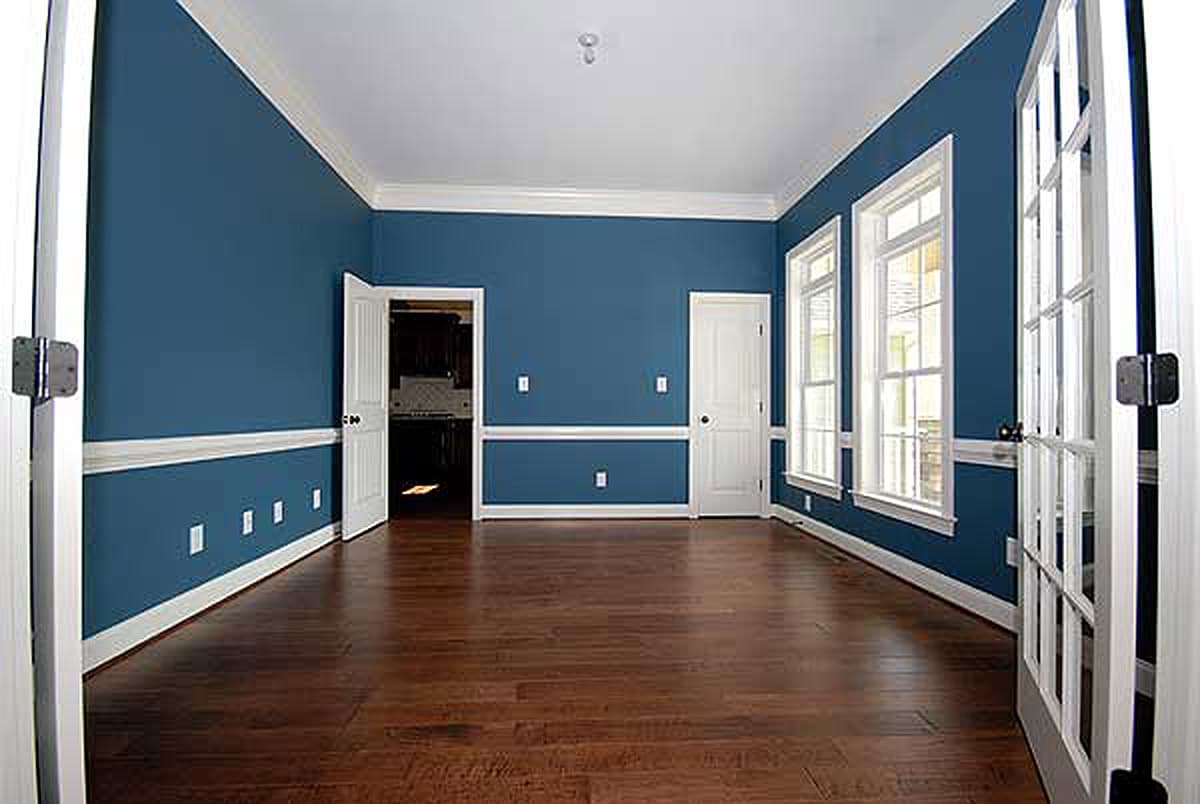

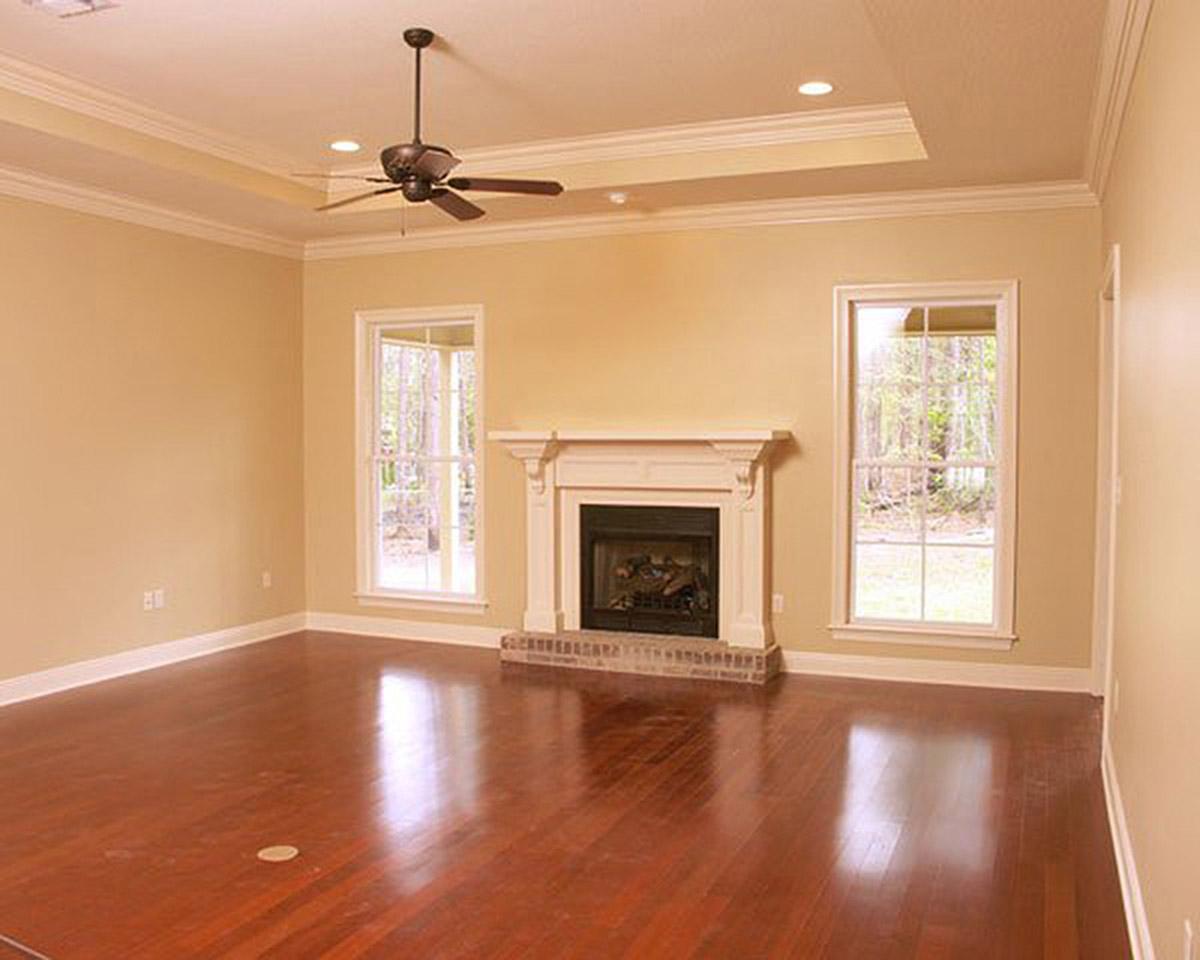

  • The great room includes gas logs, a coffered ceiling, and beautiful views to the covered rear porch beyond. The bonus room provides space for future expansion or for additional storage. The flex space provides a perfect spot for that home office, playroom, or dining room.
  • The expansive garage provides plenty of room for oversized trucks and SUV's and also includes a large storage area.
  • The stick framed roof has an 8:12 main pitch and a 10:12 secondary pitch.
  • Related Plans: Get a basement with house plan 51093MM (2,447 sq. ft.) and 51146MM (2,223 sq. ft.). Get less space with house plans 51128MM (2,284 sq. ft.), 51084MM (2,118 sq. ft.) and 51082MM (3 bedrooms, 1,919 sq. ft.). Get more room with house plan 51136MM (2,800 sq. ft.).
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

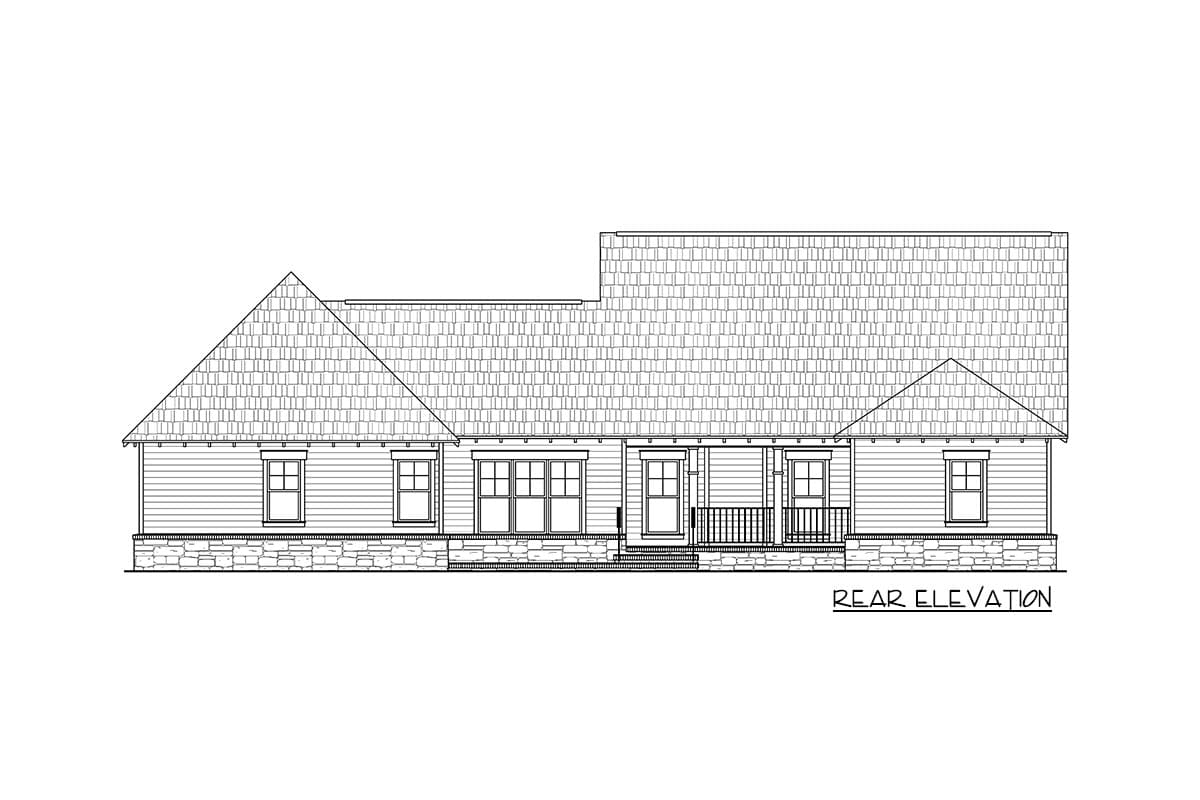

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Captivating Craftsman House Planwith Options

  • 2,400

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

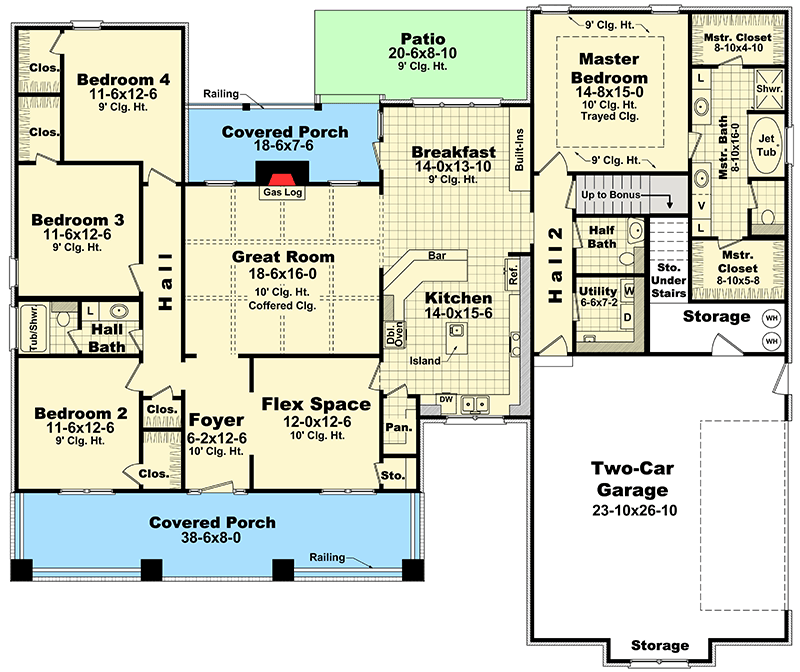

  • Main Level

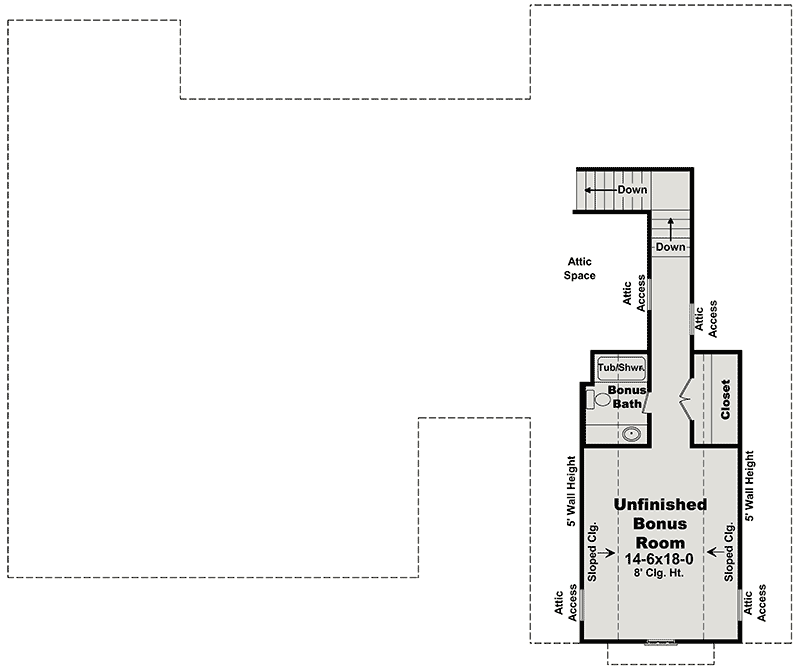

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,400 sq. ft.
  • 1st Floor: 2,400 sq. ft.

Dimensions

  • Width: 73' 6"
  • Depth: 62' 0"
  • Max ridge height: 24' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 820 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
