Plan 21107DR Irresistible Design

1,727 3 2 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Irresistible Design

Plan 21107DR

  • 1,727

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 1

    Cars

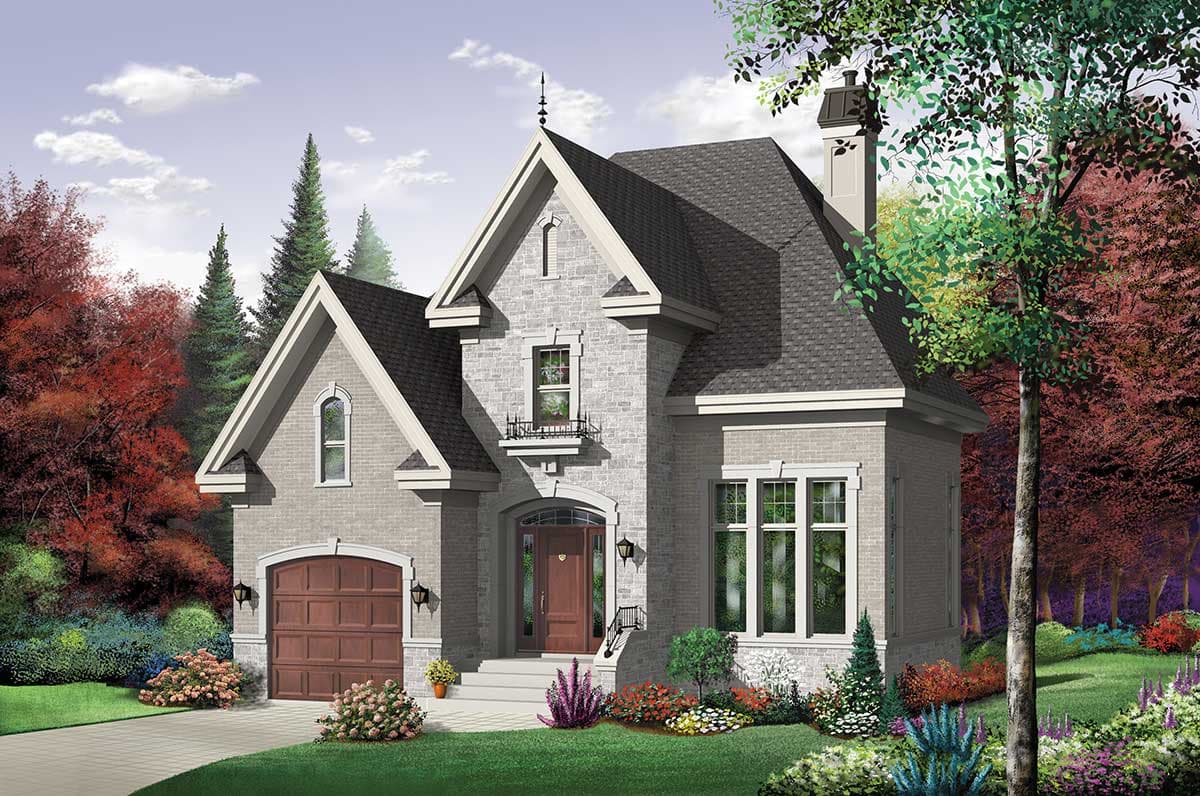

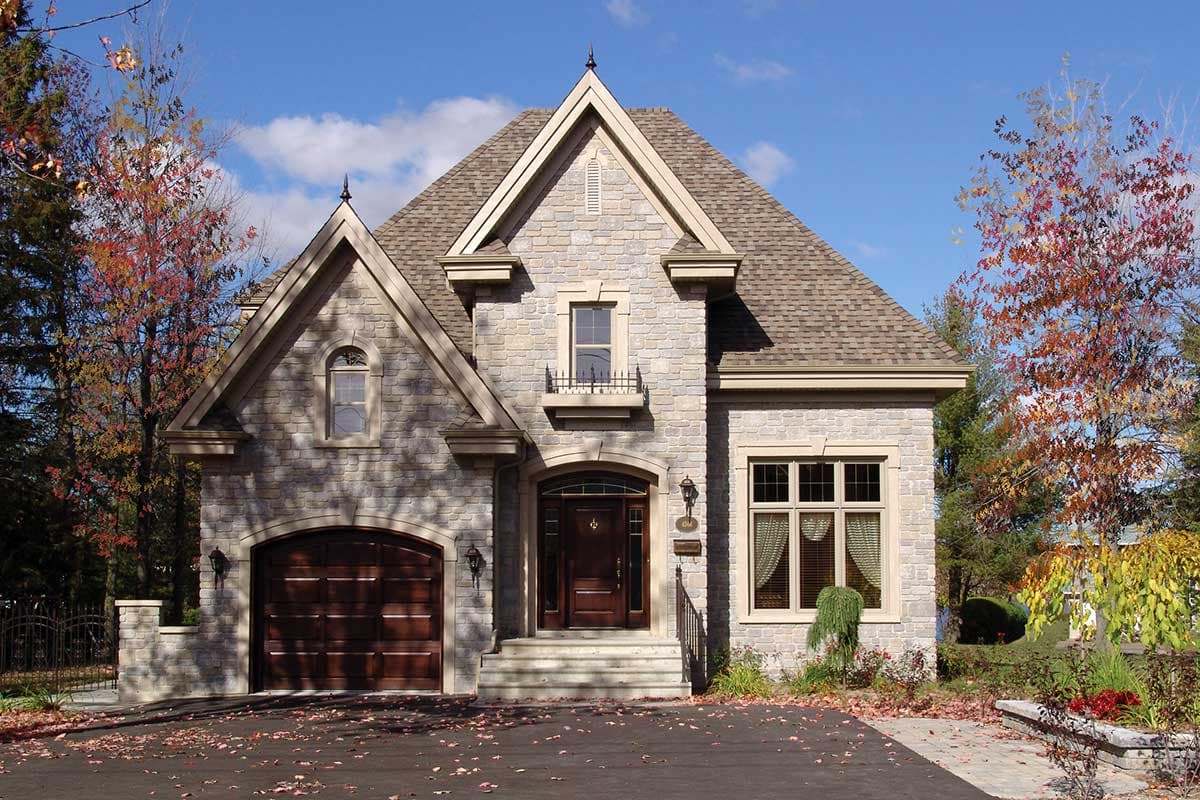

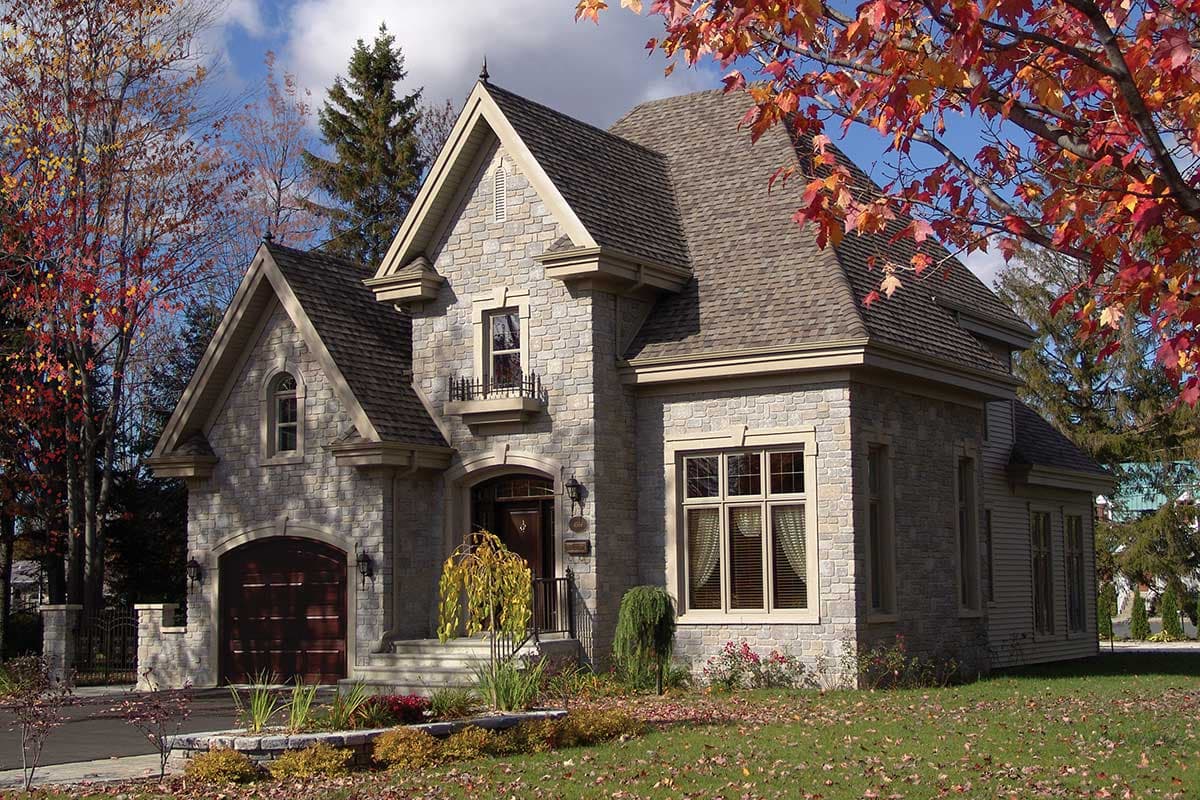

  • It's irresistible the way this house plan makes big promises and keeps them. It all begins with exterior charm, from towering pavilion affects, and pitched roofs to wonderfully elongated windows.

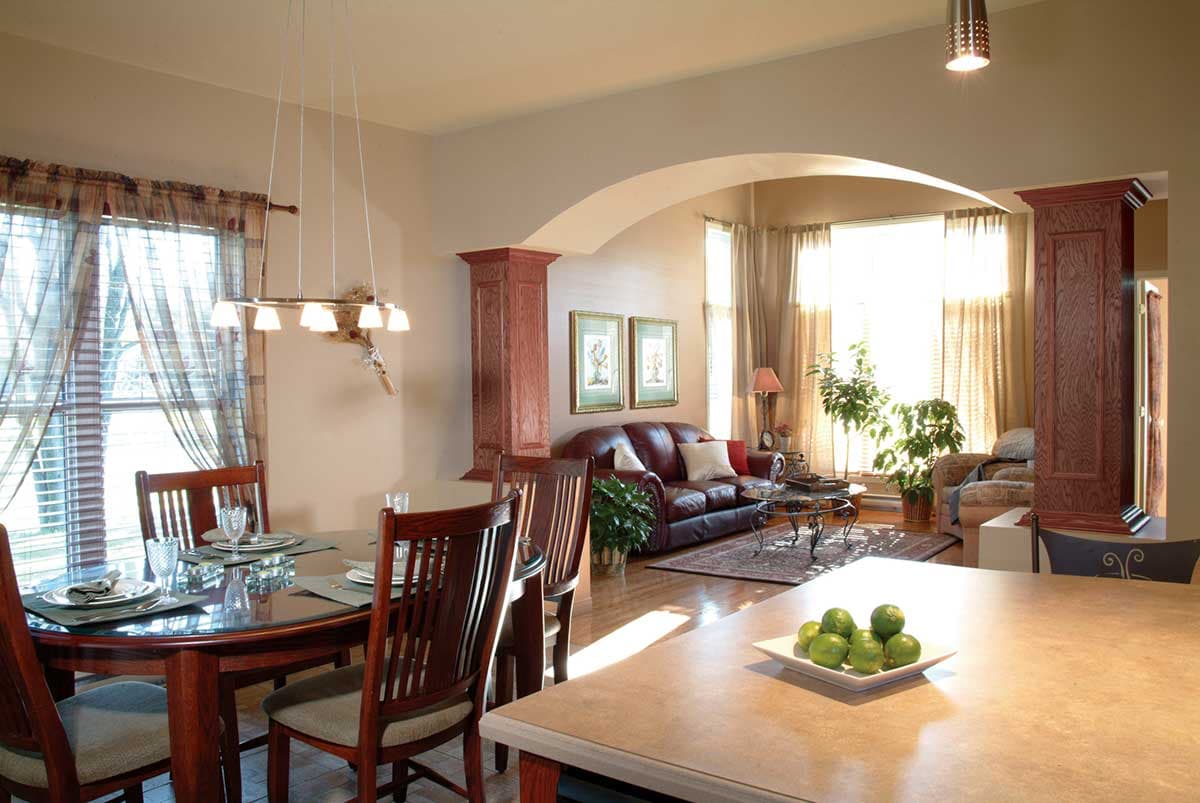

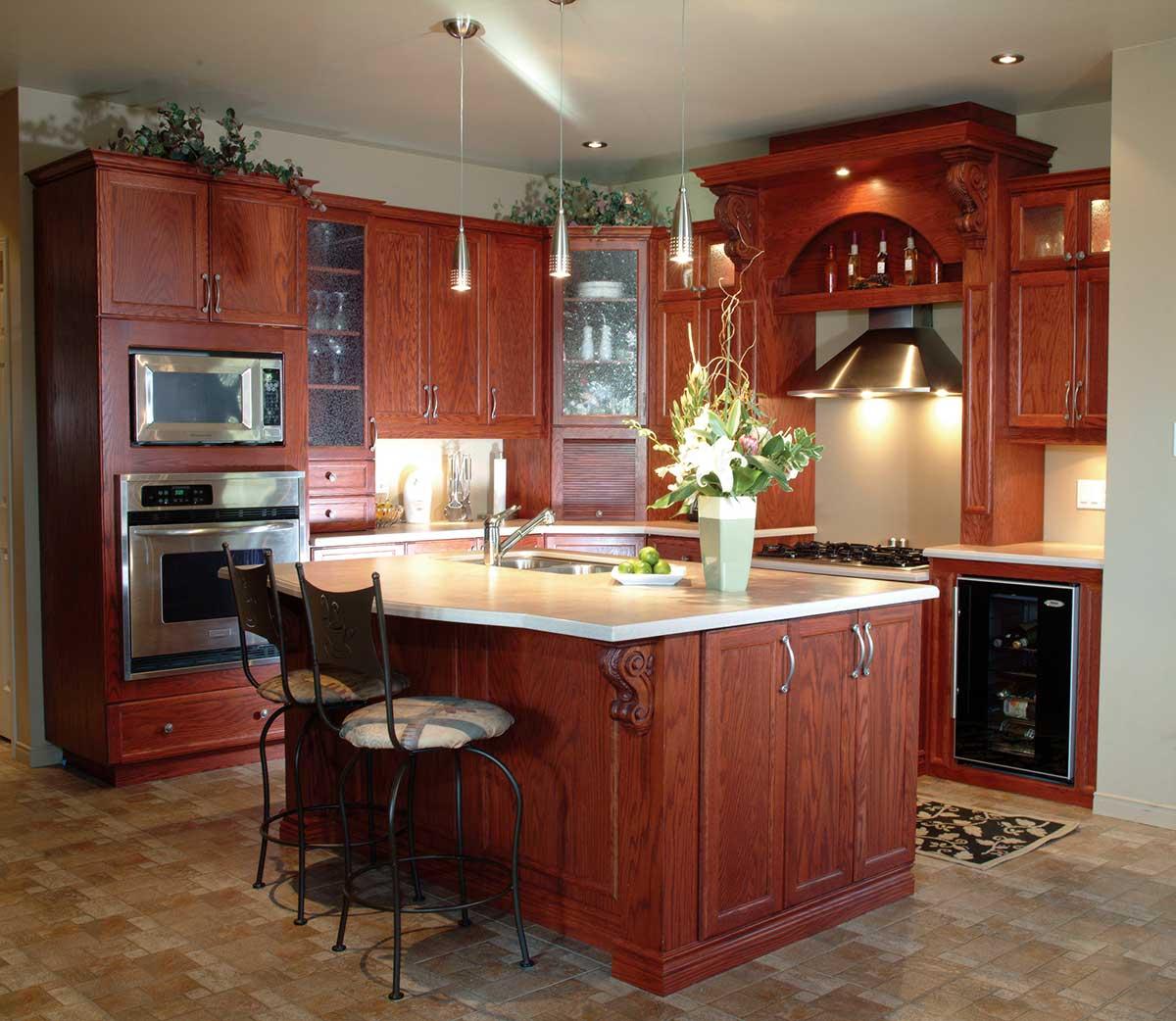

  • A formal foyer gives guests plenty of time to prepare for the wonderland of charm. Main floor ceilings soar to 9' (13' in the family room) while the entry hall sweeps smoothly to the family room and fireplace, or directly to the kitchen with island.
  • Tucked politely to the side of the kitchen, the dining room has access to the outdoors. Hugging close to the kitchen's opposite side is a laundry and shower room.

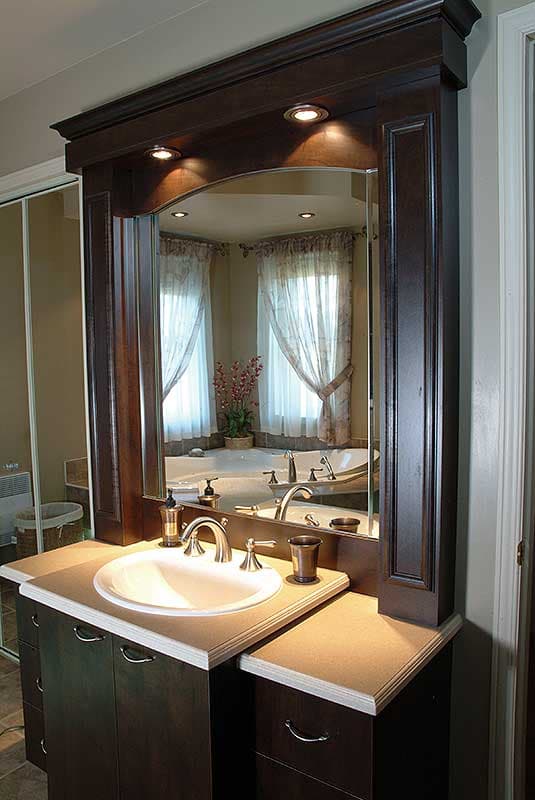

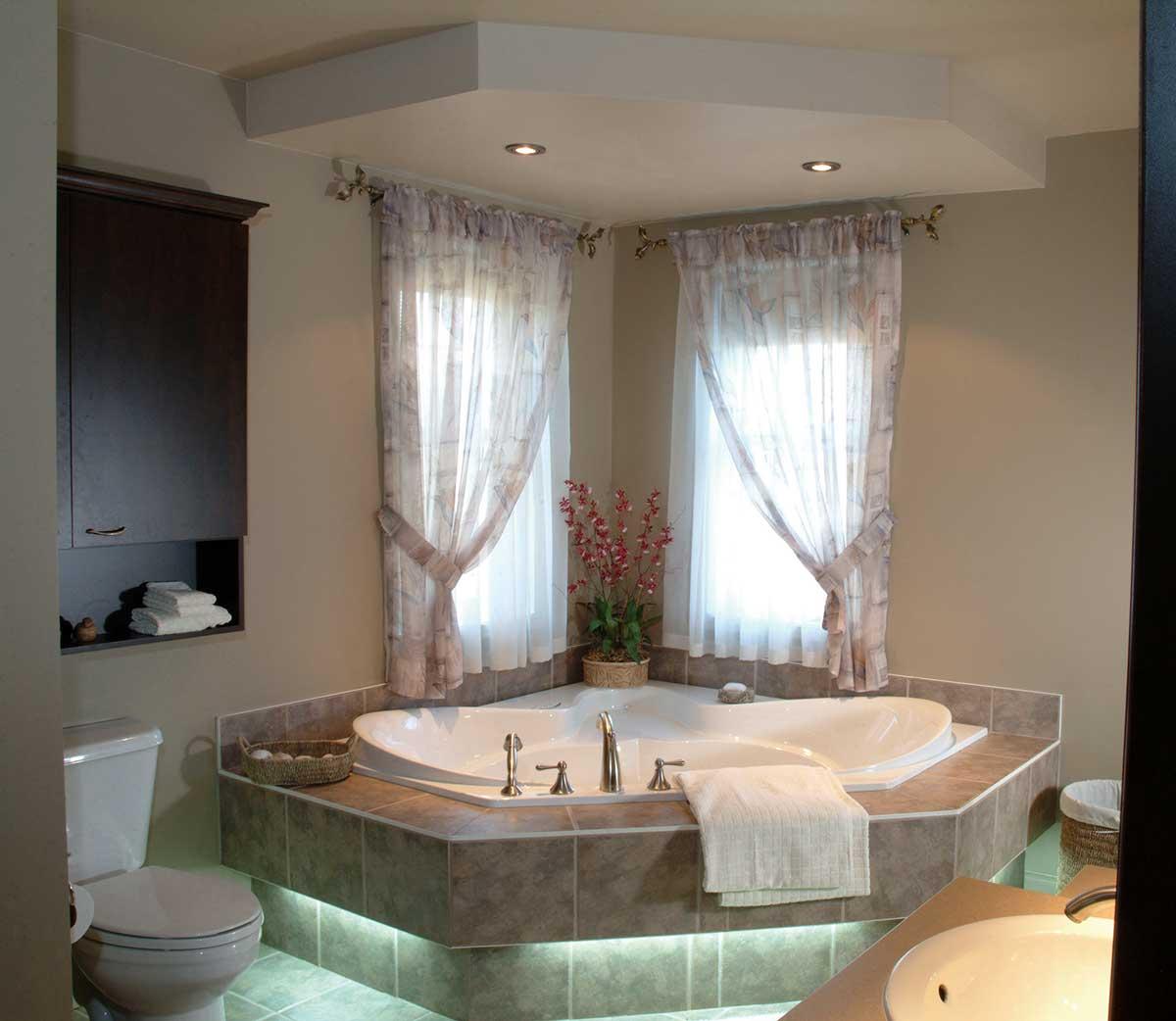

  • A spectacular second level begins on the mezzanine, overlooking the downstairs family room. The master bedroom has a private passage through a great walk-in closet and into a luxurious full-sized bathroom.
  • One of the secondary bedrooms, also with a walk-in closet, gets cozy with a loft-style sitting area. Bedroom #3 prizes a walk-in closet and a special window seat.
  • Related Plans: Get more room with house plan 21985DR (1,877 sq. ft.)and house plan 21910DR (1,965 sq. ft.).
  • See these related house plans - 21452DR, 21168DR, 21533DR and 21544DR.

Each plan includes the following:

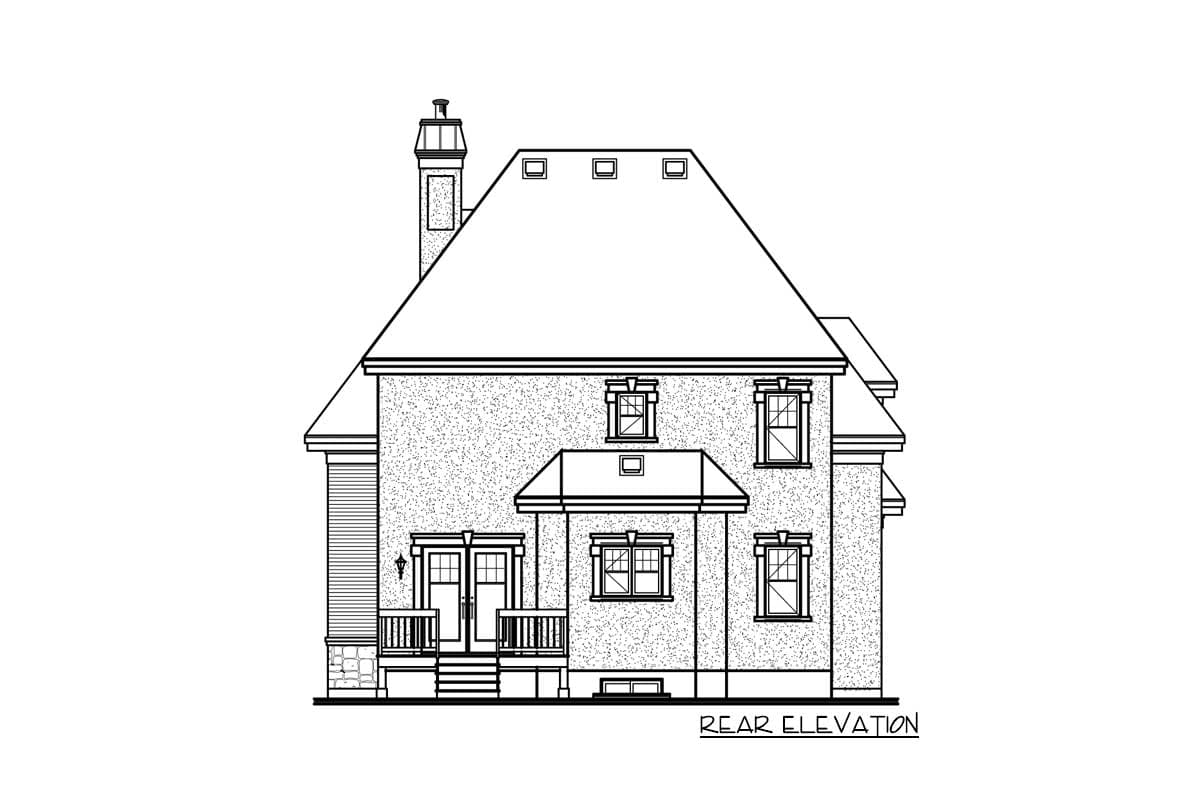

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

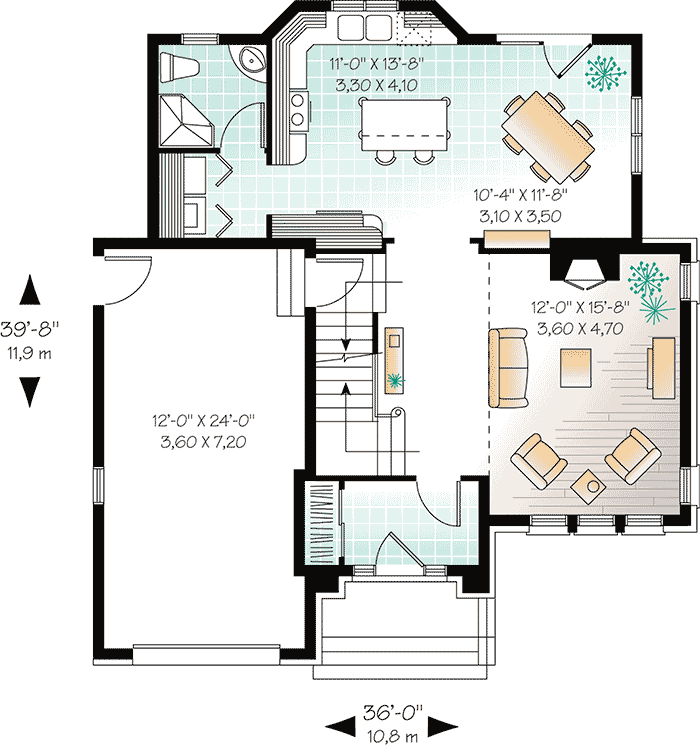

Irresistible Design - 21107DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

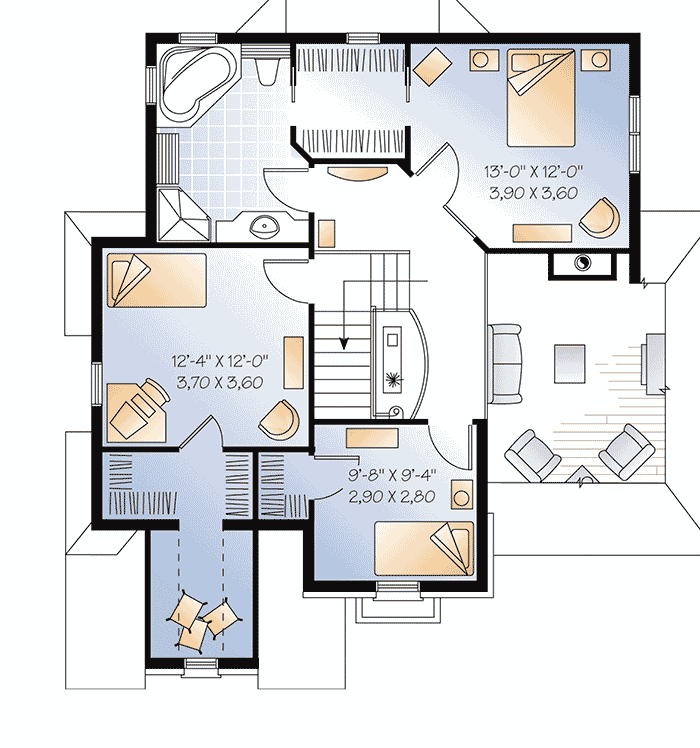

Irresistible Design - 21107DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,727 sq. ft.
  • 1st Floor: 837 sq. ft.
  • 2nd Floor: 890 sq. ft.
  • Entry: 29 sq. ft.
  • Deck: 40 sq. ft.
  • Basement Unfinished: 838 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 39' 8"
  • Max ridge height: 35' 7"

Garage

  • Type: Attached
  • Area: 320 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Irresistible Design

  • 1,727

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,450
  • 3 Sets + PDF $1,575
  • CAD + PDF - Single-Build $2,050
  • View all purchase option online

About This Plan

  • It's irresistible the way this house plan makes big promises and keeps them. It all begins with exterior charm, from towering pavilion affects, and pitched roofs to wonderfully elongated windows.
  • A formal foyer gives guests plenty of time to prepare for the wonderland of charm. Main floor ceilings soar to 9' (13' in the family room) while the entry hall sweeps smoothly to the family room and fireplace, or directly to the kitchen with island.
  • Tucked politely to the side of the kitchen, the dining room has access to the outdoors. Hugging close to the kitchen's opposite side is a laundry and shower room.
  • A spectacular second level begins on the mezzanine, overlooking the downstairs family room. The master bedroom has a private passage through a great walk-in closet and into a luxurious full-sized bathroom.
  • One of the secondary bedrooms, also with a walk-in closet, gets cozy with a loft-style sitting area. Bedroom #3 prizes a walk-in closet and a special window seat.
  • Related Plans: Get more room with house plan 21985DR (1,877 sq. ft.)and house plan 21910DR (1,965 sq. ft.).
  • See these related house plans - 21452DR, 21168DR, 21533DR and 21544DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,727 sq. ft.
  • 1st Floor: 837 sq. ft.
  • 2nd Floor: 890 sq. ft.
  • Entry: 29 sq. ft.
  • Deck: 40 sq. ft.
  • Basement Unfinished: 838 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 39' 8"
  • Max ridge height: 35' 7"

Garage

  • Type: Attached
  • Area: 320 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
