Mountain or Lake House Plan Great Views to the Back

Plan 35165GH

This plan plants 3 trees

3,717
Heated s.f.
3
Beds
3.5
Baths
2
Stories

This open-concept floor plan, perfect for a sloping lot, imparts an air of spaciousness. A loft and volume ceilings, in addition to a multitude of windows, highlight the sense of openness in this house plan.
The covered front porch extends functional spaces to the outside, as does the rear deck.
The family chef will enjoy the walk-in pantry and corner windows. The peninsula bar creates an efficient space for dining and socializing.
Conveniently located on the main floor, the ' bedroom has a deep walk-in closet. The luxurious ' bath features a private commode, a two-head shower with a built-in bench, jacuzzi tub and his-and-her sinks.
A loft overlooking the great room, two bedrooms and a shared bath plus storage round out the second floor.
The lower level features a rec room with a fireplace, a wet bar, two office spaces (one with an adjacent full bath can be turned into an extra bedroom and storage space.
Related Plans: Get an attached 2-car garage with house plan 35312GH (2,750 sq. ft.). Get a 2-car drive-under garage with house plans 35482GH (2,750 sq. ft.) and 35313GH (2,281 sq. ft.). Get other versions with house plans include 35108GH (2,281 sq. ft.), 35251GH (3,278 sq. ft. with an unfinished second level), 35259GH (2, 281 sq. ft.) and 35476GH (3,320 sq. ft.).

Each plan set includes the following:

Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

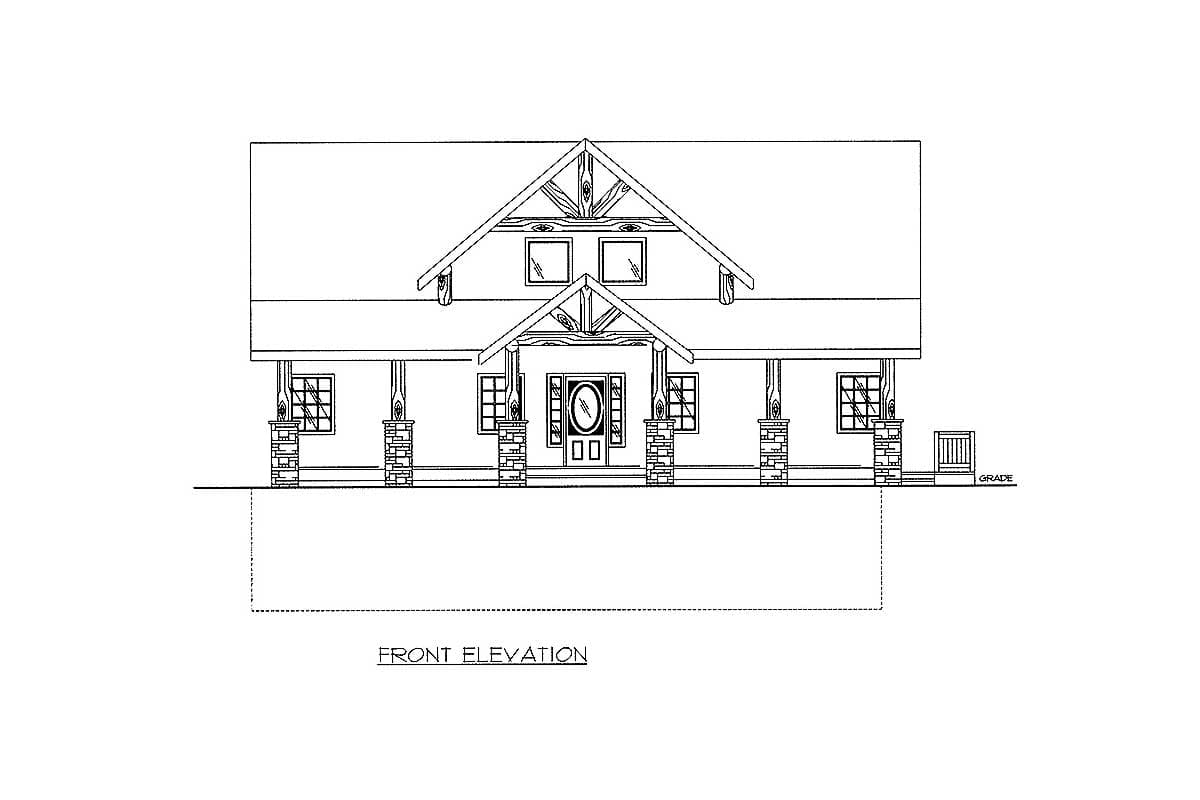

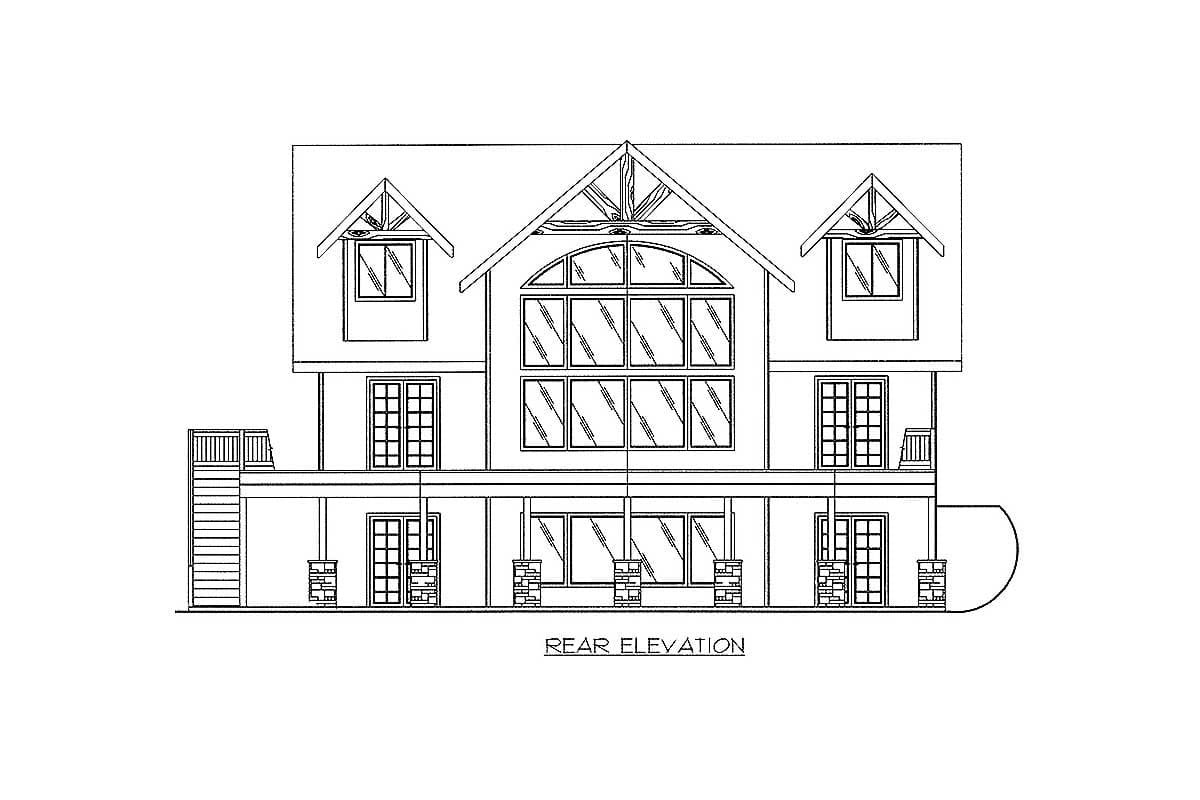

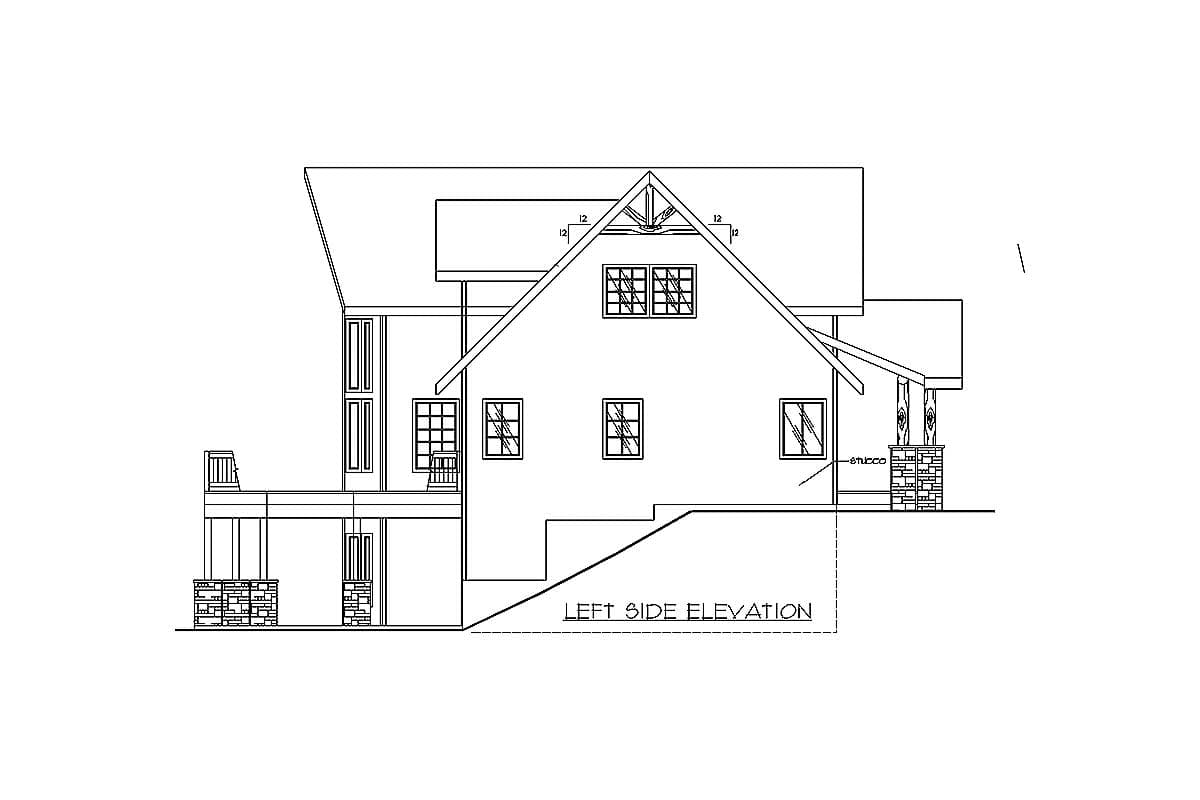

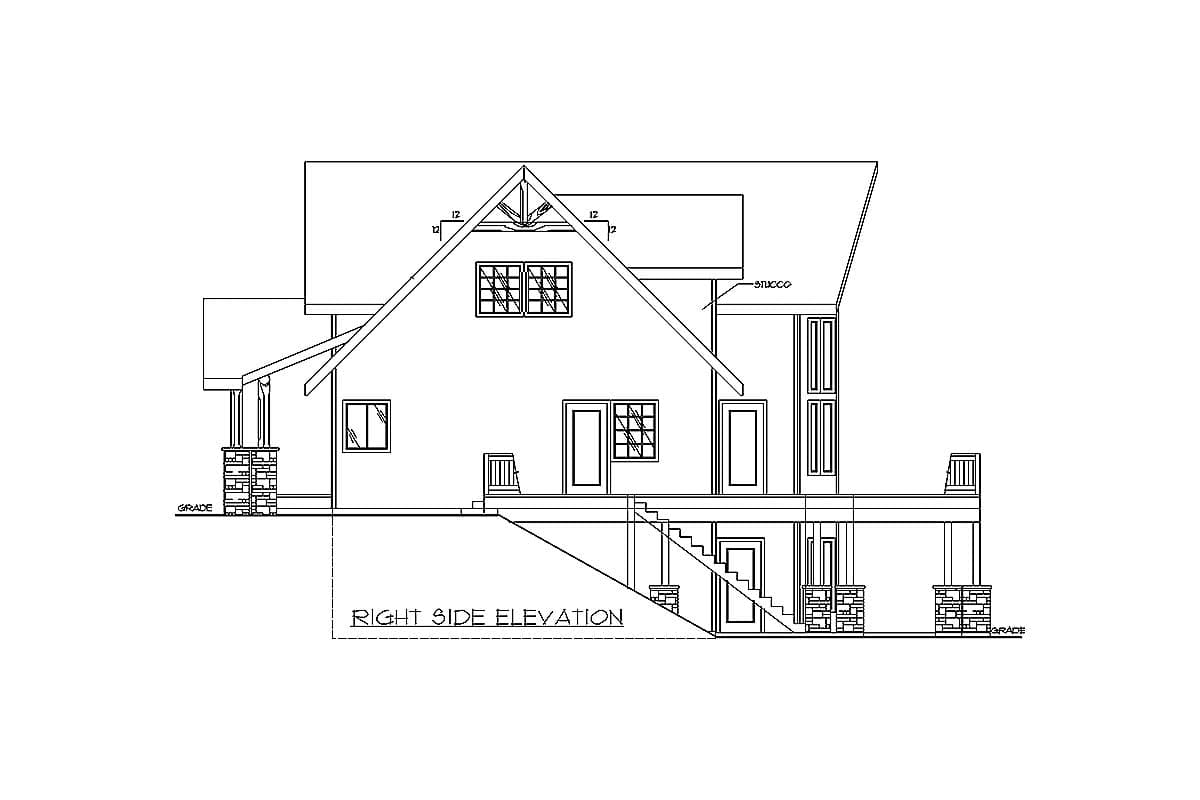

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

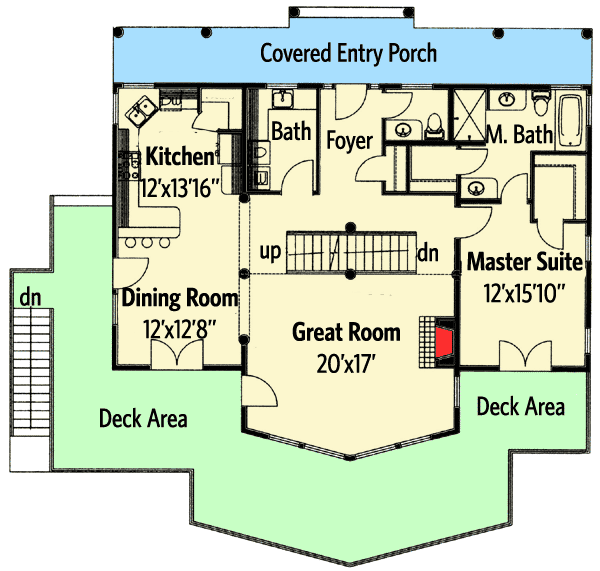

Mountain or Lake House Plan Great Views to the Back - 35165GH floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

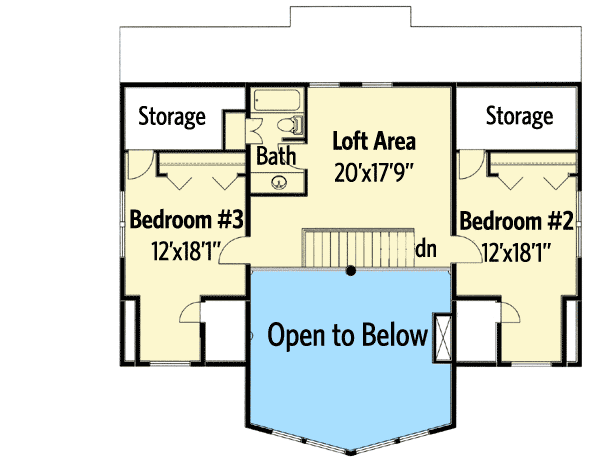

Mountain or Lake House Plan Great Views to the Back - 35165GH floor plan - 2nd Floor

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

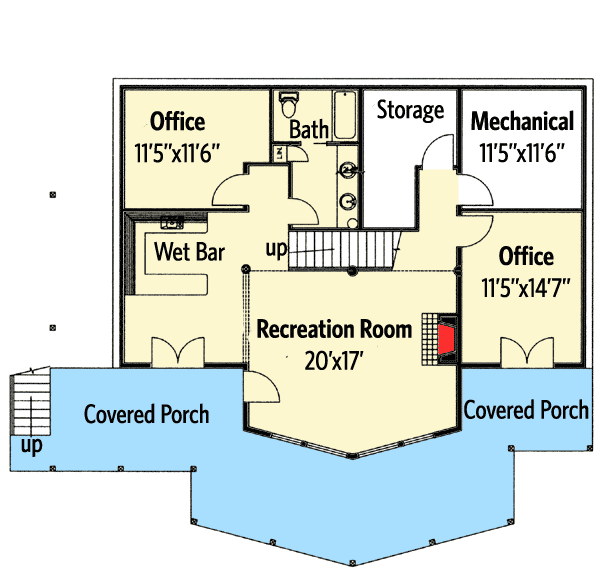

Mountain or Lake House Plan Great Views to the Back - 35165GH floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,717 sq. ft.
Lower Level: 1,436 sq. ft.
1st Floor: 1,436 sq. ft.
2nd Floor: 845 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Daylight

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 52' 0"
Depth: 54' 8"
Max ridge height: 32' 6"

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 5' 6"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: N on N

Architectural Style

Special features

Plan Collections

Scroll
