3-Bed Lake Home Plan Under 1600 Square Feet with Drive-Under Garage

Plan 680092VR

  • 1,598

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • The simplicity of the square footprint of this lake home plan keeps budget in mind, and when paired with a sloped roof, a sleek, modern design is the result.
  • The 16' by 8' overhead garage door opens to give you room for two cars plus storage. Once inside, discover a bedroom and full bath on the ground level as well.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling. The kitchen and family room are open to one another, and extend outdoors onto a spacious balcony.
  • A barn door grants access to the master bedroom. Just outside the door, a ladder takes you to a loft above. Bed 2 share a bath located just outside the bedroom.
  • Related Plans: Get a smaller version with house plan 68633VR (1,359 sq. ft.). Get a 3-season porch with house plan 68787VR. Get alternate versions with house plans 68760VR (1,570 sq. ft.), 68775VR (1,700 sq. ft.), 68740VR (1,721 sq. ft.) and 68921VR (1,792 sq. ft.). Get a front-facing garage with house plan 68666VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

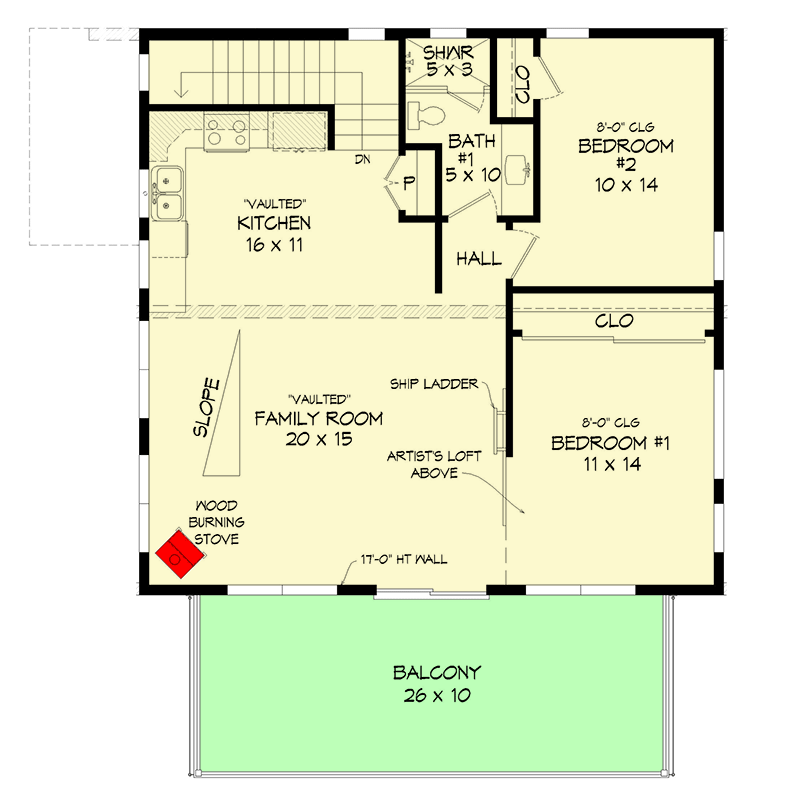

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Lake Home Plan Under 1600 Square Feet with Drive-Under Garage - 680092VR floor plan - Main Level

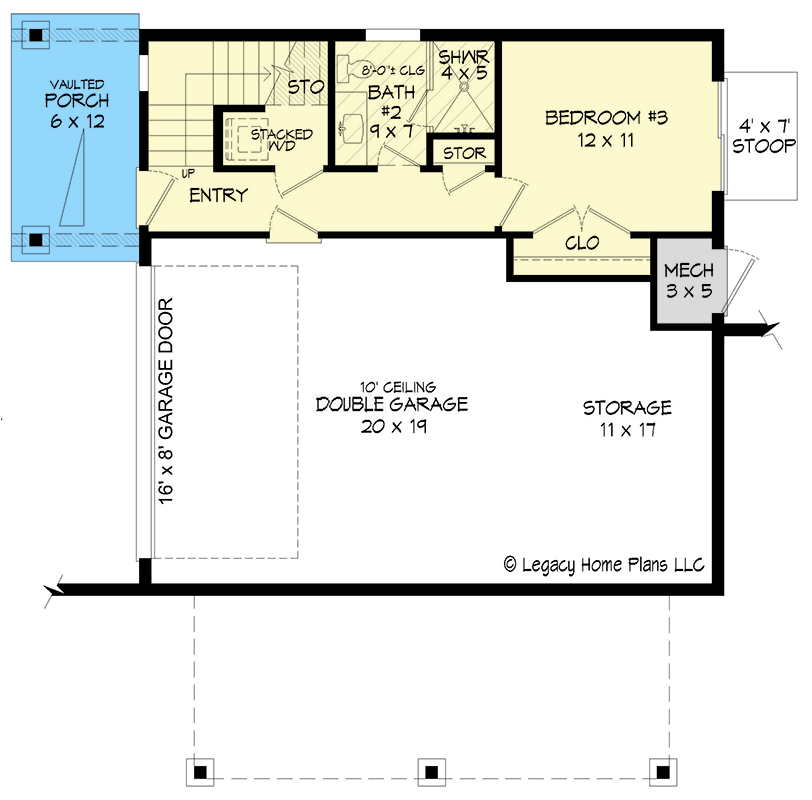

Garage Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Lake Home Plan Under 1600 Square Feet with Drive-Under Garage - 680092VR floor plan - Garage Level

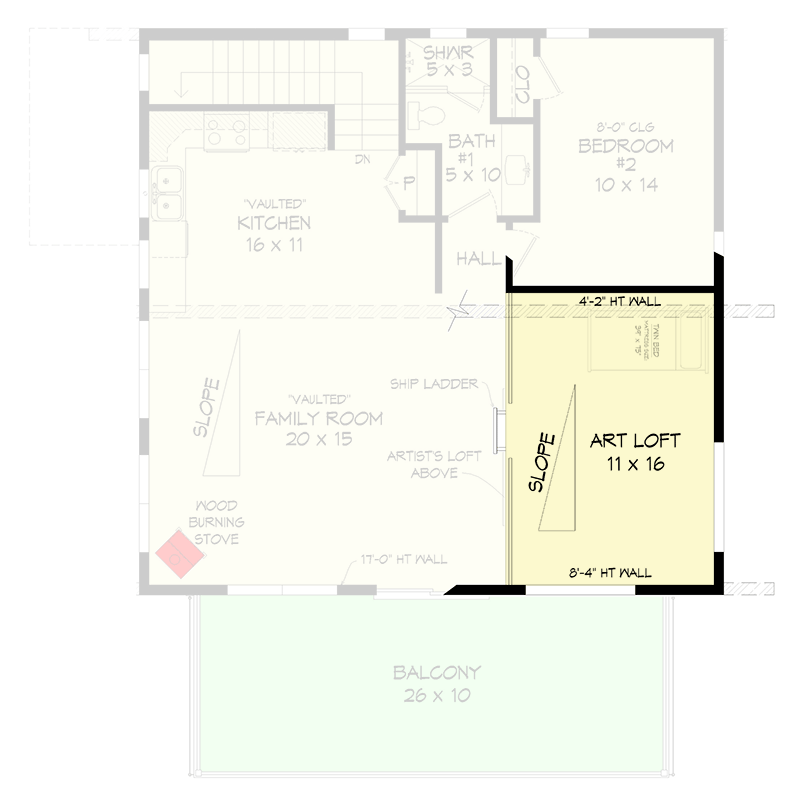

Loft Above Main Level
