Dream Design with Main Floor Laundry

Plan 21864DR

This plan plants 3 trees

1,480
Heated s.f.
2
Beds
2
Baths
2
Stories

The walkout basement on this vacation home plan offers the opportunity for expansion. A covered porch off the living area allows easy indoor-outdoor entertaining.
Angled around the family-room with its cathedral ceiling and a fireplace, a stairway leads down to the basement or up to the second floor, where you can view part of the living area below.
The kitchen is big enough to house a cooktop island with a circular eating bar.
The master bedroom features a walk-in closet and the four-fixture bath provides all the amenities found in a larger home.
You'll appreciate having laundry located on the main floor.
The second floor contains a full bath, a bedroom and a loft area that could be used as a study, a sitting area or a guest area. The ceiling is sloped on the second floor.
Related Plans: Gain access to the main floor bath from the walk-in closet and put the laundry in the basement with house plan 2105DR and 21565DR (in reverse layout).
Gain an extra bedroom upstairs by eliminating the 2-story family room ceiling with house plan 21865DR.
Other related plans include 21126DR, 21128DR, 21184DR and 2106DR

Each plan includes the following:

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

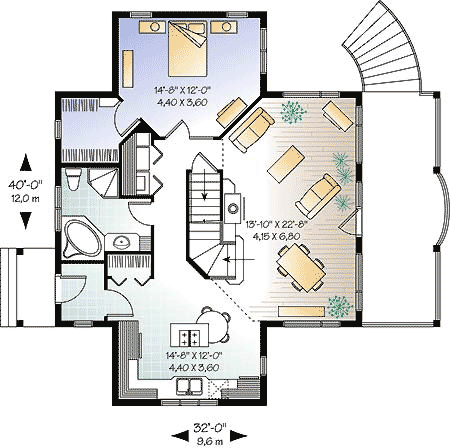

Dream Design with Main Floor Laundry - 21864DR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

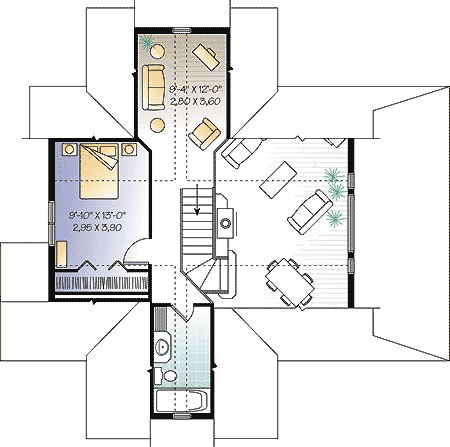

Dream Design with Main Floor Laundry - 21864DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,480 sq. ft.
1st Floor: 1,024 sq. ft.
2nd Floor: 456 sq. ft.

Entry: 32 sq. ft.
Porch, Front: 195 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 2

Foundation Type

Standard Foundations: Walkout

Optional Foundations: Daylight, Basement, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 40' 0"
Depth: 32' 0"
Max ridge height: 24' 10"

Ceiling Heights

Floor / Height: First Floor / 8' 0"

Roof Details

Primary Pitch: 12 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections

Scroll
