Plan 68461VR
Modern Garage Apartment House Plan with Sun Deck - 680 Sq Ft Garage and 820 Sq Ft Apartment
Heated S.F.
820
Beds
1
Baths
1
Stories
2
Cars
2
Plan Details
  • This modern house plan is great for a mountain or water view lot or as an outbuilding to your neighborhood home. A single large garage door is covered by the sun deck and opens to give you room for two vehicles.
  • Upstairs, the living area is brightly lit from the wall of windows and has soaring ceilings.
  • The deck is accessed through a set of French doors. The bedroom and bath are in back for your privacy.
  • Related Plans: Turn the garage 90-degrees with plan 68693VR. Get a smaller version with plan 68640VR (650 sq. ft.). Get larger versions with house plans 68605VR (831 sq. ft.), 68541VR (1,190 sq. ft.), 68632VR (1,200 sq. ft.), 68648VR (1,265 sq. ft.), 68627VR (1,309 sq. ft.), 68633VR (1,359 sq. ft.) and 68570VR (1,400 sq. ft.)..
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Garage Apartment House Plan with Sun Deck - 680 Sq Ft Garage and 820 Sq Ft Apartment

  • 820

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

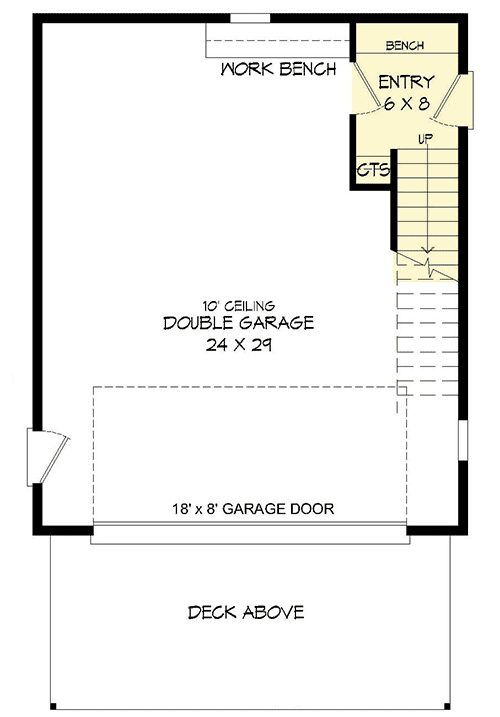

  • Main Level

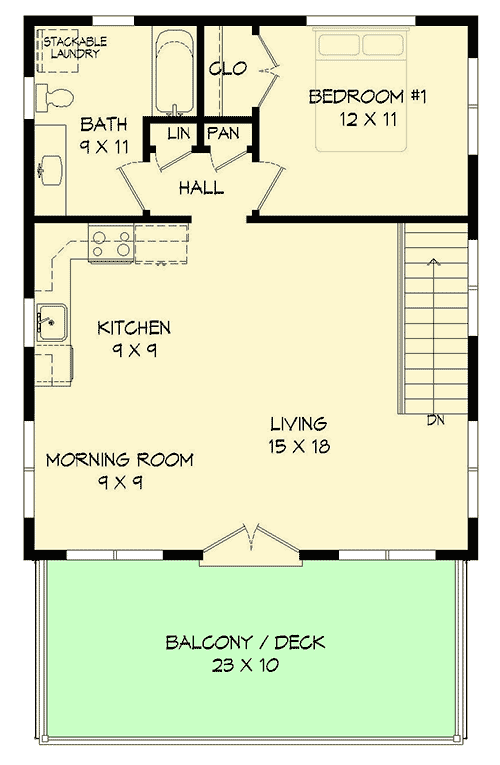

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 820 sq. ft.
  • 1st Floor: 70 sq. ft.
  • 2nd Floor: 750 sq. ft.

Dimensions

  • Width: 25' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Area: 680 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 12' 8"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick
