Plan 16801WG
Shingle-and-Stone Craftsman Home Plan with Angled 2-car Garage - 1848 Sq Ft
Heated S.F.
1,848
Beds
3
Baths
2
Stories
1
Cars
2
Photos
Floor Plan

Plan 16801WG

Main Level
slide image 0
Bonus
slide image 1
3-Car Garage Option
slide image 2
Bonus Level - 3-Car Garage Option
slide image 3
Walkout Basement Version
slide image 4

Plan 16801WG

1-800-854-7852

1-262-521-4596

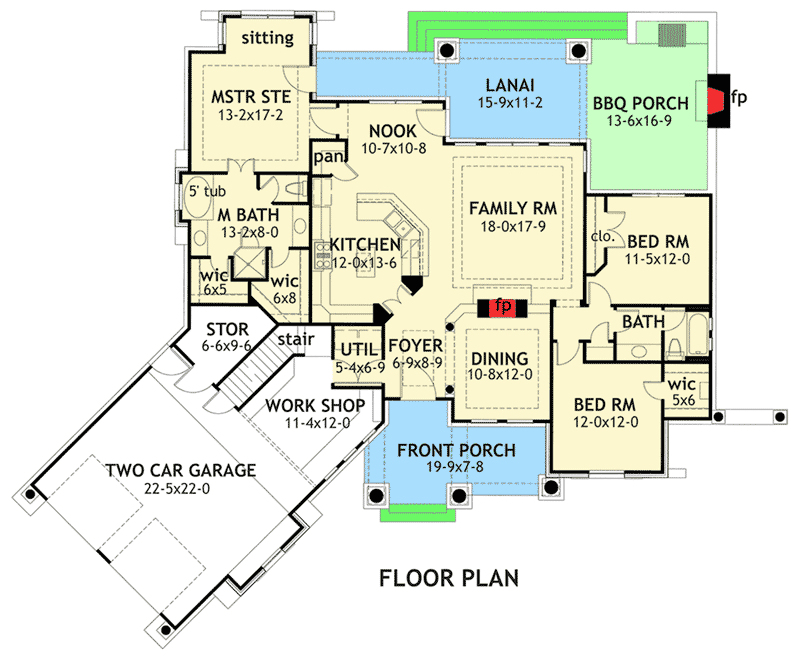

Main Level
floor plan image Main Level

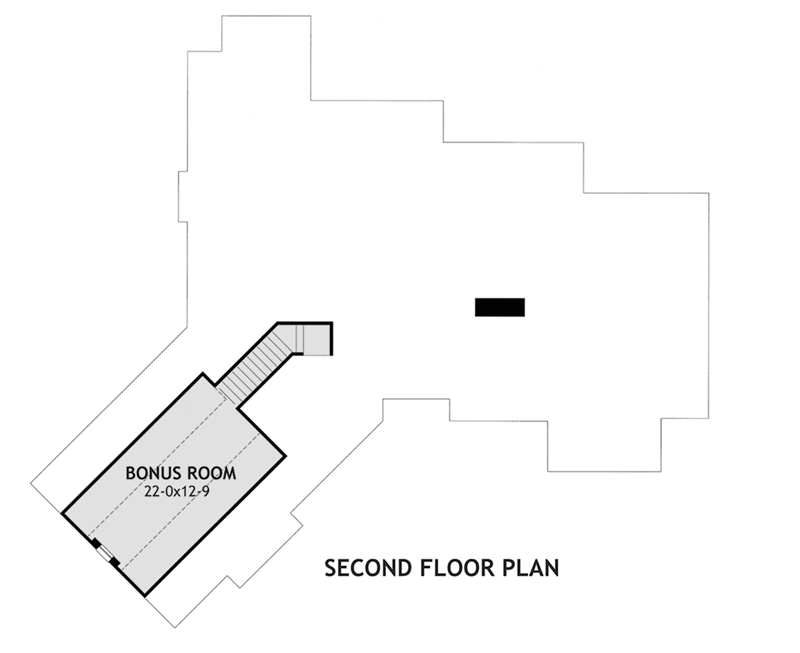

Bonus
floor plan image Bonus

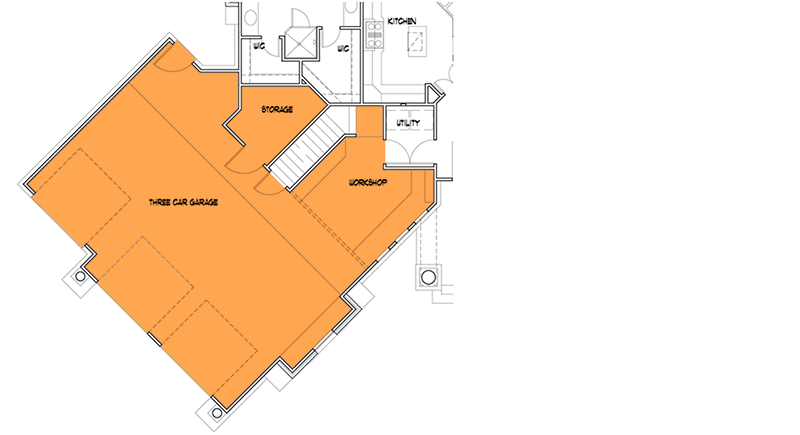

3-Car Garage Option
floor plan image 3-Car Garage Option

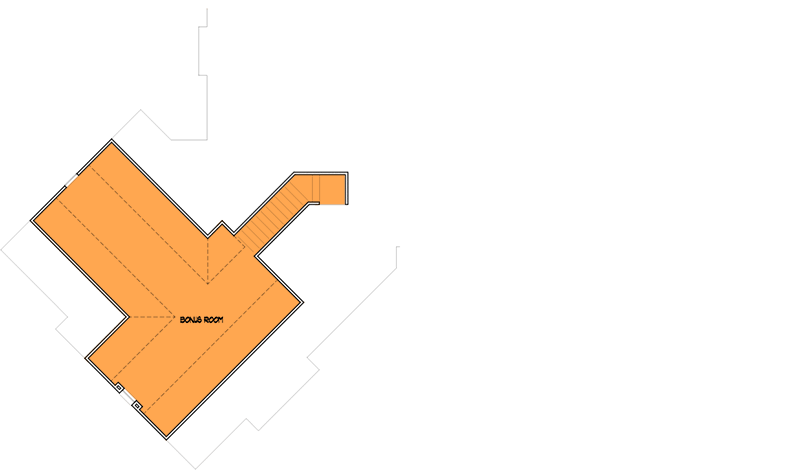

Bonus Level - 3-Car Garage Option
floor plan image Bonus Level - 3-Car Garage Option

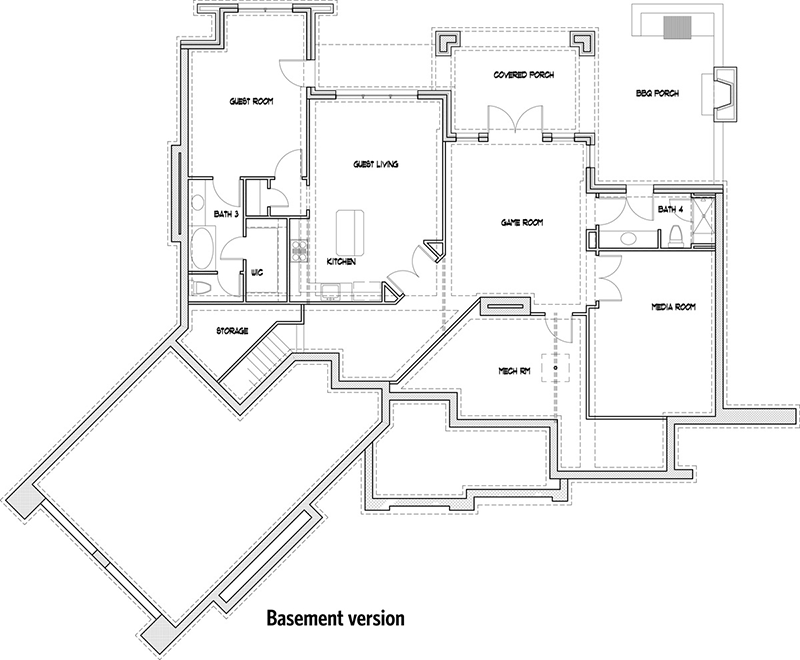

Walkout Basement Version
floor plan image Walkout Basement Version
Plan Details
  • This exciting Craftsman house plan with a shingle and stone exterior gives you 3 beds, 2 baths and 1,848 square feet of heated living space.
  • A 2-sided fireplace serves both the dining room and the family room. Columns set off the dining room from the foyer.
  • The family room is open to the kitchen and nook and sports a double tray ceiling. Windows look out across the lanai.
  • A built-in fireplace is featured on the back porch. The lanai offers more entertaining options.
  • The master bedroom has a brightly lit sitting area, two walk-in closets and a five fixture bath. Two bedrooms are located across the home for privacy.
  • A bonus room upstairs gives you 302 square feet of expansion possibilities.
  • Related Plans: Get a larger version with house plan 16800WG (2,091 sq. ft.; gain a media/study room in place of the workshop and reconfigure the bath between bedrooms 2 and 3). Get alternate exteriors with 16850WG (2,106 sq. ft.),  16895WG (2,091 sq. ft.) and 16896WG (2,397 sq. ft.). Get an angled front-facing 2-car garage with house plan 16852WG (1,764 square feet). And get more room and a 3-car garage with house plan 16851WG (2,847 sq. ft.), 16860WG (2,495 sq. ft.) and house plan 16863WG (2,234 sq. ft.).
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

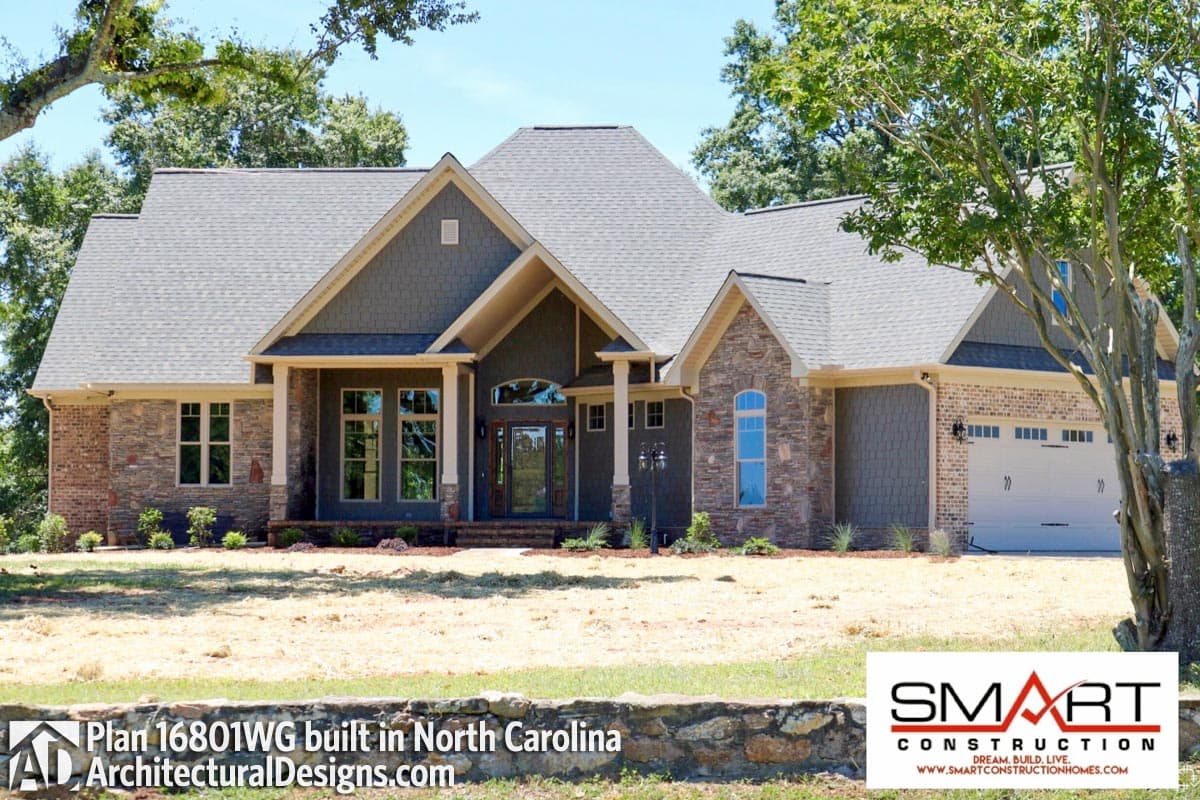

build gallery item - House Plan 16801WG comes to life in North Carolina
