Plan 16926WG 3-Bed Craftsman Cottage House Plan Under 2000 Square Feet

3-Bed Craftsman Cottage House Plan Under 2000 Square Feet

Plan 16926WG

  • 1,914

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3 bedroom house plan gives you 1,914 square feet of heated living area with 3 beds, 2 baths and has a 2-car detached garage. The front porch is 9'6" deep and gives you 320 square feet of fresh air space to enjoy.
  • The foyer has views that extend through the family room with 11' ceiling to two sets of French doors on the back wall that open to the lanai. French doors on the left open to the study which makes a great work from home space.
  • The family room opens to the kitchen with large island (4' by 8'), walk-in pantry (4'6" by 4'8") and easy access to the dining nook with views in two directions.
  • Bedrooms line the right side of the home with the master suite with lanai access in back and two guest bedrooms in front.
  • Utilities are tucked away by the porch entry.
  • Please Note: Width noted is just for the main house.  The detached garage is 24' wide.  Total width will depend on placement of detached garage.
  • Related Plan: Get an attached garage and eliminate the optional second level with plan 16877WG (1,879 sq. ft.)

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.


These items are NOT included:

Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

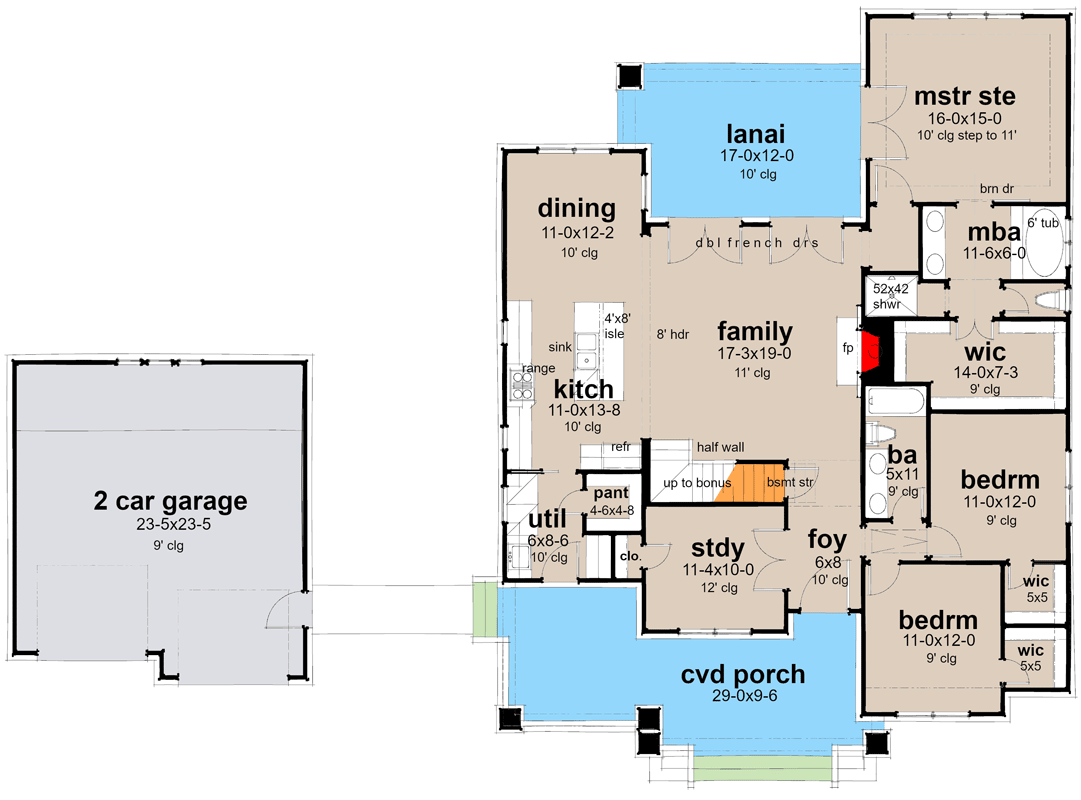

3-Bed Craftsman Cottage House Plan Under 2000 Square Feet - 16926WG floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

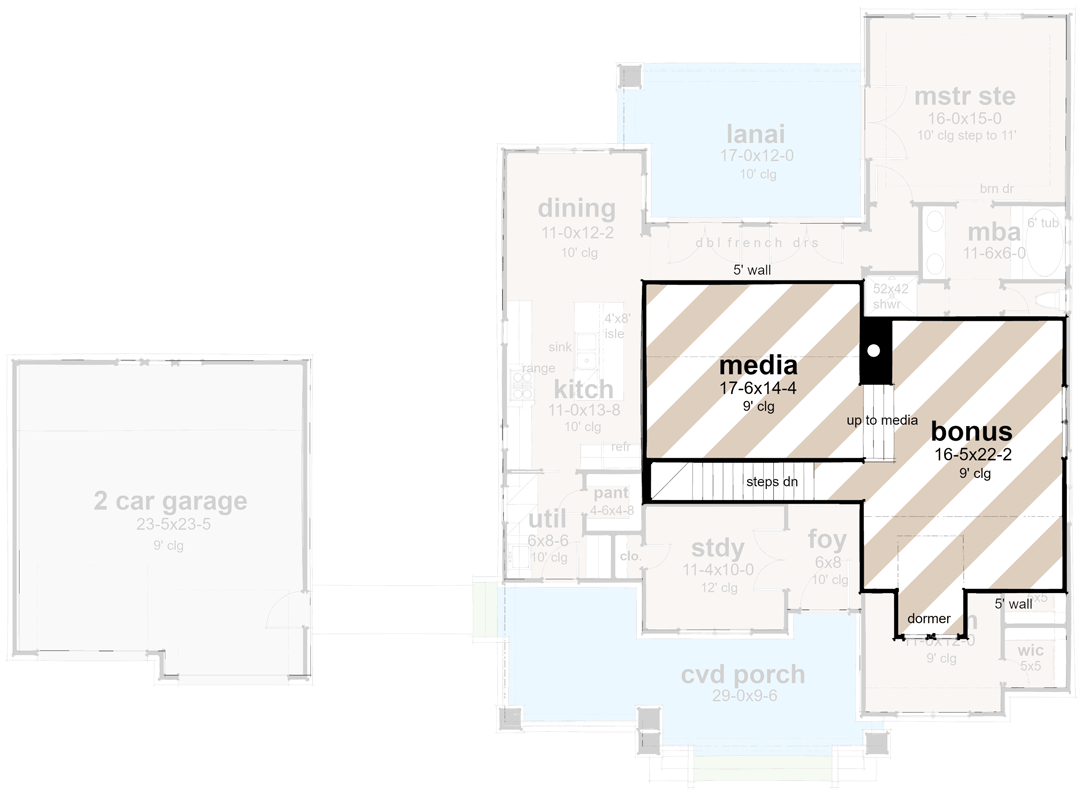

3-Bed Craftsman Cottage House Plan Under 2000 Square Feet - 16926WG floor plan - 2nd Floor

Plan details

3-Bed Craftsman Cottage House Plan Under 2000 Square Feet

  • 1,914

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,095
  • 5 Sets $1,245
  • 5 Sets + PDF $1,345
  • PDF - Unlimited Build $1,490
  • CAD + PDF - Single-Build $1,895
  • CAD + PDF - Unlimited Build $2,290
  • View all purchase option online

About This Plan

  • This 3 bedroom house plan gives you 1,914 square feet of heated living area with 3 beds, 2 baths and has a 2-car detached garage. The front porch is 9'6" deep and gives you 320 square feet of fresh air space to enjoy.
  • The foyer has views that extend through the family room with 11' ceiling to two sets of French doors on the back wall that open to the lanai. French doors on the left open to the study which makes a great work from home space.
  • The family room opens to the kitchen with large island (4' by 8'), walk-in pantry (4'6" by 4'8") and easy access to the dining nook with views in two directions.
  • Bedrooms line the right side of the home with the master suite with lanai access in back and two guest bedrooms in front.
  • Utilities are tucked away by the porch entry.
  • Please Note: Width noted is just for the main house.  The detached garage is 24' wide.  Total width will depend on placement of detached garage.
  • Related Plan: Get an attached garage and eliminate the optional second level with plan 16877WG (1,879 sq. ft.)

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,914 sq. ft.
  • 1st Floor: 1,914 sq. ft.
  • Porch, Combined: 558 sq. ft.
  • Porch, Rear: 238 sq. ft.
  • Porch, Front: 320 sq. ft.
  • Bonus: 681 sq. ft.
  • Basement Unfinished: 1,914 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Monolithic Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 47' 2"
  • Depth: 61' 4"
  • Max ridge height: 25' 6"

Garage

  • Type: Detached
  • Area: 600 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Bonus 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
