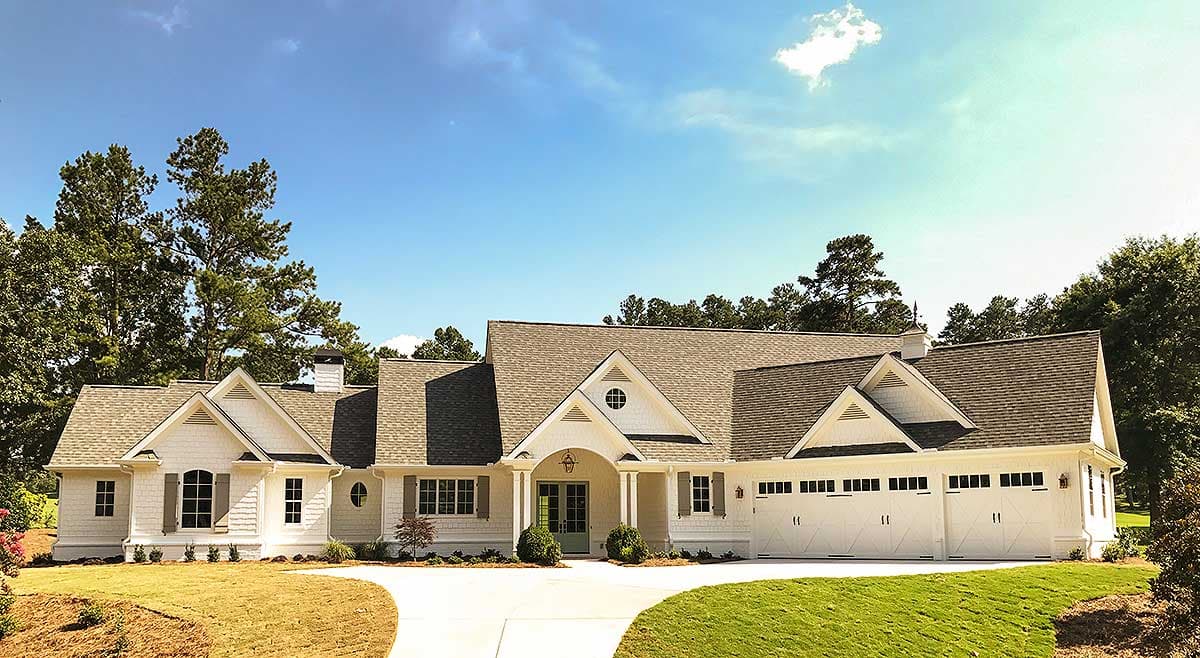

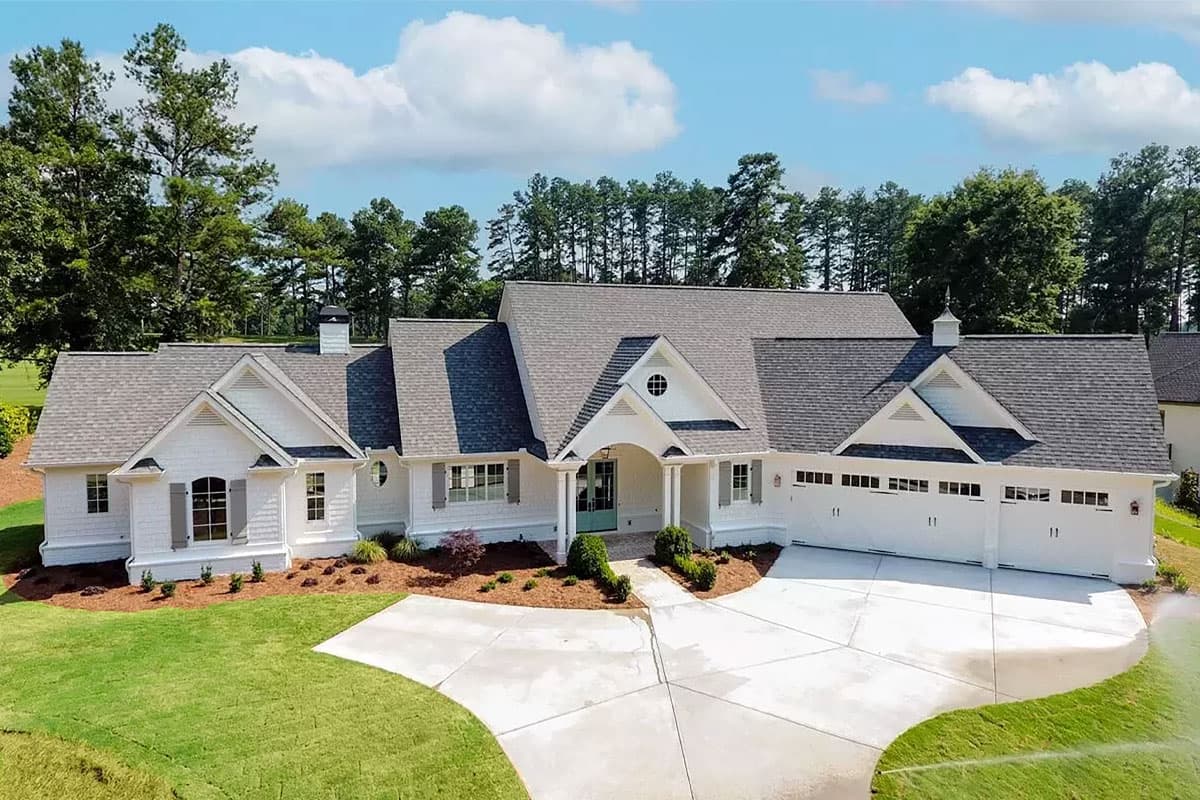

Country Craftsman with Vaulted Interior and French Door Foyer

Plan 24374TW

  • 3,026

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

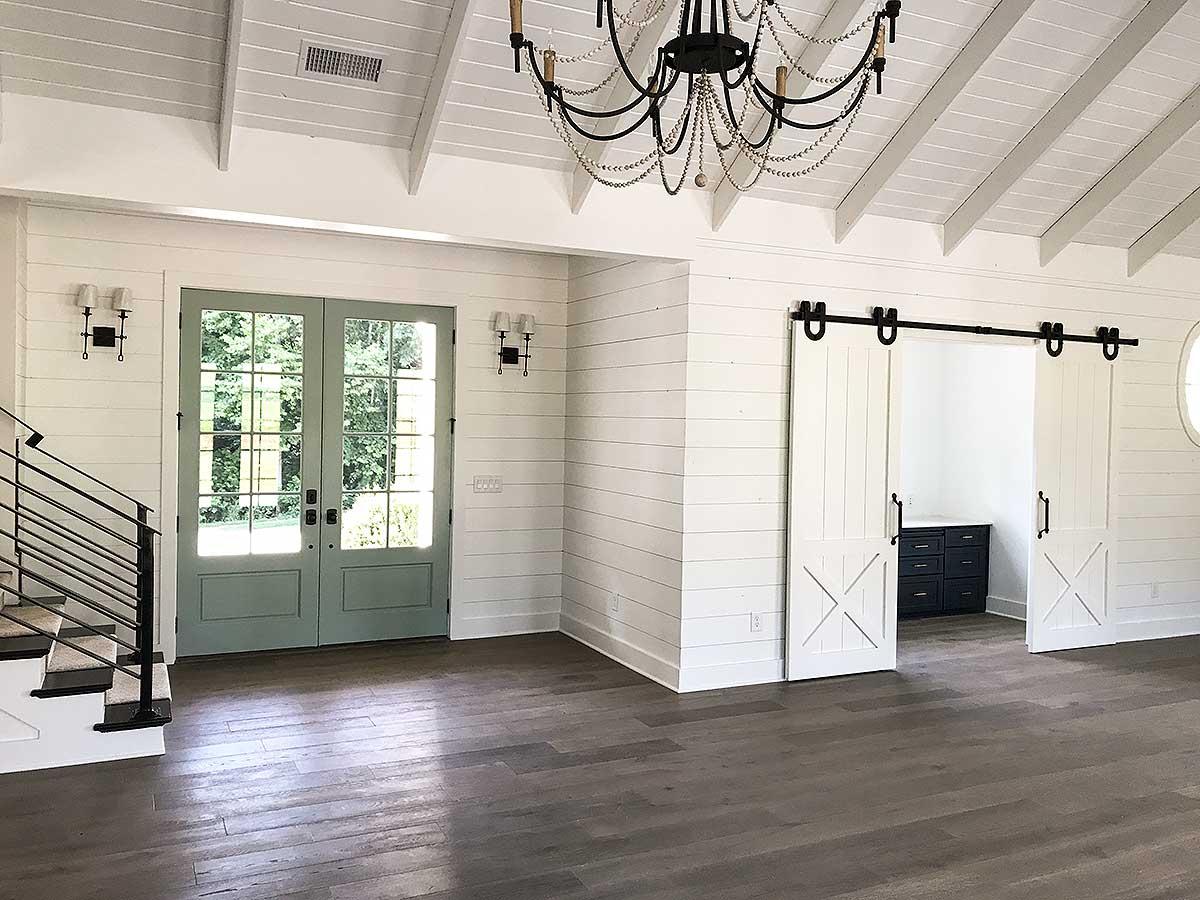

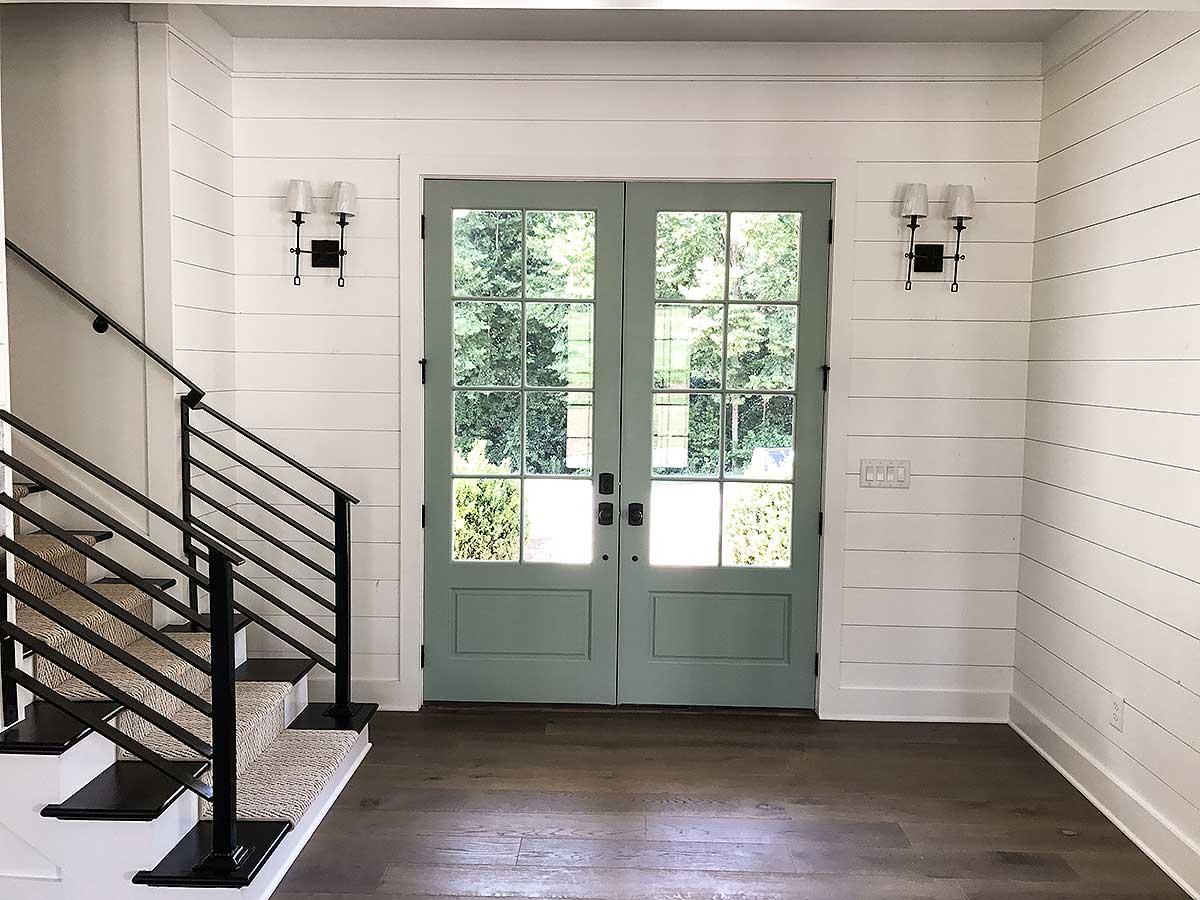

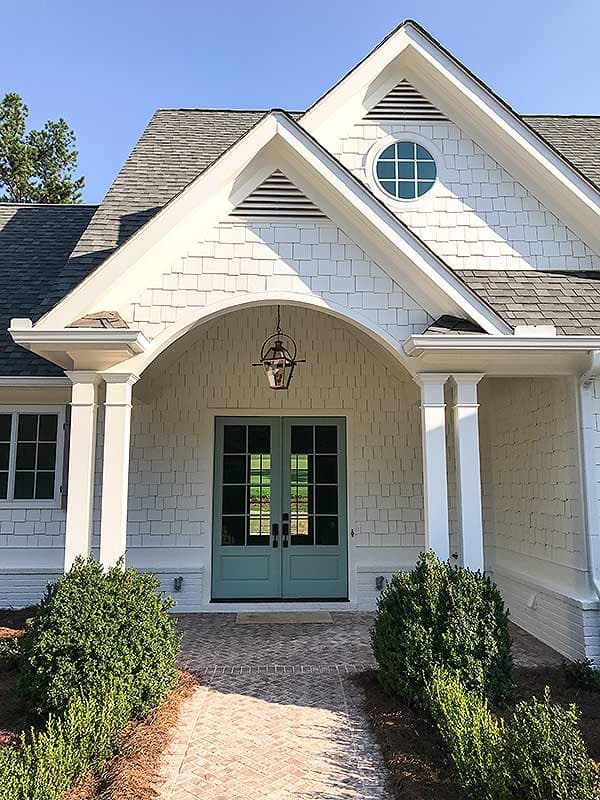

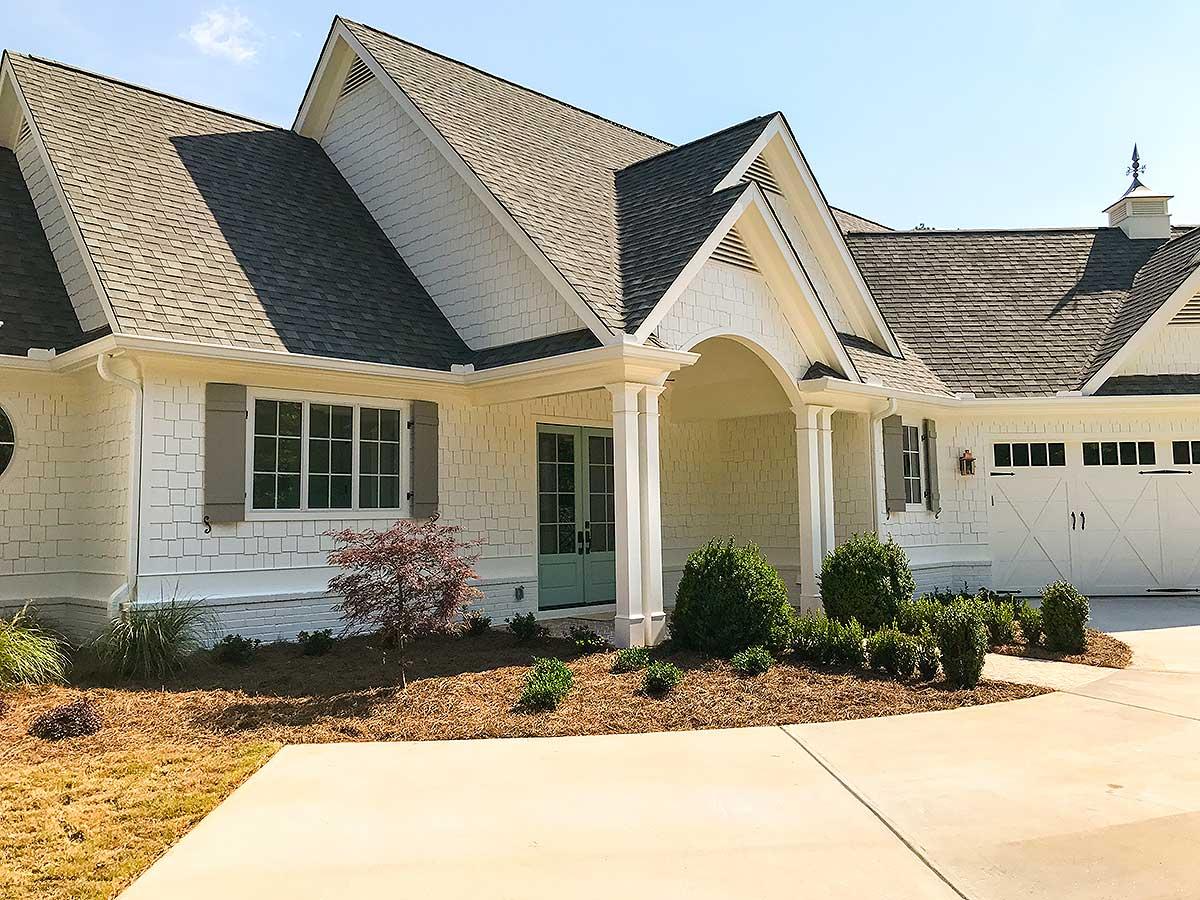

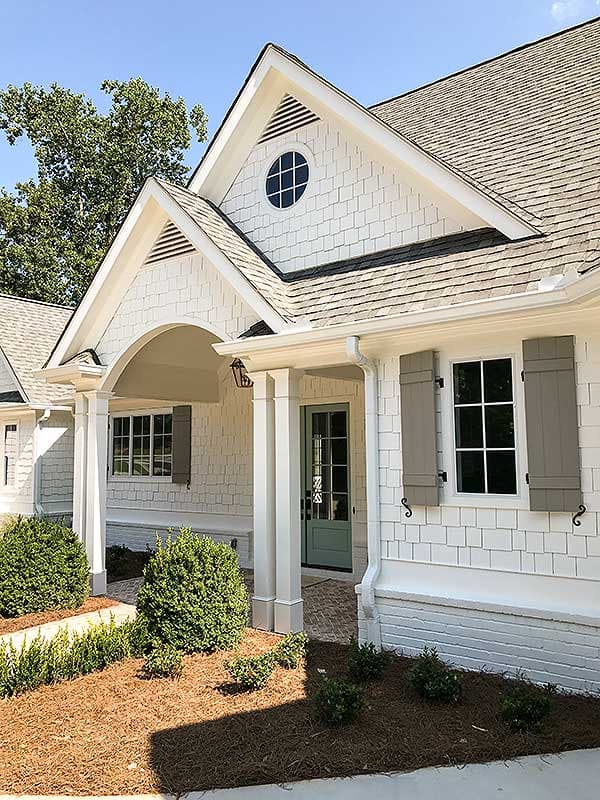

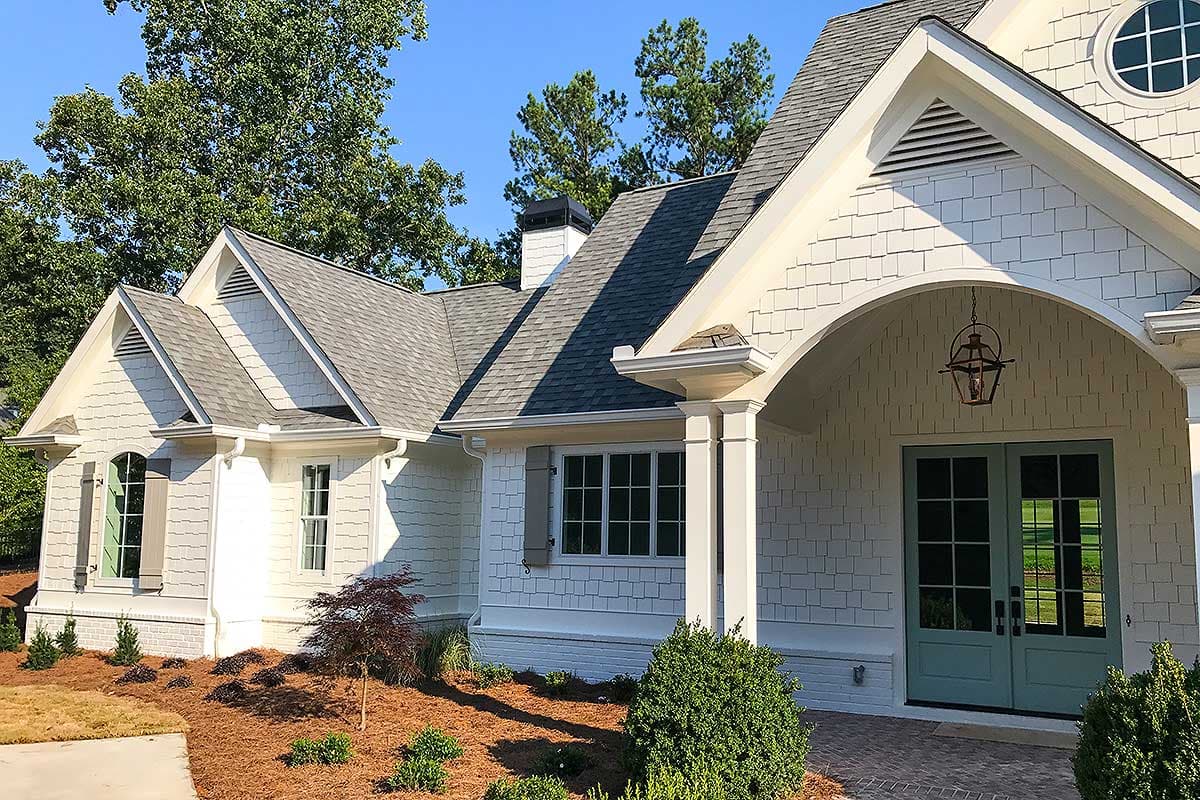

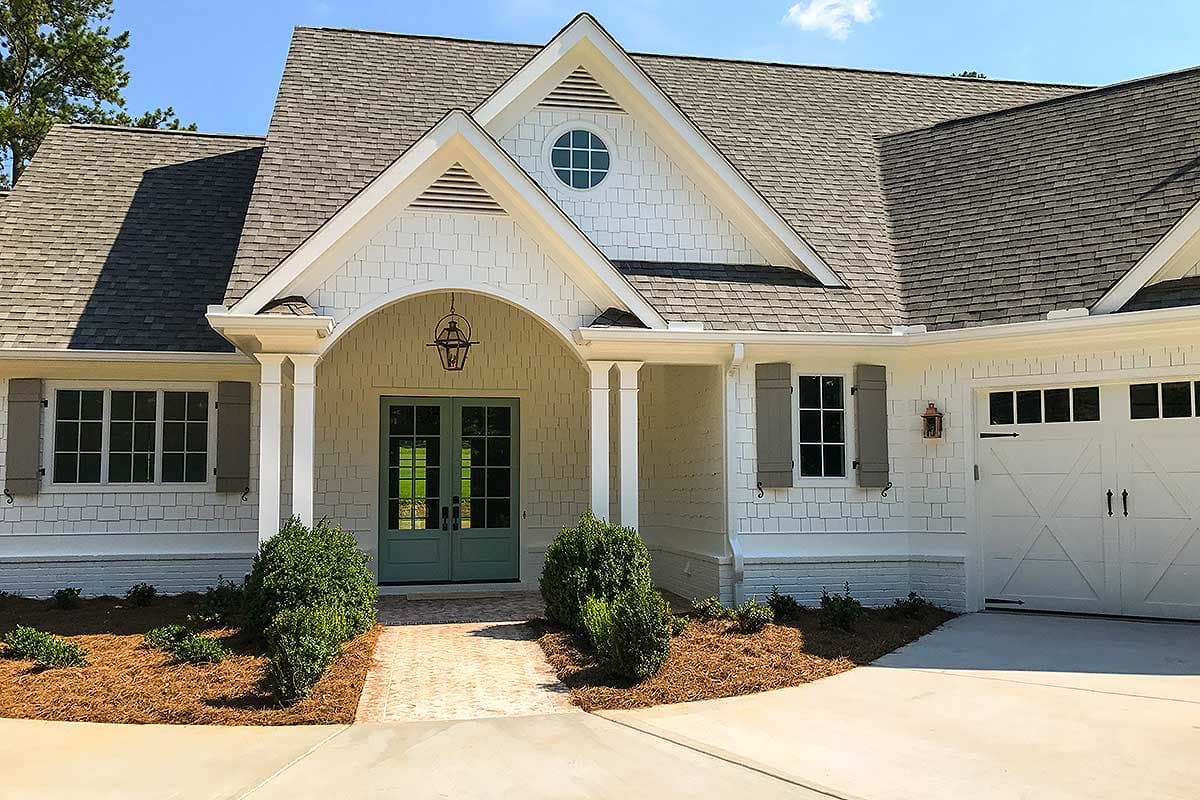

  • What a beautiful view when you step through the foyer of this amazing Country Craftsman house plan!

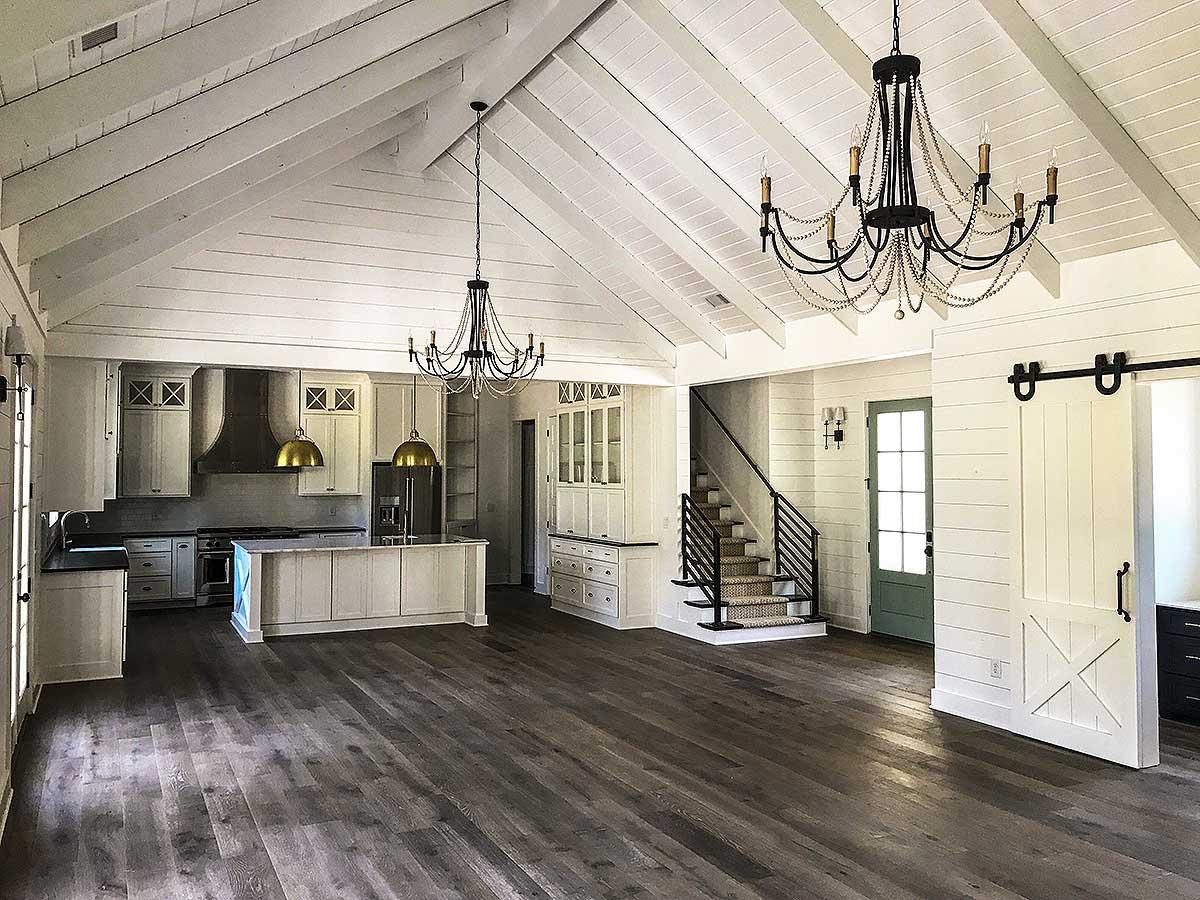

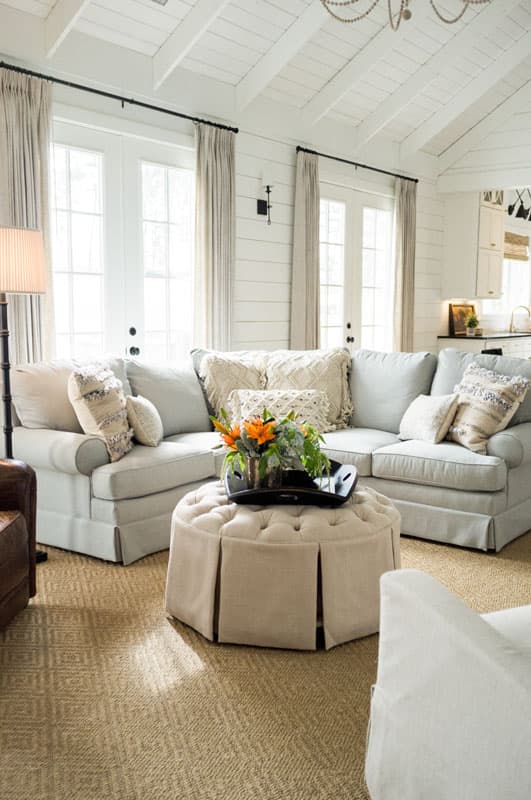

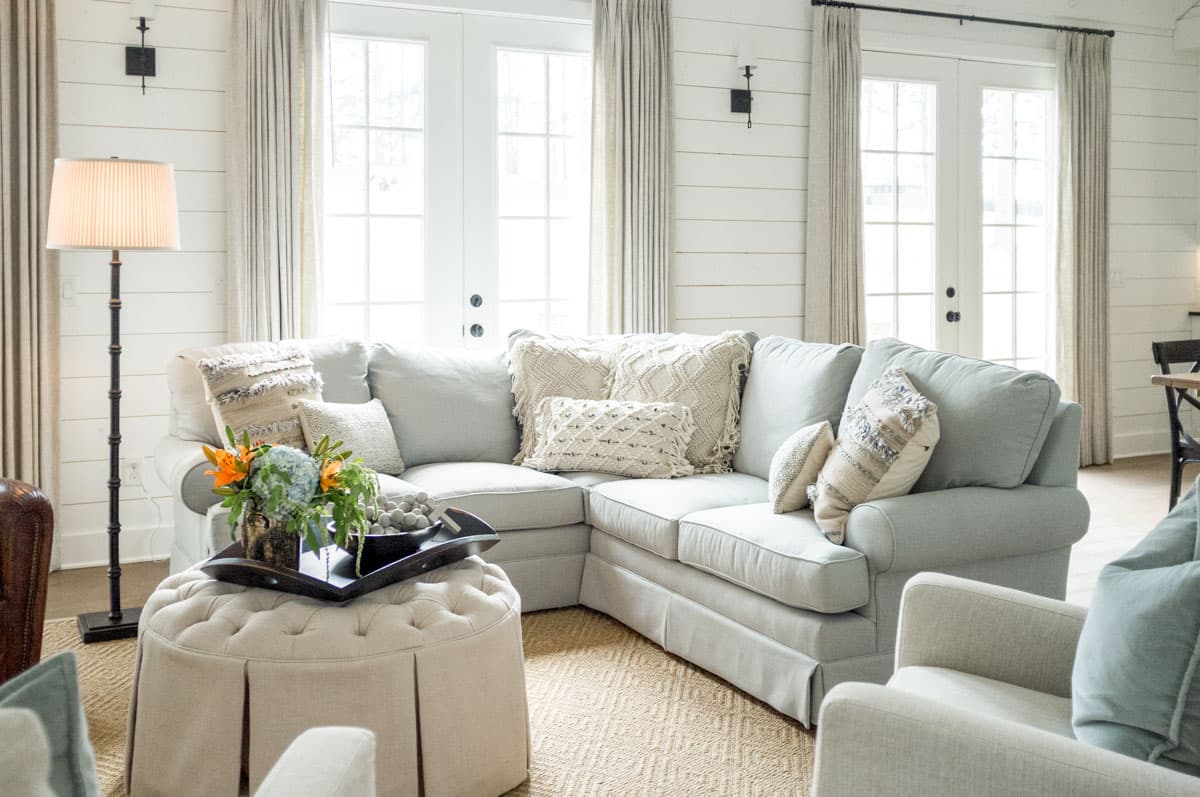

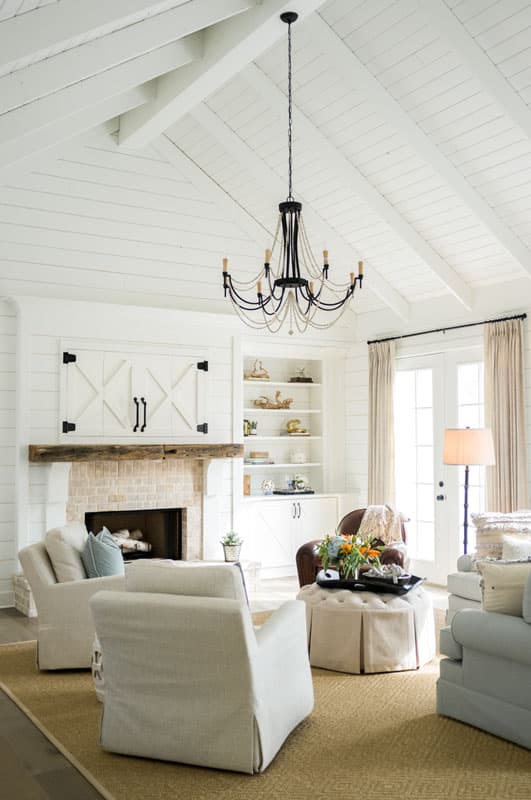

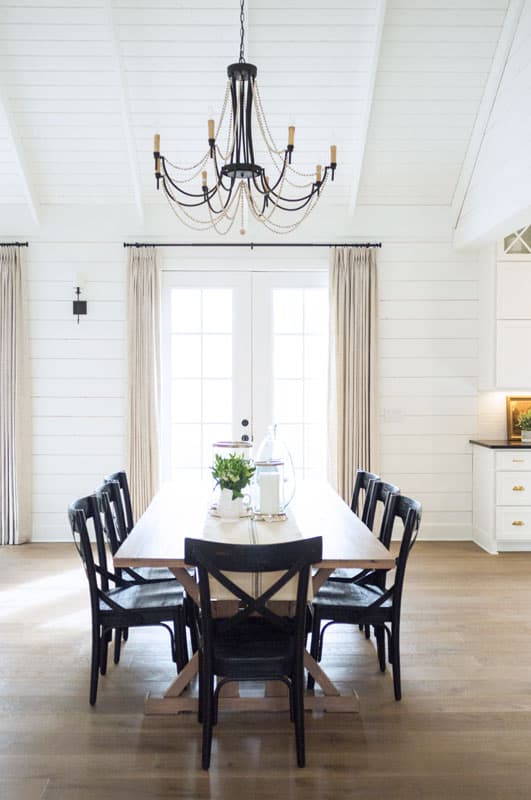

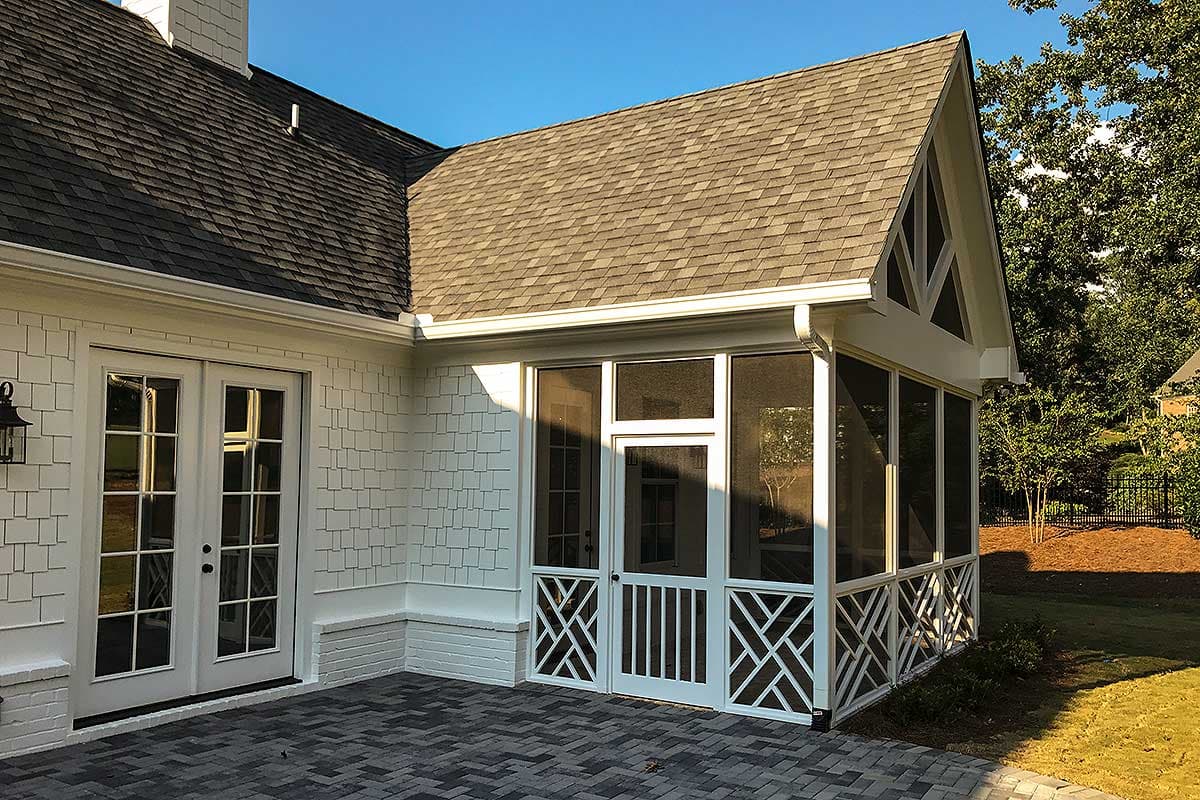

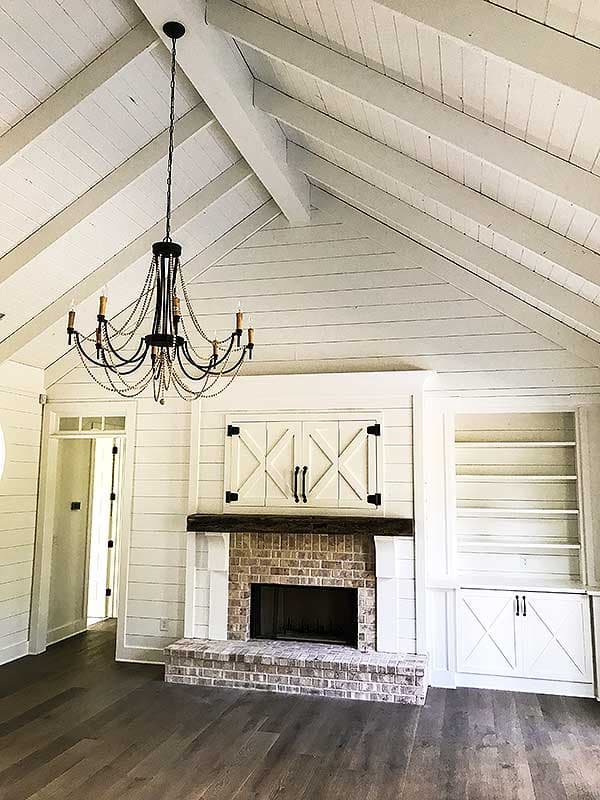

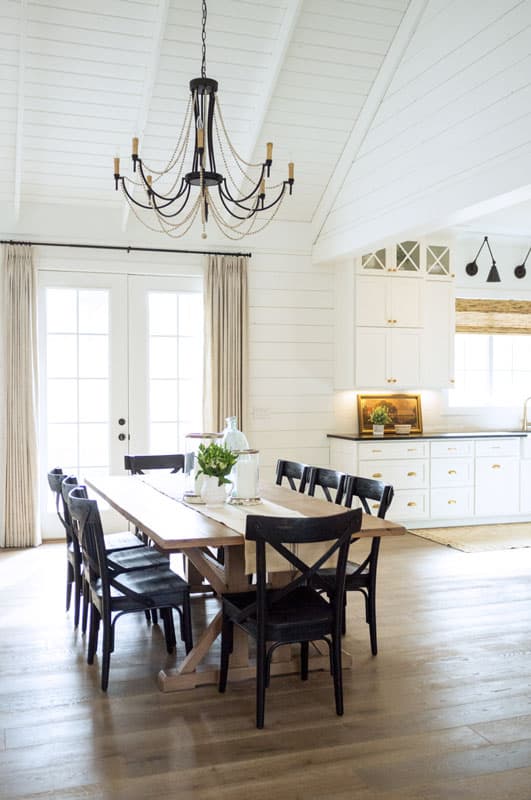

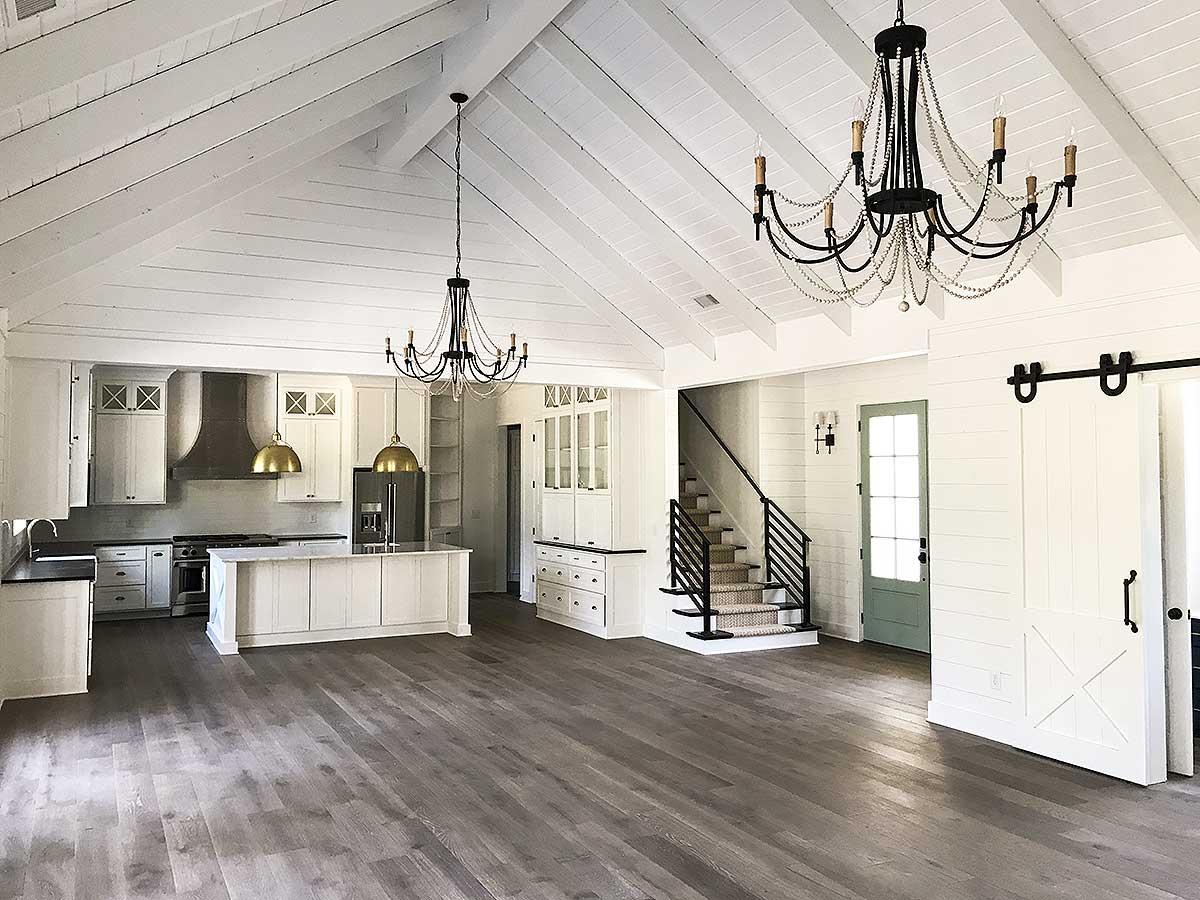

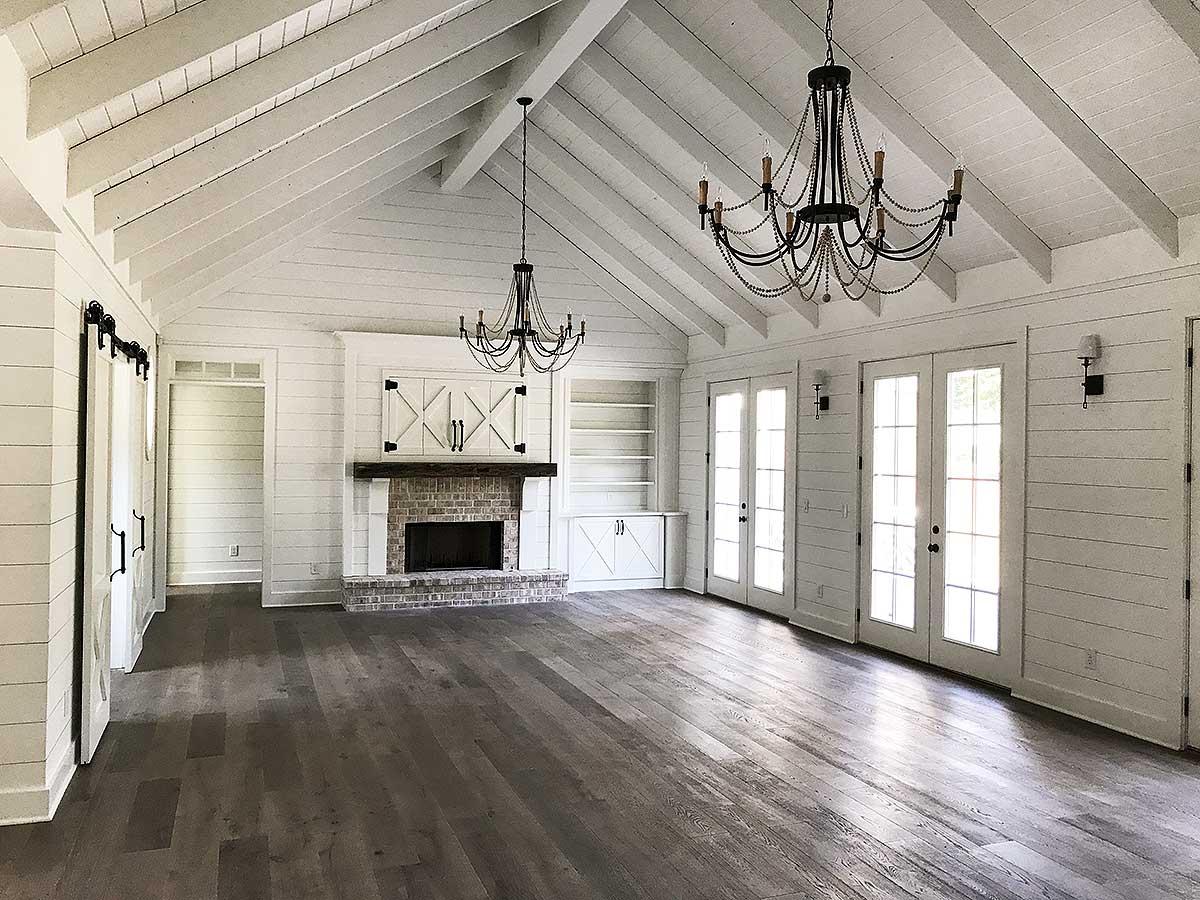

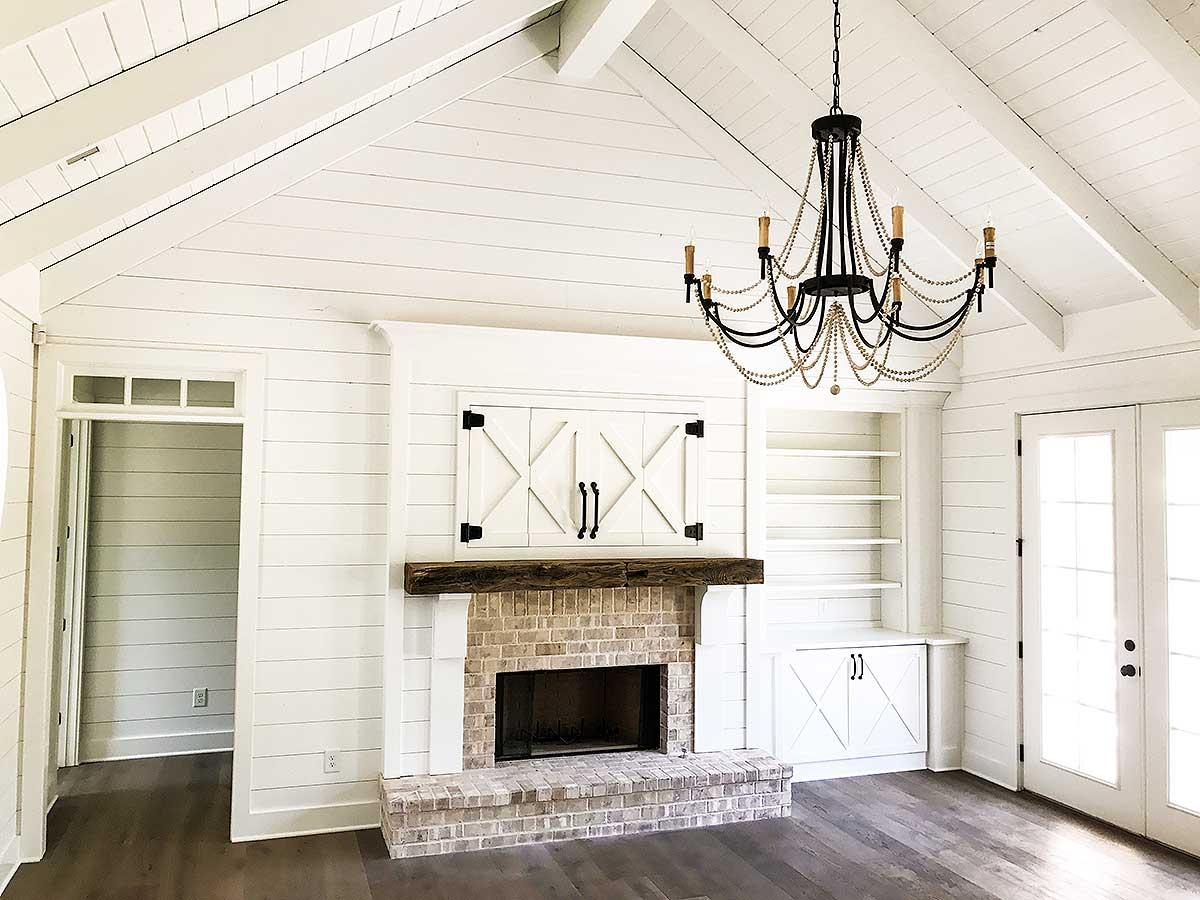

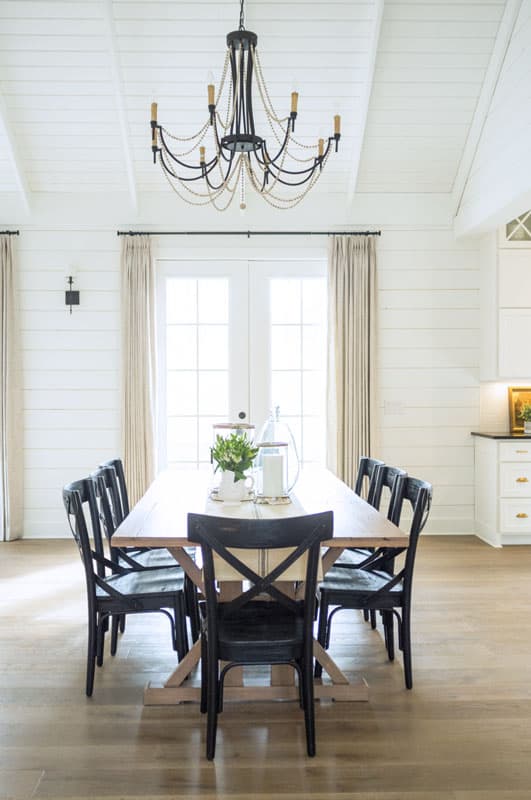

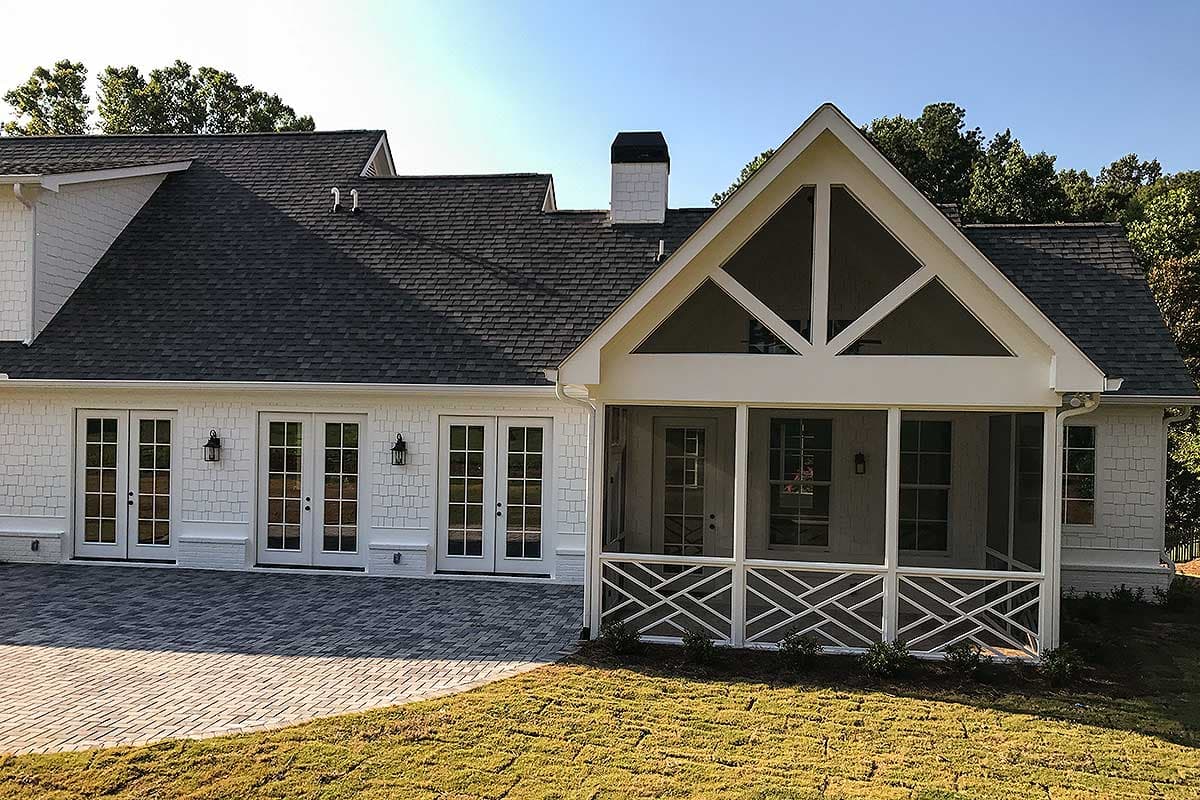

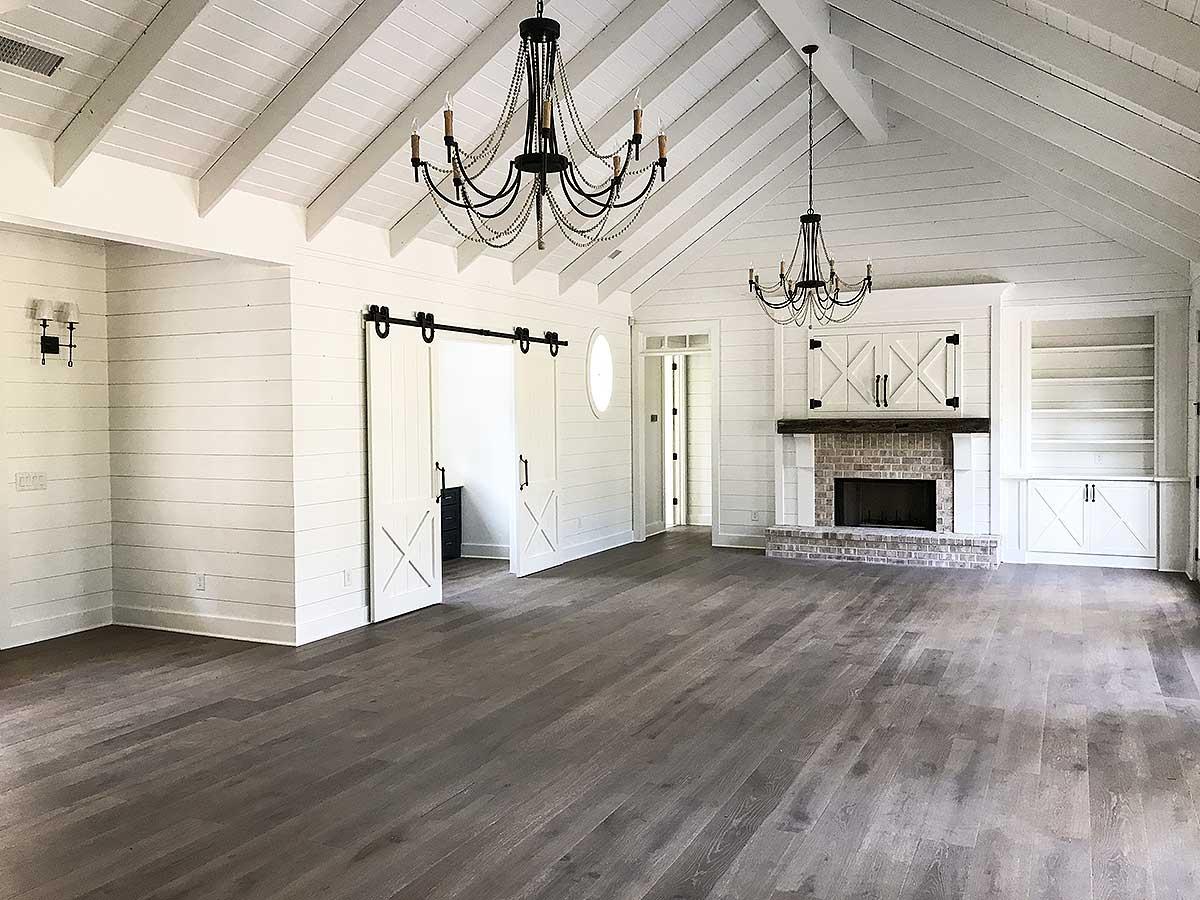

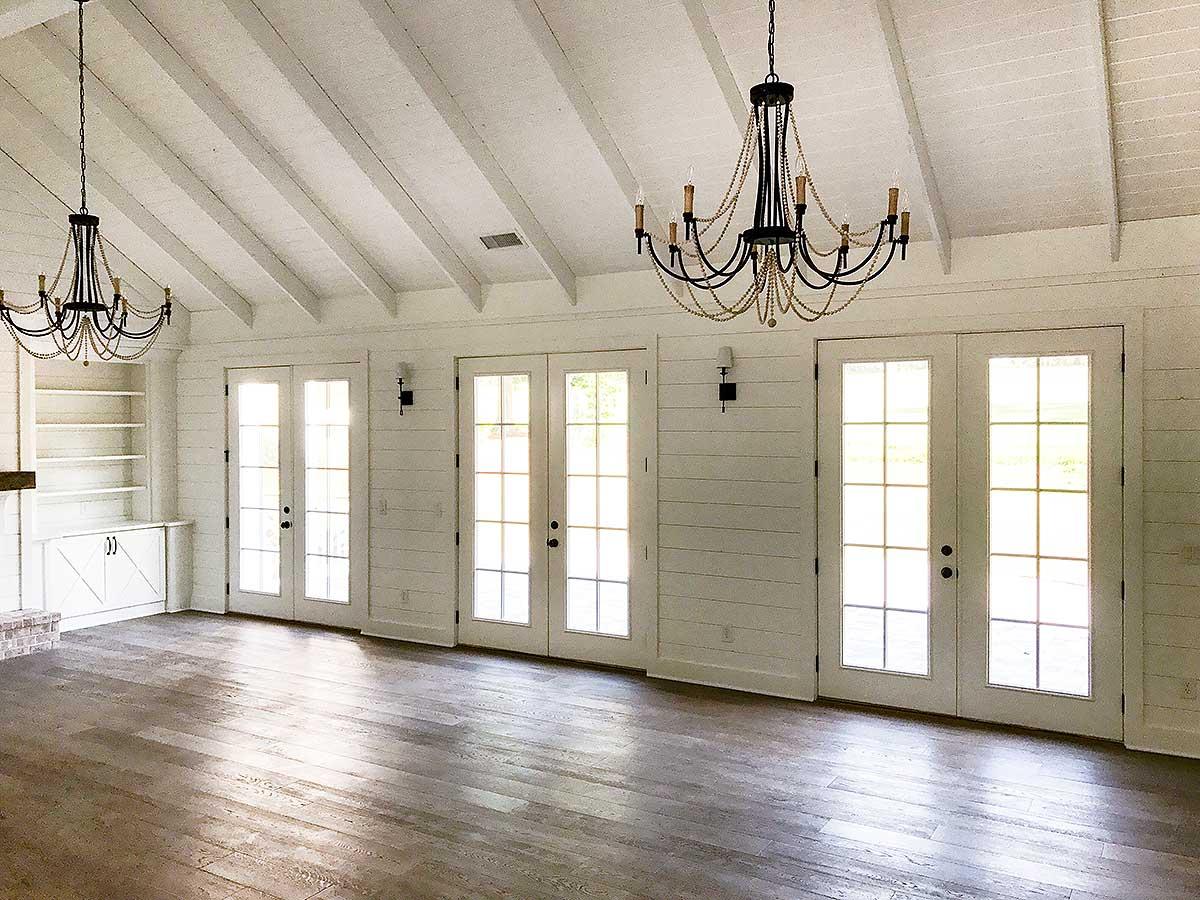

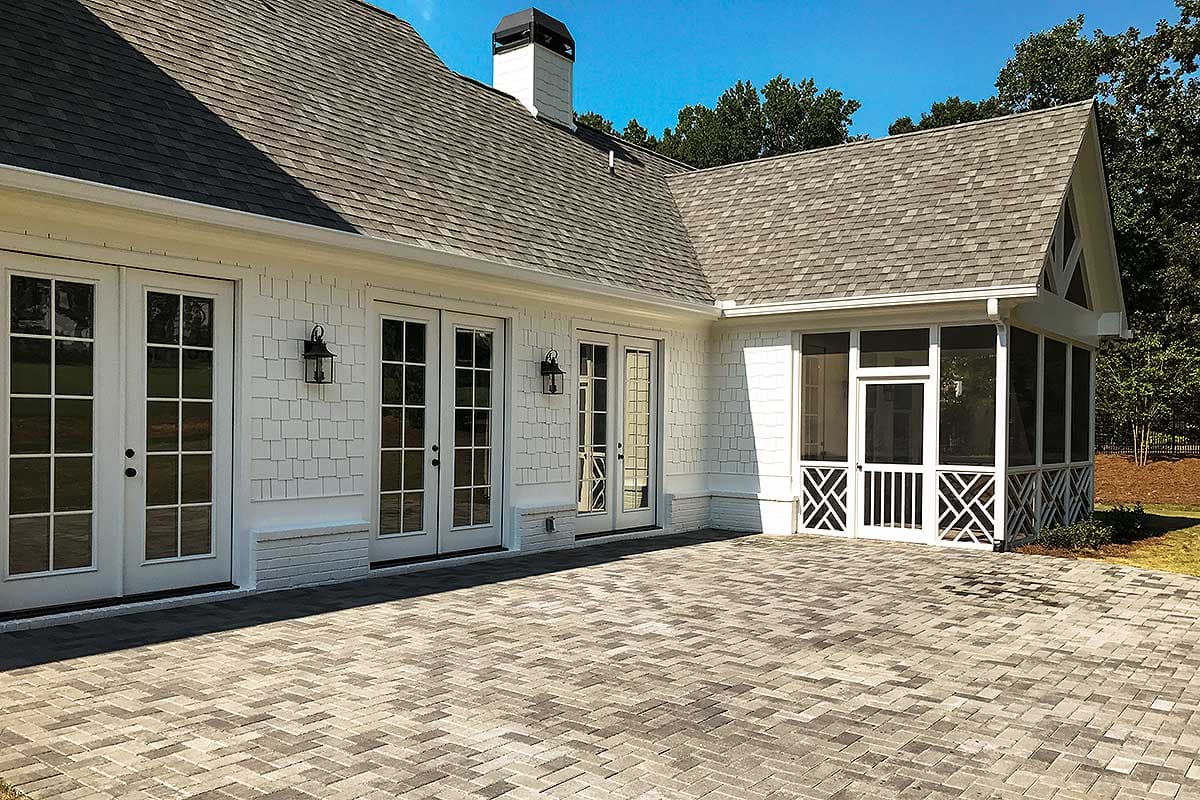

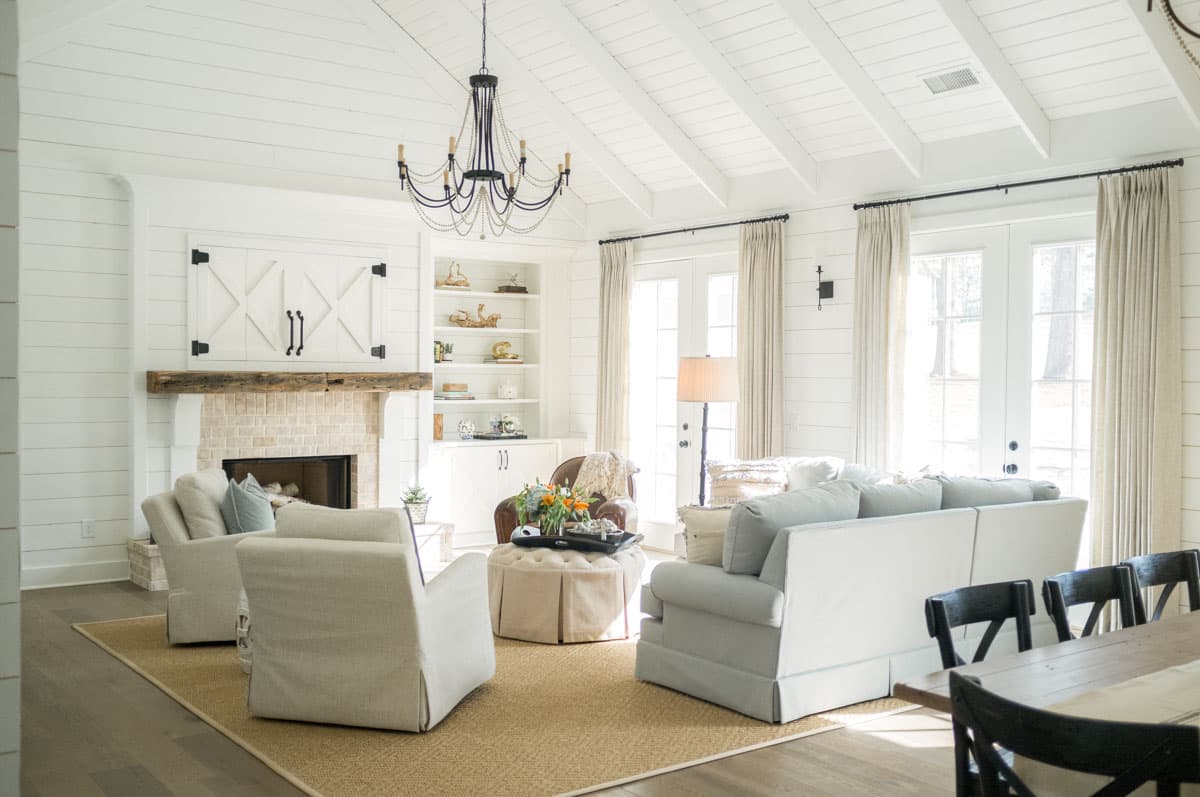

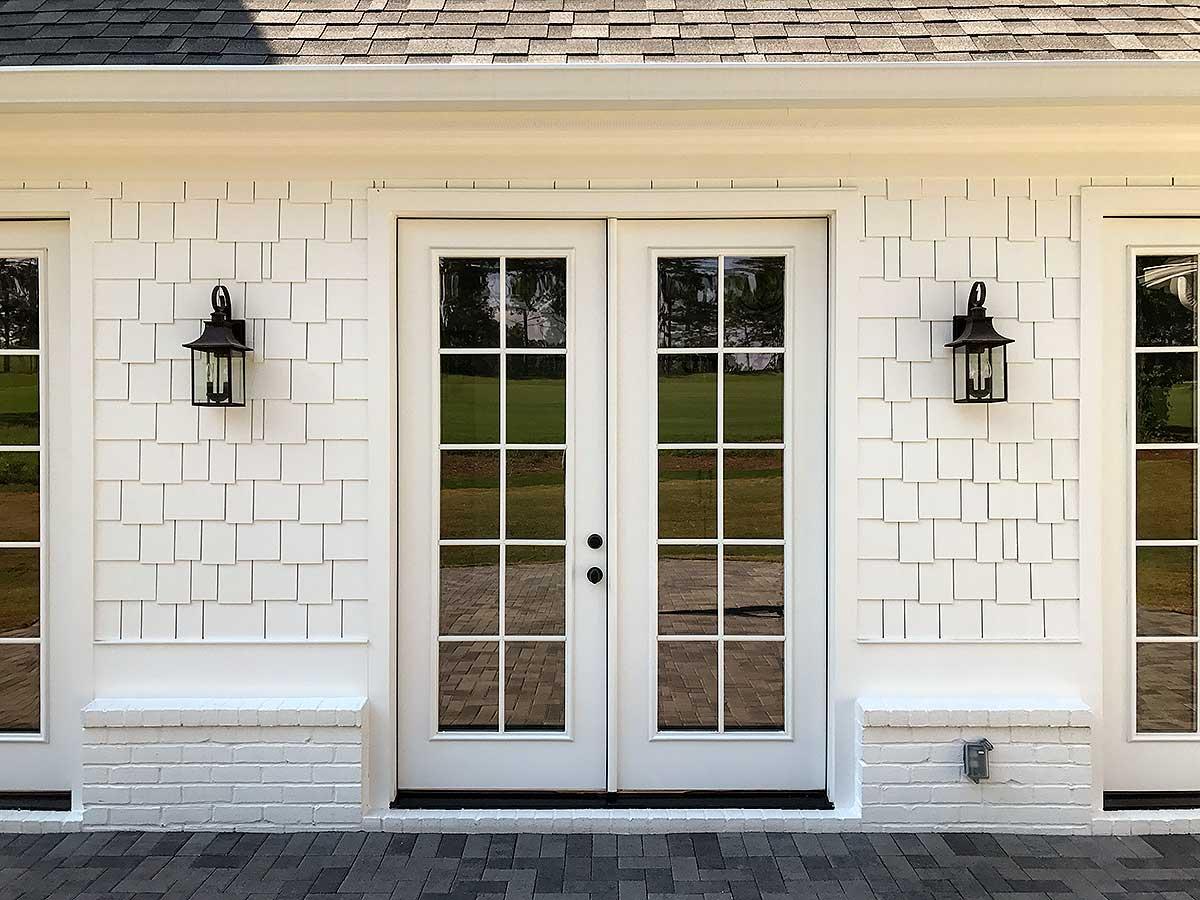

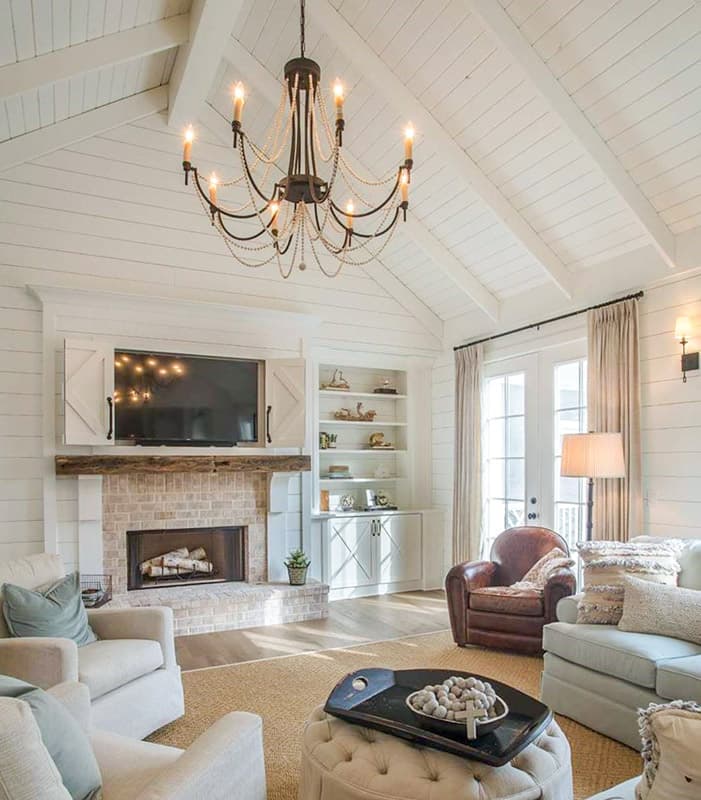

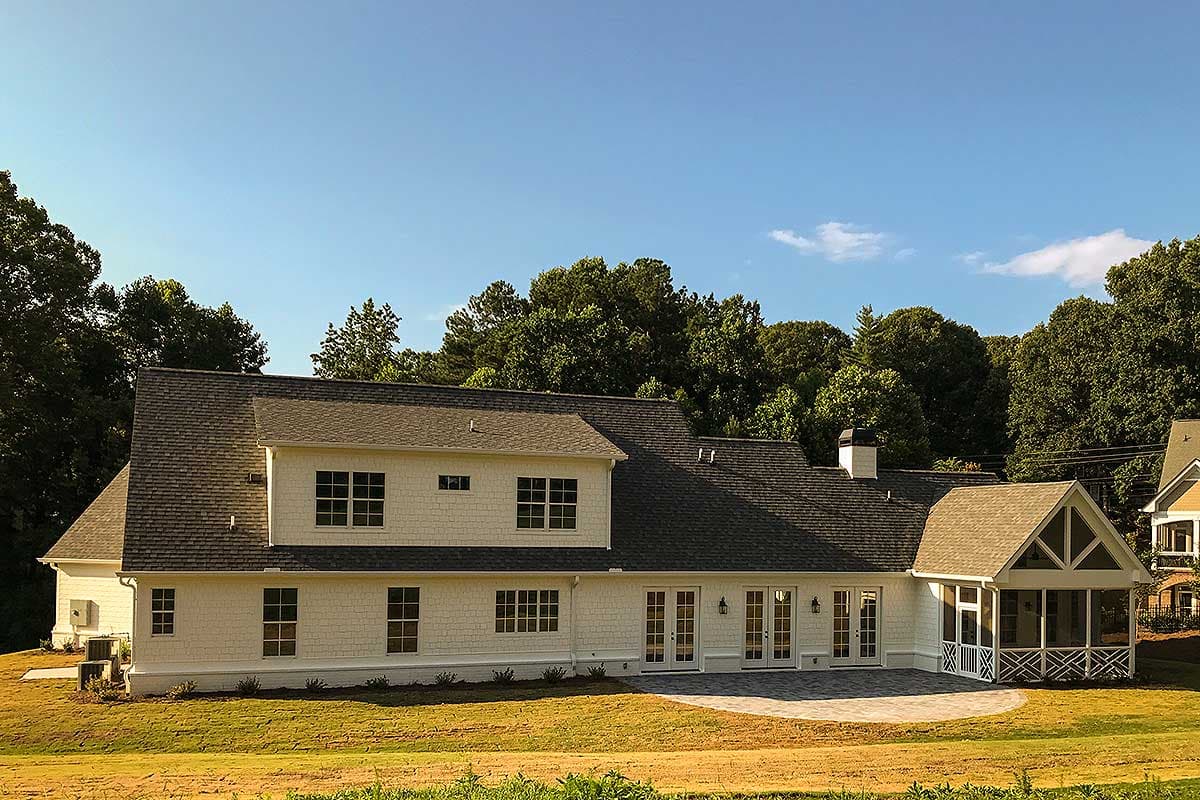

  • A huge vaulted and beamed ceiling extends across the great room and dining room where three sets of double doors lead out to the open patio in back.

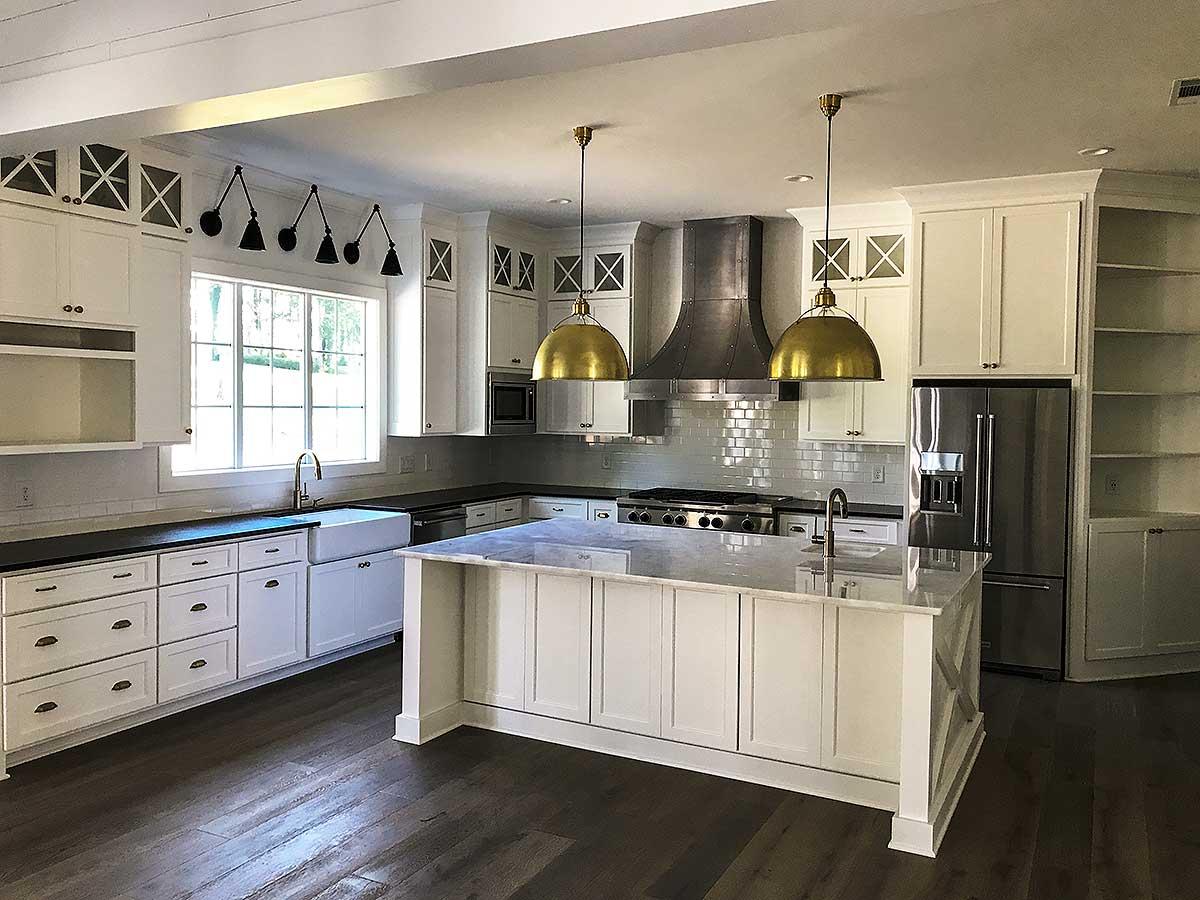

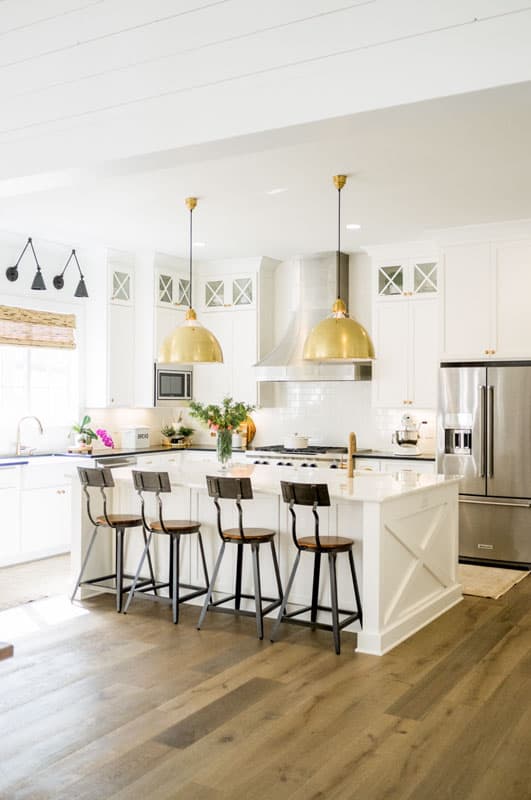

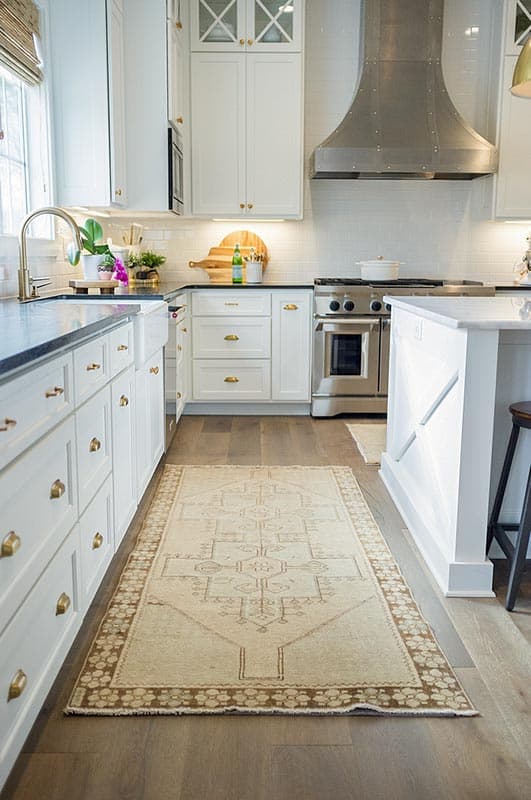

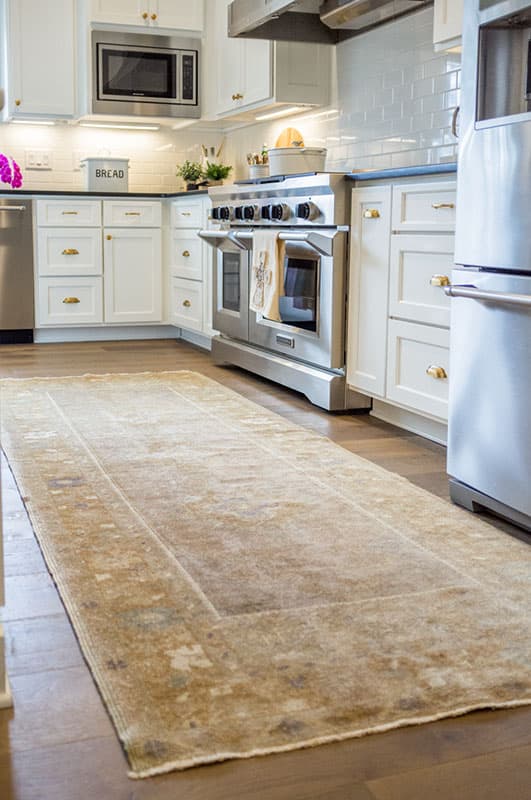

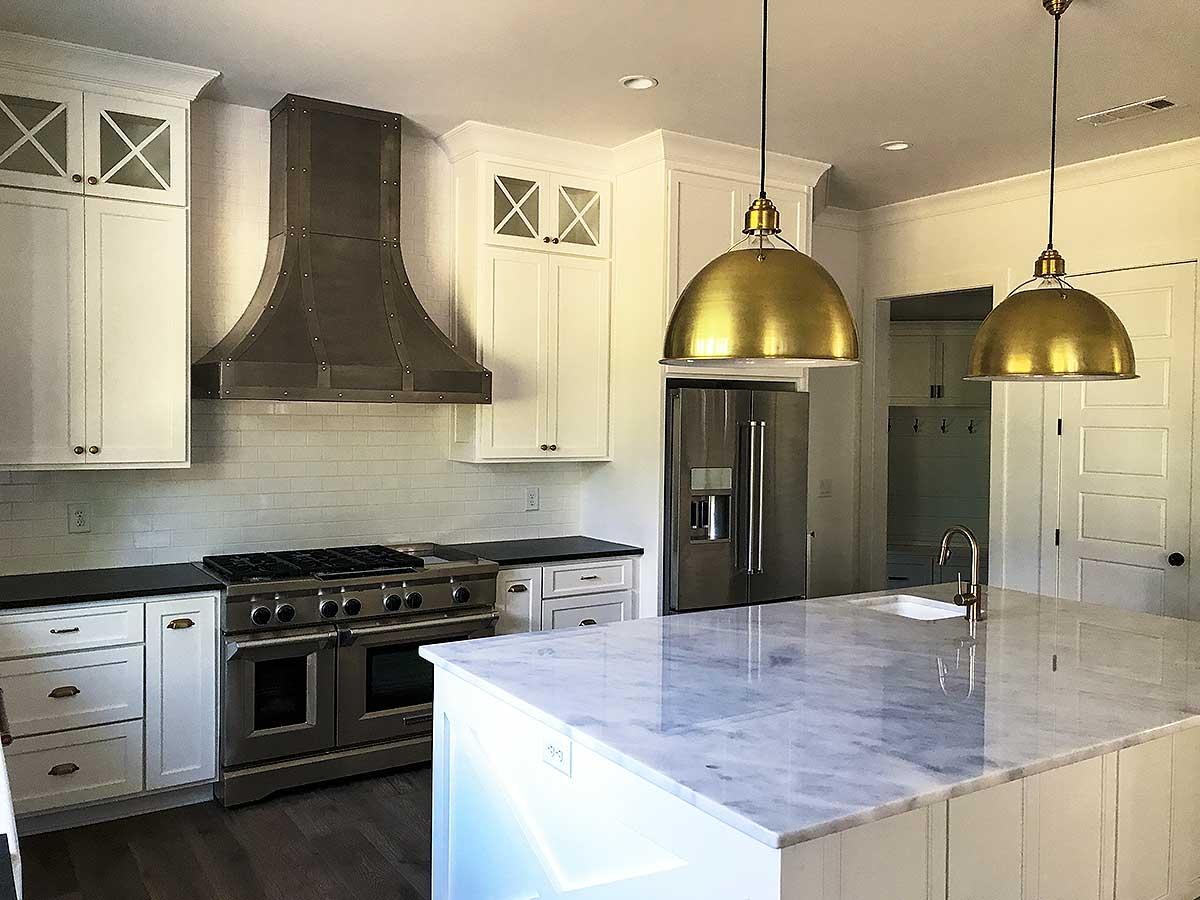

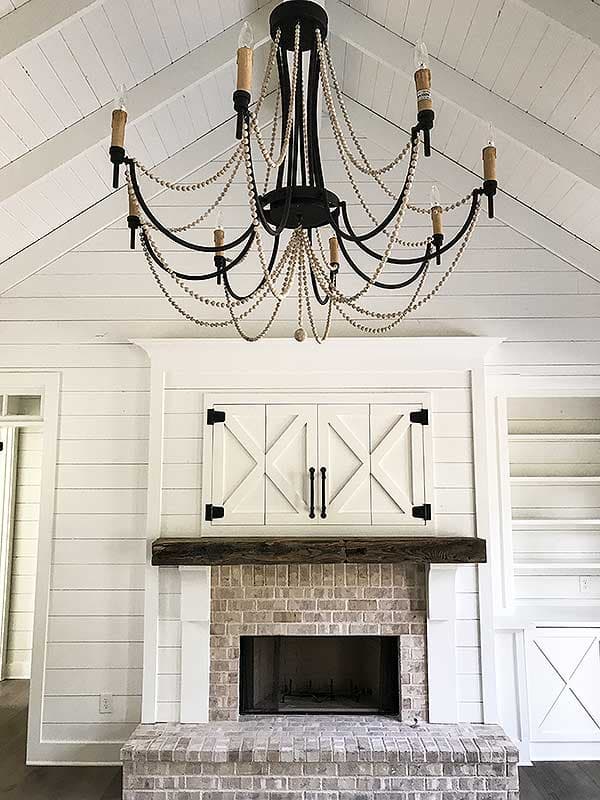

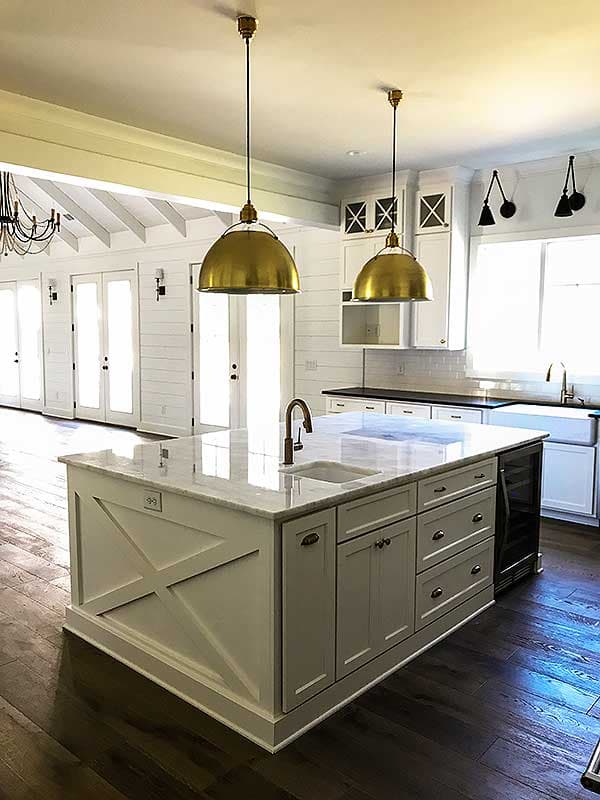

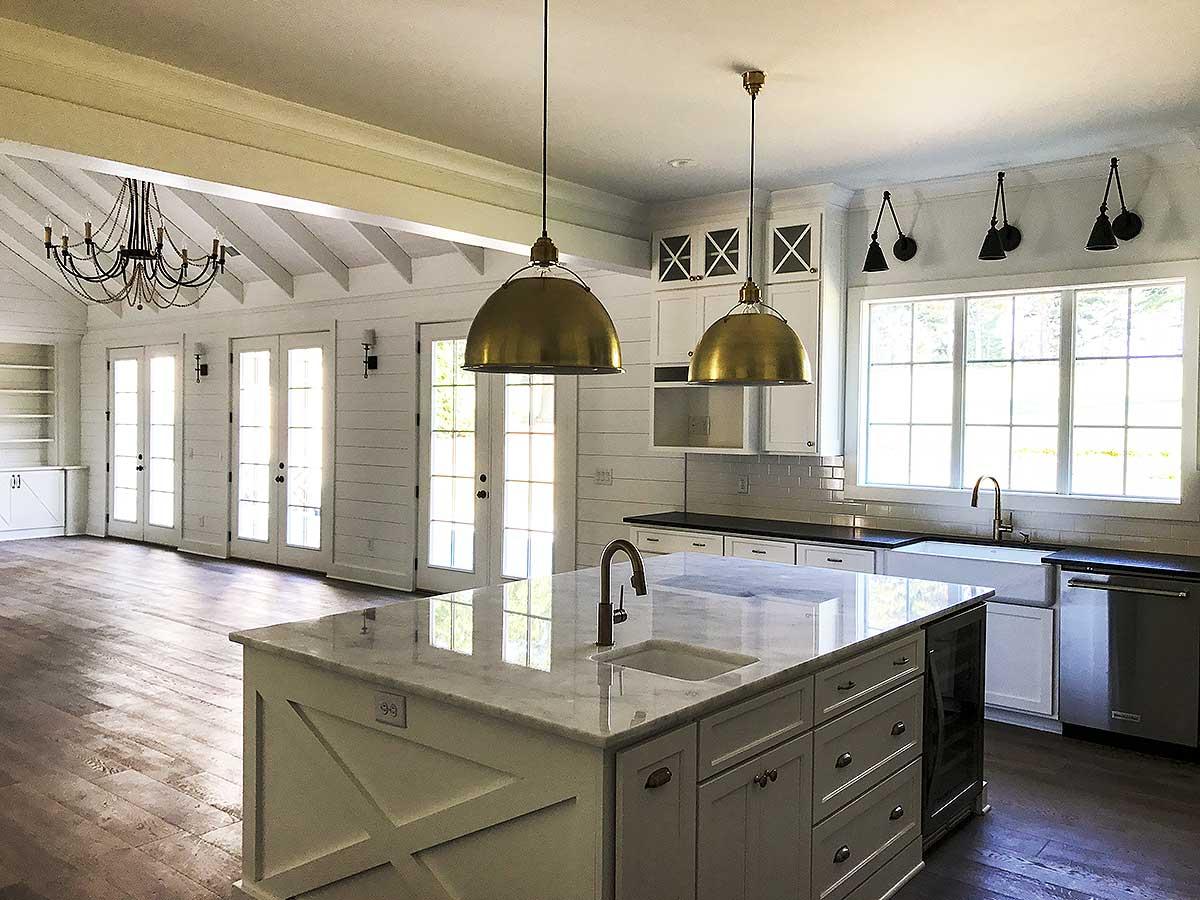

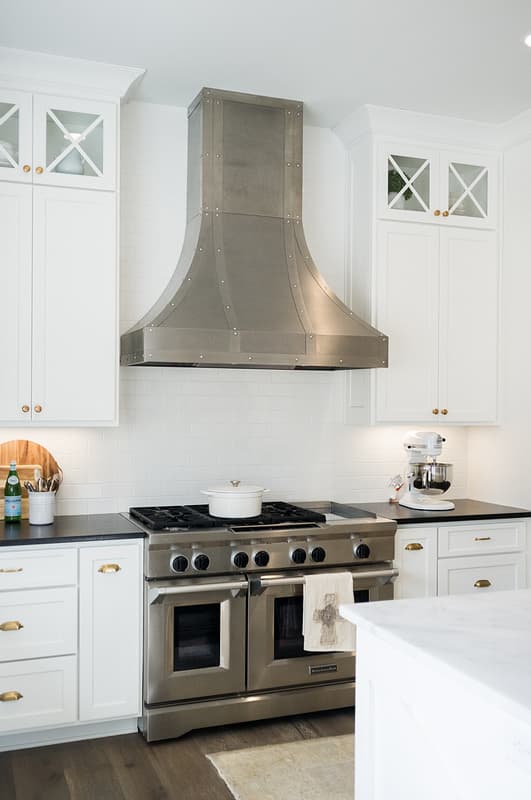

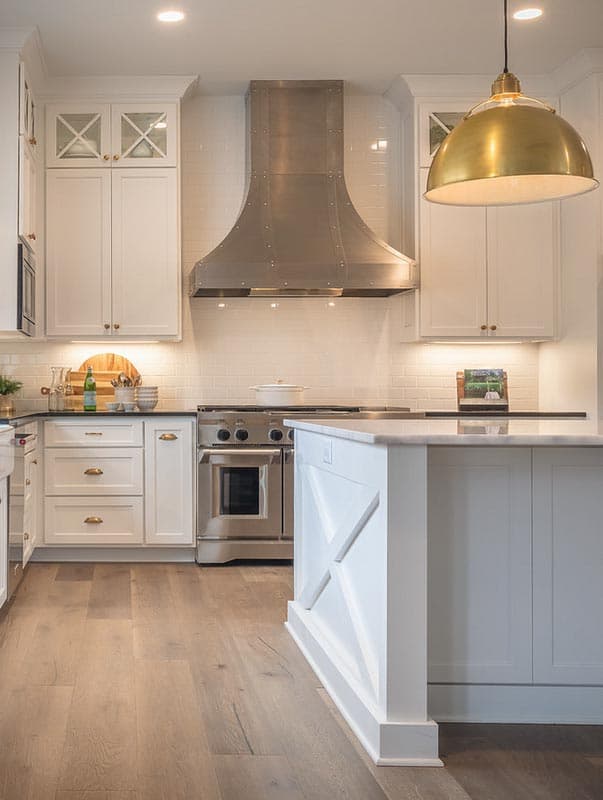

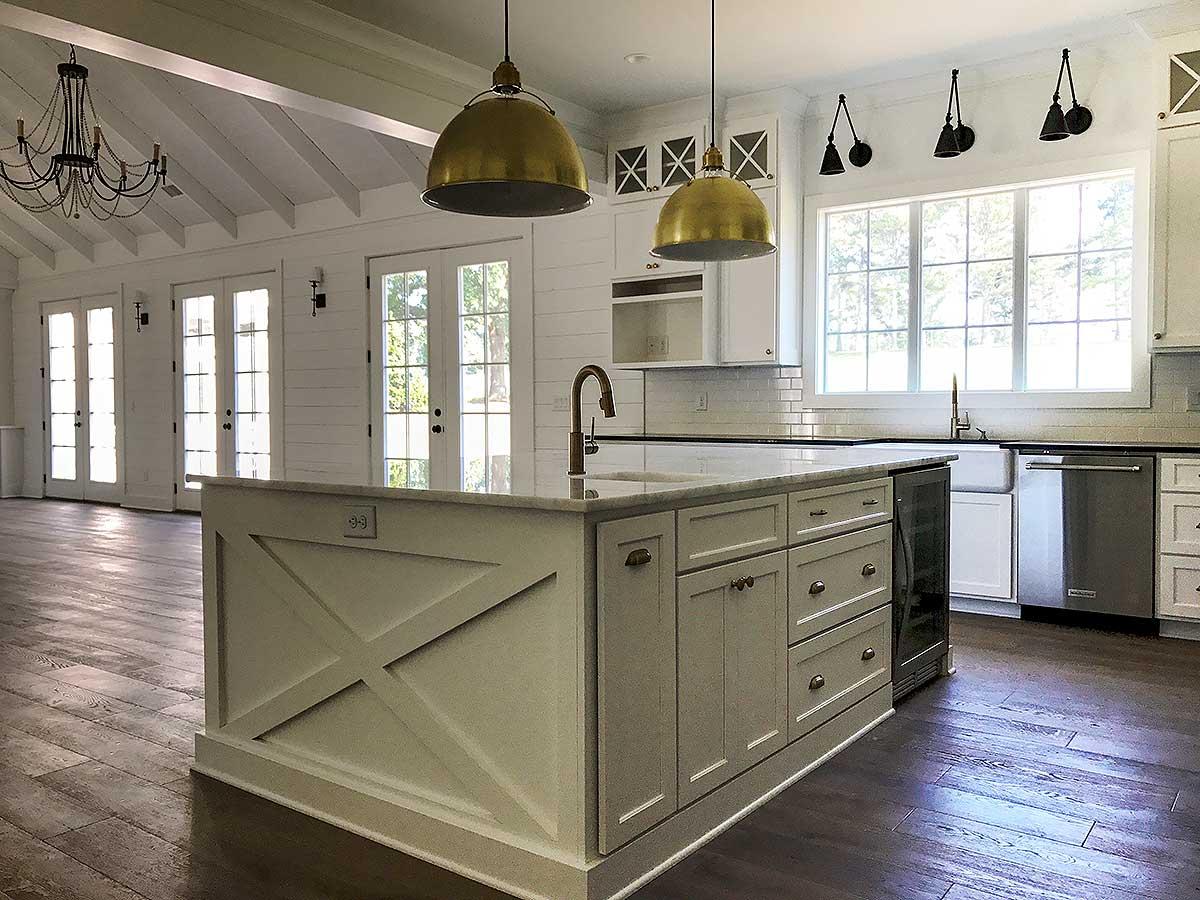

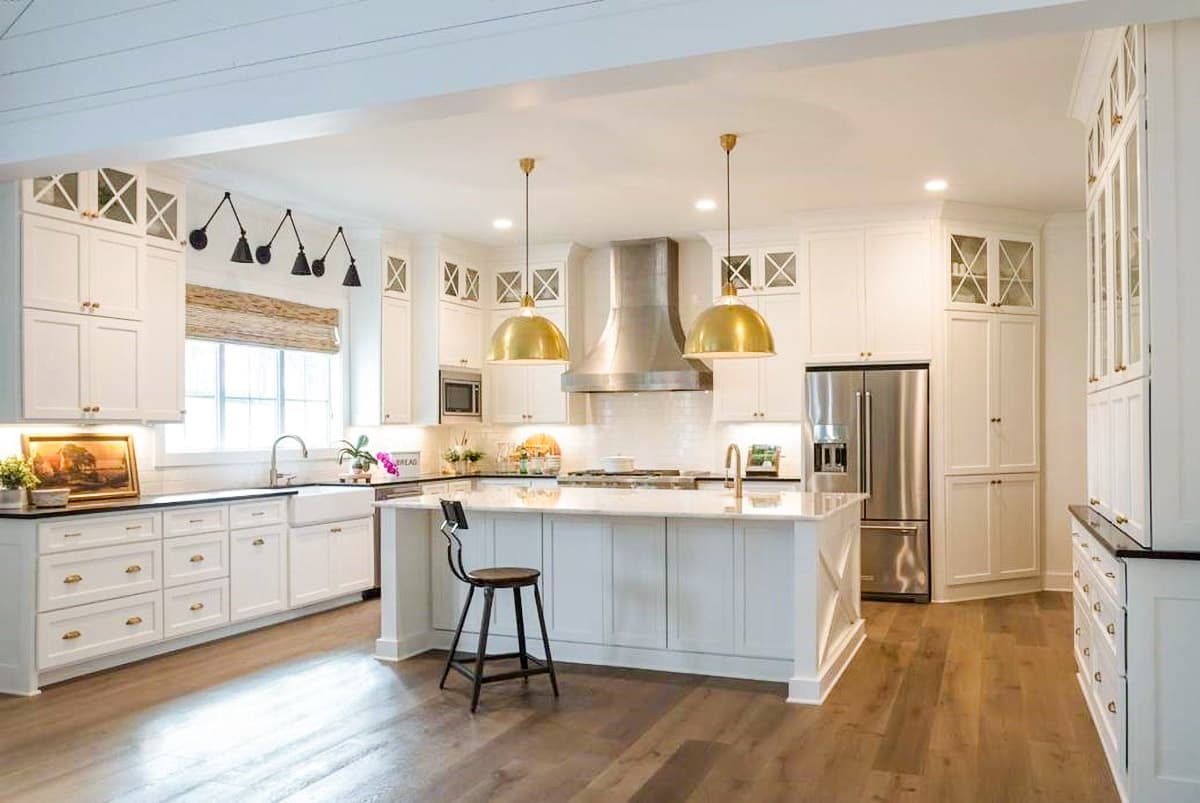

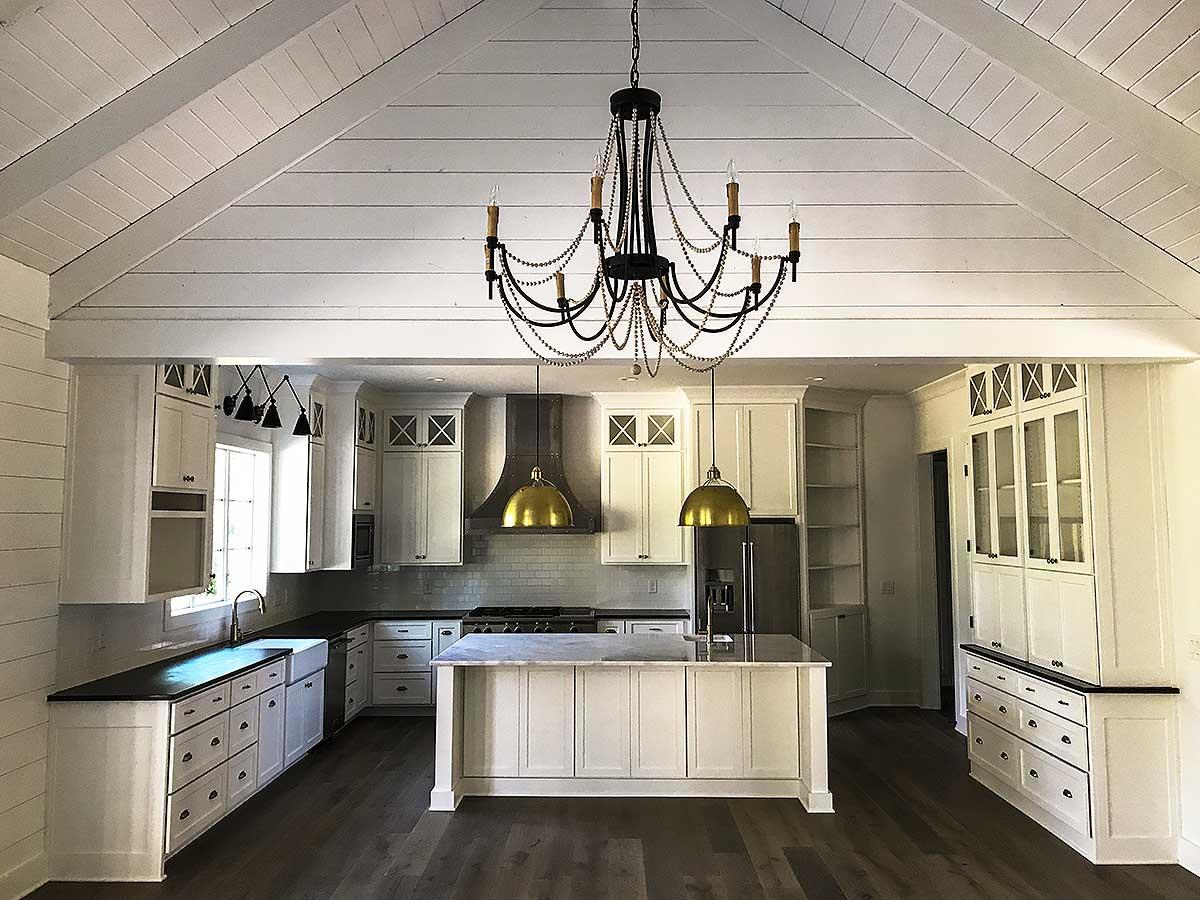

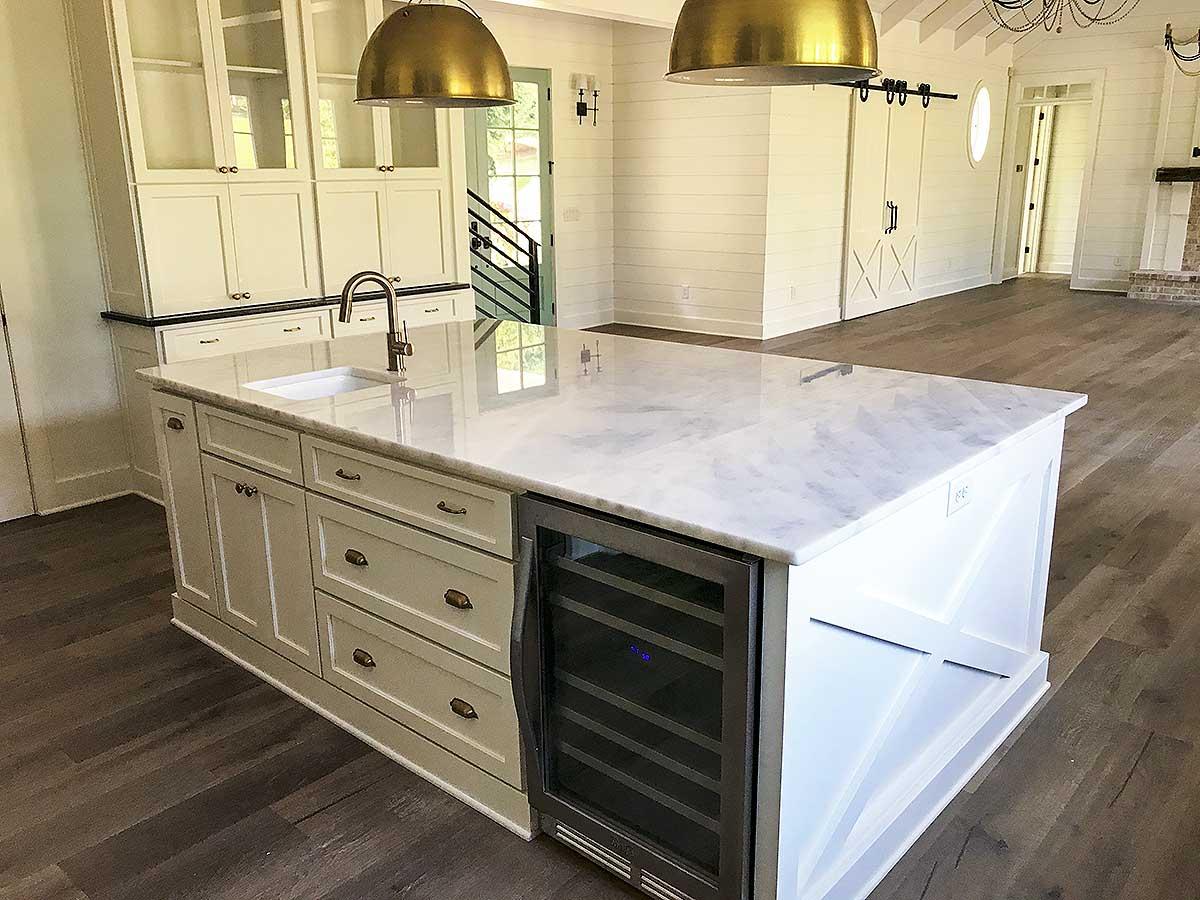

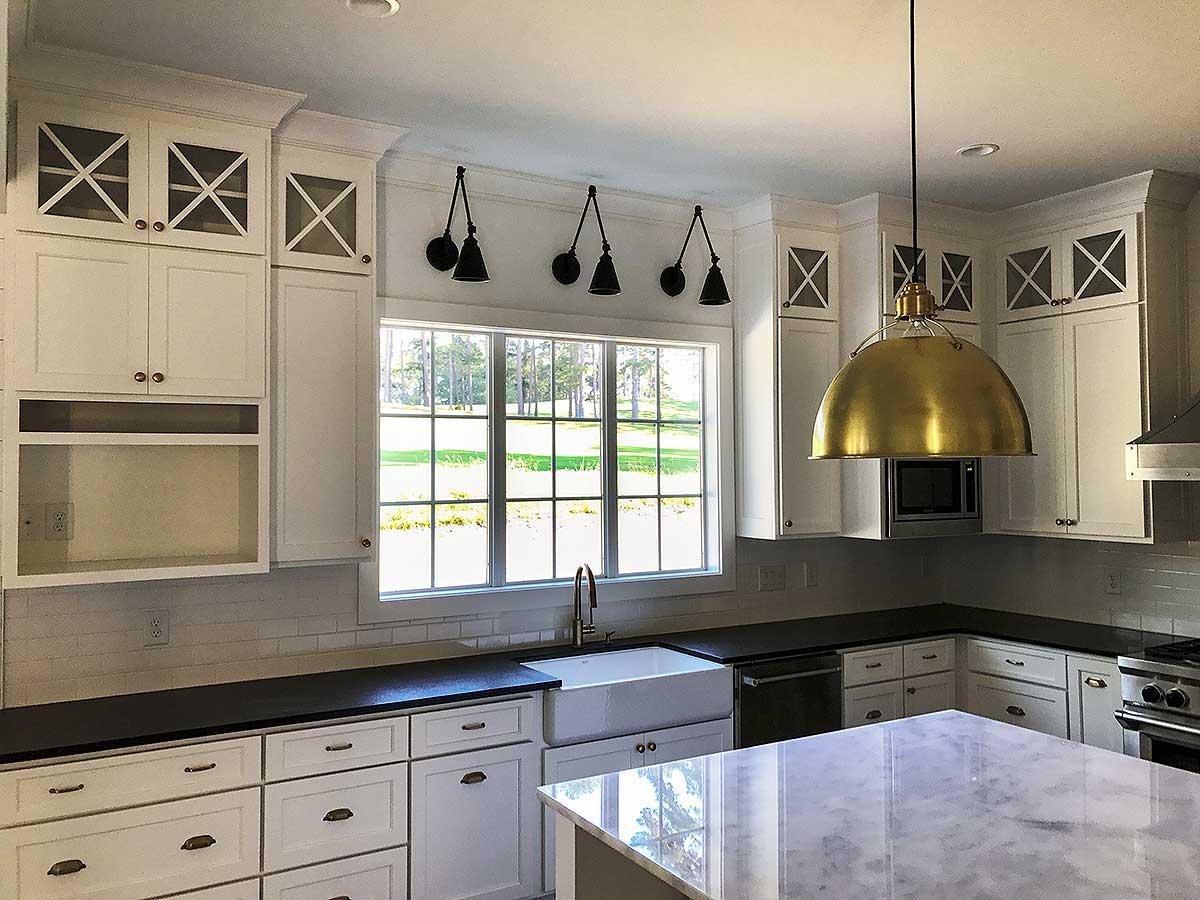

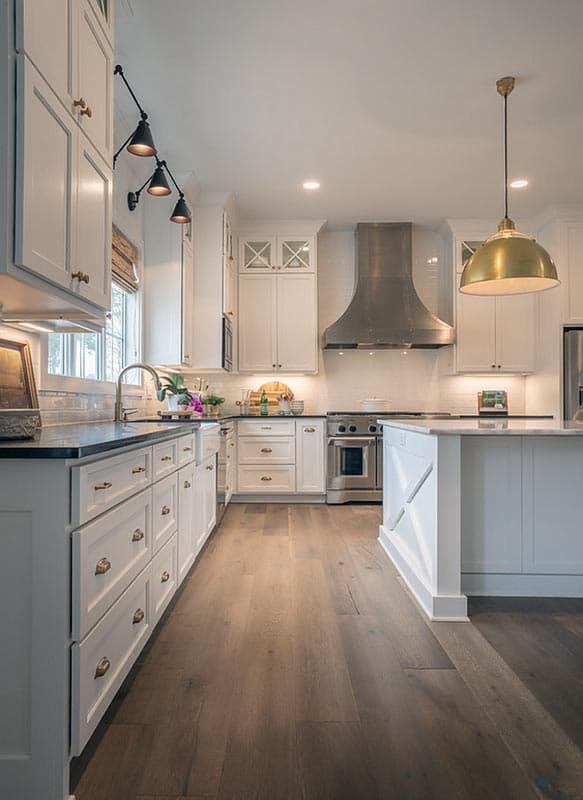

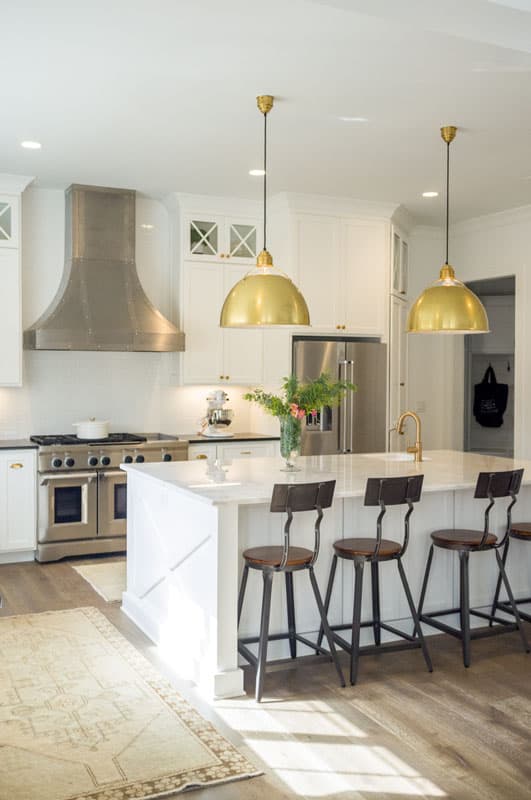

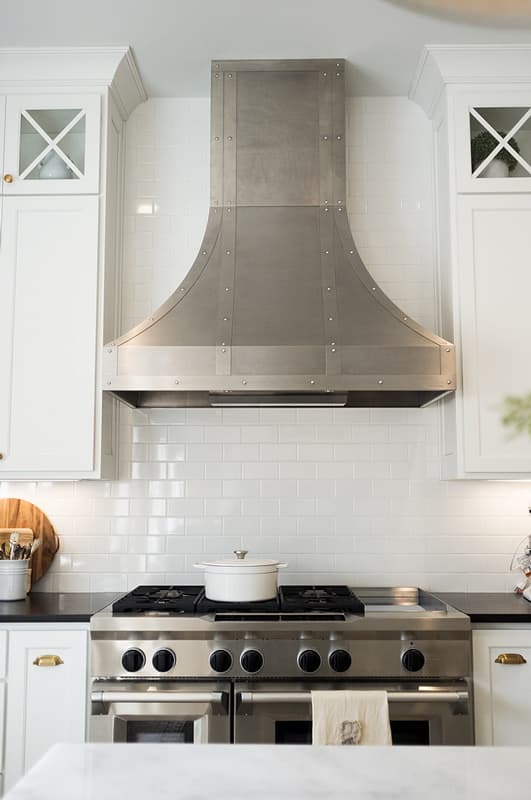

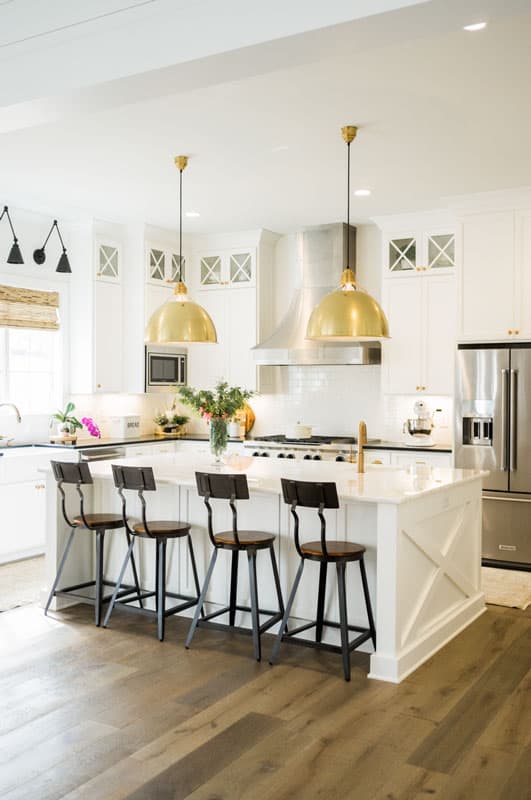

  • From the giant kitchen island you can see all the way down to the great room fireplace.

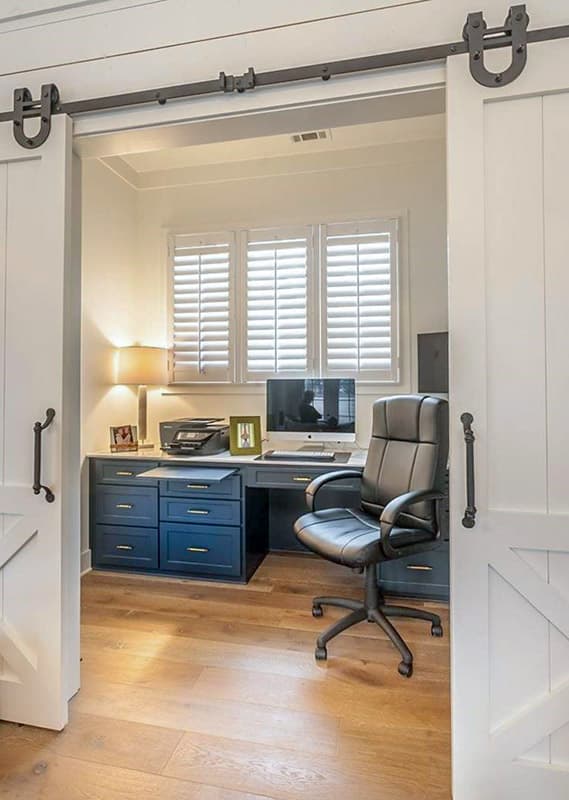

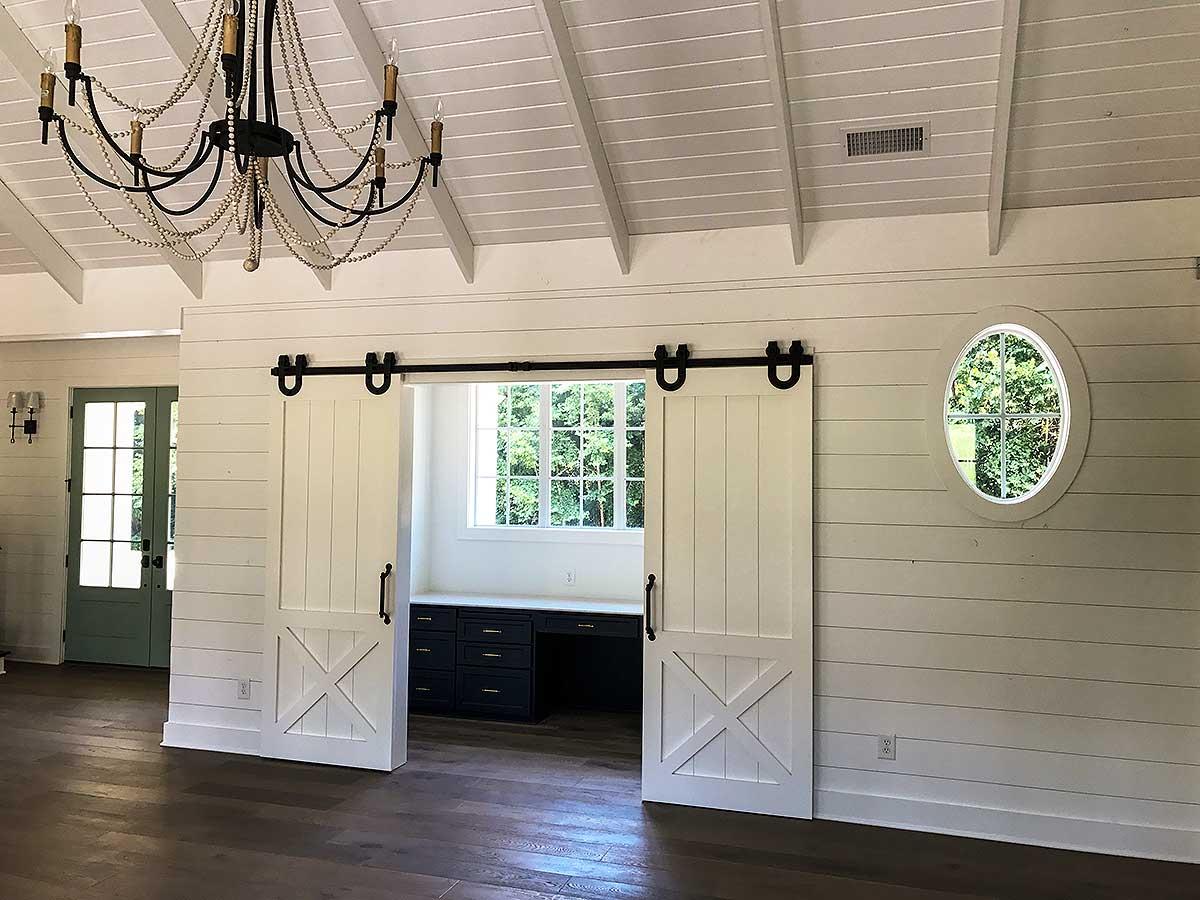

  • Pocket doors slide closed when you need some quiet time in the home office.

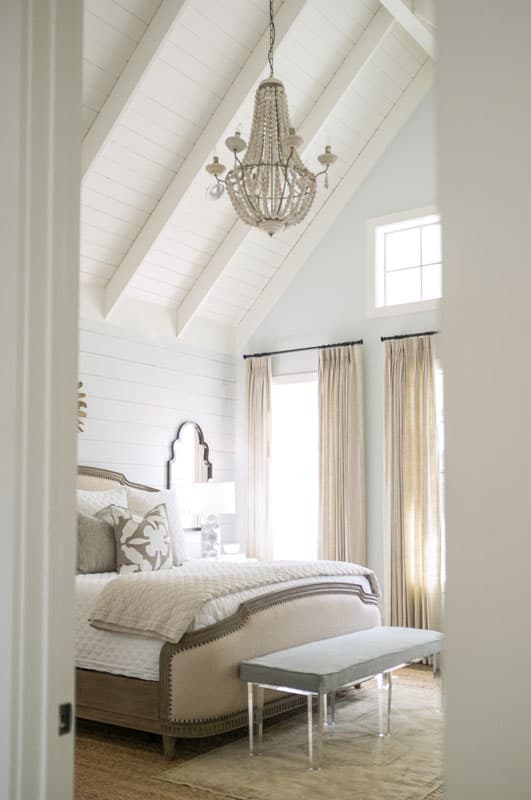

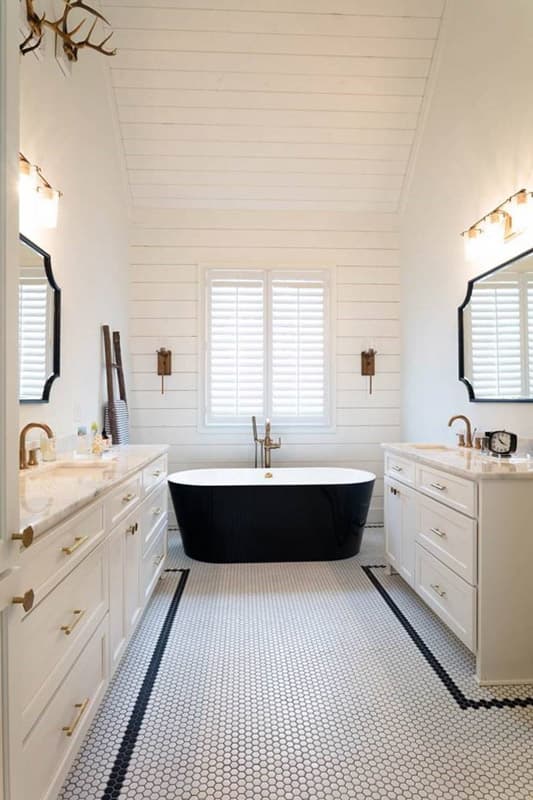

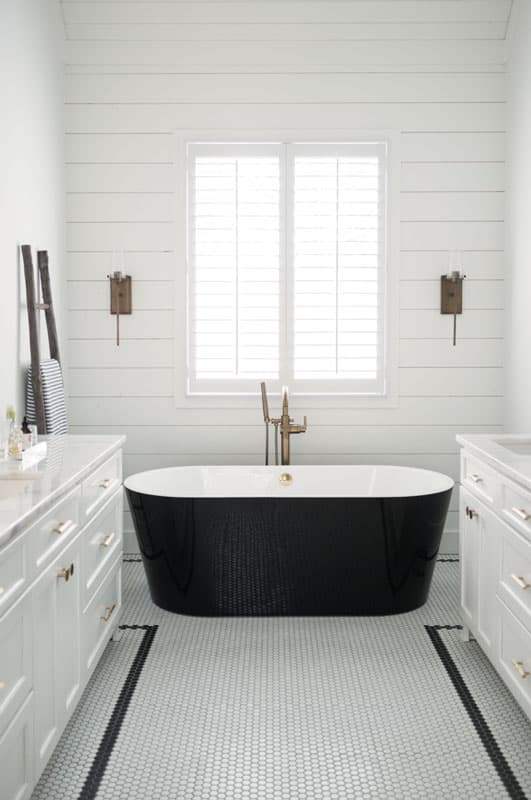

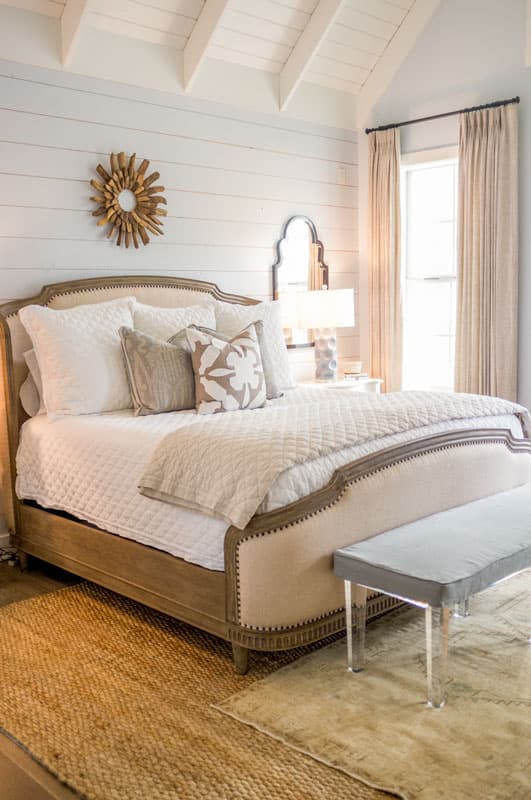

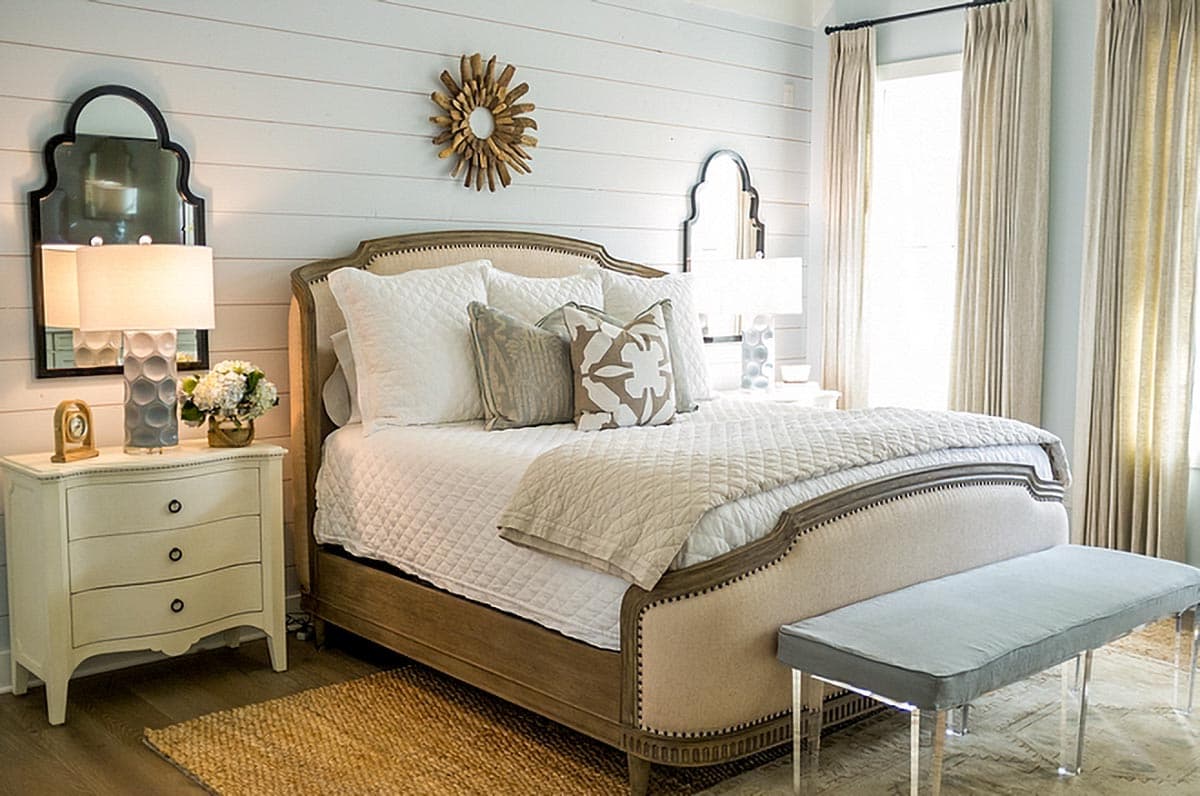

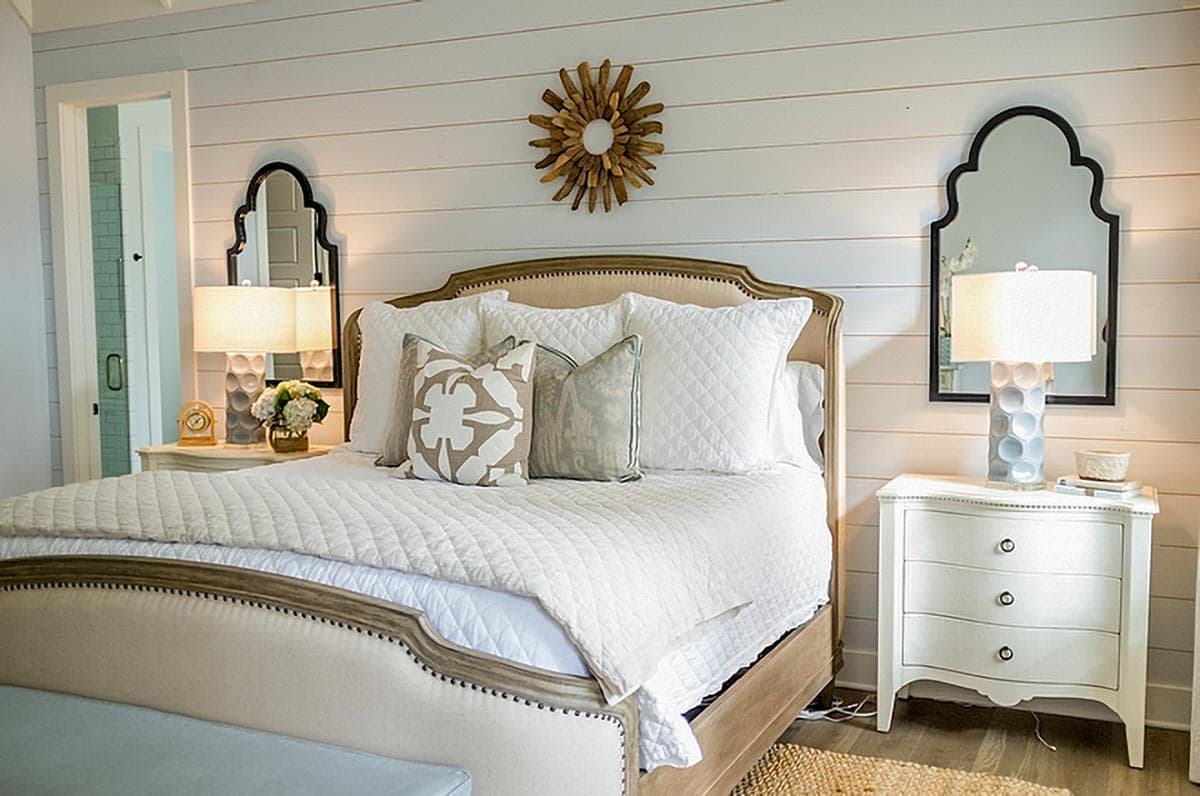

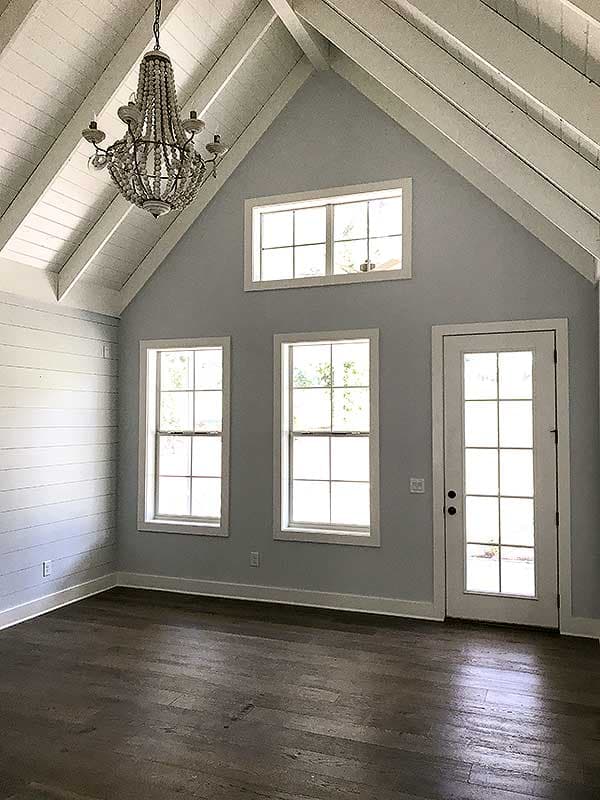

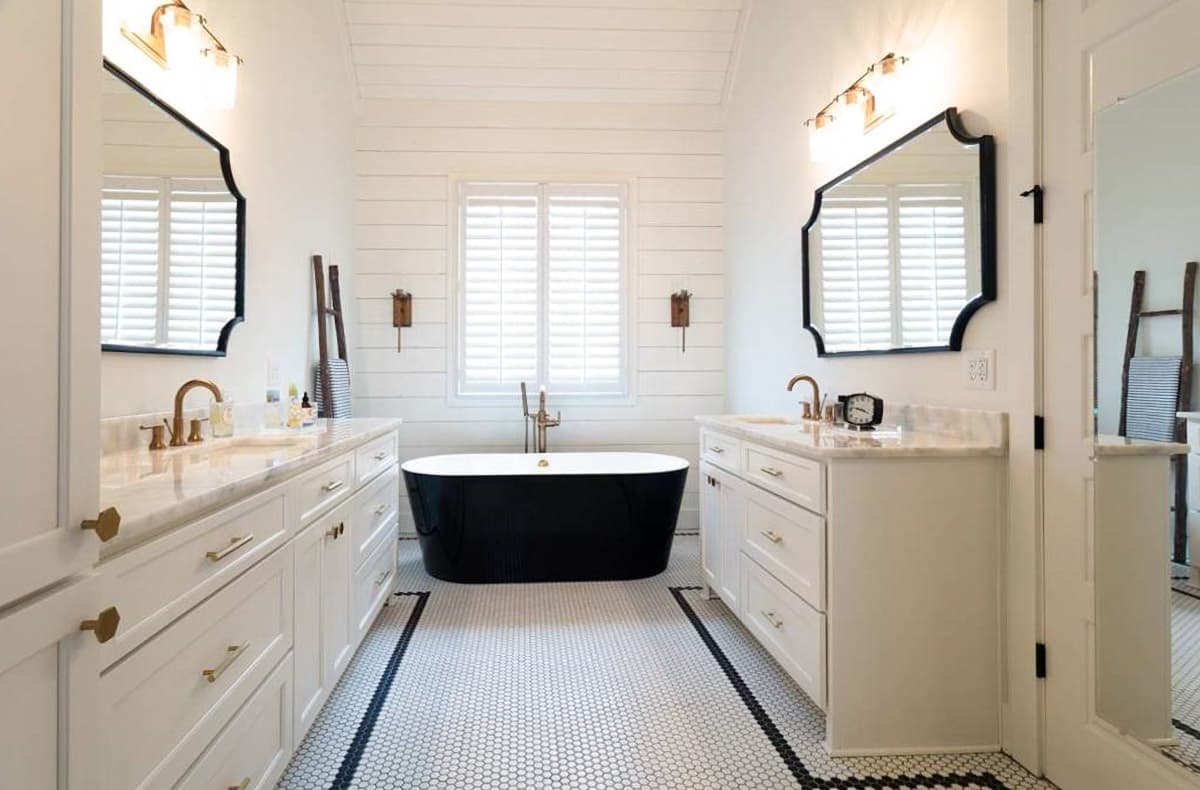

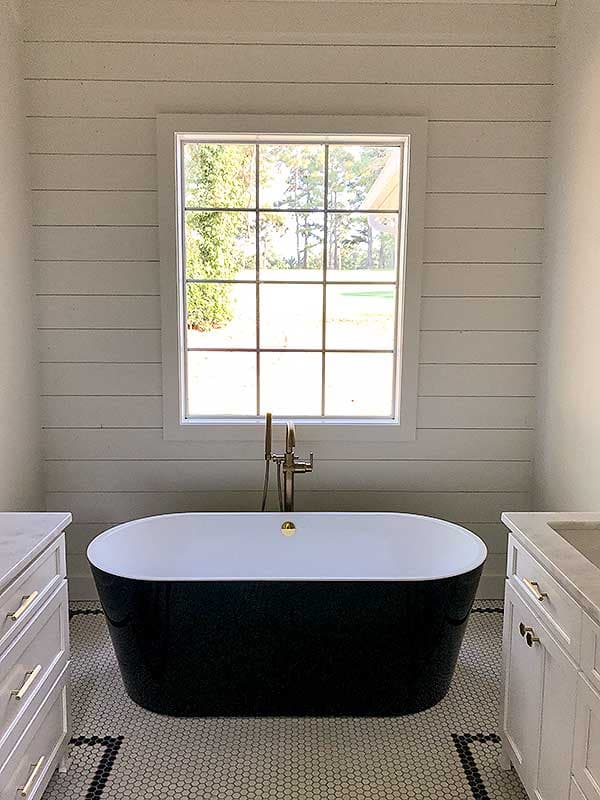

  • The two first floor bedrooms are separated on opposite sides of the home, with the master suite boasting another vaulted and beamed ceiling.

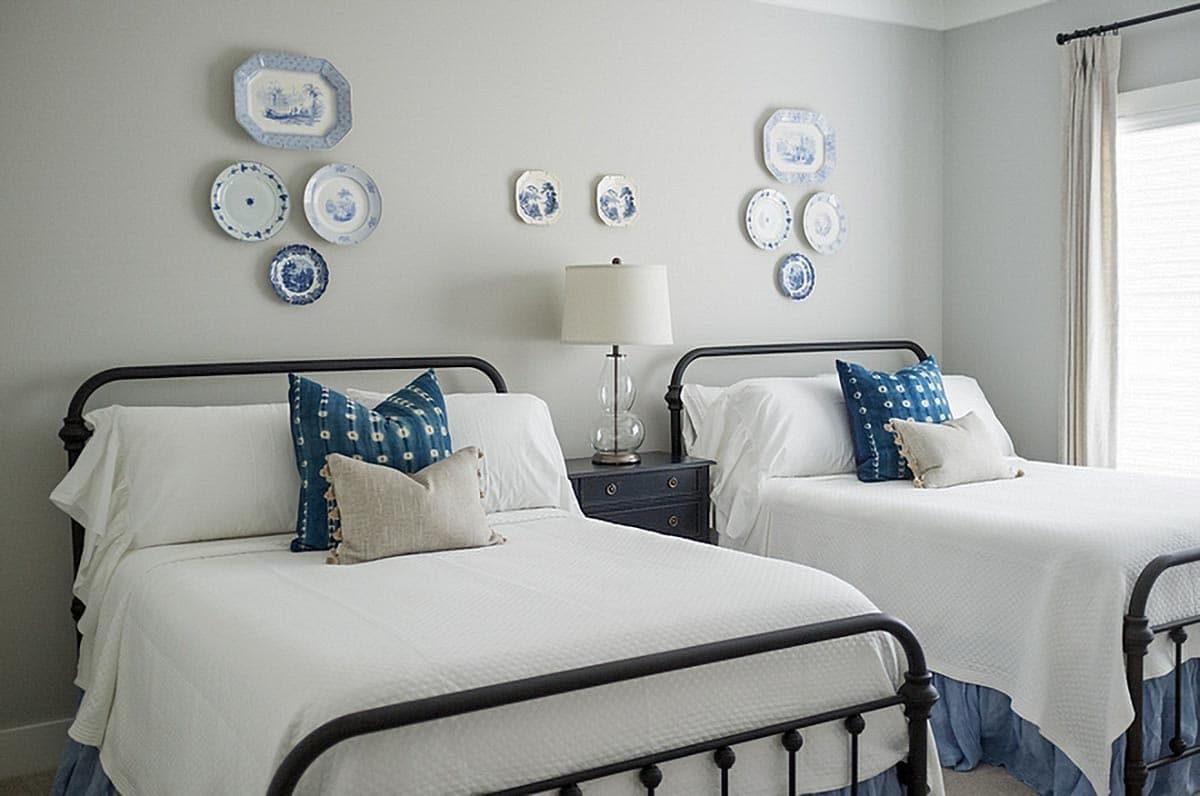

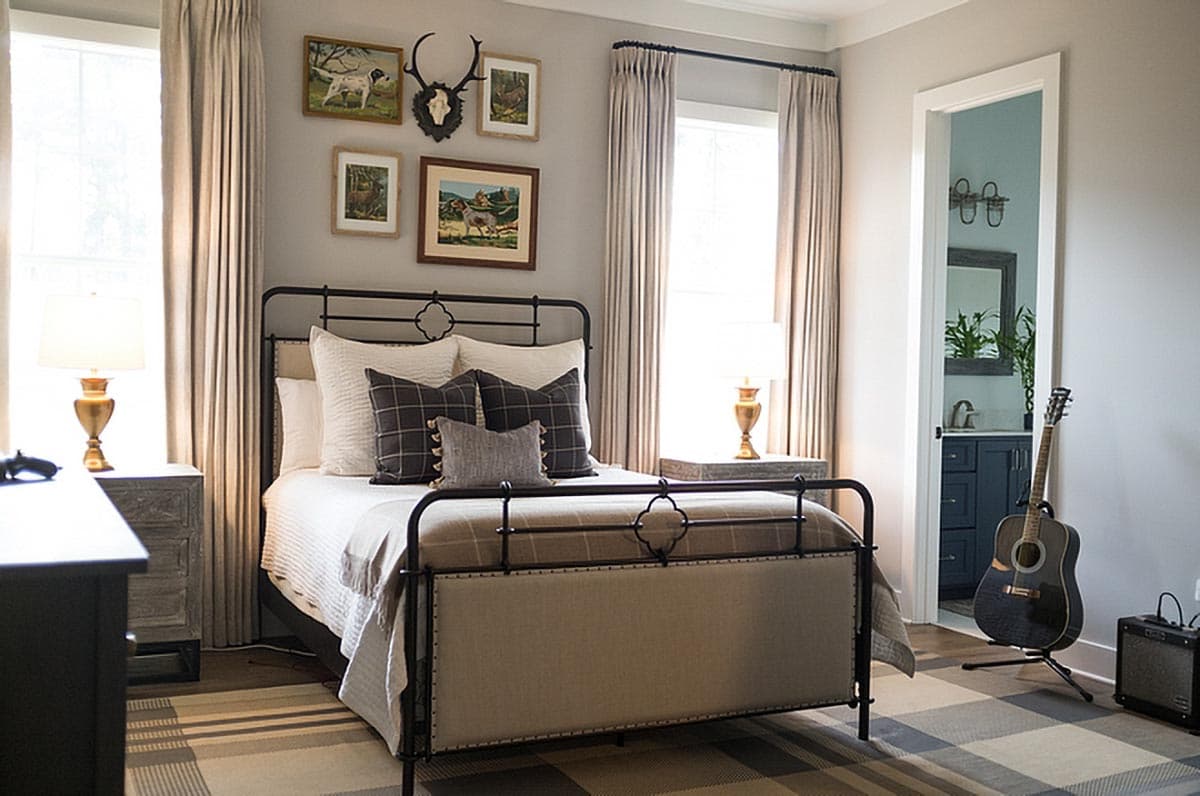

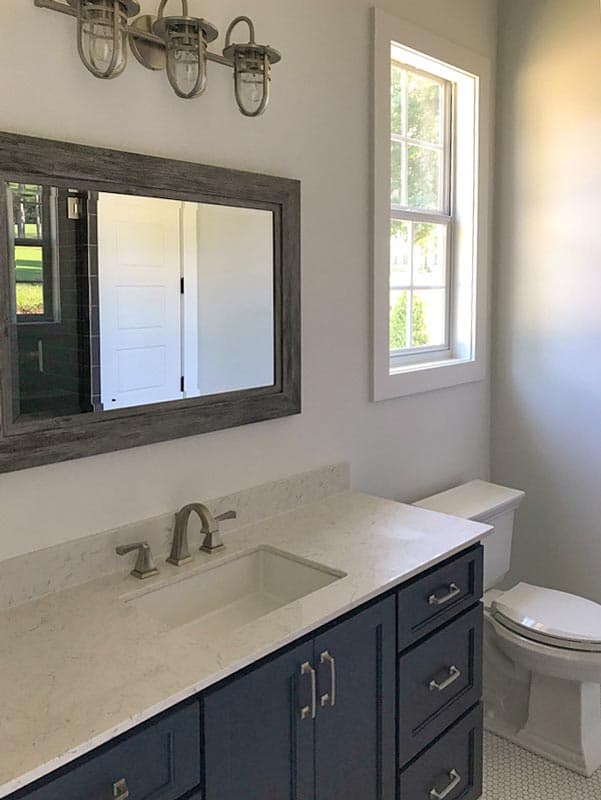

  • Upstairs, two large bedrooms share a hall bathroom and the nearby unfinished bonus space awaits your finishing touches.

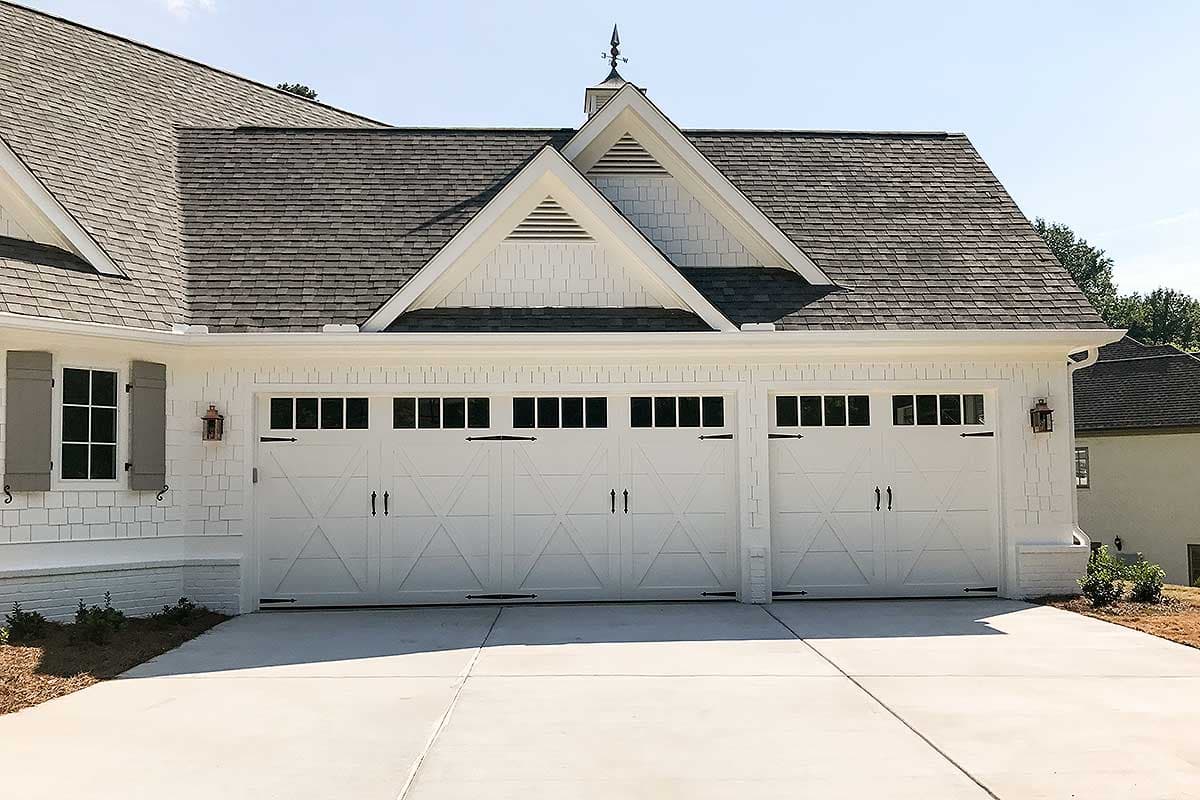

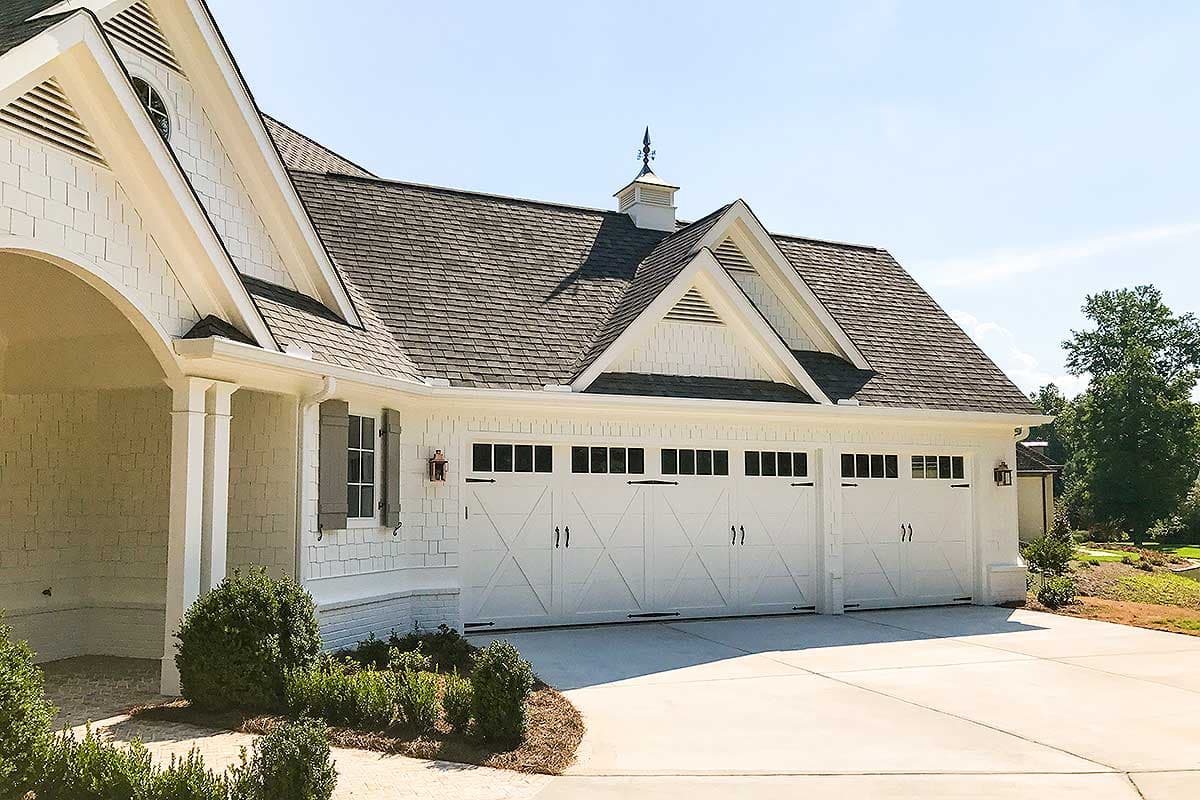

  • In addition to the three car garage there is a golf cart bay.
  • Related Plan: Get an alternate version with house plan 24414TW.

The plans include the following:

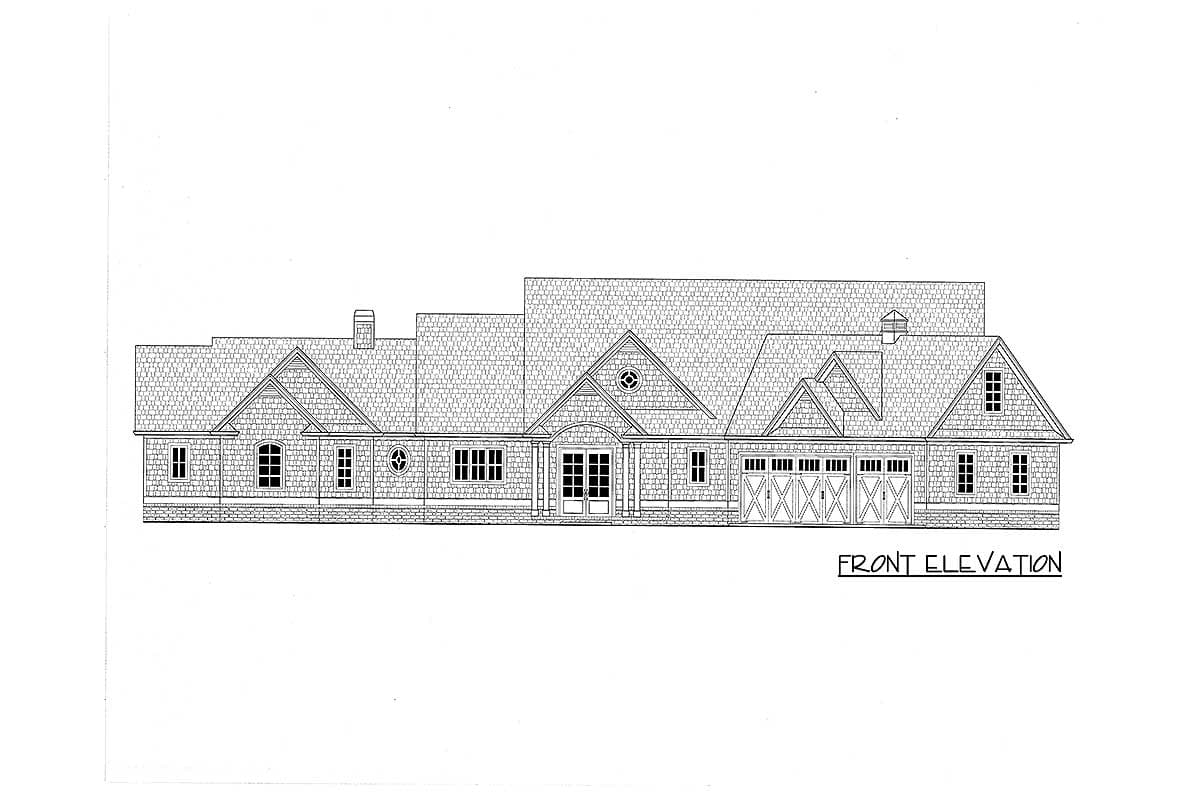

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

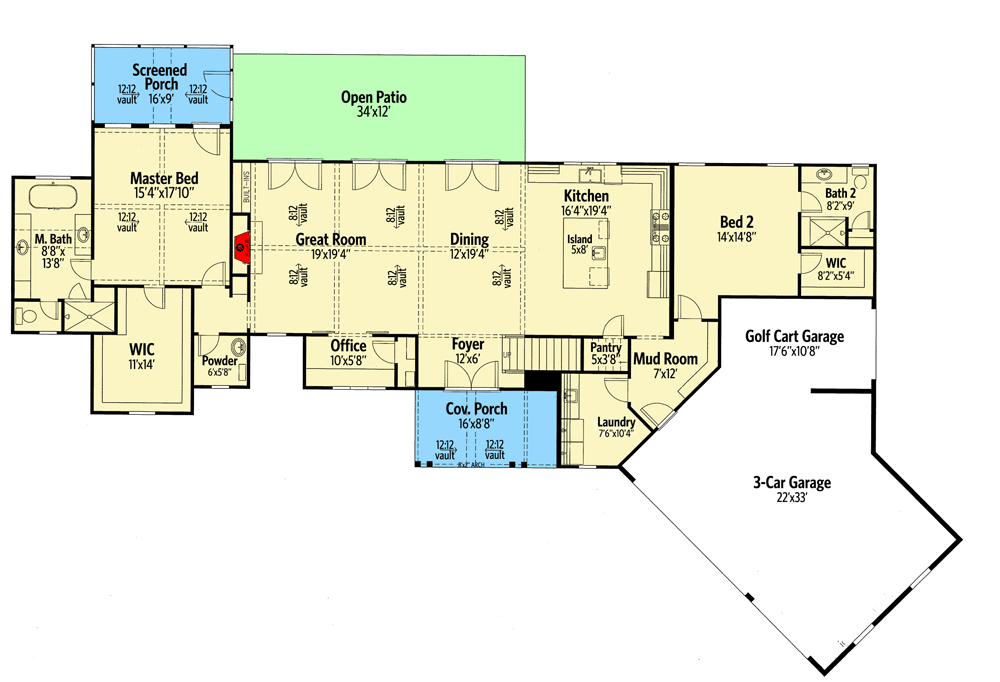

Country Craftsman with Vaulted Interior and French Door Foyer - 24374TW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

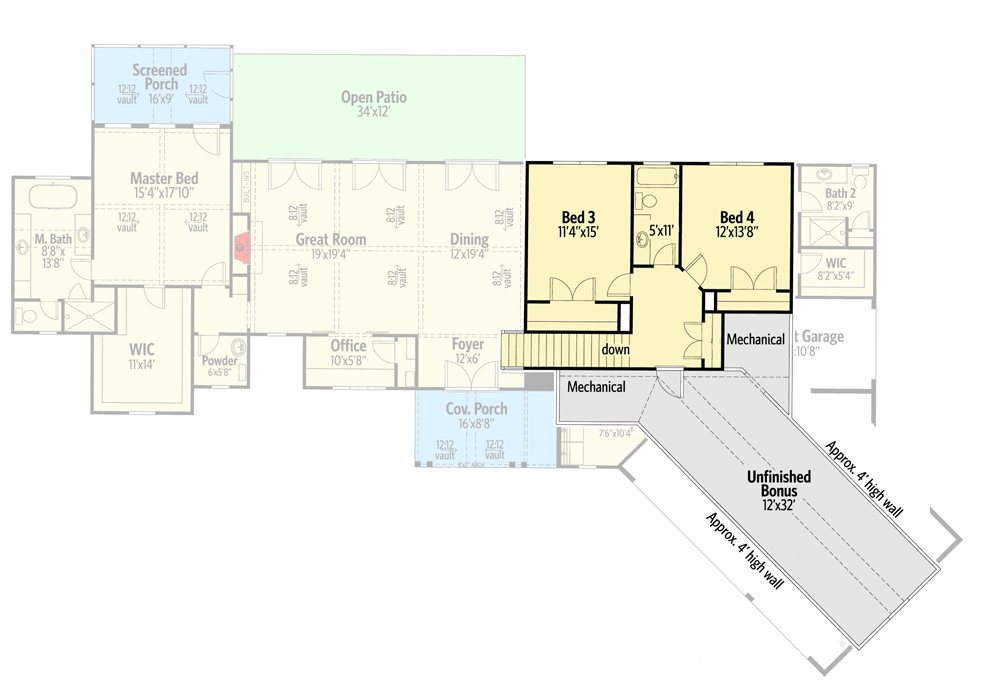

Country Craftsman with Vaulted Interior and French Door Foyer - 24374TW floor plan - 2nd Floor

Country Craftsman with Vaulted Interior and French Door Foyer

  • 3,026

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,026 sq. ft.
  • 1st Floor: 2,438 sq. ft.
  • 2nd Floor: 588 sq. ft.

Dimensions

  • Width: 107' 7"
  • Depth: 70' 8"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 891 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
