Great Views with Garage Options

Plan 35051GH

  • 3,373

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This open-concept floor plan, perfect for a sloping lot, imparts an air of spaciousness. A loft and volume ceilings, in addition to a multitude of windows, are highlights of this house plan.
  • A raised covered entry graces the front of this home. In the back, two decks flank the prominent great room adding outdoor functional space.
  • The chef will enjoy the walk-in pantry. The peninsula bar with seating, nearby dining room and deck offer multiple eating options..
  • Conveniently located on the main floor, the ' bedroom has a large walk-in closet and a private deck.
  • Upstairs, the spacious loft overlooks the great room.
  • The lower level features a side-entry garage with a rec room, two bedrooms, a full bath and mechanical room.
  • Related Plans: Get more room with house plan 35326GH (3,707 sq. ft.) and the garage on the other side of with house plans 35381GH and 35482GH.
  • Get a rear-entry garage with house plans 35313GH, 35393GH and 35386GH (3 cars).
  • Get an attached garage with house plan 35312GH, 35352GH and 35392GH.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

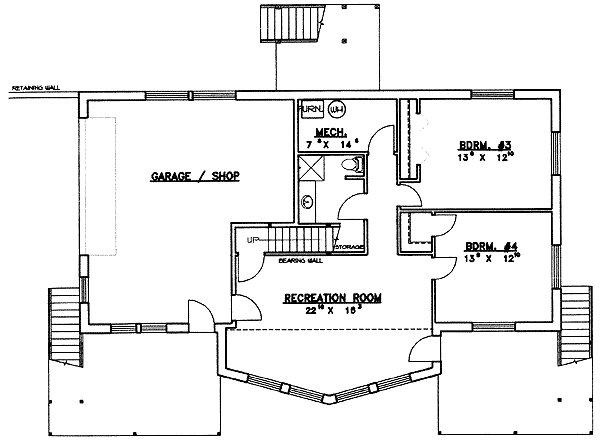

Great Views with Garage Options - 35051GH floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

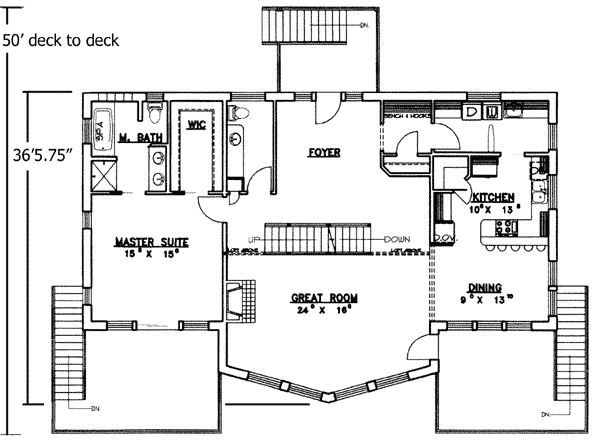

Great Views with Garage Options - 35051GH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Great Views with Garage Options - 35051GH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,373 sq. ft.
  • Lower Level: 1,151 sq. ft.
  • 1st Floor: 1,743 sq. ft.
  • 2nd Floor: 479 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): ICF

Dimensions

  • Width: 56' 0"
  • Depth: 50' 0"
  • Max ridge height: 35' 1"

Garage

  • Type: Drive Under
  • Area: 592 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 8"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: N on N
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Great Views with Garage Options

  • 3,373

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,395
  • CAD + PDF - Single Build $1,495
  • 5 Sets + PDF $1,645
  • CAD + PDF - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • This open-concept floor plan, perfect for a sloping lot, imparts an air of spaciousness. A loft and volume ceilings, in addition to a multitude of windows, are highlights of this house plan.
  • A raised covered entry graces the front of this home. In the back, two decks flank the prominent great room adding outdoor functional space.
  • The chef will enjoy the walk-in pantry. The peninsula bar with seating, nearby dining room and deck offer multiple eating options..
  • Conveniently located on the main floor, the ' bedroom has a large walk-in closet and a private deck.
  • Upstairs, the spacious loft overlooks the great room.
  • The lower level features a side-entry garage with a rec room, two bedrooms, a full bath and mechanical room.
  • Related Plans: Get more room with house plan 35326GH (3,707 sq. ft.) and the garage on the other side of with house plans 35381GH and 35482GH.
  • Get a rear-entry garage with house plans 35313GH, 35393GH and 35386GH (3 cars).
  • Get an attached garage with house plan 35312GH, 35352GH and 35392GH.
