Magnificent Windows with Angled Garage

Plan 35352GH

  • 4,241

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Designed with magnificent two-story windows, this spacious home is geared to capture rear views.
  • Whether you use the home as your main residence or a vacation getaway, there is plenty of space to spread out.
  • Both the dining room and the great room are open to each other to allow more of the view.
  • A ten foot wide deck area that wraps around the home provides outdoor entertainment space.
  • The first floor ' suite with huge walk-in closet also access the deck.
  • A handy mud room off the garage will make a great first stop to shed your coats and boots.
  • On the upper level, two bedroom share space with a loft and a huge theater room extends over the three car garage.
  • On the lower level, a game room and a huge family room with wet bar will keep your family and guests occupied.
  • Another bedroom with walk-in closet can also be found on this level.
  • Related Plans: For alternate attached garage options, see 35312GH and 35392GH.
  • Need a drive-under garage? See plans 35326GH (side-entry), 35386GH (3-car), 35313GH and 35393GH.
  • No garage need? See 35259GH, 35108GH, 35324GH and 35165GH with a finished lower level with a fireplaced rec room, wet bar, storage and office space.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.
  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

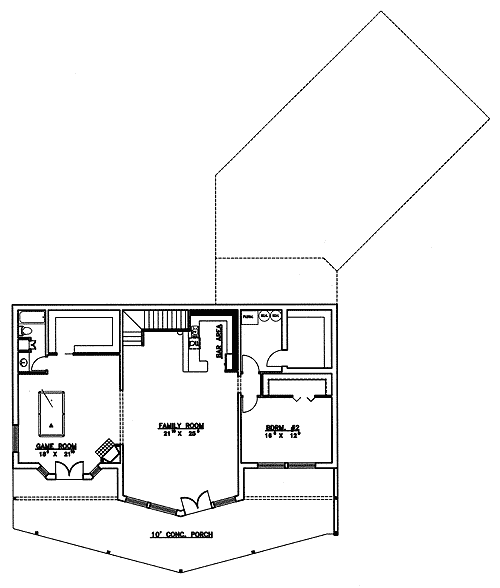

Magnificent Windows with Angled Garage - 35352GH floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

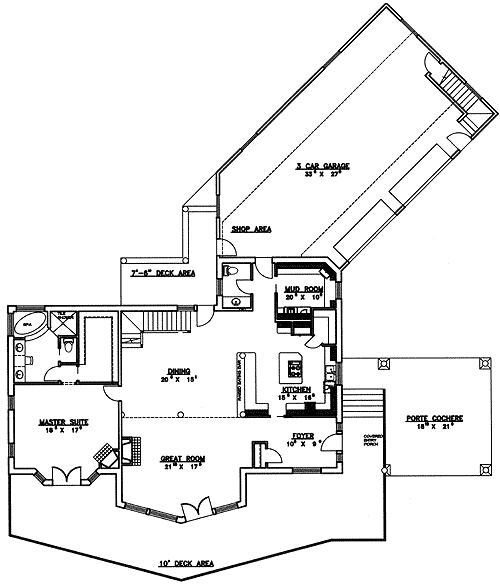

Magnificent Windows with Angled Garage - 35352GH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

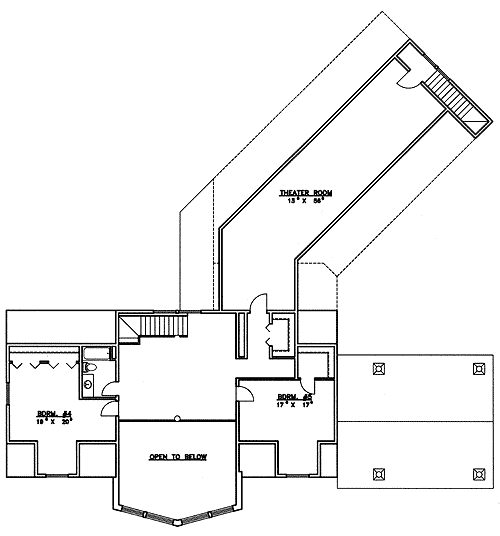

Magnificent Windows with Angled Garage - 35352GH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,241 sq. ft.
  • 1st Floor: 2,141 sq. ft.
  • 2nd Floor: 2,100 sq. ft.
  • Screened Porch: 378 sq. ft.
  • Basement Unfinished: 1,957 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): ICF

Dimensions

  • Width: 86' 11"
  • Depth: 92' 7"
  • Max ridge height: 23' 7"

Garage

  • Type: Carport, Attached
  • Area: 1293 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: N on N

Architectural Style

Special features

Plan Collections

Magnificent Windows with Angled Garage

  • 4,241

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $2,195
  • PDF + CAD - Single Build $2,295
  • 5 Sets + PDF $2,445
  • CAD + PDF - Unlimited Build $2,995
  • View all purchase option online

About This Plan

  • Designed with magnificent two-story windows, this spacious home is geared to capture rear views.
  • Whether you use the home as your main residence or a vacation getaway, there is plenty of space to spread out.
  • Both the dining room and the great room are open to each other to allow more of the view.
  • A ten foot wide deck area that wraps around the home provides outdoor entertainment space.
  • The first floor ' suite with huge walk-in closet also access the deck.
  • A handy mud room off the garage will make a great first stop to shed your coats and boots.
  • On the upper level, two bedroom share space with a loft and a huge theater room extends over the three car garage.
  • On the lower level, a game room and a huge family room with wet bar will keep your family and guests occupied.
  • Another bedroom with walk-in closet can also be found on this level.
  • Related Plans: For alternate attached garage options, see 35312GH and 35392GH.
  • Need a drive-under garage? See plans 35326GH (side-entry), 35386GH (3-car), 35313GH and 35393GH.
  • No garage need? See 35259GH, 35108GH, 35324GH and 35165GH with a finished lower level with a fireplaced rec room, wet bar, storage and office space.
