This open-concept floor plan, perfect for a sloping lot, imparts an air of spaciousness. A loft and volume ceilings, in addition to a multitude of windows, highlight the sense of openness in this house plan.
The covered front porch extends functional spaces to the outside, as does the rear deck.

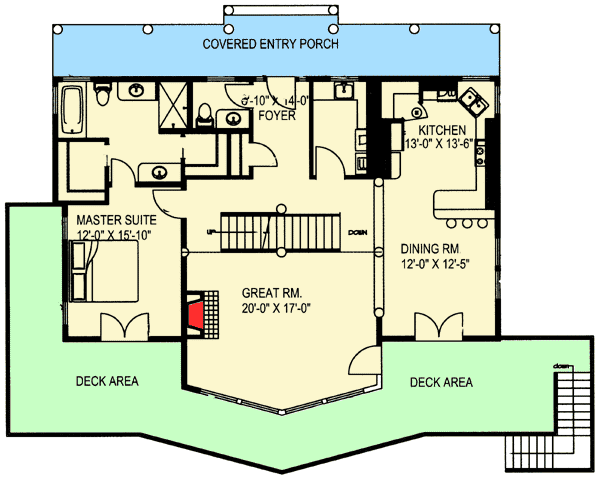

The chef will enjoy the walk-in pantry and corner windows. The peninsula bar creates an efficient space for dining and socializing.
Conveniently located on the main floor, the ' bedroom has his and her closets.

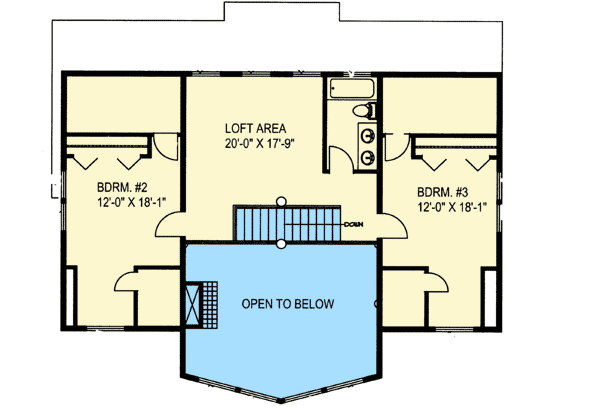

A loft overlooking the great room,two bedrooms and a shared bath plus storage round out the second floor.

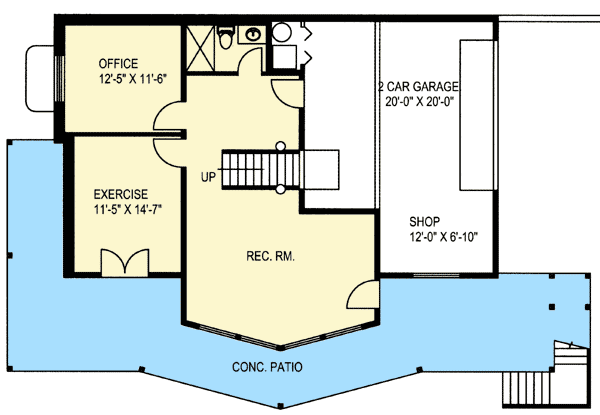

The lower level features a side-entry garage with a rec room, office and exercise room.
Related Plans: For a larger version, see house plan 35326GH (3,707 sq. ft.). Get 4 bedrooms with 35051GH.
Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

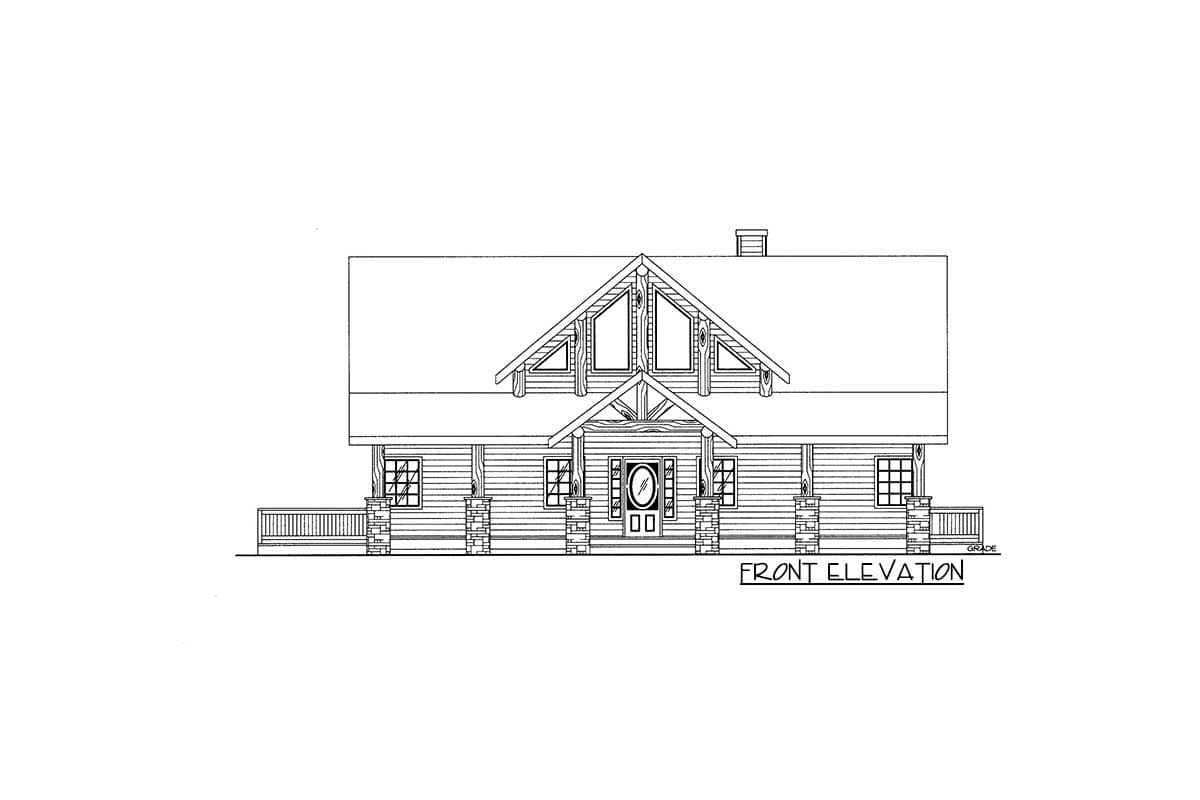

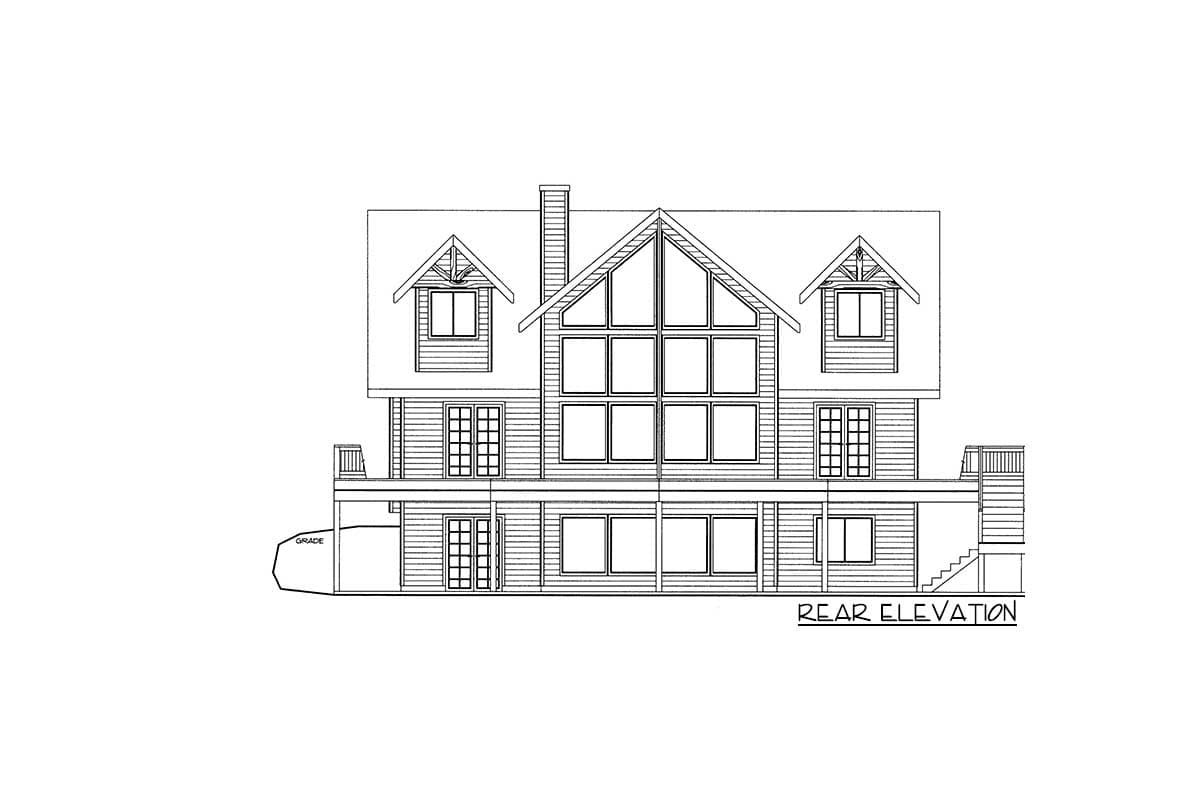

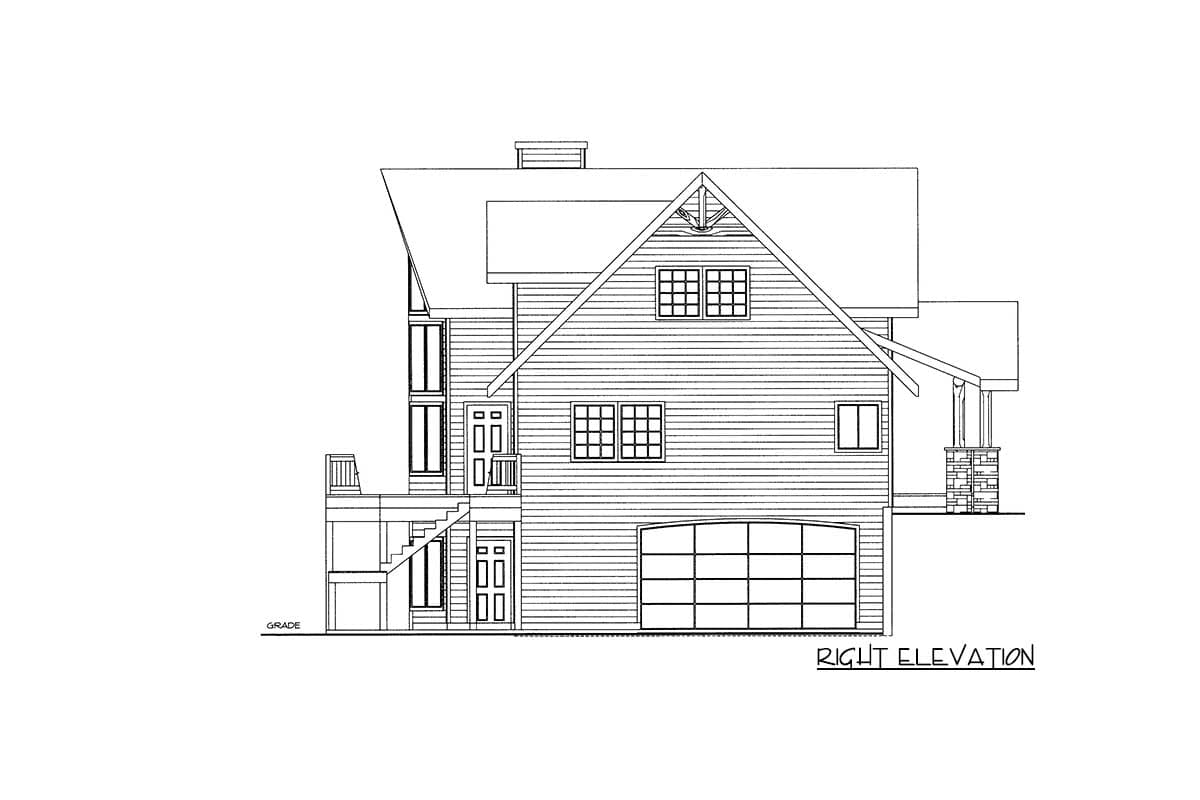

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.
