Mountain Craftsman Dream

Plan 15689GE

This plan plants 3 trees

2,707
Heated s.f.
3-6
Beds
2.5 - 5.5
Baths
1
Stories
2
Cars

We've taken one of our most popular home plans and added two optional second floor layouts. This home plan promotes open living spaces inside and out.
Approaching the front porch entry, you are drawn into the home's rustic elegance. Upon entry into the home, a vaulted foyer and adjacent dining room greet guests. With a built-in fireplace and a vaulted ceiling, the lodge room features a wall of windows and boasts grandeur all around.
The breakfast room, kitchen and keeping room promote an open feel.
A generous mud and laundry room (8'1"x12") are near the kitchen, creating ample storage space. And the pantry, measuring 5'7"x4', gives you even more storage space.
The optional upstairs loft and guest bedroom give you room to expand and an optional upper laundry room.
Related Plans: Get a more countrified version with house plan 25663GE. Get a smaller version with house plans 15793GE (2,685 sq. ft.), 15626GE (2,587 sq. ft; 3-car garage) and 15624GE (2,343 sq. ft). Get a rounded deck and breakfast room with house plan 15651GE. Get a bonus second floor with house plans 15623GE (3,126 sq. ft.) and 15662GE (3,202 sq. ft.). Get a finished lower level with house plan 15622GE and 15697GE and a larger upper level with house plan 15688GE.

The plan set includes the following:

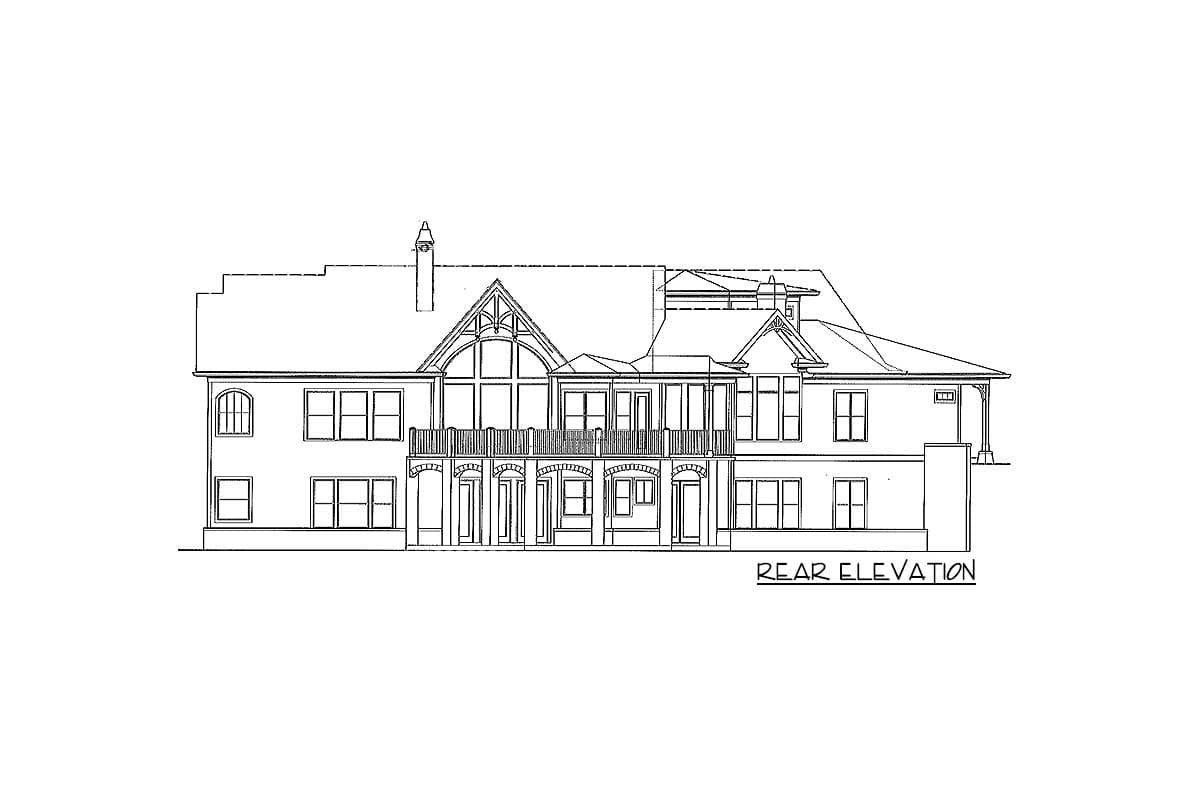

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

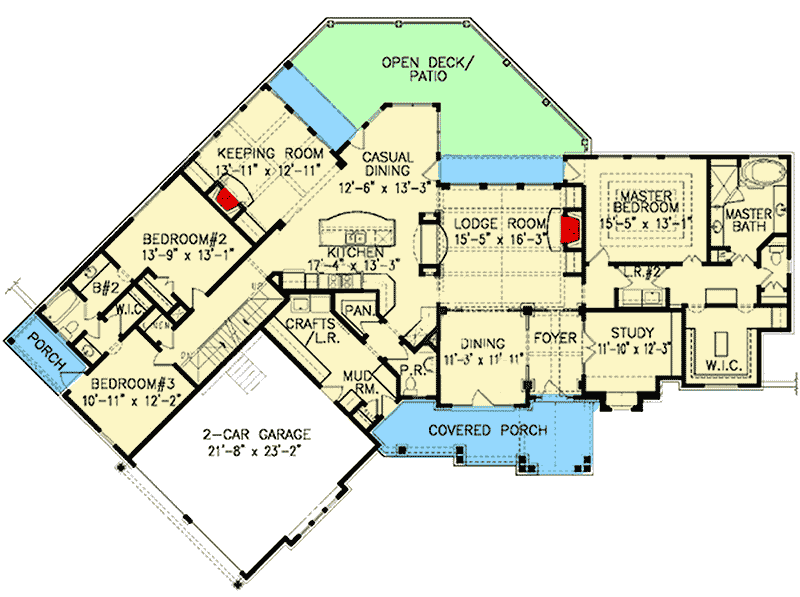

Mountain Craftsman Dream - 15689GE floor plan - Main Level

Optional Layout

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

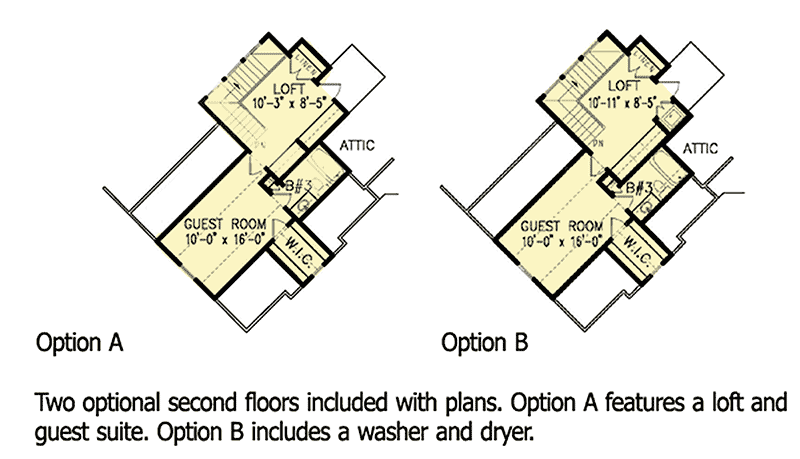

Mountain Craftsman Dream - 15689GE floor plan - Optional Layout

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

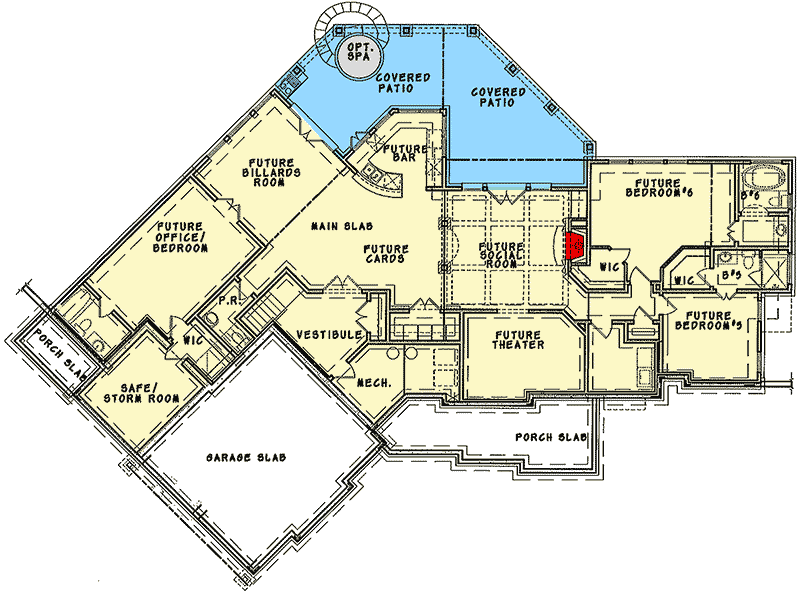

Mountain Craftsman Dream - 15689GE floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,707 sq. ft.
1st Floor: 2,707 sq. ft.

Porch, Combined: 770 sq. ft.
Bonus: 382 sq. ft.

Beds/Baths

Bedrooms: 3, 4, 5, or 6

Full bathrooms: 2, 3, 4, or 5
Half bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Optional Foundations: Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 98' 1"
Depth: 70' 0"
Max ridge height: 23' 11"

Garage

Type: Attached
Area: 530 sq. ft.
Count: 2 Cars
Entry Location: Side

Architectural Style
