Plan 81750AB Mountain Craftsman Plan with Optional Walkout Basement

3,297 3-5 2.5 - 3.5 1 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Craftsman Plan with Optional Walkout Basement

Plan 81750AB

  • 3,297

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • The sprawling main level of this Mountain Craftsman design wraps around a covered patio / sun deck to maximize access to outdoor living.
  • The heart of the home opens to a dining nook and great room, while a formal dining room can be found near the foyer and includes a built-in buffet.
  • Retreat to the master bedroom, which extends at an angle, and discover a deluxe ensuite with a walk-in closet. Both of the neighboring family bedrooms include a walk-in closet and share a Jack-and-Jill bath.
  • A 4-car garage protrudes from the front of the home with a mudroom helping you to organize bags, shoes, and outerwear. A quiet den, or play room, offers a serene, versatile space while completing the main level.
  • Finish the lower level for an additional 2,542 square feet of living space and boost the bedroom count to 5, as well as gain a game / sitting area, patio, and home theatre room. Private access from the garage makes this a great space for boomerang kids or in-laws.

Plans include the following:

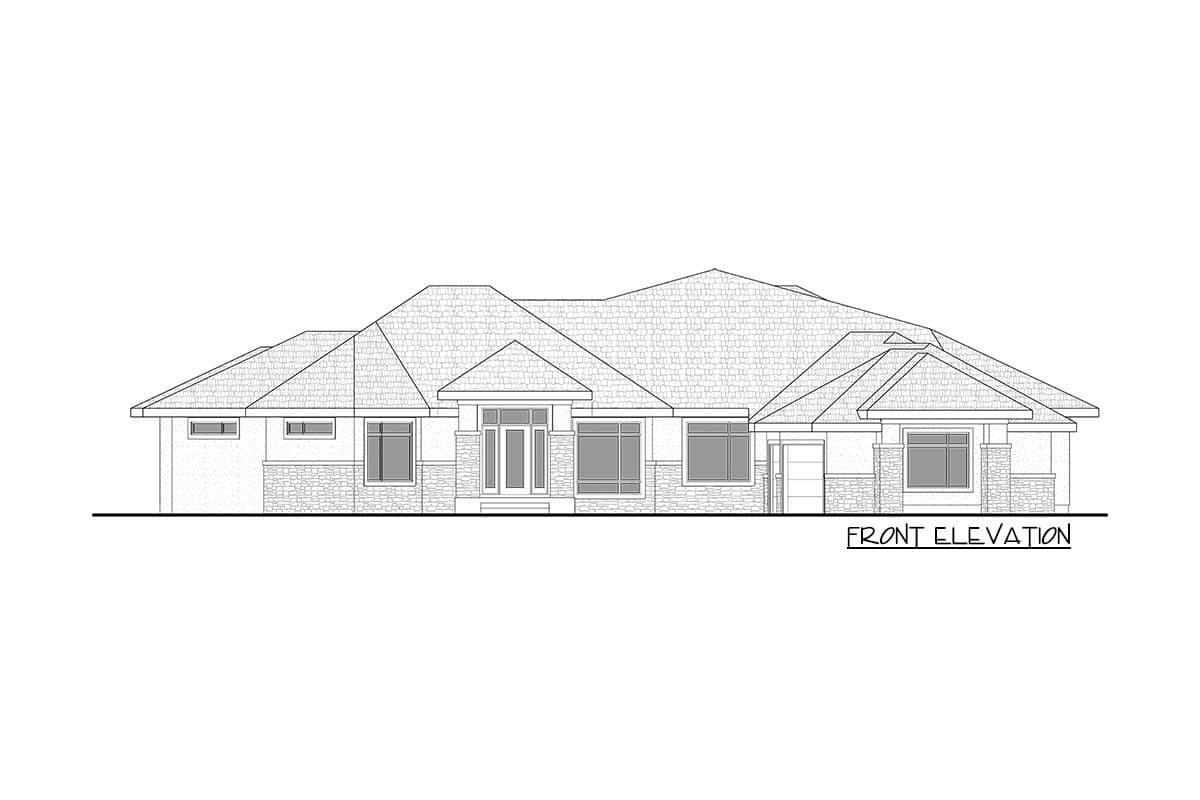

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

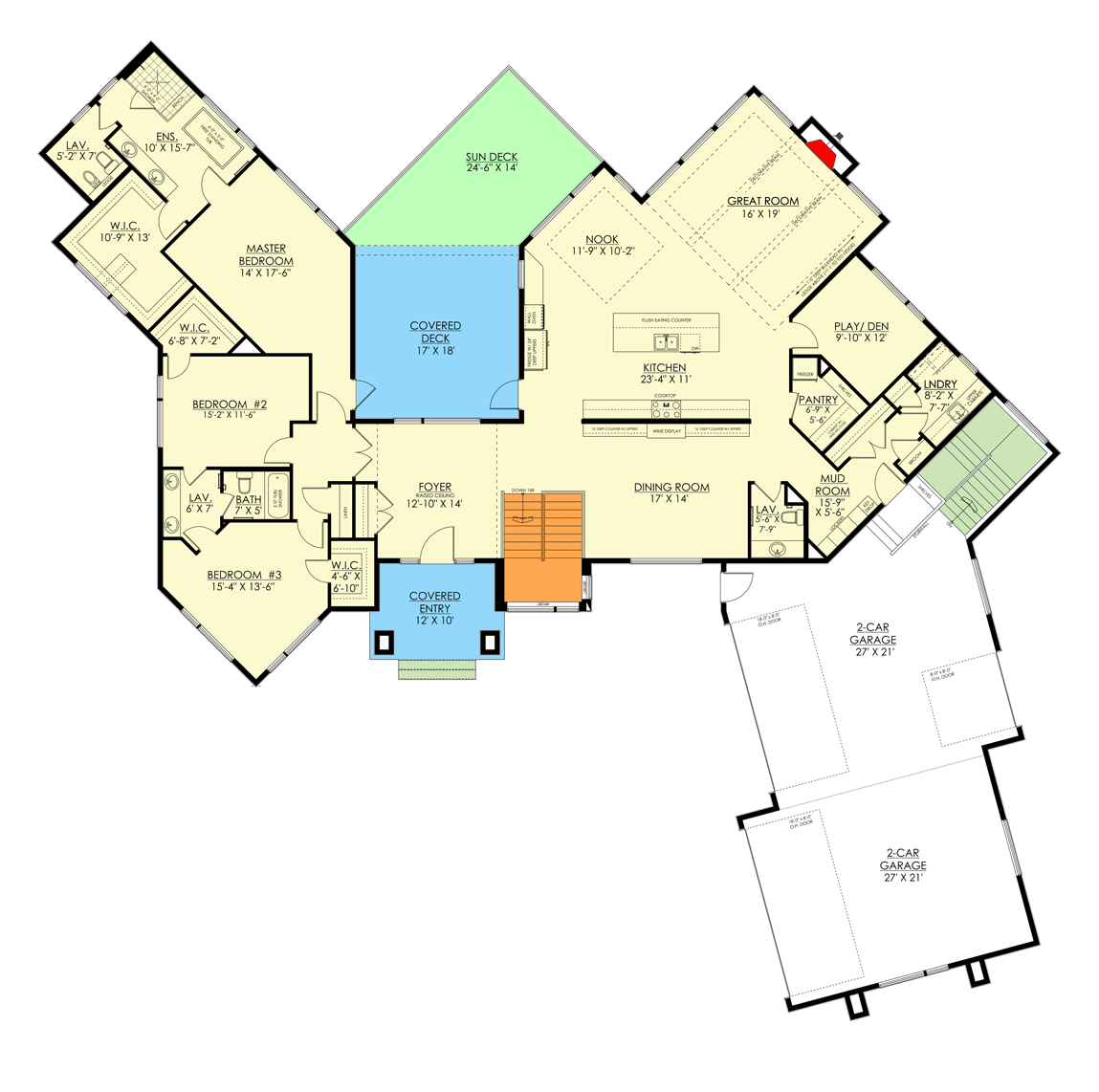

Mountain Craftsman Plan with Optional Walkout Basement - 81750AB floor plan - Main Level

Optionally Finished Walkout Foundation

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

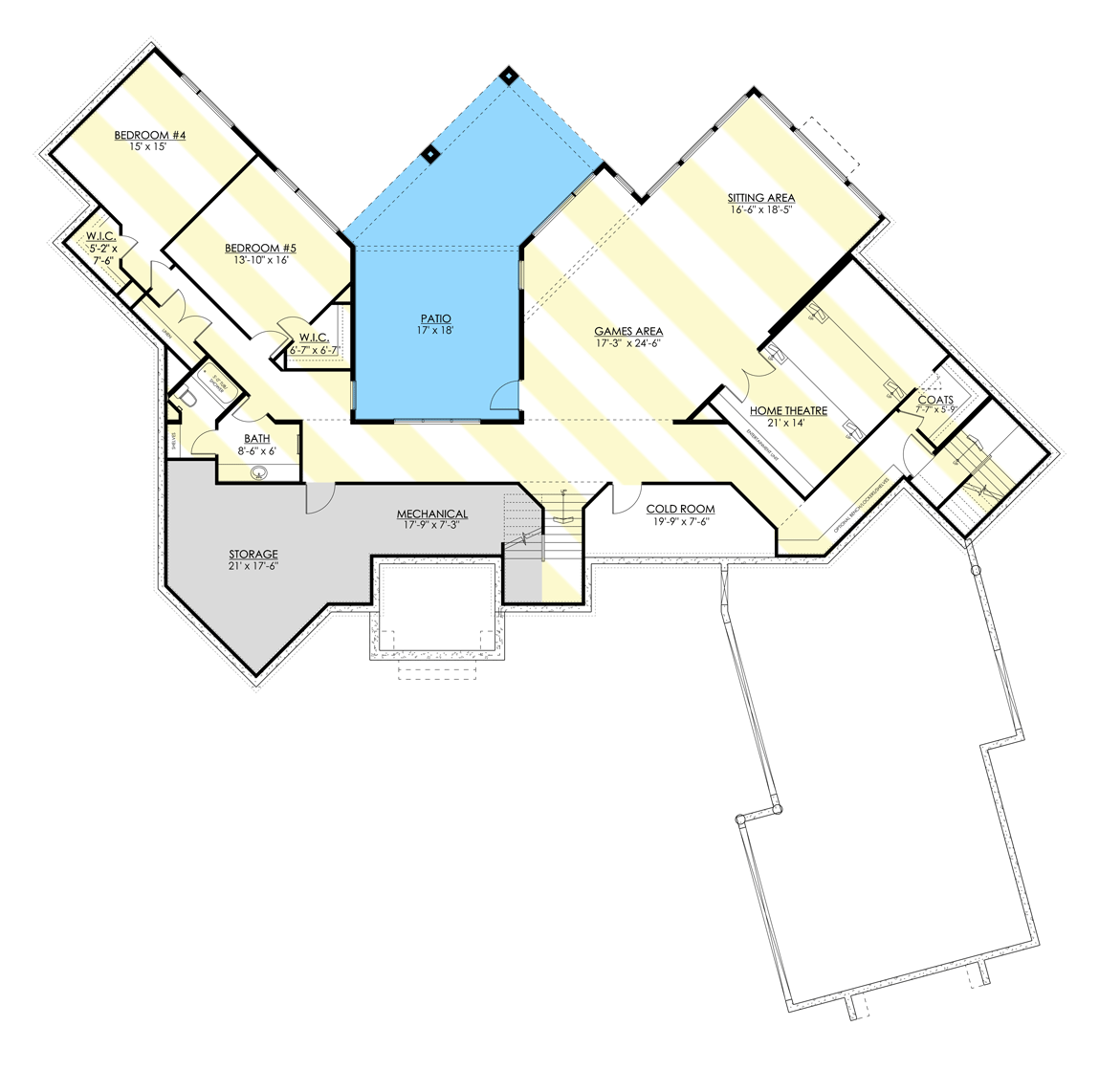

Mountain Craftsman Plan with Optional Walkout Basement - 81750AB floor plan - Optionally Finished Walkout Foundation

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,297 sq. ft.
  • 1st Floor: 3,297 sq. ft.
  • Optional Lower Level: 2,542 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 106' 2"
  • Depth: 101' 0"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 1242 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Mountain Craftsman Plan with Optional Walkout Basement

  • 3,297

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,900
  • CAD + PDF - Single Build $2,600
  • CAD Unlimited + PDF $3,100
  • View all purchase option online

About This Plan

  • The sprawling main level of this Mountain Craftsman design wraps around a covered patio / sun deck to maximize access to outdoor living.
  • The heart of the home opens to a dining nook and great room, while a formal dining room can be found near the foyer and includes a built-in buffet.
  • Retreat to the master bedroom, which extends at an angle, and discover a deluxe ensuite with a walk-in closet. Both of the neighboring family bedrooms include a walk-in closet and share a Jack-and-Jill bath.
  • A 4-car garage protrudes from the front of the home with a mudroom helping you to organize bags, shoes, and outerwear. A quiet den, or play room, offers a serene, versatile space while completing the main level.
  • Finish the lower level for an additional 2,542 square feet of living space and boost the bedroom count to 5, as well as gain a game / sitting area, patio, and home theatre room. Private access from the garage makes this a great space for boomerang kids or in-laws.

Floor Plans

  • Main Level

  • Optionally Finished Walkout Foundation

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,297 sq. ft.
  • 1st Floor: 3,297 sq. ft.
  • Optional Lower Level: 2,542 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 106' 2"
  • Depth: 101' 0"
  • Max ridge height: 28' 7"

Garage

  • Type: Attached
  • Area: 1242 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Plan 81750AB
View this and more for this plan by visiting www.architechtecturaldesigns.com/81750AB
|
Need Help? 800-854-7852
|
