Plan 15624GE
Mountain Craftsman House Plan with Curved Rear Porch and Deck - 2343 Sq Ft
Heated S.F.
2,343
Beds
3-5
Baths
2.5 - 4.5
Stories
1
Cars
2
Floor Plan

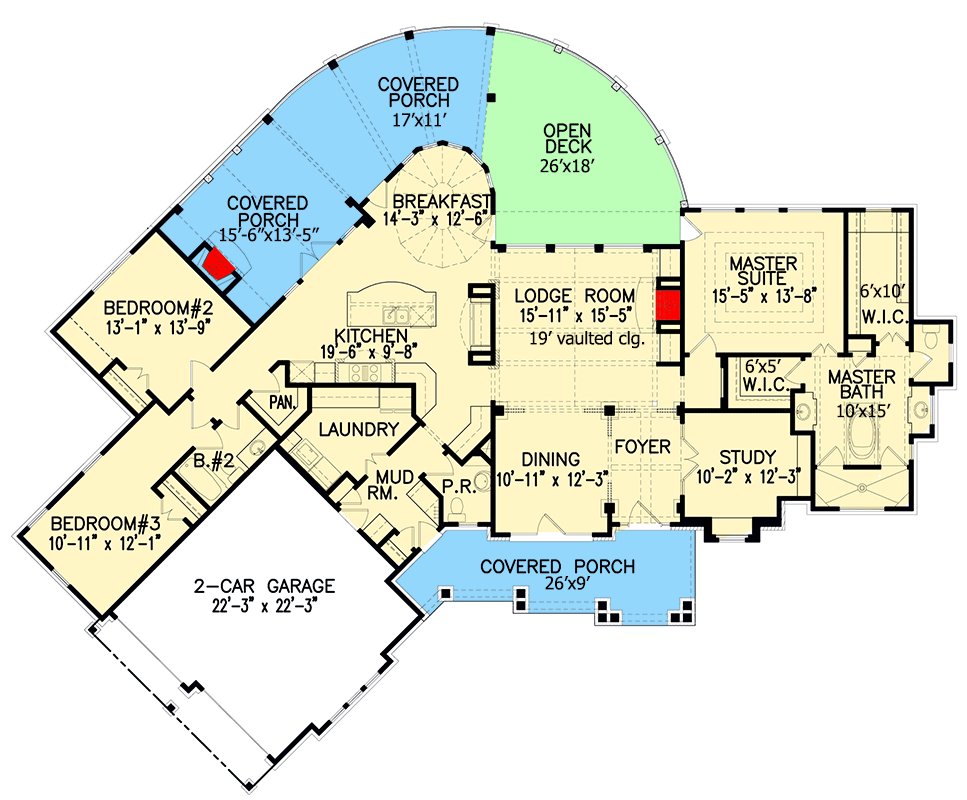

Main Level with Basement Stairs
Reverse Floor Plan

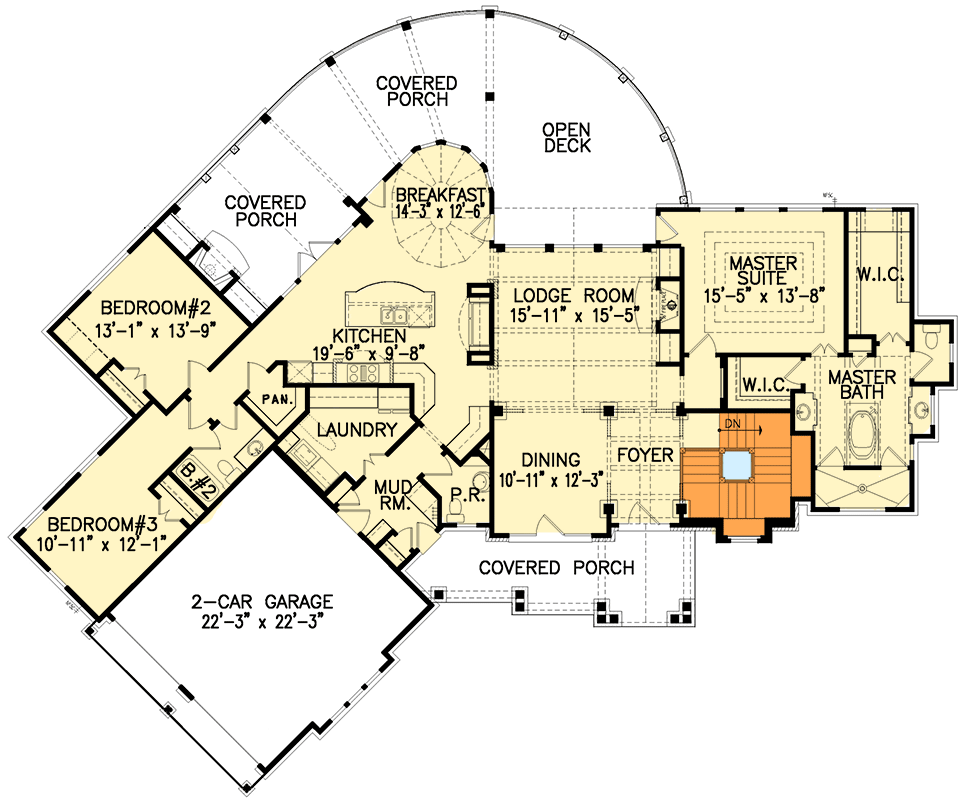

Mountain Craftsman House Plan with Curved Rear Porch and Deck - 2343 Sq Ft - 15624GE floor plan - Main Level with Basement Stairs

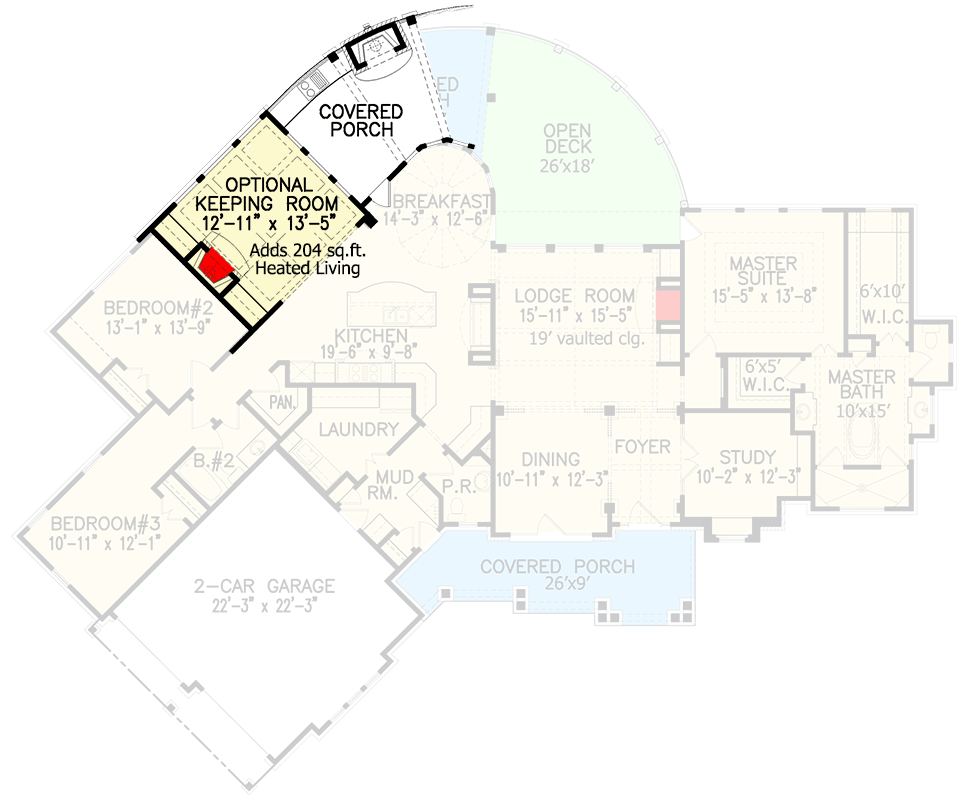

Optional Keeping Room
Reverse Floor Plan
Mountain Craftsman House Plan with Curved Rear Porch and Deck - 2343 Sq Ft - 15624GE floor plan - Optional Keeping Room
Plan Details
  • Promoting open living spaces, this floor plan provides abundant areas to enjoy the views and elegantly blends outdoor and indoor living spaces. The curving rear deck and covered porch with fireplace capture the essence of what it means to embrace the great outdoors.
  • Approaching the front porch entry, you are drawn into rustic elegance beneath soaring timber trusses framing 8'-high glass doors and a true mountain craftsman facade.
  • Upon entry into the home, a vaulted foyer and adjacent dining room immediately greet guests. With a built-in fireplace and a 19' vaulted ceiling, the lodge room features a wall of windows and boasts grandeur all around. Total area under roof is 3,830 sq. ft.
  • The breakfast room and kitchen are centrally-located promoting easy flow throughout the home. Generous mud and laundry rooms are nearby giving you ample storage space.
  • The master suite accesses the rear porch. Two more bedrooms are located across the home and share a bath.
  • In the basement versions, the stairs are located where the study is.
  • Related Plans: Get a larger version on a single level with house plan 25792GE (3,432 sq. ft.) Straighten the curved features with house plan 15689GE (upper loft) and 15793GE. Gain more space and optional second floors with house plans - 15662GE (2 bedrooms on main, 2 up), 15623GE (3,126 sq. ft.), 15651GE (gable) and 15617GE (hip roof; both 2,611 sq. ft) and 15626GE (2,587 sq. ft; 3-car garage). Get a finished lower level with house plans 15622GE and 15697GE.
What's Included

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.

Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.

Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are NOT included in plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.

Interior Details: These drawings show the specific details and design of special interior features.

Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.

Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.

Electrical: Electrical floor plan schematics.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mountain Craftsman House Plan with Curved Rear Porch and Deck - 2343 Sq Ft

  • 2,343

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Main Level with Basement Stairs

  • Optional Keeping Room

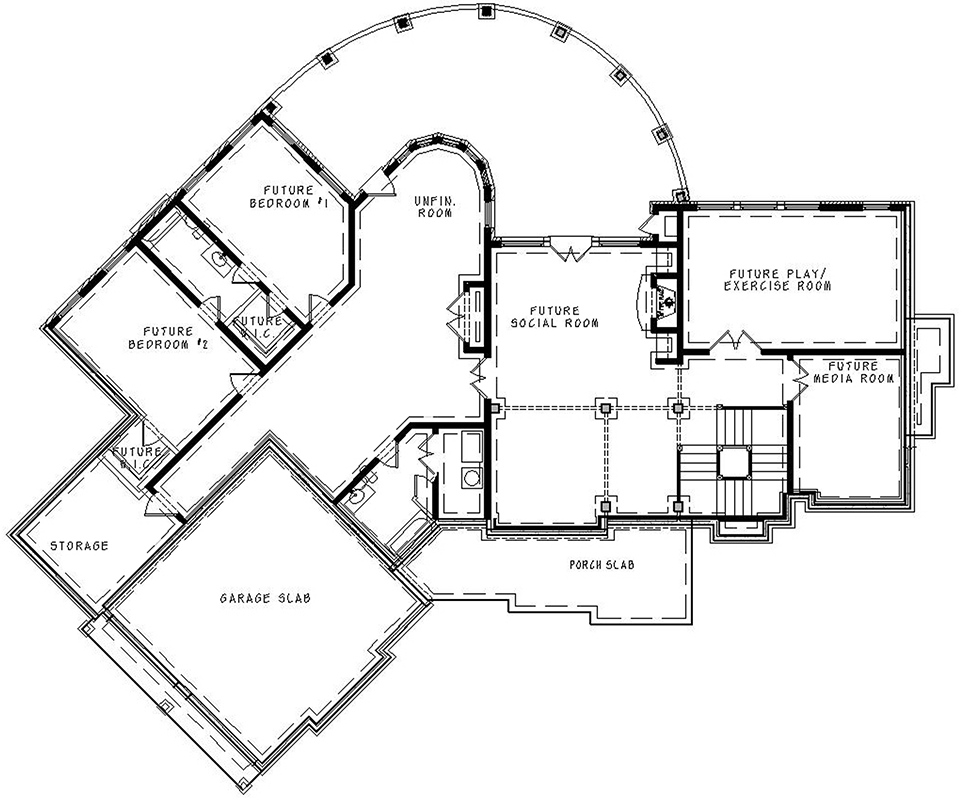

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,343 sq. ft.
  • 1st Floor: 2,343 sq. ft.

Dimensions

  • Width: 89' 11"
  • Depth: 70' 11"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 495 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
