Plan 15662GE
3200 Square Foot Mountain Craftsman House Plan with Bonus Expansion
Heated S.F.
3,202
Beds
2 - 6
Baths
2.5 - 5.5
Stories
1
Cars
2
Photos
Floor Plan

Plan 15662GE

Main Level
slide image 0

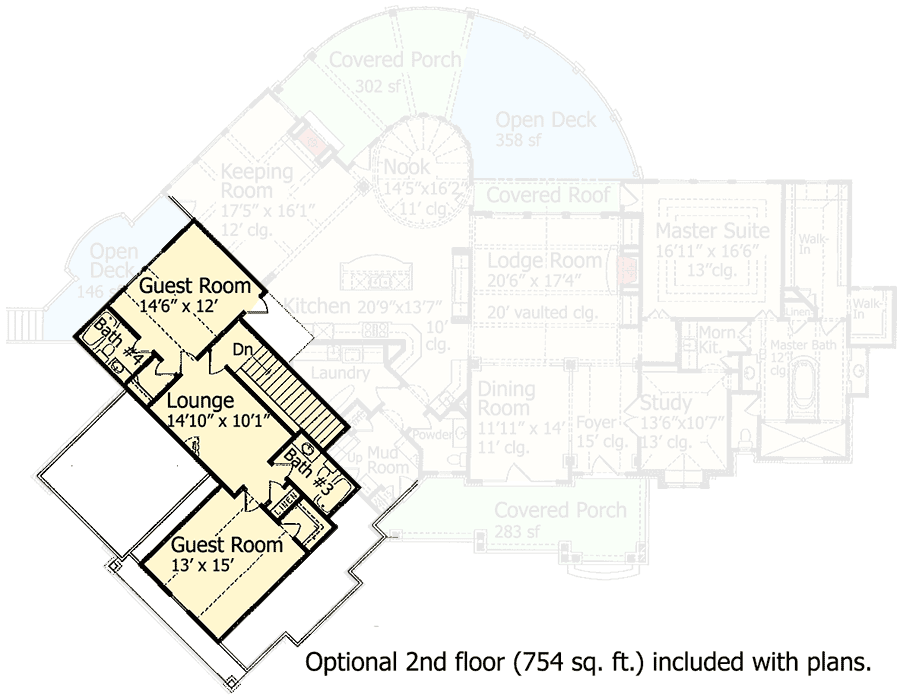

Optional 2nd Floor
slide image 1
Basement
slide image 2

Plan 15662GE

1-800-854-7852

1-262-521-4596

Main Level

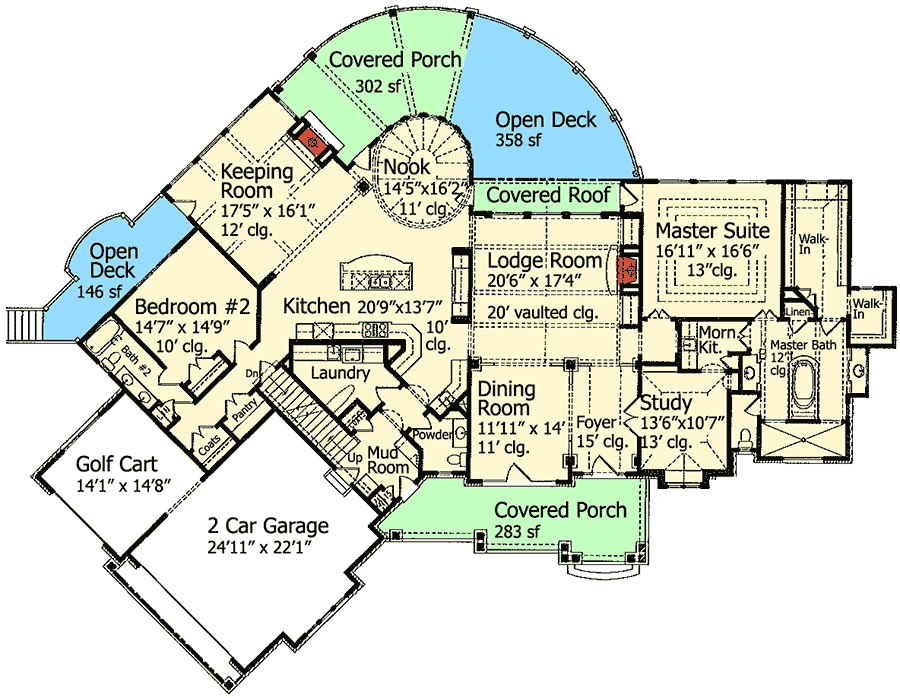

floor plan image Main Level
Optional 2nd Floor
floor plan image Optional 2nd Floor
Basement

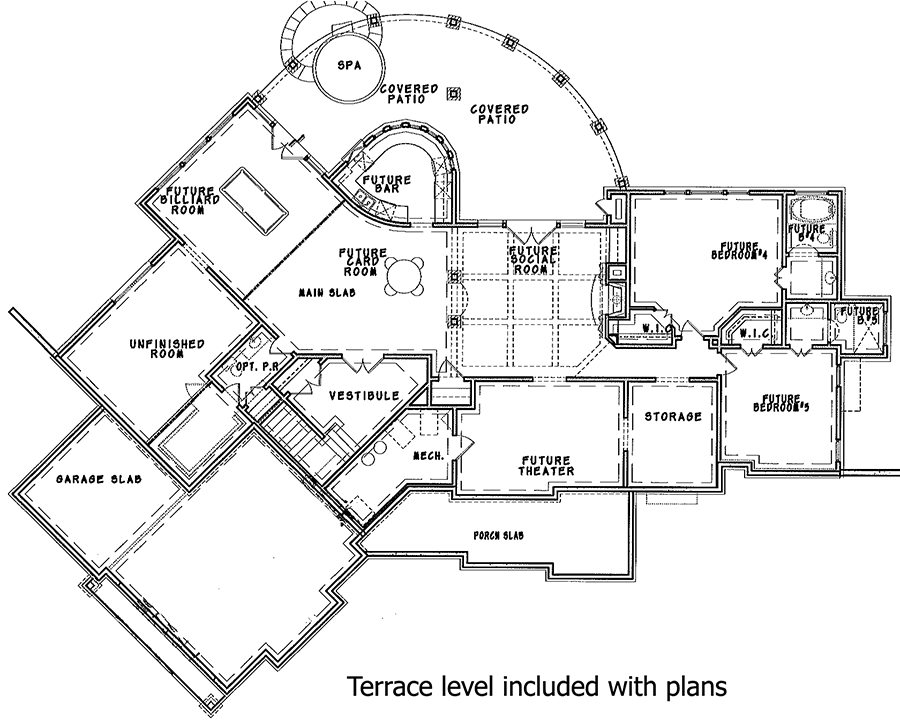

floor plan image Basement
Plan Details
  • Promoting open living spaces, this floor plan provides abundant areas to enjoy the views and elegantly blends outdoor and indoor living spaces. With a front covered porch and two rear decks and a sweeping covered porch with fireplace, this house plan captures the essence of what it means to embrace the great outdoors.
  • Approaching the front porch entry, you are drawn into rustic elegance beneath soaring timber trusses framing 8'-high glass doors and a true mountain craftsman facade.
  • Upon entry into the home, a vaulted foyer and adjacent dining room immediately greet guests. With a built-in fireplace and a 20' vaulted ceiling, the lodge room features a wall of windows and boasts grandeur all around. The exposed beam keeping room - with 2-sided fireplace - also has great views.
  • The breakfast room and kitchen are centrally-located and promote easy flow throughout the home. Generous mud and laundry rooms are nearby creating ample storage space.
  • The master suite accesses the rear deck and Bedroom #2 lies across the home for privacy.
  • An optional second floor gets you a guest suite and 754 sq. ft. of living space including two bedrooms with baths and a lounge area.
  • Related Plans: Get a 3-car garage with house plan 25646GE and a 2-car garage with house plan 25684GE (3,572 sq. ft.). Gain a third bedroom on the main floor with house plan 15623GE (3,108 sq. ft.). Save money by straightening the curved features with house plan 15689GE (upper loft) and 15793GE. Downsize with house plans 15617GE (hip roof) and 15651GE (gable; both 2,611 sq. ft.), 15626GE (2,587 sq. ft; 3-car garage) and 15624GE (2,343 sq. ft). Get a finished lower level with house plan 15622GE and 15697GE and a huge upper floor with house plan 15688GE.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

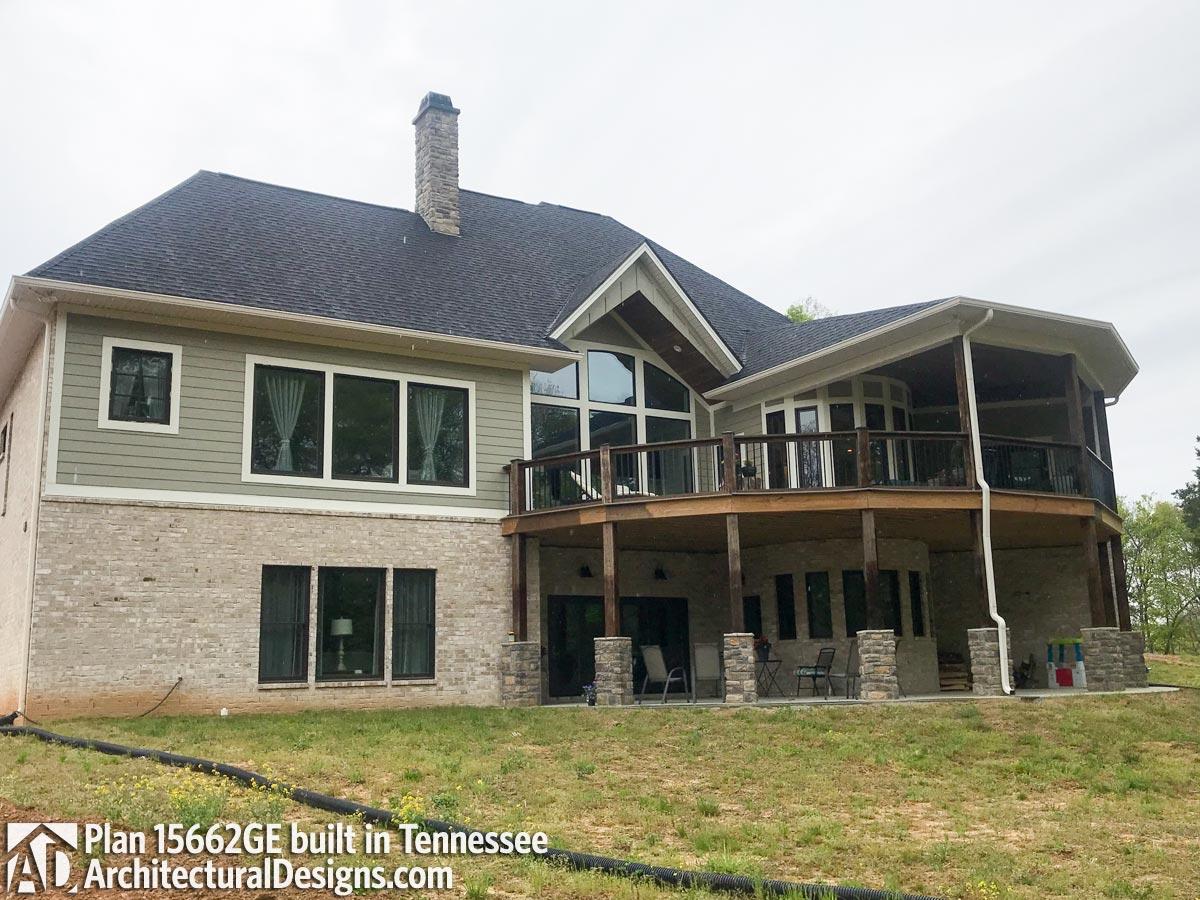

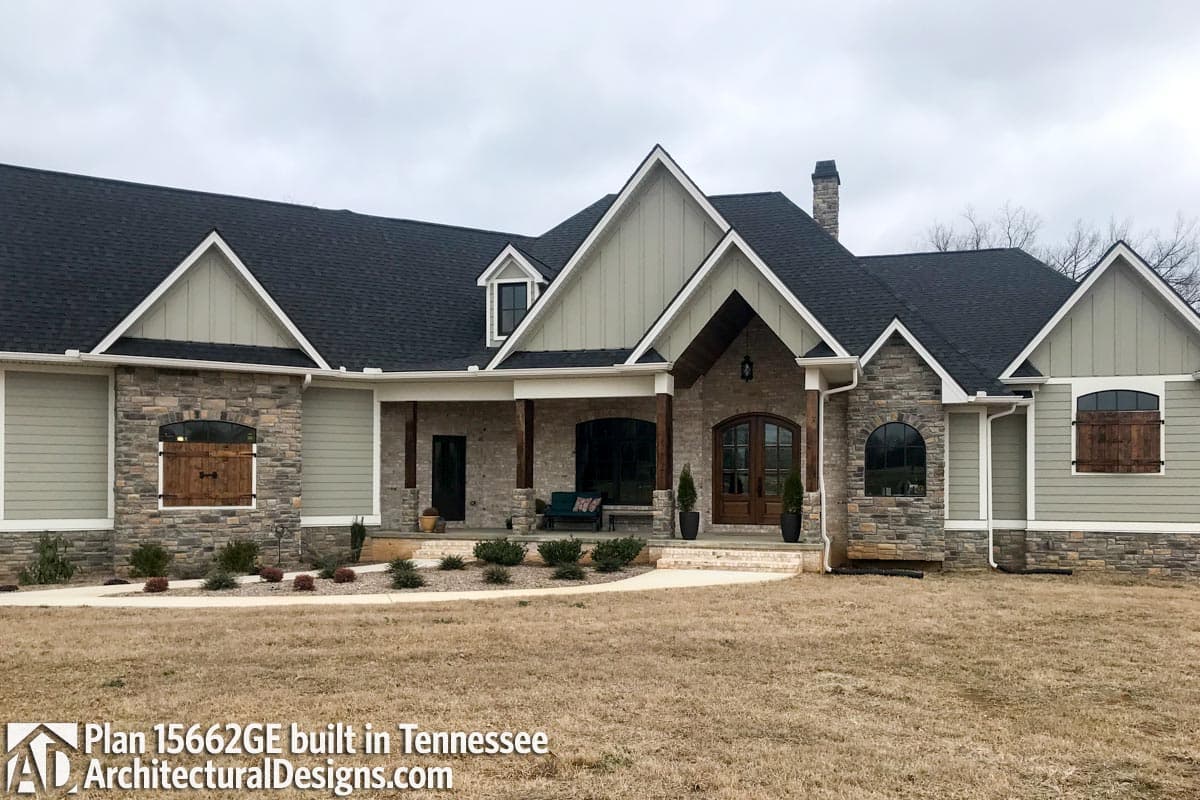

build gallery item - House Plan 15662GE Comes to Life in Tennessee

House Plan 15662GE Comes to Life in Tennessee

16

Photos

What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,202 sq. ft.

1st Floor

3,202 sq. ft.

Bonus

754 sq. ft.

Porch, Rear

302 sq. ft.

Deck

604 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, 5, or 6

Full bathrooms

2, 3, 4, or 5

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Daylight, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

104' 3"

Depth

83' 10"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

750 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

20' 0''

Foyer

Vaulted

15' 0''

Master Bath

Barrel Vaulted

12' 0''

Master Bedroom

Tray

13' 0''

Guest Room

Vaulted

8' 1''

Family Room

Beamed

12' 0''

Nook

Vaulted

11' 0''

Study

Vaulted

13' 0''

Hearth Room

Beamed

12' 0''

Dining Room

Flat

11' 0''

Roof Details

Primary Pitch

10 on 12

Architectural Style

Craftsman

Square Footage Breakdown

Total Heated Area

3,202 sq. ft.

1st Floor

3,202 sq. ft.

Bonus

754 sq. ft.

Porch, Rear

302 sq. ft.

Deck

604 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, 5, or 6

Full bathrooms

2, 3, 4, or 5

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Daylight, Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

104' 3"

Depth

83' 10"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

750 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

20' 0''

Foyer

Vaulted

15' 0''

Master Bath

Barrel Vaulted

12' 0''

Master Bedroom

Tray

13' 0''

Guest Room

Vaulted

8' 1''

Family Room

Beamed

12' 0''

Nook

Vaulted

11' 0''

Study

Vaulted

13' 0''

Hearth Room

Beamed

12' 0''

Dining Room

Flat

11' 0''

Roof Details

Primary Pitch

10 on 12

Architectural Style

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping!Let's go back to the top.
