Plan 15623GE
Sweeping Views and Alternate Versions Abound
Heated S.F.
3,126
Beds
3-5
Baths
2.5 - 4.5
Stories
1
Cars
2
Plan Details

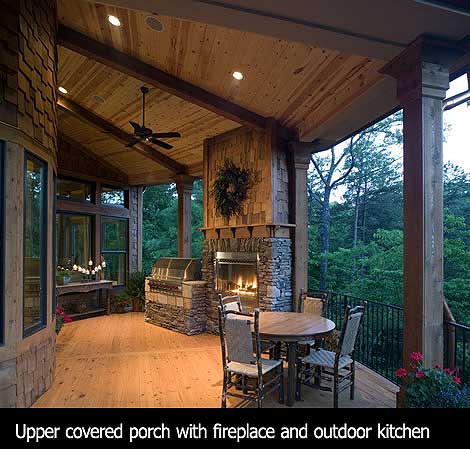

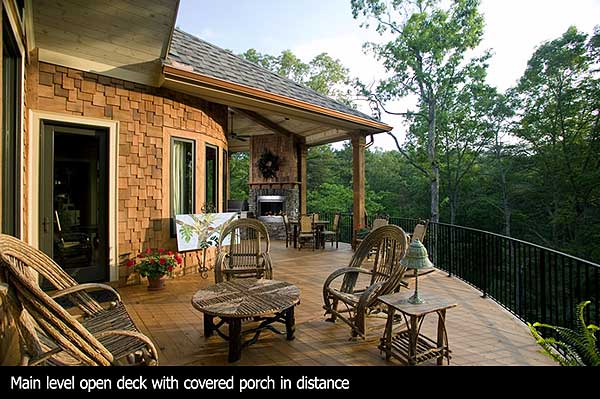

  • Promoting open living spaces, this floor plan provides abundant areas to enjoy the views and elegantly blends outdoor and indoor living spaces. With a front and rear sweeping porch with grilling area and fireplace, this house plan captures the essence of what it means to embrace the great outdoors.

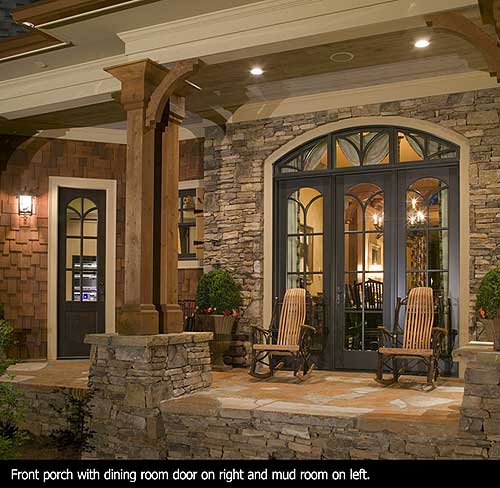

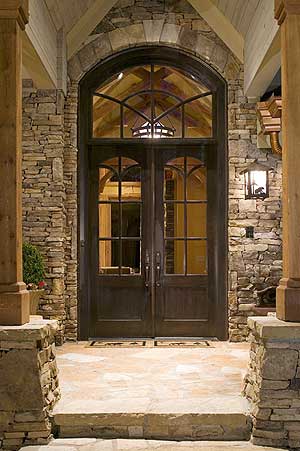

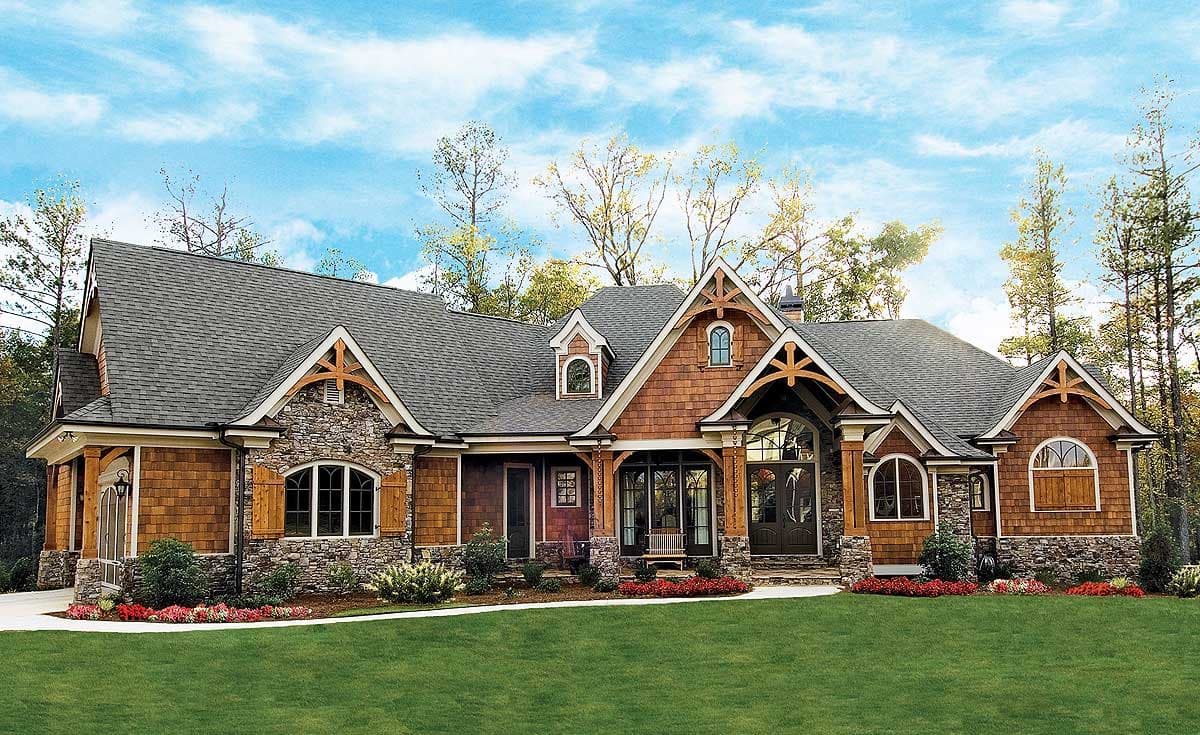

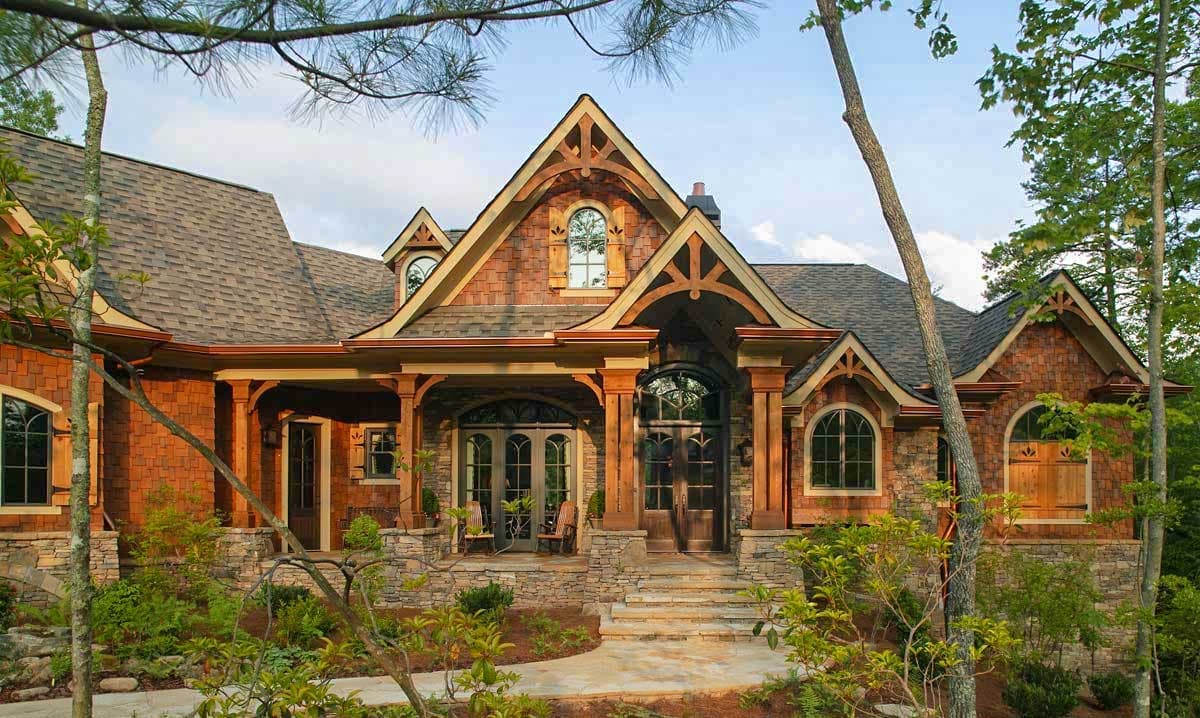

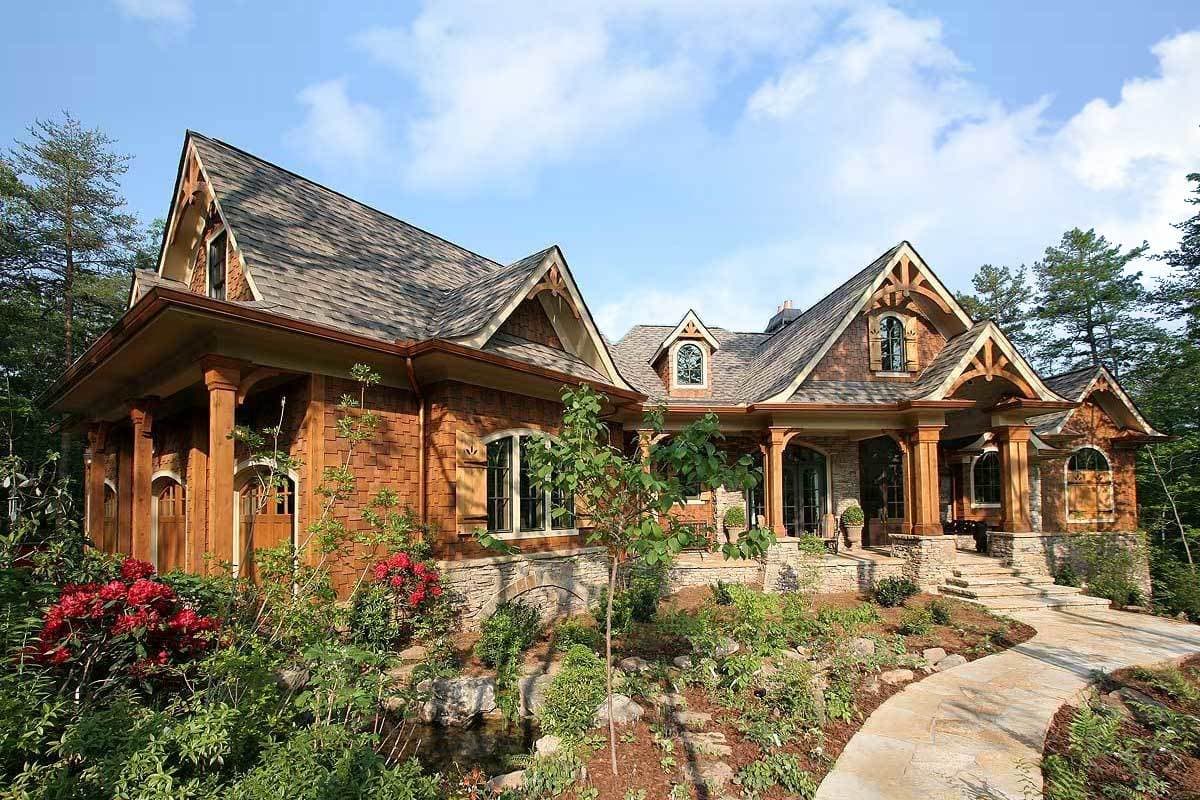

  • Approaching the front porch entry, you are drawn into rustic elegance beneath soaring timber trusses framing 8'-high glass doors and a true mountain craftsman facade.

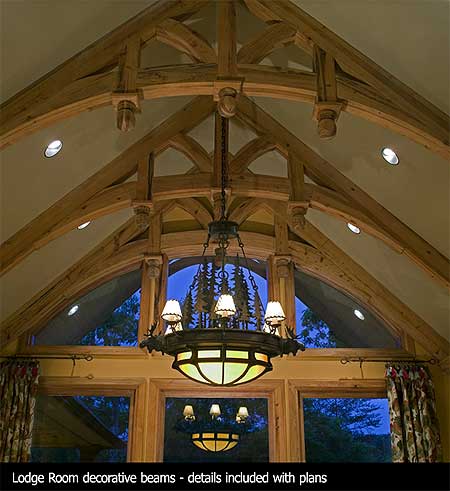

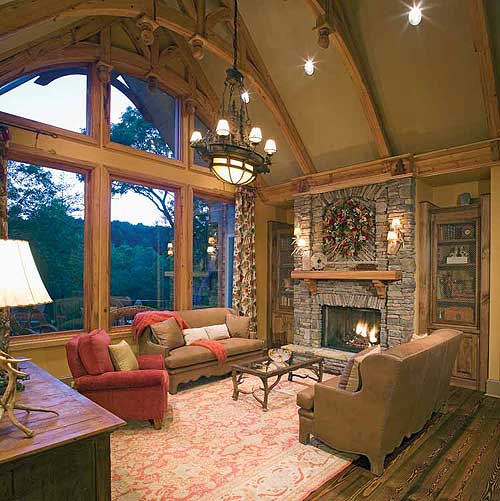

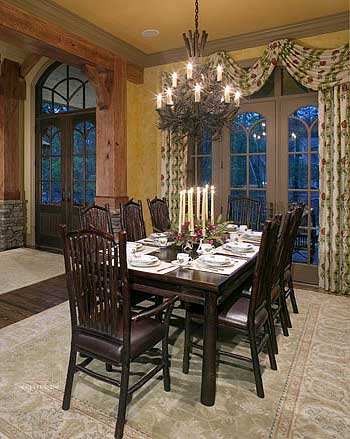

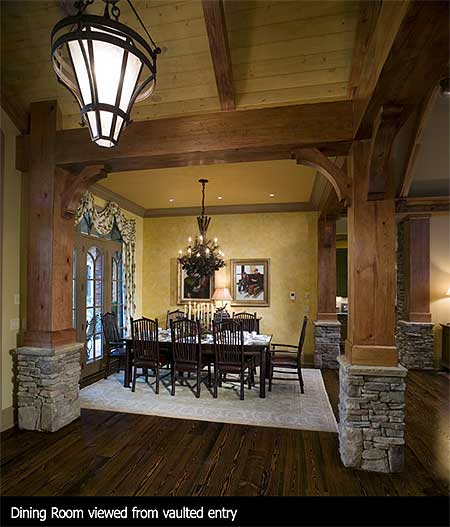

  • Upon entry into the home, a vaulted foyer and adjacent dining room immediately greet guests. With a built-in fireplace and a vaulted ceiling, the lodge room features a wall of windows and boasts grandeur all around.

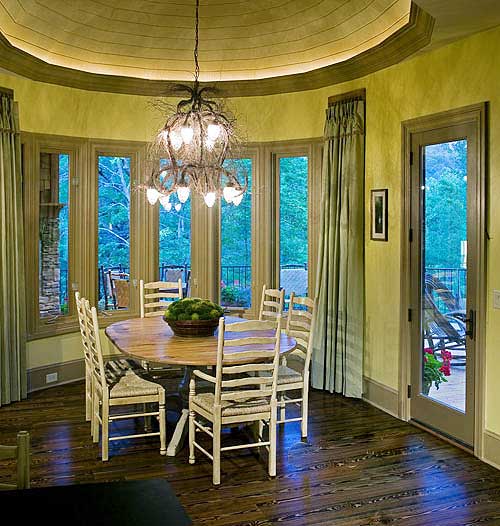

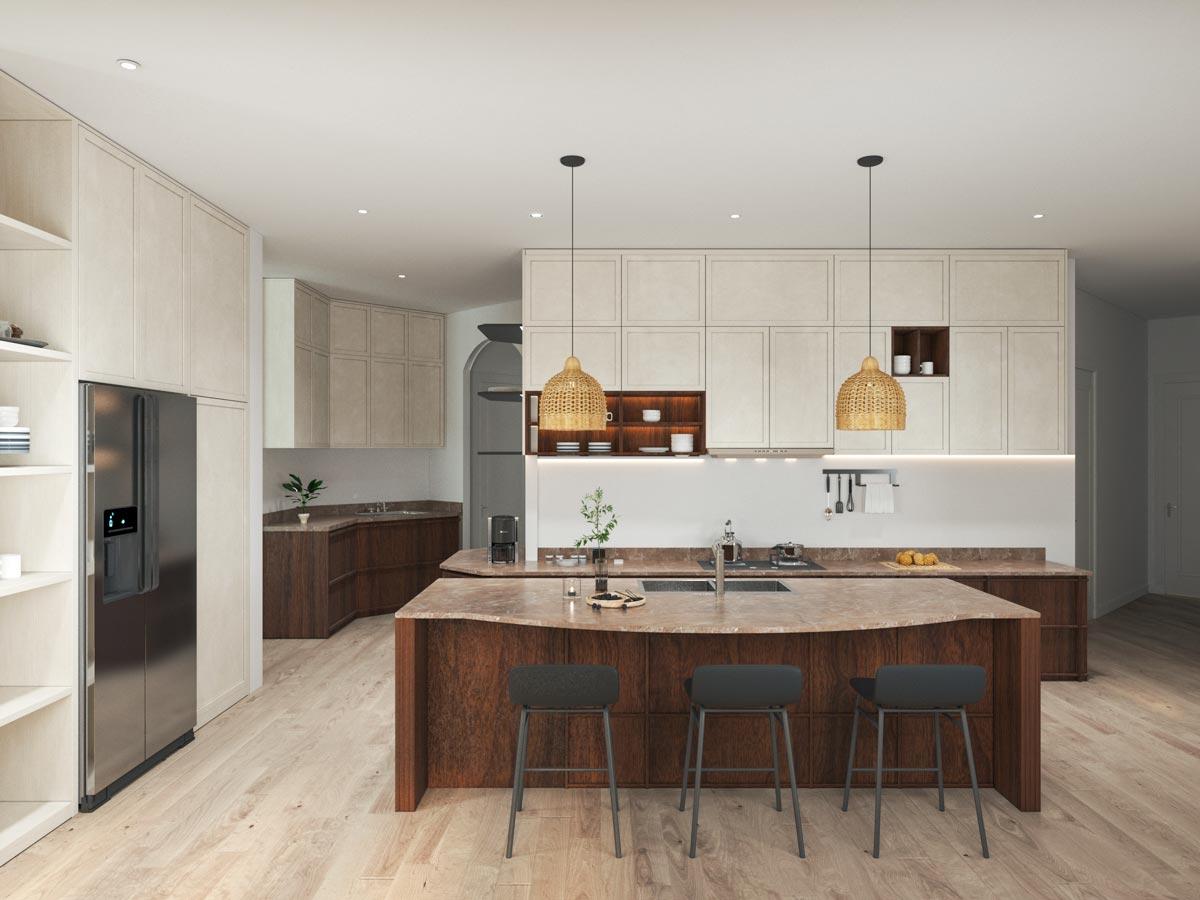

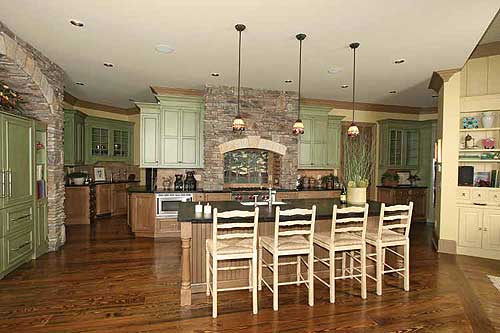

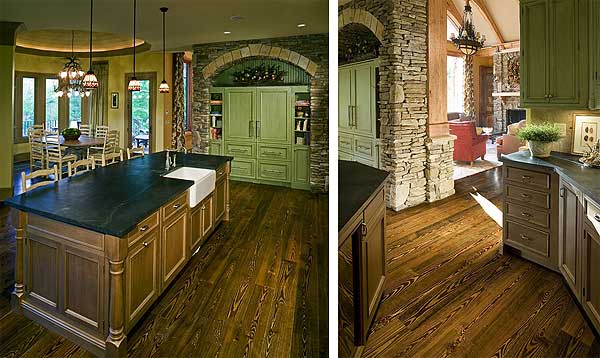

  • The breakfast room and kitchen are centrally-located and adjacent to several larger rooms promoting easy flow throughout the home. Generous mud and laundry rooms are near the kitchen, creating ample storage space.

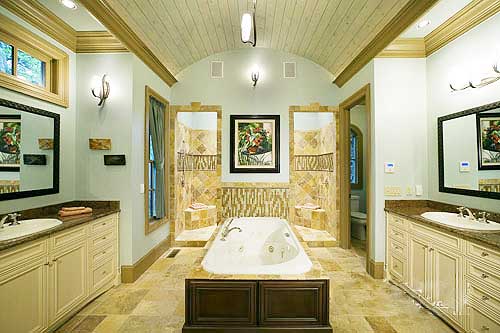

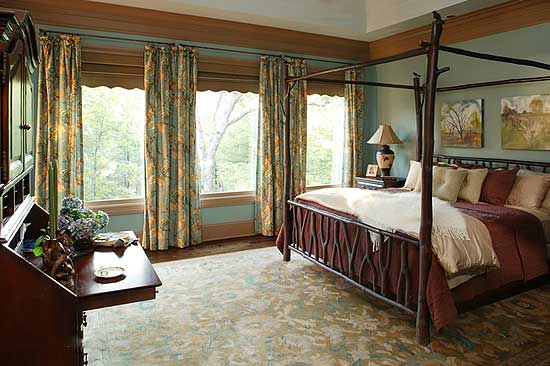

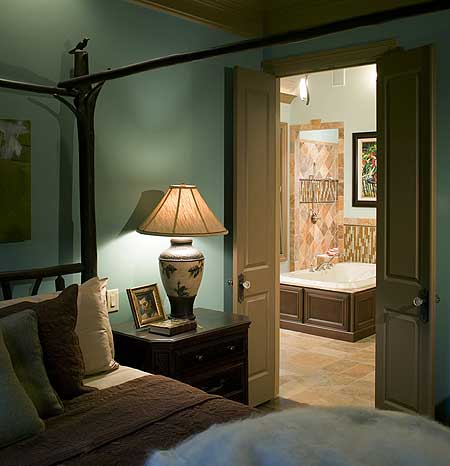

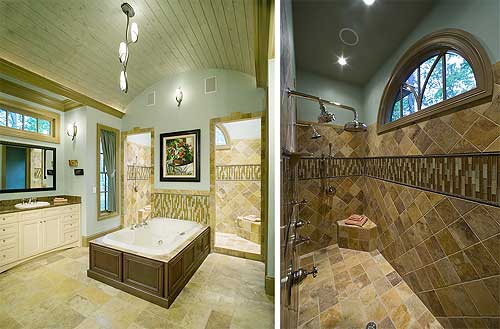

  • The master suite accesses the rear porch. Two more bedrooms are located across the home and share a bath.

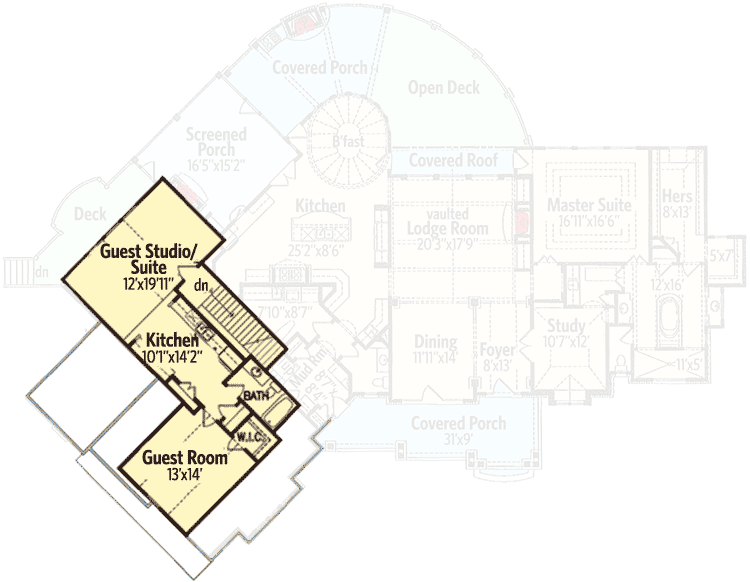

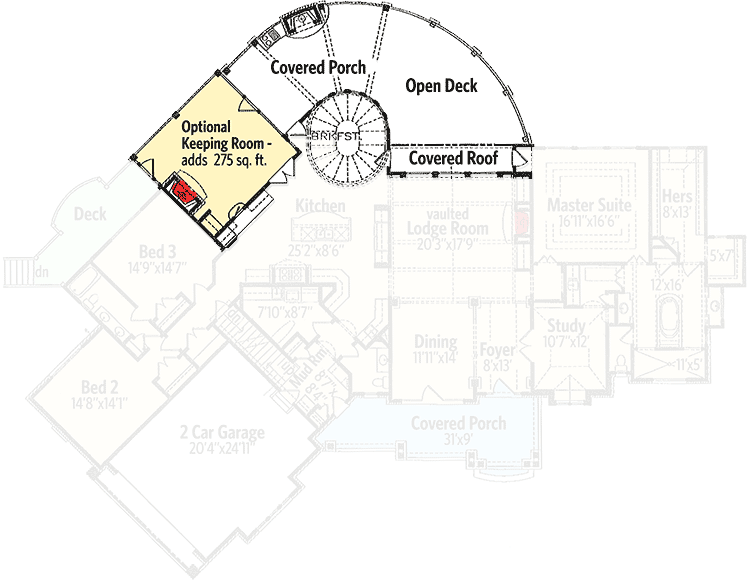

  • An optional second floor gets you a guest suite with kitchen and 732 sq. ft. of living space. And the optional Keeping Room adds 275 sq. ft. of living space.
  • Related Plans: Get a 3-car garage and a simpler upstairs with house plan 25646GE and a 2-car garage with 25684GE (3,572 sq. ft.). Save money by straightening the curved features with house plan 15689GE (upper loft) and 15793GE. Get two bedrooms down and two up with house plan 15662GE (3,202 sq. ft.).
  • See house plans 15617GE (hip roof) and 15651GE (gable roof; both 2,611 sq. ft.); 15626GE (2,587 sq. ft; 3-car garage) and 15624GE (2,343 sq. ft). Get a finished lower level with house plan 15622GE and 15697GE and a huge upper floor with house plan 15688GE.
What's Included
This plan set has 12 pages as follows:

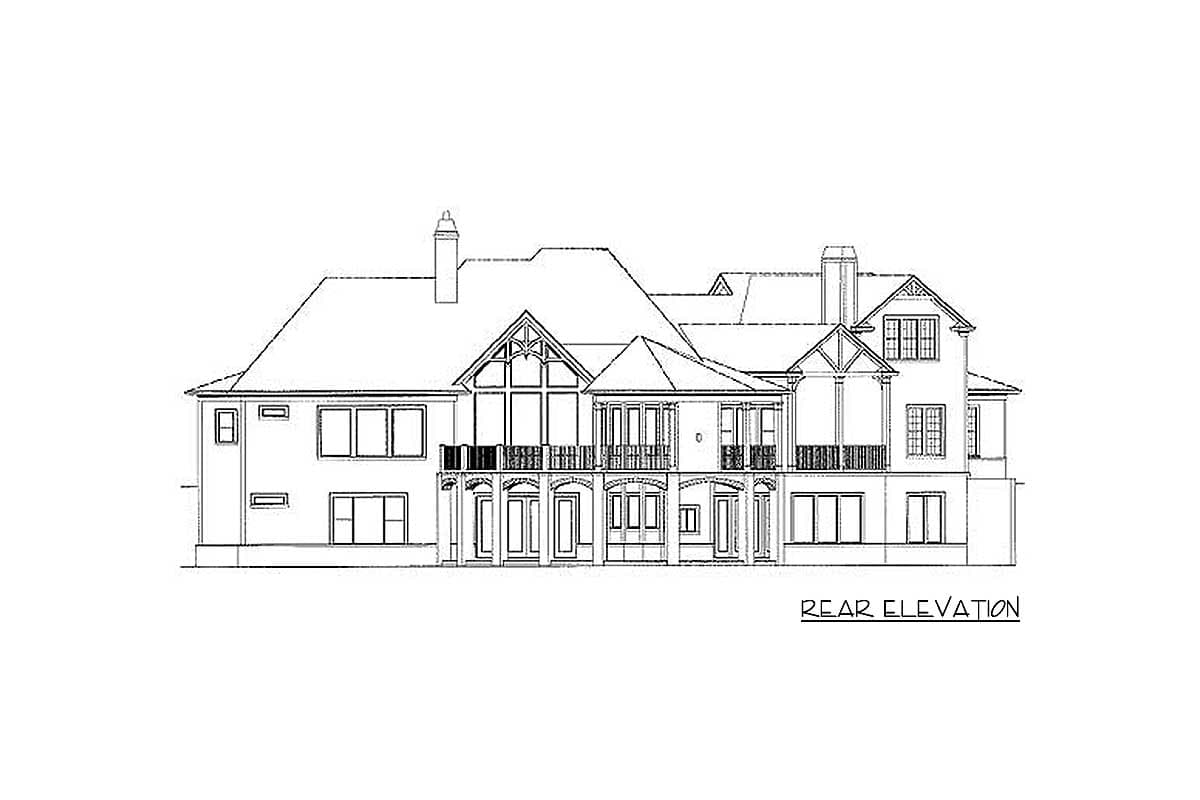

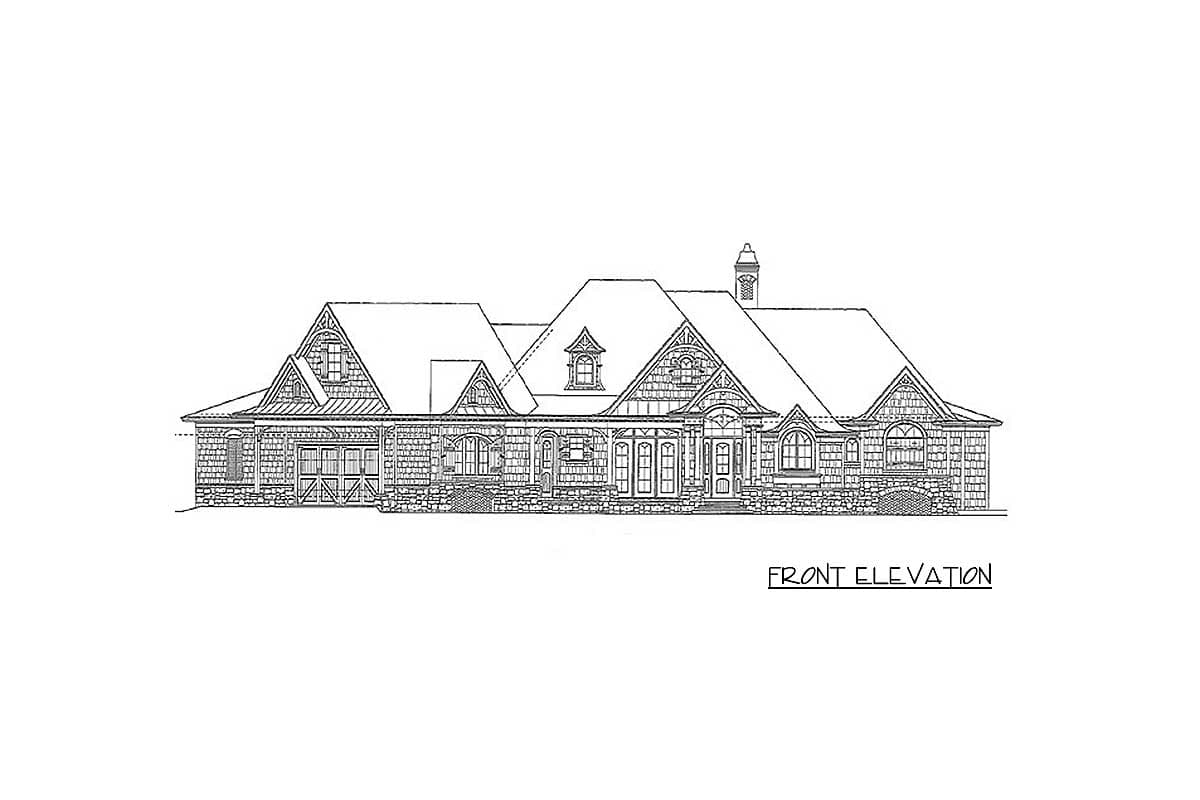

  1. Front and rear elevations
  2. First floor plan
  3. Optional 2nd floor plan / electrical plan
  4. Optional keeping room plan / electrical plan
  5. Foundation plan
  6. Left & right elevations
  7. Roof plan
  8. Detail sheet
  9. Detail sheet
  10. Detail sheet
  11. Building section
  12. Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Sweeping Views and Alternate Versions Abound

  • 3,126

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

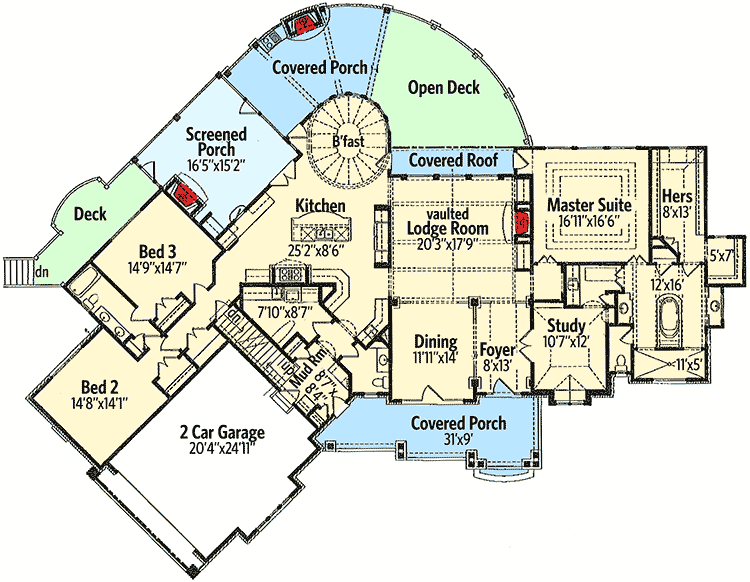

  • Main Level

  • Optional Keeping Room

  • Bonus

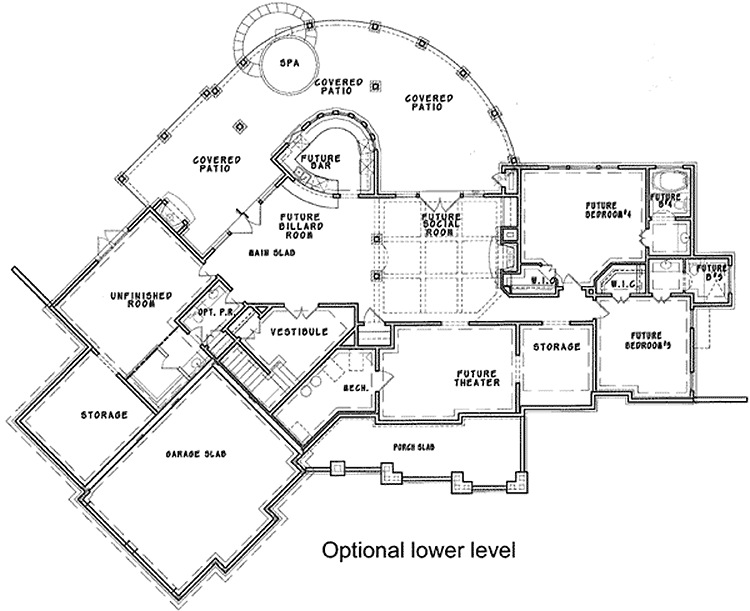

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,126 sq. ft.
  • 1st Floor: 3,126 sq. ft.

Dimensions

  • Width: 103' 8"
  • Depth: 83' 2"
  • Max ridge height: 28' 5"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 530 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"
